Parker Chelsea Wetline Hydraulic System

Quick Facts

Manufacturer: Parker Hannifin
Product Brand: Parker Chelsea
Product Type: Configurable commercial-truck wet-line hydraulic system
System Configurations: Two-line, three-line, and multi-application combination systems
Primary Components: Chelsea power take-off, hydraulic pump, reservoir, controls, hoses, fittings, filtration, couplers, and installation hardware
Reservoir Materials: Polyethylene, aluminum, or steel
Reservoir Configurations: Upright, saddle-mount, or side-mount designs
Dump-Pump Capability: Application-specific cast-iron pumps with pressure ratings up to 2,500 psi and flow up to approximately 33 GPM at 1,200 rpm
PTO Options: Chelsea PTOs for compatible manual, automated, and automatic transmissions
Common Applications: Dump trailers, dump trucks, lowboys, moving floors, live-bottom trailers, side dumps, roll-offs, and oil-transfer equipment
Primary Benefit: Provides a matched hydraulic power system using application-selected Parker and Chelsea components
Production Status: Current configurable system family; final specifications depend on the selected application and components

Overview

The Parker Chelsea Wetline Hydraulic System is a configurable hydraulic-power package for commercial trucks and tractors. It can supply the hydraulic flow needed to operate dump trailers, dump bodies, lowboys, moving-floor trailers, live-bottom equipment, roll-offs, oil-transfer systems, and other vocational equipment.

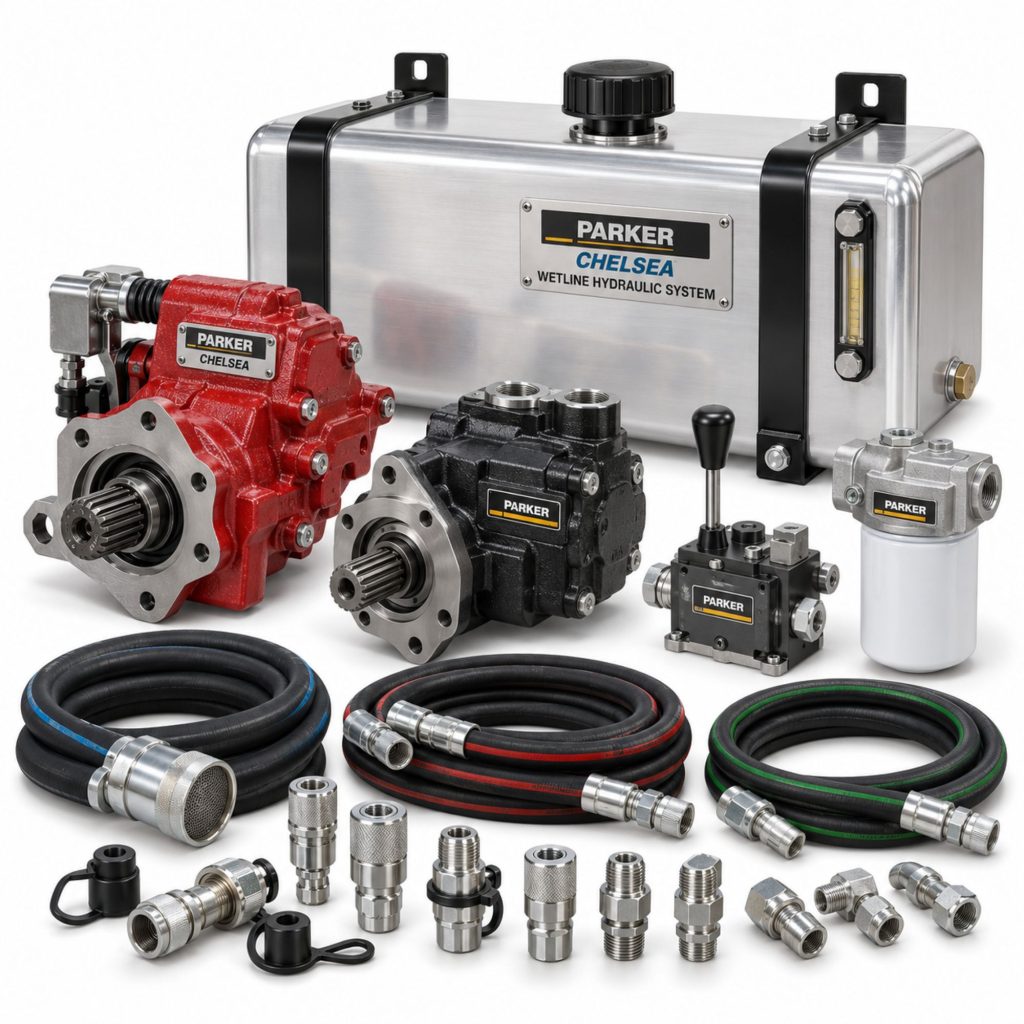

A complete system can combine a Chelsea power take-off with a Parker or Chelsea hydraulic pump, reservoir, directional controls, filters, hoses, fittings, quick-disconnect couplers, and mounting hardware. Selecting these components as one application-specific package helps ensure that their flow, pressure, rotation, mounting, and control requirements are compatible.

Parker provides wet-line configurations for both intermittent-duty dump applications and equipment requiring longer operating cycles. The final system must be matched to the truck’s transmission, hydraulic-equipment requirements, available chassis space, required operating pressure, flow rate, and duty cycle.

Parker also offers application-specific configuration resources that can produce a single-part-number kit for supported installations. Approved configurations may qualify for additional warranty coverage when installed and operated according to Parker requirements.

Key Characteristics

Complete configurable truck hydraulic system
Chelsea PTO matched to the vehicle transmission
Dump, gear, piston, and other application-specific pump options
Two-line and three-line dump configurations
Combination systems for multiple trailer applications
Polyethylene, aluminum, and steel reservoirs
Upright, saddle-mount, and side-mount reservoir designs
Direct- or remote-mounted hydraulic pumps
Air, cable, lever, electric, hydraulic, and electronic control options
Application-specific hose and fitting packages
Return-line and high-pressure filtration options
Quick-disconnect couplers for hydraulic trailers
Single-part-number kits available for supported applications

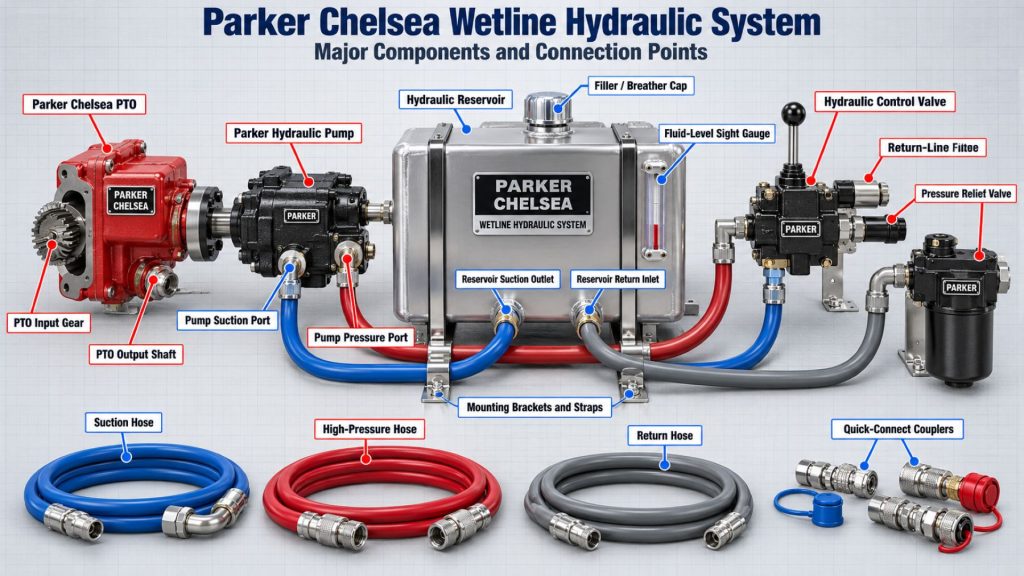

Major Components

Chelsea transmission power take-off
PTO shift valve or engagement control
Hydraulic dump, gear, or piston pump
Hydraulic-fluid reservoir
Reservoir mounting brackets and fasteners
Filler-breather assembly
Fluid-level and temperature sight gauge
Suction hose
High-pressure hose
Dedicated return hose on three-line systems
Hydraulic fittings and adapters
Quick-disconnect couplers
Directional-control valve
Pressure-relief valve
Return-line or high-pressure filter
Filter-restriction indicator or gauge
Cab-mounted control console
Air lines, wiring, or control cables
Body or trailer safety interlocks where specified

Product Type and Construction

The Parker Chelsea wet-line system is an engineered combination of hydraulic and power-transmission components rather than one standardized assembly. Each system is configured for a specific truck, transmission, and hydraulic application.

The Chelsea PTO transfers mechanical power from the transmission to the hydraulic pump. The pump converts this mechanical input into hydraulic flow, while the reservoir stores and conditions the hydraulic fluid.

Parker Chelsea reservoirs are available in polyethylene, aluminum, and steel. Mounting configurations can include upright, saddle-mount, and side-mount designs. Many reservoirs include internally diffused ports, mounting hardware, a filler-breather, and an oil-level and temperature sight gauge.

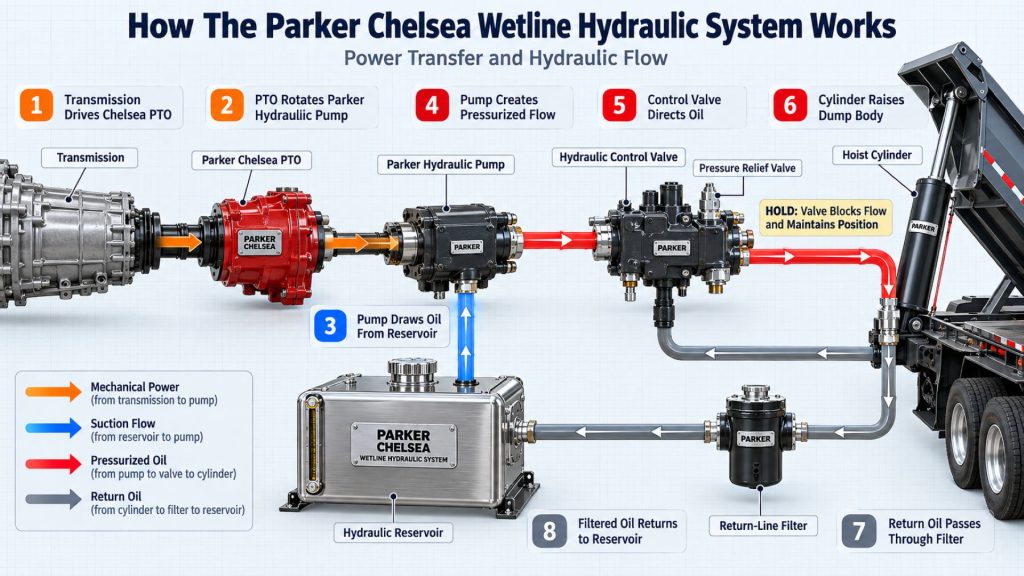

How the Wet-Line Hydraulic System Works

When the Chelsea PTO is engaged, the transmission drives the hydraulic pump. The pump draws fluid from the reservoir through the suction hose and sends pressurized flow toward the truck body, trailer, hydraulic cylinder, or motor.

In a dump application, the control system directs oil to a single-acting telescopic cylinder. As the cylinder extends, the dump body or trailer rises. An integrated load check or separate control valve helps prevent reverse flow while the equipment is raised.

When the operator selects lower, the cylinder retracts as the body descends and hydraulic fluid returns toward the reservoir. A three-line system provides a dedicated return route, while a two-line system shares part of the pump plumbing for both supply and return operation.

In moving-floor, live-bottom, lowboy, oil-transfer, and other specialized systems, the pump may supply a hydraulic motor, double-acting cylinder, or application-specific control valve instead of a conventional dump cylinder.

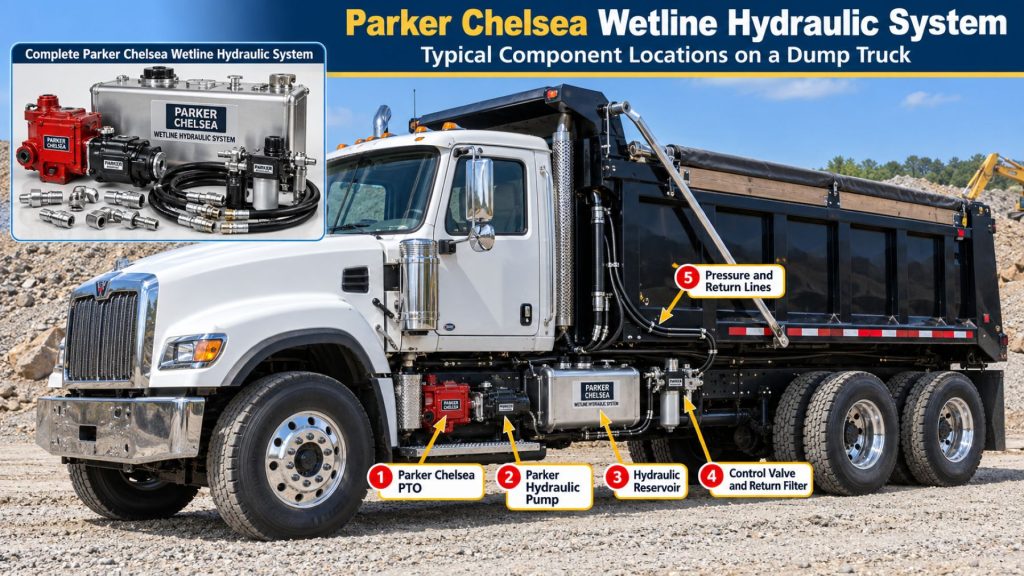

Position and Function Within the Vehicle

The Chelsea PTO is installed on a compatible transmission opening or other approved drive location. The pump may connect directly to the PTO or be remotely mounted and driven through a short driveshaft.

The reservoir is normally installed behind the cab or along the chassis frame. Saddle-mount designs can fit across the frame, while side-mount or upright reservoirs may be positioned to preserve space for fuel tanks, batteries, exhaust components, and other equipment.

Pressure and return connections are commonly placed near the rear of a tractor so the operator can connect the wet line to a hydraulic trailer. All hoses must accommodate normal suspension movement, cab movement, trailer articulation, and frame flex.

Common Specifications

System Type: Configurable commercial-truck wet-line hydraulic package
Power Source: Chelsea transmission power take-off
Hydraulic Circuits: Two-line, three-line, or application-specific combination system
PTO Types: Mechanical, powershift, countershaft, split-shaft, front-mount, and application-specific configurations
PTO Shift Options: Air, cable, lever, electric, hydraulic, or application-specific electronic control
Pump Types: Dump, fixed-displacement gear, piston, or application-specific hydraulic pump
Dump-Pump Pressure: Up to approximately 2,500 psi on applicable Chelsea cast-iron pump configurations
Dump-Pump Flow: Up to approximately 33 GPM at 1,200 rpm on applicable configurations
Reservoir Materials: Polyethylene, aluminum, or steel
Reservoir Mounting: Upright, saddle-mount, or side-mount
Filtration: Return-line, high-pressure, or application-specific filtration
Primary Applications: Dump, lowboy, moving-floor, live-bottom, roll-off, oil-transfer, and specialized mobile-hydraulic equipment

Exact flow, pressure, reservoir capacity, PTO ratio, pump displacement, hose size, relief setting, and duty-cycle ratings depend on the selected system. The configuration-specific Parker documentation must be reviewed before installation.

Flow, Pressure, and Operating Capacity

A Parker Chelsea wet-line system does not have one universal flow or pressure rating. Its operating capacity depends on the selected pump, PTO ratio, engine speed, reservoir, hoses, couplers, valves, filters, and driven equipment.

Applicable Chelsea cast-iron dump pumps can handle pressures up to approximately 2,500 psi and produce flow up to approximately 33 GPM at 1,200 rpm. Other Parker gear and piston pumps can provide different pressure, displacement, flow, and duty-cycle capabilities.

The pump must supply enough flow to produce the desired equipment speed without exceeding the capacity of the valves, cylinders, motors, filters, hoses, or quick couplers.

Maximum component ratings should not automatically be treated as continuous operating targets. The system should include suitable operating margin for pressure spikes, temperature changes, fluid viscosity, component wear, and changing loads.

Two-Line and Three-Line System Design

A two-line wet kit generally uses one suction connection between the reservoir and pump and one pressure-and-return connection between the pump and hydraulic equipment. It can serve low-usage dump applications when operated correctly.

In a two-line dump system, leaving the PTO and pump operating with the valve in neutral can cause fluid to recirculate internally. This creates heat and can shorten pump, seal, and hydraulic-fluid life.

A three-line system adds a dedicated return line from the pump or control valve to the reservoir. Parker recommends three-line systems for improved service life because the separate return route reduces restriction and decreases the risk of overheating the pump.

Benefits of a correctly configured three-line system can include:

Faster dump-body or trailer lowering cycles
Reduced hydraulic restriction during return flow
Lower system operating temperature
Improved return-line filtration options
Reduced heat-related pump wear
Improved service life in frequently used dump applications

PTO, Pump, and Transmission Integration

The Chelsea PTO must be matched to the exact transmission model, PTO opening, mounting position, input gear, required ratio, shift type, pump rotation, and available chassis clearance.

Chelsea PTO families support many manual, automated manual, and automatic transmissions. Depending on the application, the PTO may be mechanically shifted or use air, electric, hydraulic, or electronically managed engagement.

The PTO ratio establishes the relationship between engine or transmission speed and hydraulic-pump speed. An incorrect ratio can underdrive or overspeed the pump, produce unsuitable equipment speed, or exceed the PTO’s torque capacity.

The pump flange, shaft, rotation, displacement, pressure rating, and weight must also match the PTO output. Large or heavy direct-mounted pumps may require additional support according to Parker Chelsea instructions.

Reservoir Design and Capacity

Parker Chelsea reservoirs are available in polyethylene, aluminum, and steel. The correct material depends on weight targets, corrosion exposure, physical durability, installation location, cost, and fleet preference.

Available mounting designs include upright, saddle-mount, and side-mount configurations. Reservoir capacity must provide enough usable fluid for the hydraulic cylinder or motor while also allowing room for returning oil, thermal expansion, aeration control, and heat dissipation.

Available reservoir features may include:

Mounting brackets and installation hardware
Internally diffused hydraulic ports
Filler-breather assembly
Fluid-level sight gauge
Fluid-temperature indicator
Multiple suction and return ports
Drain port
Filter mounting provisions
Powder-coated steel components
Application-specific auxiliary vents

Hoses, Fittings, and Quick-Disconnect Couplers

Hydraulic hoses must be selected for the expected pressure, flow, temperature, fluid, movement, and environmental exposure. The suction hose must be large enough to supply the pump without excessive inlet vacuum or collapse.

High-pressure hoses may use swivel fittings to simplify installation and reduce twisting. Available fitting styles depend on the system and can include JIC, ORFS, NPT, SAE, flange, and other heavy-duty hydraulic connections.

Quick-disconnect couplers allow the tractor to connect to different hydraulic trailers. Coupler size and design must provide adequate flow without creating excessive restriction or pressure drop.

Pressure, return, and suction connections should be clearly identified. Reversed lines can cause reservoir overflow, pump damage, improper equipment movement, or dangerous pressure conditions.

Controls and Electronic Integration

Parker Chelsea offers PTO shift valves and controls for truck and mobile-equipment applications. Controls may be chassis-mounted, panel-mounted, or integrated into an application-specific cab console.

Control functions may include:

PTO engagement and disengagement
Hydraulic raise, neutral, and lower
Tailgate operation
Engine-speed control
PTO overspeed protection
Automatic PTO shutdown
Pressure selection
Equipment-position monitoring
Body-raised warning
Low-fluid or high-temperature warning
Transmission and parking-brake interlocks
Remote operating controls

Controls must provide positive indication of PTO engagement and hydraulic-valve position. Interlocks should prevent operation when the transmission, parking brake, or equipment status does not meet the system’s safety requirements.

Filtration, Cooling, and Fluid Management

Hydraulic contamination can damage the pump, control valves, cylinders, motors, seals, and couplers. Parker wet-line packages may use return-line, high-pressure, or application-specific filtration.

Coreless filter configurations may be used to handle the flow surges and pressure demands found in dump-truck and dump-trailer applications. The filter must be sized for the highest expected return flow, which may occur while a large dump cylinder retracts.

Hydraulic heat is created by internal leakage, hose restriction, valve pressure drop, continuous relief operation, and extended duty cycles. Systems operating moving floors, live bottoms, product pumps, or other long-cycle equipment may require an oil cooler and increased reservoir capacity.

The correct hydraulic fluid must provide suitable viscosity, anti-wear protection, oxidation resistance, temperature stability, and material compatibility.

Duty Cycle and Application Requirements

Dump trucks and end-dump trailers generally use intermittent-duty systems. The pump operates while the body is raised and lowered and is then disengaged after the cycle is complete.

Moving floors, live-bottom trailers, oil-transfer systems, and other motor-driven equipment may require longer operating periods. These applications need pumps, valves, filters, reservoirs, cooling, and PTOs rated for their duty cycles.

Parker identifies wet-line configurations for applications including:

Dump trailers
Dump trucks
Lowboy and gooseneck trailers
Moving-floor trailers
Live-bottom trailers
Side-dump trailers
Roll-off equipment
Oil-transfer systems
Combination trailer systems
Volvo I-Shift installations
Mack mDrive installations
Specialized vocational trucks

Mounting and Installation

Installation begins with confirming the truck, transmission, PTO opening, available mounting arrangements, pump requirements, reservoir location, hose routing, controls, and driven equipment.

The Chelsea PTO must be installed with the correct gaskets, backlash, mounting hardware, lubrication, electrical or pneumatic connections, and transmission clearance. Direct-mounted pumps require correct spline engagement and may require support depending on their size and weight.

Remote-mounted pumps require an aligned, correctly phased, and guarded driveshaft. Excessive working angles or misalignment can damage the PTO, pump bearings, shafts, seals, and mounting brackets.

The reservoir must be securely mounted without interfering with the driveline, exhaust, suspension, fuel tanks, batteries, air reservoirs, tires, or trailer. Frame modifications must follow the truck manufacturer’s approved procedures.

Vehicle, Transmission, and Trailer Compatibility

Compatibility depends on the truck manufacturer, model, model year, engine, transmission, PTO opening, chassis layout, electronic architecture, available air supply, and intended hydraulic equipment.

Trailer or body compatibility depends on:

Required hydraulic flow
Maximum operating pressure
Single- or double-acting circuit
Hydraulic-cylinder displacement
Hydraulic-motor requirements
Required duty cycle
Two-line or three-line plumbing
Quick-coupler size and type
Pressure and return connection locations
Hydraulic-fluid compatibility
Control-valve requirements
Cooling and filtration requirements

Similar-looking couplers or hoses do not confirm compatibility. The complete hydraulic specifications must be verified before connecting or operating a trailer.

Common Applications

End-dump trailers
Dump trucks
Dump bodies
Side-dump trailers
Walking-floor trailers
Moving-floor trailers
Live-bottom trailers
Ejector trailers
Lowboy and gooseneck trailers
Roll-off trucks
Oil-transfer equipment
Product-pumping systems
Fracturing-support trucks
Specialized vocational equipment

Advantages

Provides a complete application-specific hydraulic package
Combines Chelsea PTOs with Parker hydraulic components
Reduces uncertainty when matching individual components
Two-line and three-line configurations are available
Supports intermittent- and continuous-duty applications
Multiple pump technologies are available
Polyethylene, aluminum, and steel reservoirs are available
Multiple reservoir mounting arrangements support different chassis layouts
Three-line systems can reduce operating temperature
Application-specific filtration protects hydraulic components
Single-part-number kits simplify ordering and installation
Approved applications may qualify for extended warranty coverage

Limitations or Considerations

Every system must be configured for the exact truck and equipment
Incorrect PTO selection can damage the transmission, PTO, or pump
Two-line dump systems can overheat if operated improperly
Reservoir and hose sizing directly affect performance
Hydraulic components add weight and reduce available frame space
Quick couplers introduce potential contamination and restriction points
Continuous-duty applications may require cooling and larger reservoirs
Trailer hydraulic requirements are not standardized
Incorrect pressure and return connections can damage equipment
Hydraulic leaks create safety and environmental risks
Complex combination systems require trained operators
Installation should be completed by a qualified PTO and hydraulic-equipment specialist

Driver and Operator Experience

A properly configured Parker Chelsea wet-line system should provide predictable equipment speed and control at the designated engine rpm. PTO engagement and hydraulic-valve status should be clearly visible to the operator.

Drivers should monitor for unusual pump noise, hydraulic vibration, slow equipment movement, excessive oil temperature, leaking couplers, damaged hoses, warning indicators, and unexpected equipment movement.

The operator should disengage the PTO when hydraulic power is no longer needed. Unnecessary pump operation wastes fuel, creates heat, and increases wear.

Connecting and Operating the Wet-Line System

Operators must follow the truck, transmission, PTO, wet-line, trailer, and body manufacturers’ instructions. A general operating sequence includes:

Park the truck and trailer on firm, level ground when possible.
Apply the parking brakes and secure the vehicle.
Inspect the reservoir, hoses, fittings, and couplers.
Clean the quick-disconnect couplers before connection.
Connect the pressure and return hoses to their correct ports.
Confirm that every coupler is fully engaged.
Check the hydraulic-fluid level.
Verify that people and obstructions are clear of the equipment.
Place the transmission and engine controls in the required condition.
Engage the Chelsea PTO using the approved procedure.
Operate the hydraulic control smoothly.
Monitor equipment movement, pressure, temperature, and system sound.
Return the control to neutral after completing the hydraulic function.
Lower the equipment fully and disengage the PTO before travel.
Relieve trapped pressure before disconnecting the couplers.

This general overview does not replace manufacturer instructions, fleet procedures, operator training, or jobsite safety requirements.

Inspection and Wear Points

Chelsea PTO housing and mounting fasteners
PTO shift system and indicator
PTO output shaft and pump spline
Hydraulic-pump housing and shaft seal
Remote pump driveshaft and guard where equipped
Reservoir body, brackets, and straps
Filler-breather assembly
Oil-level and temperature sight gauge
Suction hose and fittings
Pressure and return hoses
Quick-disconnect couplers
Directional-control valve
Pressure-relief valve
Filter housing and restriction indicator
Control-console switches and valves
Air lines, wiring, and control cables
Hydraulic cylinders and motors
Equipment pivots and mechanical supports

Lubrication and Hydraulic-Fluid Requirements

The hydraulic fluid lubricates the pump, valves, cylinders, motors, seals, and other internal components. The fluid must meet the viscosity, anti-wear, temperature, oxidation, and material-compatibility requirements of the complete system.

The hydraulic pump must not be operated dry. The pump and suction circuit should be filled and primed according to Parker instructions before initial startup or after service that drains the inlet circuit.

Remote pump driveshafts, universal joints, external control pivots, and other mechanical components should be lubricated according to their individual maintenance schedules.

Maintenance and Ownership Notes

Routine maintenance should include checking hydraulic-fluid level, inspecting for leaks, cleaning the reservoir breather, servicing filters, examining hoses and couplers, testing controls, and inspecting PTO and pump mounting.

Quick-disconnect couplers should be cleaned before every connection and protected with caps when disconnected. Contamination entering through an open coupler can damage the pump, valve, cylinder, or hydraulic motor.

If a pump or motor fails internally, the reservoir, hoses, valves, and remaining components should be inspected and cleaned before a replacement is installed.

Record the complete PTO, pump, reservoir, valve, filter, hose, fitting, and coupler part numbers. Replacement parts should be identified through the original Parker Chelsea build information whenever possible.

Common Wet-Line and Hydraulic-System Problems

Hydraulic equipment will not operate: An unengaged PTO, incorrect control position, low fluid level, disconnected coupler, failed pump, broken drive, or obstructed hose may prevent operation.
Slow hydraulic operation: Low pump speed, an incorrect PTO ratio, worn pump, restricted hose, clogged filter, cold fluid, internal leakage, or excessive load may reduce performance.
Excessive hydraulic heat: Prolonged two-line neutral operation, extended relief-valve operation, restricted return flow, excessive pump displacement, internal leakage, or insufficient reservoir capacity may create heat.
Pump noise or cavitation: Low fluid level, a restricted suction hose, clogged breather, cold fluid, excessive pump speed, an inlet leak, or a collapsing hose may cause noise.
Oil leakage at quick couplers: Damaged seals, contamination, incompatible couplers, hose strain, loose fittings, or trapped pressure may cause leakage.
Oil discharged from the reservoir breather: Overfilling, aeration, reversed hoses, excessive return velocity, inadequate diffusion, or restricted tank venting may force fluid from the breather.
PTO will not engage: Insufficient air pressure, electrical failure, damaged controls, an unmet transmission interlock, incorrect lubrication, or internal PTO damage may be responsible.
Body or trailer drifts downward: Cylinder leakage, control-valve leakage, a failed load check, damaged seals, or an external hose leak may allow movement.
Filter enters bypass repeatedly: Contaminated fluid, excessive return flow, an undersized filter, cold oil, incorrect filter media, or internal component wear may create restriction.

Safety and Service Precautions

Never work beneath a raised dump body, trailer, platform, or attachment unless it is secured with an approved mechanical support. Hydraulic pressure alone must never be trusted to support raised equipment.

Disengage the PTO, shut down the engine, secure the vehicle, lower or support the equipment, and relieve stored hydraulic pressure before opening the system.

Never use a hand to search for a hydraulic leak. High-pressure fluid can penetrate skin and requires immediate emergency medical treatment.

Keep people, tools, clothing, and equipment away from rotating PTO shafts, pump driveshafts, and couplings. All exposed rotating components require suitable guarding.

Do not operate raised dump equipment near overhead power lines, on unstable ground, during unsafe wind conditions, or where shifting cargo can overturn the vehicle.

Identification Information

A Parker Chelsea wet-line system should be identified through its complete build information rather than by the wet-line name alone.

Truck manufacturer, model, model year, and VIN
Transmission manufacturer and model
Chelsea PTO series and complete model number
PTO ratio, output, and shift type
Hydraulic-pump manufacturer and model
Pump displacement, rotation, and mounting type
Reservoir material, capacity, and mounting configuration
Directional-control valve model
Pressure-relief setting
Filter model and replacement element number
Hose sizes and pressure ratings
Quick-disconnect coupler type and size
Two-line, three-line, or combination configuration
Hydraulic-fluid specification
Trailer or body hydraulic requirements
Complete Parker kit or configuration number

Buying Considerations

Identify the exact truck transmission
Confirm the available PTO opening and mounting position
Determine the required hydraulic flow
Determine the maximum operating pressure
Confirm the required duty cycle
Select a two-line, three-line, or combination system
Choose the correct Chelsea PTO series and ratio
Match the pump displacement, rotation, shaft, and flange
Select the correct reservoir capacity
Choose polyethylene, aluminum, or steel construction
Select upright, saddle-mount, or side-mount installation
Confirm available frame and cab clearance
Size the suction, pressure, and return hoses
Match the trailer couplers and hydraulic fluid
Select adequate filtration and cooling
Choose the proper controls and safety interlocks
Confirm that all components share compatible ratings
Use an authorized Parker distributor or qualified wet-line installer

Variants and Configurations

Two-line dump-trailer system
Three-line dump-trailer system
Dump-truck system
Side-dump system
Lowboy or gooseneck hydraulic system
Moving-floor system
Live-bottom system
Oil-transfer system
Standard combination system
Premium combination system
Automatic combination system
Mack mDrive application kit
Volvo I-Shift application kit
Direct-mount hydraulic pump
Remote-mount hydraulic pump
Polyethylene reservoir
Aluminum reservoir
Steel reservoir
Upright, saddle-mount, or side-mount reservoir

Comparison to Similar Equipment

Compared with the Muncie WETLINE Hydraulic System, the Parker Chelsea system provides an alternative complete package based on Chelsea PTOs and Parker hydraulic components. The best choice depends on the transmission, application, distributor support, component specifications, and fleet preference.

Compared with the Permco DM-640 Dump Pump, the Parker Chelsea wet-line system includes the broader group of components needed to power the truck or trailer. The Permco DM-640 is an individual pump-and-valve assembly.

Compared with the Parker F1 Hydraulic Pump, the wet-line system includes the PTO, reservoir, valves, hoses, fittings, filtration, and controls needed to use an appropriate pump on a commercial vehicle.

Compared with a system assembled from unrelated components, a Parker kit can simplify selection, ordering, installation planning, documentation, and warranty management.

Best Fit For

Commercial tractors regularly pulling hydraulic trailers
Dump trucks and dump trailers
Fleets seeking a matched Chelsea PTO and Parker hydraulic package
Applications requiring two-line or three-line plumbing
Moving-floor and live-bottom operations requiring a suitable continuous-duty system
Lowboy and gooseneck trailer operators
Oil-transfer and specialized hydraulic applications
Trucks requiring application-specific reservoir mounting
Operators wanting a configurable single-part-number kit
Fleets with access to Parker Chelsea service and distributor support

Related Vehicle and Trailer Types

Related Truck and Trailer Models

Related PTO and Hydraulic System Types

Related PTO and Hydraulic Products

Related Equipment Systems

Related Guides

Regulatory and Compliance Notes

Installing a Parker Chelsea wet-line system does not increase the truck’s certified gross vehicle weight rating, gross axle weight ratings, payload capacity, or legal road-weight limits.

The completed installation must preserve safe operation of the transmission, driveline, brakes, steering, suspension, frame, electrical system, exhaust, fuel system, and air system.

Frame drilling, welding, reinforcement, and reservoir mounting must follow approved vehicle-manufacturer and body-builder procedures. Hydraulic hoses, fittings, valves, and cylinders must carry suitable pressure and temperature ratings.

Hydraulic-fluid leaks and spills may be subject to workplace, environmental, and roadway regulations. Fleets should maintain proper fluid-containment, cleanup, and reporting procedures.

Real World Operating Notes

The most successful wet-line installations begin with the trailer or body requirements rather than with a preferred pump. Required flow, pressure, fluid volume, duty cycle, and couplers should be identified before the PTO and reservoir are selected.

A high-output pump paired with restrictive hoses, small couplers, or an undersized filter can produce heat and poor equipment performance even when the pump itself is operating correctly.

Drivers should never assume that two hydraulic trailers are interchangeable because their couplers connect. The trailers may require different pressure, flow, fluid, return plumbing, or operating procedures.

A three-line conversion must include the correct pump or valve arrangement, dedicated return hose, reservoir connection, hose sizing, and filtration. Adding a third hose without configuring the remaining system does not create a safe three-line installation.

Frequently Asked Questions

What is the Parker Chelsea Wetline Hydraulic System?

It is a configurable truck hydraulic package that can combine a Chelsea PTO with a hydraulic pump, reservoir, controls, hoses, fittings, filtration, and trailer connections.

What equipment can the system operate?

Applications can include dump trucks, dump trailers, lowboys, moving floors, live bottoms, side dumps, roll-offs, oil-transfer equipment, and other vocational systems.

What is the difference between a two-line and three-line wet kit?

A three-line kit uses a dedicated return hose to route hydraulic fluid back to the reservoir. This can reduce return restriction and help the system operate cooler.

Does Parker recommend three-line dump systems?

Yes. Parker materials recommend three-line systems to reduce the risk of pump overheating and improve service life in dump applications.

What reservoir materials are available?

Parker Chelsea offers polyethylene, aluminum, and steel wet-line reservoirs.

What reservoir mounting options are available?

Available configurations include upright, saddle-mount, and side-mount reservoirs.

Can one wet-line system operate multiple trailer types?

It can when the complete system is designed for the pressure, flow, controls, cooling, filtration, and duty cycles required by each trailer. Parker offers application-specific combination systems.

Can a standard dump system operate a moving-floor trailer?

Not automatically. Moving floors normally require a continuous-duty pump and hydraulic system selected for their operating pressure, flow, cooling, and cycle duration.

Why does a wet-line system become hot?

Common causes include prolonged two-line neutral operation, running over the relief valve, restricted hoses or filters, excessive pump flow, internal leakage, low fluid level, or inadequate reservoir and cooling capacity.

How can the correct replacement components be identified?

Use the complete Parker kit number along with the Chelsea PTO model, pump model, reservoir information, valve number, filter element, hose sizes, and trailer hydraulic requirements.

Availability and Where to Find

Parker Chelsea wet-line systems and replacement components may be available through Parker distributors, Chelsea PTO specialists, commercial-truck equipment dealers, hydraulic-system installers, trailer dealers, body builders, and heavy-duty parts suppliers.

Availability and pricing depend on the transmission, PTO, pump, reservoir, valves, controls, filtration, hoses, fittings, couplers, and mounting requirements. Buyers should obtain a complete application-specific build rather than ordering a generic wet kit.

Current product information, application resources, and distributor support are available through the Parker Truck Products page, the Parker Truck Resources page, and the Parker Chelsea Products Division.

Support Trucking Families

Truck Equipment Atlas supports the mission of Grey Cross, a nonprofit dedicated to helping families of truck drivers who lose their lives while on the road. As the site grows, part of its mission is to bring awareness and support to these families.

Podcast or Video Section

Learn More Through Audio and Video

Truck Equipment Atlas will continue expanding with podcast episodes, interviews, and equipment breakdowns to help drivers and fleets better understand trucks and equipment.

Follow the Growth of Truck Equipment Atlas

Truck Equipment Atlas continues to expand with new truck profiles, trailer coverage, diesel engine pages, equipment system resources, manufacturer information, and educational guides.

Visit our Site Updates page to explore recent additions, project milestones, and upcoming resources as we continue building one of the industry’s growing commercial trucking equipment reference libraries.

View the Latest Site Updates: Truck Equipment Atlas Site Updates
