Suspension Systems

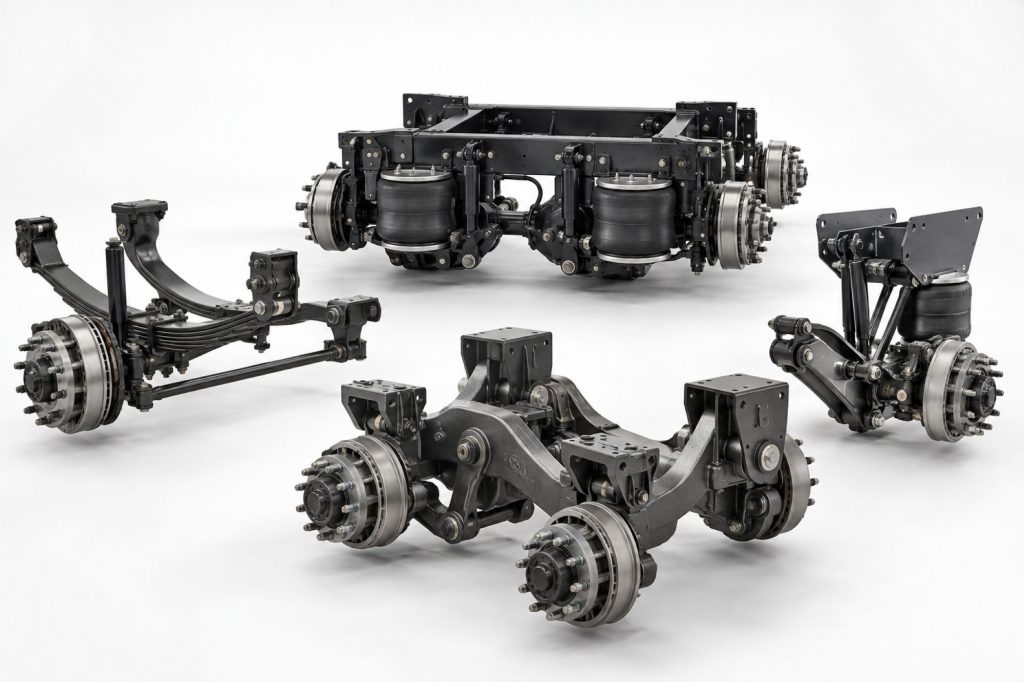

Commercial truck and trailer suspension systems support vehicle weight, connect the axles to the chassis, absorb road impact, control axle movement, and help maintain stability, ride quality, tire contact, and load distribution.

Truck Equipment Atlas covers air suspensions, mechanical suspensions, front suspensions, rear suspensions, auxiliary and lift-axle suspensions, and trailer suspension systems used throughout medium-duty, heavy-duty, vocational, regional, long-haul, severe-service, and specialized commercial vehicle applications.

The Suspension Systems Library includes individual equipment profiles, suspension categories, manufacturer coverage, capacity information, truck and trailer compatibility, operating characteristics, maintenance considerations, and educational resources designed to help readers understand these essential chassis systems.

Explore Suspension System Categories

Commercial suspension systems can be classified by their operating design, axle position, load capacity, vehicle application, and whether they are installed on a truck, tractor, trailer, cab, or auxiliary axle. Explore the major suspension categories on Truck Equipment Atlas:

Air Suspension Systems

Air Suspension Systems use compressed air inside flexible air springs to support vehicle weight and isolate the chassis, cab, or trailer from road shock.

This category includes highway air-ride suspensions, vocational air suspensions, front air suspensions, rear air suspensions, cab suspensions, auxiliary suspensions, and trailer air-suspension systems.

Mechanical Suspension Systems

Mechanical Suspension Systems use steel springs, rubber springs, walking beams, equalizers, torque rods, or related mechanical components to support vehicle weight and control axle movement.

These systems are widely used in construction, logging, refuse, mining, heavy-haul, severe-service, and other demanding vocational applications.

Front Suspension Systems

Front Suspension Systems support the steer axle and affect steering response, ride quality, wheel alignment, tire contact, front-axle loading, and overall vehicle control.

This category includes conventional leaf-spring suspensions, lightweight mechanical systems, integrated front air suspensions, and high-capacity vocational configurations.

Rear Suspension Systems

Rear Suspension Systems support single or tandem rear axles and help control acceleration forces, braking forces, axle articulation, roll stability, load transfer, and driveline alignment.

This category includes highway air suspensions, vocational air suspensions, walking-beam systems, rubber-spring suspensions, leaf-spring systems, and other mechanical rear-suspension designs.

Auxiliary and Lift Axle Suspensions

Auxiliary and Lift Axle Suspensions support pusher, tag, and other auxiliary axles used to distribute vehicle weight across additional tire contact points.

This category includes steerable and non-steerable lift-axle suspensions, fixed auxiliary suspensions, air-operated lift systems, and application-specific pusher and tag configurations.

Trailer Suspension Systems

Trailer Suspension Systems connect trailer axles to the frame while supporting the trailer and its cargo.

This category includes fixed-position trailer suspensions, sliding tandem systems, integrated axle-and-suspension assemblies, air-ride trailer suspensions, mechanical trailer suspensions, and specialty multi-axle configurations.

Suspension System Guides

The Suspension System Guides section provides educational resources covering suspension operation, air and mechanical designs, system selection, equipment identification, maintenance, and common suspension problems.

Commercial Truck and Trailer Suspensions on Truck Equipment Atlas

Truck Equipment Atlas includes a growing library of individual suspension-system profiles from leading manufacturers and chassis suppliers serving the commercial trucking and trailer industries.

Explore the suspension models and families being added to the library:

Hendrickson

SAF-Holland

Link Manufacturing

Reyco Granning

Additional truck, tractor, trailer, cab, auxiliary, air, mechanical, and integrated suspension systems will be added as the Truck Equipment Atlas Suspension Systems Library continues to expand.

Suspension System Guides on Truck Equipment Atlas

Truck Equipment Atlas is also developing educational guides that explain how commercial suspension systems work and how they affect vehicle operation, comfort, stability, maintenance, and equipment selection.

Understanding Commercial Suspension Types

Commercial truck and trailer suspensions are available in several fundamentally different configurations.

Air Suspensions

Air suspensions use pressurized air springs to support the chassis and isolate the vehicle from bumps, vibration, and road shock.

A height-control valve adds or releases air as the vehicle’s load changes, helping maintain the designed ride height. Air suspensions can provide improved ride quality, cargo protection, adjustable height, and more consistent chassis positioning.

Air systems require properly functioning air springs, valves, fittings, lines, shock absorbers, bushings, and mounting components.

Mechanical Suspensions

Mechanical suspensions support vehicle weight through steel springs, rubber springs, walking beams, equalizers, or related load-carrying components.

These systems are commonly selected for demanding vocational applications because of their durability, axle articulation, roll stability, and ability to withstand harsh operating conditions.

Mechanical systems can provide a firmer ride than air suspension, particularly when the vehicle is empty or lightly loaded.

Front Suspensions

Front suspensions connect the steer axle to the chassis and help determine steering response, ride quality, front-axle alignment, tire wear, and driver control.

Conventional front suspensions often use tapered leaf springs. Integrated air-suspension designs may combine air springs, mechanical springs, control arms, shocks, and a lightweight steer axle.

Front-suspension capacity must match the steer axle, tires, wheels, brakes, frame, and intended vehicle application.

Rear Suspensions

Rear suspensions support the truck’s single or tandem rear axles. Depending on the vehicle, those axles may be driven, non-driven, or part of a mixed drive-and-tag arrangement.

Rear suspension design affects load distribution, traction, articulation, roll stability, driveline angles, braking response, and ride quality.

Highway tractors commonly use tandem air suspension, while construction, refuse, logging, mining, and severe-service trucks may use vocational air or heavy-duty mechanical systems.

Auxiliary and Lift Axle Suspensions

Auxiliary suspensions support pusher or tag axles added to help distribute vehicle weight.

Many auxiliary suspensions use air springs to lower the axle, regulate the amount of weight it carries, and raise it when additional support is unnecessary.

Lift-axle operation affects turning radius, tire wear, drive-axle traction, braking, and legal weight distribution. Operators must follow the vehicle manufacturer’s instructions and applicable regulations.

Trailer Suspensions

Trailer suspensions connect the trailer axles to the frame and help protect the trailer, cargo, tires, brakes, and wheel ends from road shock.

Trailer air suspensions are widely used on dry vans, refrigerated trailers, flatbeds, tank trailers, and other highway equipment. Mechanical suspensions remain important in severe-service, construction, agricultural, and specialized applications.

Trailer suspensions may be fixed directly to the frame or installed as part of a sliding tandem system that allows axle position and weight distribution to be adjusted.

Cab Suspensions

Cab suspensions isolate the driver compartment from chassis movement and road vibration. They may use air springs, mechanical springs, shocks, bushings, or combinations of these components.

A cab suspension does not support the truck’s axles, but it can significantly affect driver comfort, fatigue, and the amount of vibration transmitted into the cab.

Common Suspension Configurations

Commercial suspension arrangements vary according to truck class, axle position, application, weight requirements, and operating environment.

Common configurations include:

Front leaf-spring suspensions
Front air suspensions
Single rear air suspensions
Tandem rear air suspensions
Vocational air suspensions
Walking-beam mechanical suspensions
Rubber-spring suspensions
Multi-leaf mechanical suspensions
Single-axle trailer suspensions
Tandem trailer suspensions
Spread-axle trailer suspensions
Sliding trailer tandem suspensions
Integrated trailer axle-and-suspension systems
Steerable auxiliary lift-axle suspensions
Non-steerable pusher suspensions
Tag-axle suspensions
Cab air suspensions

The suspension configuration alone does not determine whether a vehicle is properly equipped for a particular application. Suspension capacity, axle ratings, frame specifications, tire and wheel ratings, brake capacity, vehicle weight, center of gravity, axle spacing, road conditions, and applicable regulations must also be considered.

Suspension Capacity and Vehicle Performance

Suspension capacity describes the amount of weight the system is designed to support under specified operating conditions.

The suspension rating must work with the axle’s gross axle weight rating, tire capacities, wheel capacities, brake system, frame rating, and complete vehicle certification. Installing a higher-capacity suspension does not automatically increase the truck or trailer’s legal or manufacturer-rated carrying capacity.

Ride height is another important specification. Incorrect ride height can affect driveline angles, axle alignment, suspension travel, shock-absorber operation, frame clearance, tire clearance, and vehicle handling.

Suspension selection should be treated as part of the complete chassis, axle, wheel-end, brake, tire, and vehicle application rather than as an isolated specification.

Ride Quality, Stability, and Load Distribution

Suspension design has a direct effect on how a truck or trailer responds to road conditions and changing loads.

A compliant suspension can reduce the amount of road shock transferred into the frame, cab, cargo, and trailer body. A suspension designed for greater roll stiffness may improve stability in applications with high centers of gravity but may provide a firmer ride.

Load distribution depends on suspension geometry, axle spacing, spring rates, air pressure, ride height, and vehicle loading. Uneven loading or improper suspension adjustment can overload individual axles, tires, wheels, brakes, or suspension components.

The best suspension balances ride quality, stability, articulation, durability, weight, and maintenance requirements for the intended application.

Heavy-Duty and Medium-Duty Applications

Suspension requirements change significantly according to vehicle class and operating environment.

Heavy-duty highway tractors require suspensions that support substantial loads while maintaining ride quality, stability, alignment, and driveline control at highway speeds. Vehicle weight, fuel efficiency, driver comfort, and cargo protection are especially important in long-haul applications.

Heavy-haul and severe-service vehicles may require higher suspension capacities, increased roll stiffness, greater articulation, reinforced mounting structures, specialized torque rods, or heavy-duty mechanical suspension systems.

Medium-duty delivery trucks, utility vehicles, tow trucks, municipal equipment, buses, and vocational trucks may experience frequent starts and stops, curb impacts, tight turns, uneven loading, and repeated low-speed maneuvering.

Suspension selection should therefore be based on the complete vehicle application rather than capacity alone.

Vocational Suspension Applications

Vocational trucks can place particularly demanding requirements on suspension components.

Common applications include:

Dump trucks
Refuse trucks
Concrete mixers
Construction trucks
Utility trucks
Tow and recovery trucks
Logging trucks
Heavy-haul tractors
Municipal vehicles
Snow and road-maintenance equipment
Oilfield and energy-sector trucks
Mining vehicles
Fire and emergency vehicles
Severe-service equipment

Vocational suspension selection may depend on capacity, roll stability, ground clearance, axle articulation, frame height, loaded and unloaded ride quality, suspension weight, maintenance access, terrain, turning frequency, and the amount of time the vehicle operates away from paved roads.

Trailer Suspension Applications

Trailer suspensions must support the trailer and freight while maintaining alignment, braking stability, tire contact, and cargo protection.

Common applications include:

Dry van trailers
Refrigerated trailers
Flatbed trailers
Step-deck trailers
Dump trailers
Tank trailers
Lowboy and RGN trailers
Container chassis
Hopper trailers
Logging trailers
Car-hauler trailers
Specialized heavy-haul trailers

The appropriate trailer suspension depends on axle spacing, trailer structure, ride height, cargo sensitivity, operating weight, loading practices, tire equipment, brake configuration, and whether the tandem must slide beneath the trailer.

Advantages of Modern Commercial Suspensions

Modern commercial suspension technology can provide several operational advantages:

High load-bearing capacity
Improved vehicle stability
Better ride quality
Reduced road shock
Improved cargo protection
More consistent tire contact
Better axle articulation
Adjustable ride height on air systems
Improved driver comfort
Application-specific roll stiffness
Reduced weight in selected designs
Integrated axle-and-suspension options
Improved chassis and drivetrain protection

The actual benefits depend on suspension design, vehicle specification, load, terrain, maintenance, and duty cycle.

Suspension System Limitations and Considerations

No single suspension configuration is ideal for every commercial truck or trailer.

Important considerations include:

Initial purchase cost
Suspension weight
Rated capacity
Ride height
Axle compatibility
Frame compatibility
Brake compatibility
Tire and wheel capacity
Loaded ride quality
Unloaded ride quality
Roll stability
Axle articulation
Ground clearance
Air-system requirements
Maintenance requirements
Replacement-parts availability
Alignment requirements
Vehicle application
Road and terrain conditions

An air suspension that performs well on a long-haul highway tractor may not be the correct choice for a dump truck, refuse vehicle, logging truck, mining vehicle, or severe-service application. Likewise, a heavy mechanical suspension designed for demanding off-road work may provide more weight and ride firmness than a highway operation requires.

Driver and Operator Considerations

Suspension configuration affects how a commercial vehicle rides, handles, turns, maintains traction, distributes weight, and responds to braking.

Drivers should monitor for changes in ride height, excessive bouncing, leaning, pulling, harsh impacts, unusual suspension noises, steering changes, irregular tire wear, or reduced stability.

Air-suspension operators should understand suspension-dump controls, ride-height operation, and how air loss affects the vehicle. Lift-axle operators must understand when auxiliary axles should be raised or lowered and how axle pressure affects weight distribution and drive-axle traction.

A sudden change in vehicle height or handling should be inspected before continued operation.

Maintenance and Ownership

Commercial truck and trailer suspensions require regular inspection and correct maintenance to provide reliable service.

Important maintenance areas can include:

Air-spring inspection
Air-line and fitting inspection
Height-control valve operation
Suspension ride-height measurement
Leaf-spring inspection
Rubber-spring inspection
Walking-beam and equalizer inspection
Torque-rod inspection
Control-arm inspection
Shock-absorber inspection
Bushing and pivot inspection
Hanger and bracket inspection
U-bolt inspection
Axle alignment
Frame and crossmember inspection
Mounting-fastener inspection
Lift-axle controls and regulators
Monitoring irregular tire wear

Maintenance requirements vary significantly between suspension designs and manufacturers. Owners and technicians should follow the service procedures and torque specifications established for the exact suspension model, vehicle, axle configuration, and application.

Major Commercial Suspension Manufacturers

Truck Equipment Atlas covers suspension systems from manufacturers and chassis brands that play important roles throughout the commercial trucking and trailer industries.

Current Phase 1 product coverage includes:

Hendrickson
SAF-Holland
Link Manufacturing
Reyco Granning
Future manufacturer and OEM coverage may include:
Freightliner and Detroit
Volvo and Mack
PACCAR, Kenworth, and Peterbilt

Additional truck, trailer, cab, auxiliary, air, mechanical, and integrated suspension systems will be added as the library expands.

Related Truck Equipment Resources

A suspension is only one part of the complete commercial truck or trailer chassis.

Explore related Truck Equipment Atlas resources:

Understanding how the suspension, axles, brakes, steering, tires, frame, drivetrain, vehicle weight, and application work together is essential when evaluating a commercial truck or trailer chassis.

How to Use the Suspension Systems Library

Individual Truck Equipment Atlas suspension profiles provide deeper information about specific models and product families.

Depending on the equipment, these pages may include:

Suspension overview
Manufacturer information
Suspension type
Axle position and function
Capacity ratings
Available configurations
Ride-height information
Axle and chassis compatibility
Brake and wheel-end compatibility
Truck or trailer applications
Highway and vocational use
Driver considerations
Maintenance information
Common suspension problems
Identification information
Buying considerations
Availability and replacement considerations

Readers can begin with one of the suspension categories above or explore individual equipment profiles by manufacturer.

Suspension Systems Library Expansion

The Truck Equipment Atlas Suspension Systems Library will continue to grow with additional air suspensions, mechanical suspensions, front suspensions, rear suspensions, auxiliary suspensions, lift-axle systems, cab suspensions, trailer suspensions, slider systems, and integrated axle-and-suspension profiles.

Future development will also expand the connections between suspension systems and the trucks, trailers, axles, brakes, tires, steering systems, manufacturers, and applications in which they are used.

The goal is to build an organized commercial suspension reference that helps drivers, owner-operators, fleets, technicians, students, equipment buyers, and industry professionals understand how these systems work and where different suspension platforms fit within the trucking industry.
