SAF-Holland NEWAY ADL

Quick Facts

  • Manufacturer: SAF-Holland
  • Brand: NEWAY
  • Product Type: Lightweight drive-axle air suspension
  • Suspension Category: Rear air suspension
  • Primary Position: Rear drive axle or tandem drive-axle group
  • Common Configurations: Single- and tandem-drive arrangements, depending on the application
  • Primary Applications: Highway tractors, regional trucks, and weight-sensitive commercial vehicles
  • Suspension Medium: Air springs
  • Axle Type: Driven rear axle
  • Primary Benefit: Combines air-ride performance with a weight-conscious suspension design

Overview

The SAF-Holland NEWAY ADL is a drive-axle air suspension designed for commercial trucks requiring controlled ride quality, load equalization, and reduced suspension weight. It is intended primarily for highway and regional applications where payload capacity, fuel efficiency, driver comfort, and cargo protection are important operating considerations.

The suspension uses air springs to support the chassis while structural suspension members and torque-control components guide the drive axles. Shock absorbers control vertical movement, and a height-control valve maintains the designed chassis position as the vehicle’s load changes.

NEWAY ADL installations can vary by truck manufacturer, axle arrangement, ride height, capacity, and production year. The complete suspension identification number and vehicle build records should be used when confirming specifications or ordering replacement components.

Key Characteristics

  • Drive-axle air-suspension design
  • Weight-conscious construction
  • Designed for highway and regional commercial vehicles
  • Available for application-specific single- and tandem-axle arrangements
  • Air springs support the chassis and payload
  • Height-control system maintains the designed ride height
  • Suspension geometry controls axle movement
  • Shock absorbers provide suspension damping
  • Compatible with commercial drive axles
  • Helps isolate the chassis, driver, and cargo from road vibration
  • Designed to support load equalization across compatible tandem configurations

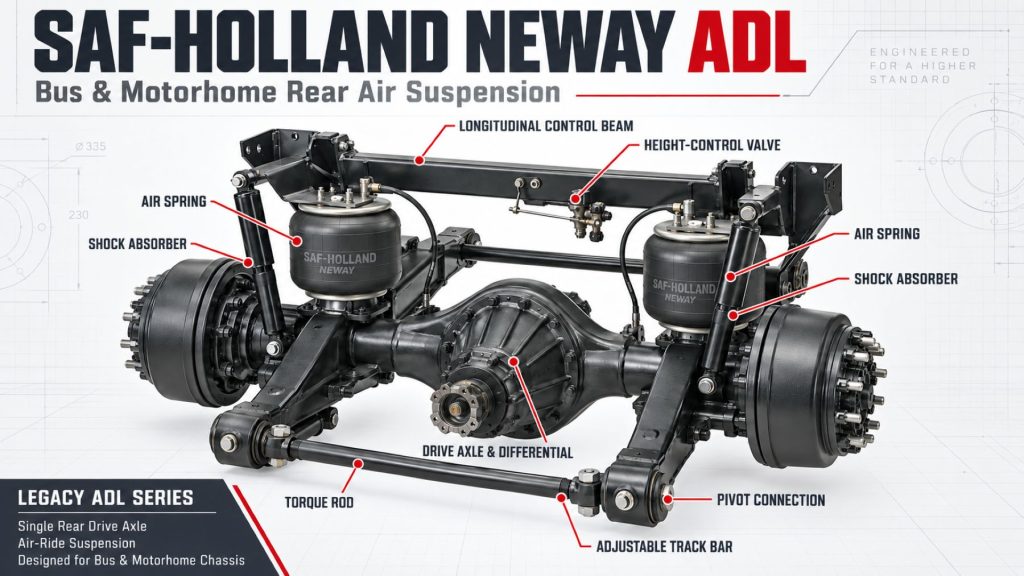

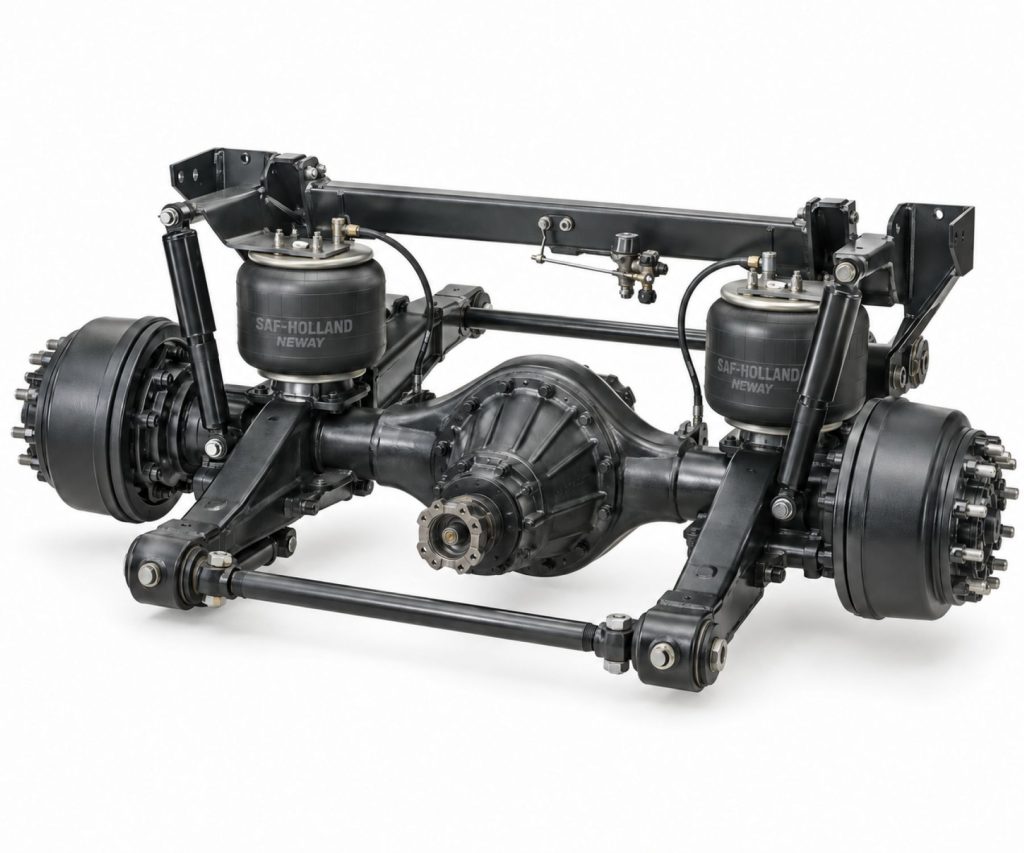

Major Components

  • Frame brackets
  • Suspension beams or trailing arms
  • Air springs
  • Shock absorbers
  • Torque rods
  • Axle mounting connections
  • Height-control valve
  • Ride-height linkage
  • Air lines and fittings
  • Crossmembers or lateral supports
  • Bushings
  • Rebound-control components
  • Structural fasteners
  • Optional suspension dump controls

How the Suspension System Works

Compressed air inside the suspension’s air springs supports the truck frame and payload. When cargo is added, the chassis moves downward and activates the height-control valve. The valve supplies additional air to the springs until the chassis returns to its designed ride height.

When weight is removed, the height-control valve releases excess air. This allows the truck to maintain a relatively consistent chassis height through changing loaded and unloaded conditions.

Suspension beams and torque rods guide the drive axles as they move vertically. These components also manage forces produced by acceleration, braking, cornering, and uneven road surfaces.

Shock absorbers slow rapid suspension movement and help prevent repeated bouncing. In tandem configurations, the suspension air system helps distribute supported weight between the two drive axles.

Suspension Position and Function

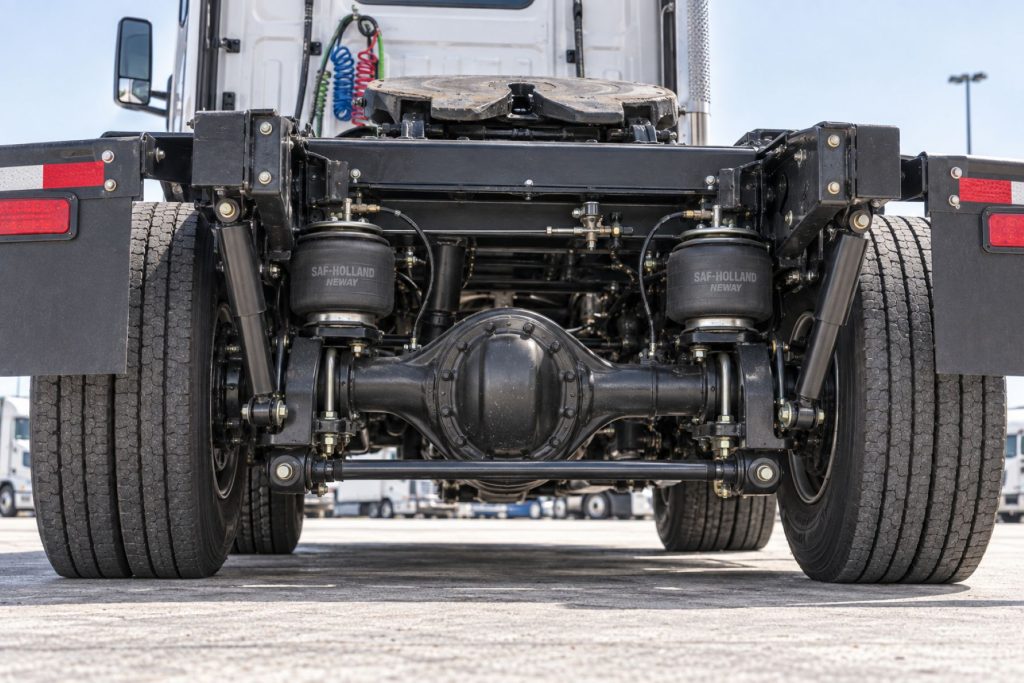

The NEWAY ADL is installed beneath the rear portion of a truck or tractor frame. It connects the driven axle or tandem drive-axle group to the chassis while supporting vehicle weight and maintaining axle position.

The suspension performs several functions:

  • Supports the truck frame and payload
  • Allows controlled vertical axle movement
  • Maintains the designed chassis ride height
  • Controls axle position during acceleration and braking
  • Helps equalize weight between tandem drive axles
  • Maintains appropriate driveline geometry
  • Reduces vibration transmitted into the cab and cargo
  • Helps the drive tires remain in contact with the road

Common Specifications

  • Suspension Type: Drive-axle air suspension
  • Configuration: Application-specific single or tandem arrangement
  • Primary Service: Highway and regional commercial operation
  • Suspension Capacity: Varies by model and vehicle specification
  • Ride Height: Application-specific
  • Axle Spacing: Determined by chassis and suspension configuration
  • Axle Compatibility: Approved commercial drive axles
  • Air-System Requirement: Vehicle compressed-air supply
  • Damping: Heavy-duty shock absorbers
  • Lateral Control: Torque rods or application-specific control members
  • Brake Compatibility: Drum or air disc brakes when approved for the complete axle installation

Specifications vary by suspension model, truck manufacturer, model year, axle rating, and installation. Current SAF-Holland technical literature and the vehicle build record should be used to verify an individual suspension.

Capacity, Ride Height, and Axle Travel

NEWAY ADL capacity depends on the exact suspension model, axle configuration, truck frame, tires, wheels, brakes, and vehicle ratings. Suspension capacity should not be confused with the legal weight that may be carried on public roads.

Ride height is the designed distance between specific points on the frame and axle or suspension assembly. Correct ride height preserves suspension travel, air-spring shape, driveline angles, and axle alignment.

The suspension provides jounce and rebound travel so the axles can move over changes in the road surface. Incorrect ride height can reduce available travel and may cause harsh impacts, damaged air springs, poor handling, or driveline vibration.

Ride Quality and Load Distribution

The air springs help isolate the frame, cab, driver, and cargo from road shock. This can provide a smoother ride than many traditional mechanical drive-axle suspensions.

Improved ride control can also benefit sensitive freight, fifth-wheel stability, body equipment, chassis-mounted components, and overall driver comfort.

On tandem configurations, the suspension’s connected air system helps equalize supported weight across the two drive axles. Correct loading, air pressure, ride height, alignment, and tire condition are necessary for proper load distribution.

Suspension Controls and Adjustment Options

The height-control valve automatically adds or removes air to maintain the specified chassis height. Depending on the truck and suspension installation, additional controls may include:

  • Manual suspension dump
  • Automatic suspension dump
  • Electronic ride-height control
  • Temporary loading-height adjustment
  • Traction-assist programming
  • Auxiliary axle coordination
  • Fifth-wheel loading controls
  • Body-equipment interlocks

Controls must be used according to the truck and suspension manufacturers’ instructions. Operating at an incorrect ride height can affect suspension travel, driveline geometry, handling, and component life.

Alignment and Suspension Geometry

Correct drive-axle alignment helps control tire wear, rolling resistance, driveline vibration, and vehicle tracking. In tandem configurations, both axles must be aligned with the frame centerline and properly positioned relative to each other.

Torque rods, suspension beams, bushings, and frame brackets maintain the designed axle position. Worn or loose components can allow the axle to shift during acceleration, braking, or cornering.

Ride height should be inspected before final alignment because incorrect height can change axle and driveline geometry. Alignment should also be checked after suspension repairs, axle replacement, collision damage, or the appearance of abnormal tire wear.

Axle, Brake, and Wheel-End Options

The NEWAY ADL may be paired with approved commercial drive axles and application-specific brake and wheel-end equipment.

Possible configurations include:

  • Single-reduction drive axles
  • Tandem drive axles
  • Driver-controlled differential locks
  • Inter-axle differential locks
  • Drum brakes
  • Air disc brakes
  • Conventional wheel ends
  • Preset bearing systems
  • Unitized wheel-end systems
  • Automatic lubrication equipment
  • Tire-pressure monitoring systems
  • Wheel-end monitoring equipment

The complete axle, brake, suspension, and wheel-end package must meet the vehicle’s capacity, duty-cycle, speed, and operating requirements.

Common Applications

  • Long-haul tractors
  • Regional-haul tractors
  • Day-cab tractors
  • Sleeper tractors
  • Truckload operations
  • Less-than-truckload operations
  • Distribution trucks
  • Bulk-haul tractors
  • Tank-haul tractors
  • Weight-sensitive fleet applications
  • Highway trucks requiring improved ride quality
  • Commercial vehicles carrying vibration-sensitive cargo

Vehicle, Axle, and Frame Compatibility

The NEWAY ADL requires a compatible truck frame, drive-axle arrangement, driveline, air system, brake package, wheels, tires, and fifth-wheel or body installation.

Compatibility depends on:

  • Frame width and strength
  • Suspension model and capacity
  • Designed ride height
  • Axle spacing
  • Drive-axle model
  • Driveline angles
  • Brake configuration
  • Tire and wheel size
  • Fifth-wheel location
  • Fuel-tank placement
  • Battery-box placement
  • Exhaust and emissions-system clearance
  • Gross axle and vehicle weight ratings

A suspension should not be substituted solely because it has a similar capacity. Mounting geometry, frame loads, driveline position, and vehicle approvals must also be verified.

Advantages

  • Air-ride comfort for highway and regional operation
  • Weight-conscious design can help preserve payload capacity
  • Consistent ride height under changing loads
  • Improved isolation from road shock and vibration
  • Load equalization across compatible tandem axles
  • Can help protect cargo and chassis-mounted equipment
  • Reduced harshness compared with many mechanical suspensions
  • Supports multiple axle, brake, and wheel-end configurations
  • Can contribute to stable fifth-wheel and trailer operation
  • Designed for integration with commercial truck air systems

Limitations or Considerations

  • Air-ride comfort for highway and regional operation
  • Weight-conscious design can help preserve payload capacity
  • Consistent ride height under changing loads
  • Improved isolation from road shock and vibration
  • Load equalization across compatible tandem axles
  • Can help protect cargo and chassis-mounted equipment
  • Reduced harshness compared with many mechanical suspensions
  • Supports multiple axle, brake, and wheel-end configurations
  • Can contribute to stable fifth-wheel and trailer operation
  • Designed for integration with commercial truck air systems

Driver and Operator Experience

Drivers may notice a smoother and more controlled ride than with many mechanical rear suspensions. Reduced vibration and harshness can improve comfort during long highway or regional routes.

The suspension automatically compensates for normal changes in payload by returning the chassis to its designed ride height. This can help maintain predictable steering, braking, driveline, and fifth-wheel characteristics.

Drivers should report excessive air-compressor cycling, a leaning chassis, unusual suspension noises, rough ride quality, driveline vibration, or a vehicle that fails to reach normal ride height.

Maintenance and Ownership Notes

  • Inspect air springs for cracking, cuts, abrasion, and leaks.
  • Check air lines, fittings, reservoirs, and valves for air loss.
  • Measure ride height at recommended service intervals.
  • Inspect height-control linkage for damage or incorrect adjustment.
  • Check shock absorbers for leaks, damaged mounts, or worn bushings.
  • Inspect torque rods and suspension bushings for looseness.
  • Check suspension beams and frame brackets for cracks or distortion.
  • Verify critical fastener torque according to the service schedule.
  • Inspect axle connections for movement or damage.
  • Monitor tires for alignment-related wear.
  • Check driveline angles after suspension or ride-height changes.
  • Maintain the truck’s air compressor, air dryer, and reservoirs.
  • Inspect the suspension after severe impacts or overloading.
  • Use approved lifting and support procedures before working beneath the truck.

Common Suspension Problems

  • Air leaks: Damaged air springs, lines, fittings, valves, or reservoirs may prevent the suspension from reaching its proper ride height.
  • Incorrect ride height: Height-control valve problems, damaged linkage, air restrictions, or improper adjustment may cause the chassis to sit too high or too low.
  • Worn suspension bushings: Bushing wear can allow excessive axle movement, create noise, and contribute to alignment problems.
  • Worn torque-rod bushings: Loose torque rods may cause axle movement, steering correction, clunking, or irregular tire wear.
  • Damaged shock absorbers: Failed shocks can cause excessive bouncing and poor suspension control.
  • Uneven chassis height: Air-system restrictions, uneven loading, valve problems, or structural damage can cause the truck to lean.
  • Driveline vibration: Incorrect ride height, worn components, or shifted axle position can alter operating angles.
  • Abnormal tire wear: Misalignment, incorrect tire pressure, damaged components, or mismatched tires may cause rapid wear.
  • Cracked brackets or suspension members: Overloading, loose fasteners, corrosion, impacts, or improper installation can damage structural components.

Identification Information

Identification information may be located on a tag or plate attached to the suspension assembly. Vehicle build records and axle identification tags may also be required.

Record the following information before ordering parts:

  • Truck manufacturer
  • Vehicle identification number
  • Truck model and model year
  • Complete NEWAY suspension model
  • Suspension serial or assembly number
  • Rated capacity
  • Designed ride height
  • Axle spacing
  • Drive-axle manufacturer and model
  • Brake type and size
  • Wheel-end configuration
  • Air-spring part number
  • Shock-absorber part number
  • Torque-rod length and configuration

Similar-looking NEWAY suspensions may use different air springs, bushings, brackets, shocks, and mounting dimensions. Parts should not be ordered by appearance alone.

Buying Considerations

  • Confirm the complete suspension model and identification information.
  • Verify capacity for the intended vehicle and operation.
  • Match the correct ride height and axle spacing.
  • Confirm drive-axle and frame compatibility.
  • Review driveline-angle requirements.
  • Compare complete installed weight with alternative suspensions.
  • Choose brake and wheel-end equipment for the intended duty cycle.
  • Evaluate suspension controls and dump-valve options.
  • Review replacement-parts availability.
  • Consider corrosion protection for winter and coastal operation.
  • Inspect used systems for cracks, altered brackets, and worn mounting points.
  • Compare purchase price with payload, ride-quality, tire-life, and maintenance benefits.
  • Confirm current manufacturer support before specifying an older configuration.

Variants and Configurations

NEWAY ADL configurations may differ according to truck manufacturer, chassis, axle arrangement, capacity, and intended operation.

Configuration differences may include:

  • Single-drive-axle arrangement
  • Tandem-drive-axle arrangement
  • Suspension capacity
  • Ride height
  • Axle spacing
  • Frame mounting arrangement
  • Torque-rod configuration
  • Air-spring specification
  • Shock-absorber placement
  • Brake type
  • Wheel-end package
  • Suspension control package
  • Application-specific brackets and crossmembers

Availability and specifications may vary by production year. The complete model number should be used when comparing suspensions or ordering service components.

Comparison to Similar Equipment

Compared with the SAF-Holland NEWAY ADZ, the ADL is more closely associated with highway, regional, and weight-sensitive service. The ADZ is designed for heavier vocational and severe-duty applications.

Compared with the SAF-Holland NEWAY AD Series, the ADL emphasizes a lighter, application-specific suspension package. Exact differences depend on the AD Series and ADL models being compared.

Compared with the Hendrickson COMFORT AIR, both systems are intended to provide air-ride performance for commercial drive axles. Compatibility and selection depend on the truck manufacturer, axle configuration, ride height, and application.

Compared with the Hendrickson HAS Air Suspension, the NEWAY ADL provides an alternative drive-axle air-suspension design with different mounting geometry and component arrangements.

Best Fit For

  • Long-haul tractors
  • Regional-haul trucks
  • Weight-sensitive fleet operations
  • Fleets prioritizing driver comfort
  • Applications carrying vibration-sensitive freight
  • Tractors requiring tandem-axle load equalization
  • Highway trucks operating through changing payload conditions
  • Fleets seeking an alternative to mechanical rear suspensions
  • Operations with established air-system maintenance programs
  • Vehicles with an approved NEWAY ADL factory or engineered installation

Related Vehicle and Trailer Types

Related Truck and Trailer Models

Related Suspension Types

Related Equipment Systems

Related Guides

Regulatory and Compliance Notes

Suspension capacity does not override the vehicle’s gross axle weight rating, gross vehicle weight rating, tire capacity, wheel capacity, or legal road-weight limits.

Ride height, axle spacing, suspension mounting, and driveline geometry should not be modified without approval from the vehicle manufacturer or a qualified engineer.

Air lines, air springs, suspension members, axles, brakes, tires, wheels, and mounting points must remain in serviceable condition under applicable commercial-vehicle inspection requirements.

A suspension dump or temporary height-control feature should not be used for normal road operation unless the vehicle manufacturer specifically permits it.

Real World Operating Notes

Air-suspension problems may first appear as uneven tire wear, driveline vibration, frequent air-compressor cycling, or a truck that leans after being parked.

Ride height should be checked before completing axle alignment or diagnosing driveline angles. Aligning the axles while the truck is sitting at an incorrect height can produce inaccurate results.

Air springs should be inspected with the suspension at normal ride height and through its safe operating range. Contact with brackets, hoses, frame equipment, or accumulated debris can damage the air-spring surface.

The suspension should be dumped only when required by the approved loading, unloading, fifth-wheel, or maintenance procedure. The chassis should return to normal ride height before highway operation.

Frequently Asked Questions

The SAF-Holland NEWAY ADL may be found on commercial trucks originally specified with a compatible NEWAY drive-axle air suspension. Availability varies by vehicle manufacturer, production year, axle configuration, and regional market.

Replacement components may be available through SAF-Holland distributors, commercial-truck dealers, heavy-duty parts suppliers, suspension repair facilities, and vehicle manufacturers.

Used suspension assemblies should be inspected for cracks, corrosion, altered brackets, worn bushings, damaged air springs, and incomplete identification information. Compatibility must be confirmed before installation.

Current product support, technical literature, replacement-parts information, and distributor resources are available through the SAF-Holland website.

Availability and Where to Find

What is the SAF-Holland NEWAY ADL?

The NEWAY ADL is a drive-axle air suspension designed for commercial trucks requiring air-ride performance and a weight-conscious suspension package.

Is the NEWAY ADL a front or rear suspension?

It is a rear suspension intended for driven axles. Depending on the model and vehicle specification, it may support a single drive axle or a tandem drive-axle group.

What applications use the NEWAY ADL?

It is most appropriate for highway, regional, and weight-sensitive commercial-truck applications.

Is the NEWAY ADL designed for severe off-road service?

The exact duty rating depends on the model and vehicle specification. The SAF-Holland NEWAY ADZ is the more appropriate NEWAY family page for heavy vocational and severe-duty applications.

What causes the suspension to sit too low?

Common causes include insufficient system pressure, an air leak, damaged air spring, faulty height-control valve, restricted air line, incorrect adjustment, or suspension damage.

Why is the correct ride height important?

Correct ride height maintains suspension travel, driveline angles, axle alignment, air-spring shape, and vehicle handling.

Does the ADL help equalize tandem-axle loads?

Compatible tandem configurations use the air-suspension system to help distribute supported weight between the drive axles. Proper loading and maintenance remain necessary.

Can an ADL replace another NEWAY suspension?

Not automatically. Capacity, ride height, axle spacing, mounting geometry, driveline position, and vehicle approvals must all be verified.

Are ADL and ADZ parts interchangeable?

They should not be assumed interchangeable. The complete suspension model and component numbers must be checked before ordering parts.

How is the correct ADL configuration identified?

Use the suspension identification tag, vehicle VIN, manufacturer build record, ride height, axle spacing, and drive-axle information.

Support Trucking Families

Truck Equipment Atlas supports the mission of Grey Cross, a nonprofit dedicated to helping families of truck drivers who lose their lives while on the road. As the site grows, part of its mission is to bring awareness and support to these families.

Podcast or Video Section

Learn More Through Audio and Video

Truck Equipment Atlas will continue expanding with podcast episodes, interviews, and equipment breakdowns to help drivers and fleets better understand trucks and equipment.

Follow the Growth of Truck Equipment Atlas

Truck Equipment Atlas continues to expand with new truck profiles, trailer coverage, diesel engine pages, equipment system resources, manufacturer information, and educational guides.

Visit our Site Updates page to explore recent additions, project milestones, and upcoming resources as we continue building one of the industry’s growing commercial trucking equipment reference libraries.

View the Latest Site Updates: Truck Equipment Atlas Site Updates

Scroll to Top
