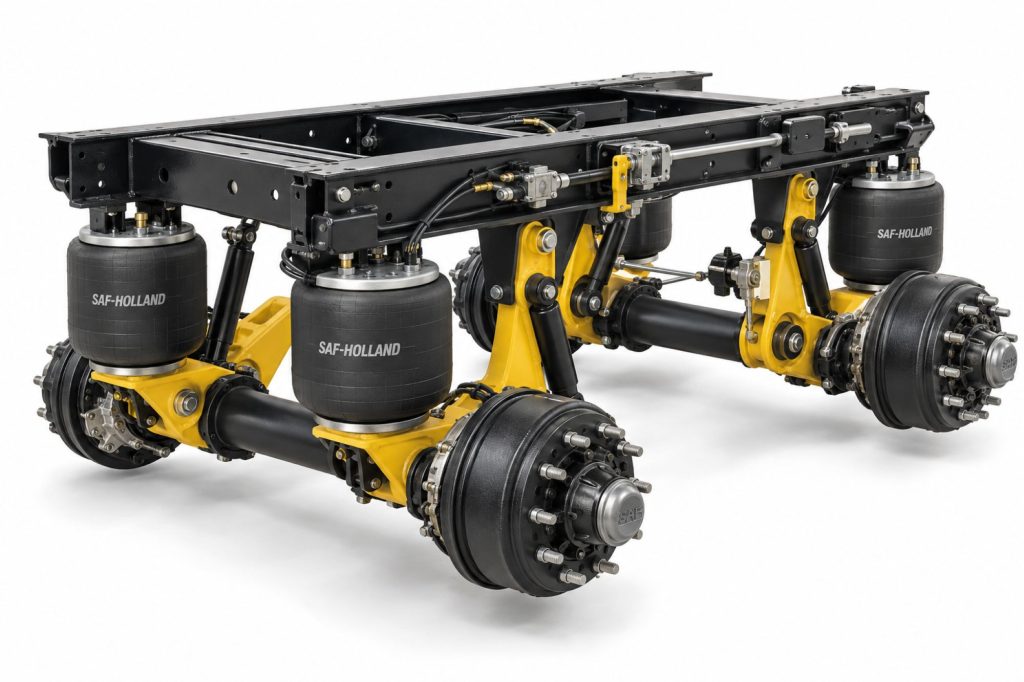

SAF-Holland CBX40

Quick Facts

  • Manufacturer: SAF-Holland
  • Product Family: CBX Series
  • Product Type: Integrated sliding tandem-axle air-suspension system
  • Suspension Category: Trailer air suspension
  • Primary Position: Rear trailer tandem
  • Rated Suspension Capacity: 40,000 lbs
  • Primary Applications: Dry vans and refrigerated trailers
  • Standard Slider Width: 48 inches
  • Optional Slider Widths: 42 and 54 inches
  • Available Ride Heights: 16, 16.5, 17, and 18 inches
  • Standard Axle Track: 77.5 inches
  • Primary Benefit: Combines a lightweight slider structure, air suspension, axles, brakes, and wheel ends in one integrated system

Overview

The SAF-Holland CBX40 is an integrated sliding tandem-axle air-suspension system developed for commercial trailers. It combines the slider subframe, suspension beams, air springs, axles, brake equipment, and wheel ends into a coordinated assembly.

The system is designed primarily for dry-van and refrigerated-trailer applications requiring a 40,000-pound suspension rating. Its sliding subframe allows the trailer tandem to be repositioned to adjust axle-weight distribution, comply with bridge requirements, and change the trailer wheelbase.

The later CBX40 AeroBeam configuration uses cast-steel trailing arms and a reinforced slider structure to balance strength, durability, and system weight. SAF-Holland’s current product information may identify an updated configuration as the SAF CBXA40 AeroBeam.

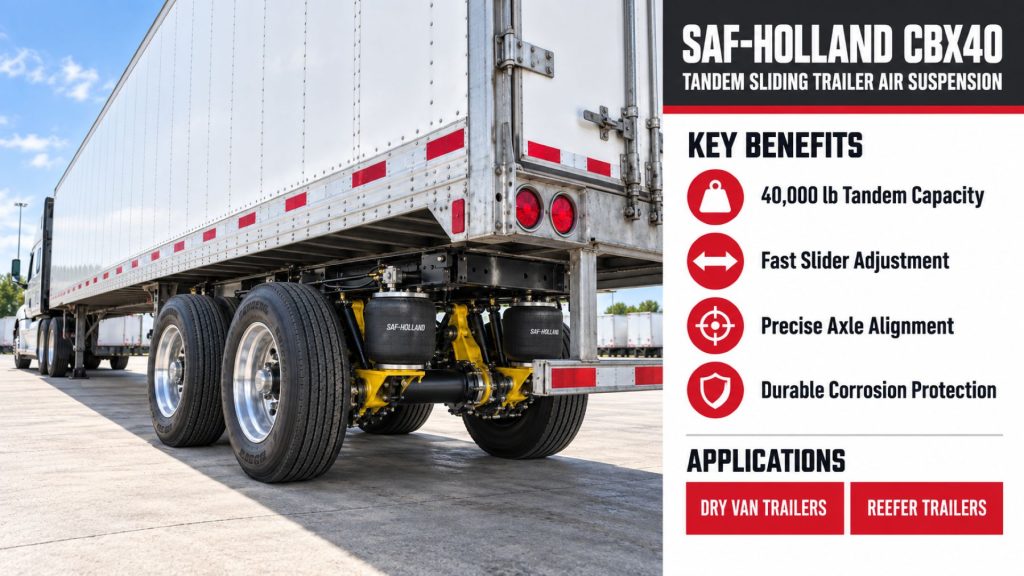

Key Characteristics

  • 40,000-pound tandem suspension capacity
  • Integrated trailer slider, suspension, axle, brake, and wheel-end system
  • Designed primarily for dry vans and refrigerated trailers
  • Air-ride suspension for cargo protection
  • Movable tandem for axle-weight adjustment
  • AeroBeam cast-steel trailing-arm design
  • Reinforced slider subframe
  • SwingAlign axle-alignment system
  • Air-assisted pin-release option
  • Multiple ride-height and slider-width configurations
  • Drum-brake and air-disc-brake options
  • Optional automatic tire-inflation equipment
  • Corrosion-resistant Black Armour protective treatment

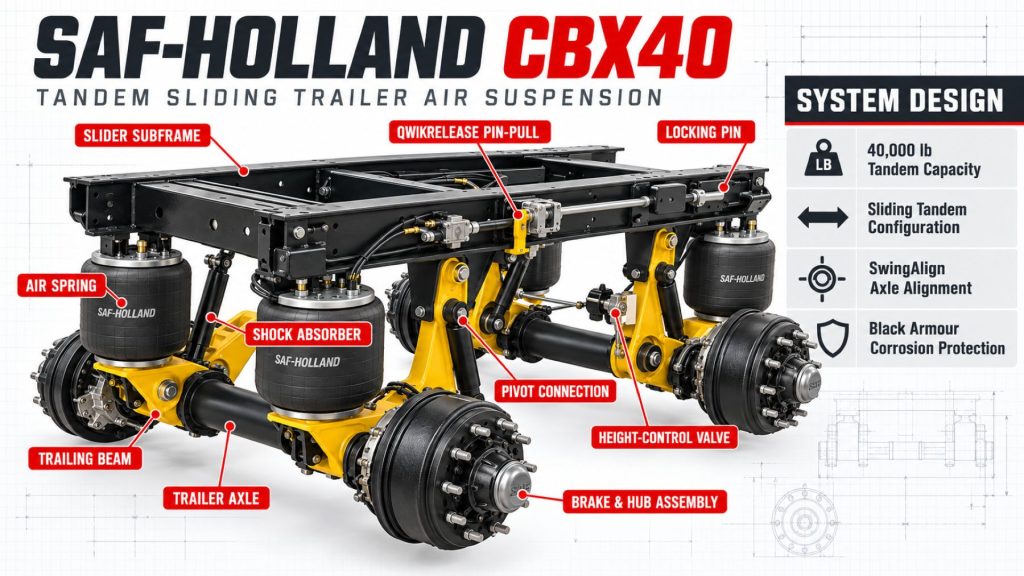

Major Components

  • Sliding subframe
  • Slider rails and locking pins
  • Pull-pin linkage
  • AeroBeam trailing arms
  • Frame brackets
  • Pivot connections and bushings
  • Air springs
  • Shock absorbers
  • Height-control valve
  • Air lines and fittings
  • Tandem trailer axles
  • Brake chambers and actuators
  • Foundation brakes
  • Hubs, bearings, seals, and lubrication components
  • Axle-alignment hardware
  • Optional PosiLok equipment
  • Optional Auto-PosiLift system
  • Optional Tire Pilot Plus inflation system

How the Suspension System Works

Compressed air inside the air springs supports the trailer and cargo. When cargo is loaded, the trailer body moves downward and activates the height-control valve. The valve supplies additional air until the trailer returns to its specified ride height.

When weight is removed, the height-control valve releases excess air. This allows the suspension to maintain a consistent operating height as the trailer moves between loaded and unloaded conditions.

The trailing arms connect the axles to the suspension structure and guide their vertical movement. Shock absorbers control rapid movement and reduce repeated bouncing after the trailer encounters a road irregularity.

The complete tandem assembly is mounted in a sliding subframe. Releasing the locking pins allows the tandem to move forward or rearward beneath the trailer. After repositioning, the pins engage holes in the trailer rails and secure the tandem for road operation.

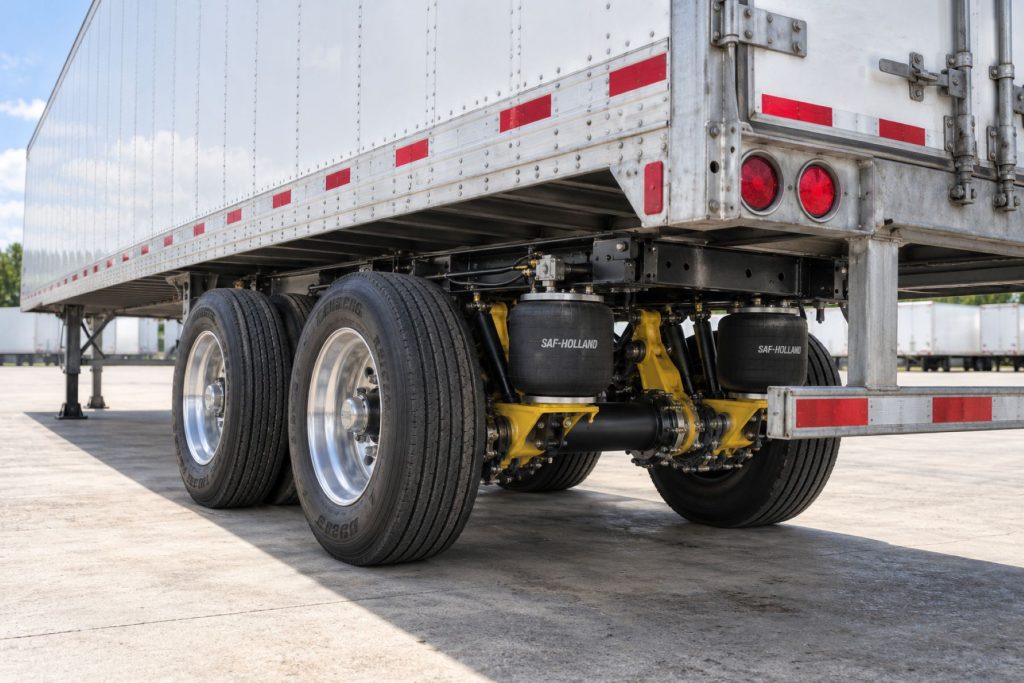

Suspension Position and Function

The CBX40 is installed beneath the rear section of a commercial trailer. It supports the trailer body and cargo while controlling the movement of the tandem axle group.

The suspension performs several functions:

  • Supports the trailer and payload
  • Provides controlled vertical axle movement
  • Maintains the designed ride height
  • Helps isolate cargo from road shock
  • Distributes weight across the tandem axles
  • Allows the tandem to be repositioned
  • Supports the trailer brake and wheel-end systems
  • Maintains axle alignment and trailer tracking
  • Adjusting the slider changes how weight is distributed between the tractor drive axles and trailer tandem.

Common Specifications

  • Suspension Capacity: 40,000 lbs
  • Suspension Type: Tandem-axle air ride
  • Slider Type: Movable trailer subframe
  • Available Ride Heights: 16, 16.5, 17, and 18 inches
  • Standard Slider Width: 48 inches
  • Optional Slider Widths: 42 and 54 inches
  • Standard Axle Track: 77.5 inches
  • Optional Axle Tracks: 71.5, 81.5, and 83.5 inches
  • Axle Diameter: 5.75 inches on applicable AeroBeam configurations
  • Brake Options: Drum brakes or SAF P89-family air disc brakes, depending on specification
  • Alignment System: SwingAlign
  • Corrosion Protection: Black Armour on applicable components

Specifications may vary by production year, trailer manufacturer, axle package, and exact CBX40 configuration. The suspension identification tag should be used to confirm an individual system.

Capacity, Ride Height, and Axle Travel

The CBX40 has a rated tandem suspension capacity of 40,000 pounds. The actual legal weight carried by the tandem is also limited by axle-spacing laws, trailer ratings, tires, wheels, axles, brakes, and jurisdictional requirements.

Available ride heights include 16, 16.5, 17, and 18 inches. The correct height is determined by the trailer design and selected suspension configuration.

Operating at the wrong ride height can affect:

  • Suspension travel
  • Air-spring shape
  • Shock-absorber position
  • Axle alignment
  • Trailer deck height
  • Tire clearance
  • Brake and air-line clearance
  • Trailer stability

Ride height should be checked before completing axle alignment or diagnosing unusual tire wear.

Ride Quality and Load Distribution

Air springs help isolate the trailer body and cargo from road vibration and sharp pavement impacts. This can benefit packaged freight, temperature-controlled cargo, electronics, beverages, and other damage-sensitive loads.

The tandem air system helps distribute supported weight between the two trailer axles. Correct tire pressure, ride height, axle alignment, and cargo placement are necessary for proper load sharing.

Repositioning the tandem changes how the load is distributed across the tractor and trailer. Moving the tandem forward generally increases weight on the trailer axles while reducing weight on the tractor drive axles. Moving it rearward generally transfers weight toward the tractor.

Suspension Controls and Adjustment Options

The CBX40 uses a height-control valve to maintain the trailer’s designed operating height. Depending on the configuration, the system may also include:

  • Manual suspension dump
  • Automatic suspension dump
  • Air-assisted slider pin release
  • Manual slider pin release
  • PosiLok dock-walk control
  • Auto-PosiLift automatic lift-axle control
  • Tire Pilot Plus tire-inflation system
  • Application-specific air-control packages

The slider should only be repositioned according to approved procedures. All locking pins must be fully engaged before the trailer returns to service.

Alignment and Suspension Geometry

Correct tandem alignment helps control tire wear, rolling resistance, fuel consumption, and trailer tracking. Both axles must be aligned with the trailer centerline and correctly positioned relative to one another.

The SwingAlign system provides an adjustment point intended to simplify axle alignment. Alignment should be checked after:

  • Pivot-bushing replacement
  • Axle or suspension repair
  • Collision or curb-strike damage
  • Severe tire wear
  • Slider structural repair
  • Ride-height correction
  • Installation of replacement suspension components

Ride height, tire condition, wheel-end condition, and suspension wear should be inspected before final alignment measurements are taken.

Axle, Brake, and Wheel-End Options

The CBX40 is an integrated suspension-and-axle system with multiple brake and wheel-end configurations.

Available or application-specific equipment may include:

  • SAF trailer axles
  • Drum brakes
  • P89-family air disc brakes
  • SC5 dressed drum-brake wheel-end package
  • Conventional wheel ends
  • Extended-service wheel-end packages
  • Parallel or tapered spindles
  • Antilock braking system equipment
  • Tire Pilot Plus tire-inflation system
  • Wheel-end monitoring equipment
  • Brake chambers and automatic slack adjusters

Component availability depends on the production year and original trailer specification. Replacement parts must match the identified axle, brake, and wheel-end package.

Common Applications

  • Dry-van trailers
  • Refrigerated trailers
  • Truckload freight operations
  • Less-than-truckload operations
  • Regional distribution
  • Long-haul freight transportation
  • Drop-and-hook operations
  • Food and beverage distribution
  • Temperature-controlled freight
  • Weight-sensitive trailer applications
  • Cargo requiring air-ride protection

Vehicle, Axle, and Frame Compatibility

The CBX40 is designed for trailers with compatible slider rails, frame dimensions, axle spacing, air systems, and structural ratings.

Compatibility depends on:

  • Trailer frame and rail design
  • Slider width
  • Ride height
  • Axle track
  • Axle spacing
  • Trailer gross axle weight rating
  • Tire and wheel size
  • Brake configuration
  • Suspension travel clearance
  • Rear-impact-guard location
  • Air-tank and brake-valve placement
  • Landing-gear and body clearance

A CBX40 should not be substituted for another trailer suspension solely because both systems have a 40,000-pound rating. Mounting dimensions, rail design, ride height, and structural loads must also match.

Advantages

  • Integrated suspension, axle, brake, and wheel-end package
  • 40,000-pound tandem suspension rating
  • Air-ride performance helps protect cargo
  • Sliding tandem permits axle-weight adjustment
  • Weight-optimized AeroBeam construction
  • Multiple ride-height and slider-width options
  • SwingAlign simplifies axle-alignment adjustment
  • Air-assisted pin release can make tandem repositioning easier
  • Drum- and air-disc-brake options
  • Optional tire-inflation technology
  • Optional dock-walk control
  • Corrosion-resistant treatment on applicable components
  • Common service parts help support fleet maintenance

Limitations or Considerations

  • Air suspension requires a reliable compressed-air supply
  • Air leaks can lower the trailer or prevent normal operation
  • Slider rails and locking pins require regular inspection
  • Corrosion and debris can interfere with slider movement
  • Ride height must match the trailer specification
  • Product features vary by CBX40 generation and configuration
  • The current CBXA40 should not automatically be treated as identical to every earlier CBX40
  • Replacement parts must match the axle, brake, wheel-end, and ride-height configuration
  • The 40,000-pound suspension rating does not override legal axle-weight limits
  • Air disc brakes may have a higher initial purchase cost than drum brakes

Driver and Operator Experience

The CBX40 generally provides a smoother trailer ride than a mechanical spring slider. Reduced vibration and harshness can help protect cargo and reduce stress on the trailer body.

The movable tandem allows the driver to adjust axle weights after the trailer has been loaded. An air-assisted pin-release system can reduce the physical effort required to release the slider pins.

Drivers should verify that all locking pins are fully engaged after every adjustment. The release handle’s position alone does not confirm that every pin has entered its rail hole.

A trailer that leans, settles, bounces excessively, or takes too long to reach ride height should be inspected before continued operation.

Maintenance and Ownership Notes

  • Inspect air springs for cuts, cracking, abrasion, and leaks.
  • Check air lines, fittings, valves, and reservoirs for air loss.
  • Measure trailer ride height at scheduled intervals.
  • Inspect shock absorbers for leaks and worn mounts.
  • Check pivot bushings and connections for movement.
  • Inspect slider rails, locking pins, springs, and linkage.
  • Lubricate slider components according to service instructions.
  • Check the subframe and crossmembers for cracks or distortion.
  • Inspect AeroBeam trailing arms and axle connections.
  • Verify axle alignment after suspension repairs.
  • Service brakes and wheel ends according to their specific schedules.
  • Inspect tire-inflation hoses and rotary unions when equipped.
  • Check corrosion protection and repair damaged coatings.
  • Confirm that all safety stops and slider locks remain functional.

Common Suspension Problems

  • Air leaks: Damaged air springs, fittings, hoses, valves, or reservoirs may cause the trailer to settle.
  • Incorrect ride height: Height-control valve problems, damaged linkage, air restrictions, or incorrect adjustment can alter suspension travel.
  • Slider pins that will not release: Pin tension, corrosion, contamination, damaged linkage, or insufficient air pressure may prevent release.
  • Pins that do not fully engage: Misaligned rail holes, damaged pins, weak return springs, debris, or bent linkage may prevent secure locking.
  • Worn pivot bushings: Bushing wear can allow axle movement and contribute to poor alignment or tire wear.
  • Excessive bouncing: Failed shock absorbers, incorrect ride height, damaged air springs, or improper loading can reduce suspension control.
  • Uneven tire wear: Axle misalignment, tire-pressure differences, worn bushings, wheel-end problems, or axle deflection may be responsible.
  • Trailer leaning: Uneven loading, an air restriction, valve problems, or structural damage can cause side-to-side height differences.
  • Structural damage: Curb strikes, drag turns, overloading, collision damage, or loose components can damage the slider structure.

Identification Information

Identification information is normally found on a tag attached to the slider, suspension, or axle assembly. The trailer vehicle identification number and manufacturer build records may also be needed.

Record the following information:

  • Trailer manufacturer
  • Trailer VIN
  • Trailer model and production date
  • Complete suspension model
  • Suspension serial or assembly number
  • Rated capacity
  • Ride height
  • Slider width
  • Axle track
  • Axle spacing
  • Axle identification number
  • Brake type and size
  • Wheel-end configuration
  • Air-spring part number
  • Shock-absorber part number
  • Pin-release configuration

Do not order components based only on the CBX40 name. Different generations and configurations may use different suspension, axle, brake, and wheel-end parts.

Buying Considerations

  • Confirm whether the system is an earlier CBX40, CBX40 AeroBeam, or current CBXA40 configuration.
  • Verify the complete suspension identification number.
  • Match the trailer’s required ride height.
  • Confirm slider width and rail compatibility.
  • Verify axle track and axle spacing.
  • Choose the appropriate drum- or air-disc-brake package.
  • Review wheel-end warranty and maintenance requirements.
  • Consider air-assisted pin release.
  • Evaluate tire-inflation and monitoring options.
  • Determine whether PosiLok or Auto-PosiLift is appropriate.
  • Compare complete installed weight rather than individual component weight.
  • Review replacement-parts availability.
  • Inspect used assemblies for cracks, corrosion, axle damage, and altered mounting points.
  • Confirm compatibility through SAF-Holland and the trailer manufacturer.

Variants and Configurations

The CBX40 family has been offered in different generations and application-specific configurations.

Variations may include:

  • Earlier CBX40 slider systems
  • CBX40 AeroBeam configurations
  • Current CBXA40 AeroBeam configurations
  • 16-inch ride height
  • 16.5-inch ride height
  • 17-inch ride height
  • 18-inch ride height
  • 42-inch slider width
  • 48-inch slider width
  • 54-inch slider width
  • Different axle-track dimensions
  • Drum-brake packages
  • P89-family air disc brakes
  • Manual pin release
  • Air-assisted pin release
  • PosiLok dock-walk control
  • Auto-PosiLift technology
  • Tire Pilot Plus inflation equipment
  • Different wheel-end and spindle packages

Product naming and available equipment can change by production year. The identification tag should be used to distinguish between configurations.

Comparison to Similar Equipment

Compared with the SAF-Holland CBX23 AeroBeam, the CBX40 is a 40,000-pound tandem slider intended for conventional two-axle trailer applications. The CBX23 is designed for a lower-capacity single-axle slider application.

Compared with the SAF-Holland CBX25 AeroBeam, the CBX40 provides the higher capacity and tandem-axle arrangement required by many full-size dry vans and refrigerated trailers.

Compared with the Hendrickson ULTRAA-K Slider System, both are integrated air-ride tandem slider systems for van and refrigerated trailers. Their structures, alignment systems, axle designs, brake options, and service components differ.

Compared with the Hendrickson VANTRAAX, the CBX40 is SAF-Holland’s integrated slider alternative with its own axle, wheel-end, alignment, and corrosion-protection technologies.

Best Fit For

  • Dry-van fleets
  • Refrigerated-trailer fleets
  • Truckload carriers
  • Less-than-truckload carriers
  • Regional distribution fleets
  • High-mileage trailer operations
  • Weight-sensitive freight applications
  • Fleets requiring adjustable tandem positioning
  • Operators seeking integrated axles and suspension
  • Fleets wanting air-disc-brake availability
  • Operations prioritizing cargo protection and ride quality

Related Vehicle and Trailer Types

Related Truck and Trailer Models

Related Suspension Types

Related Equipment Systems

Related Guides

Regulatory and Compliance Notes

The CBX40’s 40,000-pound suspension rating does not override federal, state, provincial, or local axle-weight restrictions. Legal tandem weight depends on axle spacing, bridge-formula requirements, permits, tires, wheels, axles, brakes, and trailer ratings.

The tandem must be positioned so the complete tractor-trailer combination complies with applicable weight and length regulations.

All slider locking pins must be fully engaged before the trailer is operated. Suspension components, air lines, brakes, tires, wheel ends, and structural mounting points must remain in serviceable condition.

Changes to axle spacing, ride height, slider rails, brake configuration, or suspension structure should receive appropriate manufacturer or engineering approval.

Real World Operating Notes

Slider pins may remain loaded after the release control is operated. Adjusting tractor position slightly while the trailer brakes remain applied can help remove pressure from the pins, but drivers should follow approved fleet procedures.

Corrosion, gravel, ice, packed road debris, and insufficient lubrication can make the slider difficult to reposition. Regular cleaning and inspection can reduce these problems.

Moving the tandem affects axle weights, trailer wheelbase, low-speed turning, dock positioning, rear swing, and tractor-to-trailer clearance.

Ride-height and air-system problems should be corrected before axle alignment. A trailer aligned while sitting at the wrong height may continue to track incorrectly during normal operation.

Frequently Asked Questions

What is the SAF-Holland CBX40?

The CBX40 is an integrated 40,000-pound sliding tandem-axle air-suspension system for commercial trailers.

What trailers use the CBX40?

It is designed primarily for dry-van and refrigerated trailers. Availability depends on the trailer manufacturer and original specification.

Is the CBX40 an air suspension?

Yes. It uses air springs to support the trailer and isolate the body and cargo from road shock.

Can the CBX40 tandem be moved?

Yes. The suspension and axles are mounted in a sliding subframe that can move along rails beneath the trailer.

Why would a driver move the tandem?

The tandem is repositioned to adjust axle weights, comply with bridge and axle-weight regulations, change trailer wheelbase, or provide additional tractor-to-trailer clearance.

What is the CBX40 suspension capacity?

The system is rated at 40,000 pounds. Legal operating weight may be lower depending on axle spacing and other vehicle ratings.

What ride heights are available?

Published configurations include 16, 16.5, 17, and 18-inch ride heights.

Is the CBX40 available with air disc brakes?

Applicable configurations may use SAF P89-family air disc brakes. Drum-brake packages are also available.

What is SwingAlign?

SwingAlign is SAF-Holland’s axle-alignment system designed to simplify and improve trailer axle adjustment.

Is the CBXA40 the same as the CBX40?

The CBXA40 AeroBeam is a current or updated configuration within the CBX product family. Component interchangeability should not be assumed without checking the complete model and serial information.

How can the correct replacement parts be identified?

Use the suspension tag, axle tag, trailer VIN, ride height, slider width, axle spacing, brake type, and wheel-end configuration.

Availability and Where to Find

The SAF-Holland CBX40 may be available as original equipment through participating trailer manufacturers. Availability depends on the trailer model, production year, ride height, axle track, brake package, and wheel-end specification.

Replacement components are available through SAF-Holland distributors, commercial-trailer dealers, heavy-duty parts suppliers, fleet service facilities, and trailer repair shops.

Current product information identifies the updated system as the SAF CBXA40 AeroBeam. Older CBX40 assemblies should be identified by their suspension and axle tags before parts are ordered.

Availability and Where to Find

The SAF-Holland CBX40 may be available as original equipment through participating trailer manufacturers. Availability depends on the trailer model, production year, ride height, axle track, brake package, and wheel-end specification.

Replacement components are available through SAF-Holland distributors, commercial-trailer dealers, heavy-duty parts suppliers, fleet service facilities, and trailer repair shops.

Current product information identifies the updated system as the SAF CBXA40 AeroBeam. Older CBX40 assemblies should be identified by their suspension and axle tags before parts are ordered.

Support Trucking Families

Truck Equipment Atlas supports the mission of Grey Cross, a nonprofit dedicated to helping families of truck drivers who lose their lives while on the road. As the site grows, part of its mission is to bring awareness and support to these families.

Podcast or Video Section

Learn More Through Audio and Video

Truck Equipment Atlas will continue expanding with podcast episodes, interviews, and equipment breakdowns to help drivers and fleets better understand trucks and equipment.

Follow the Growth of Truck Equipment Atlas

Truck Equipment Atlas continues to expand with new truck profiles, trailer coverage, diesel engine pages, equipment system resources, manufacturer information, and educational guides.

Visit our Site Updates page to explore recent additions, project milestones, and upcoming resources as we continue building one of the industry’s growing commercial trucking equipment reference libraries.

View the Latest Site Updates: Truck Equipment Atlas Site Updates

Scroll to Top
