Webb Vortex Unlimited Brake Drum

Quick Facts

Manufacturer: Webb Wheel Products
Product Family: Vortex Unlimited
Product Type: Premium heavy-duty commercial brake brake drum
Brake Category: S-cam drum-brake component
Construction: Precision-cast iron
Cooling Design: External cooling ribs
Available Cooling Option: CRT Cool Running Technology vents on applicable models
Wear Monitoring: Patented visual wear indicator
Common Brake Sizes: 15-by-4, 16.5-by-5, 16.5-by-7, 16.5-by-8, and 16.5-by-8⅝ inches
Common 16.5-by-7 Model: 77864BW
16.5-by-7 CRT Model: 77807BW
Common Wheel-End Position: Drive and trailer axles, depending on part number
Mounting: Application-specific inboard or outboard mounting
Manufacturing: Engineered and manufactured in the United States
Primary Applications: Trucks, tractors, trailers, buses, and vocational vehicles
Primary Benefit: Improved heat dissipation, easier wear identification, and longer potential drum and lining life

Overview

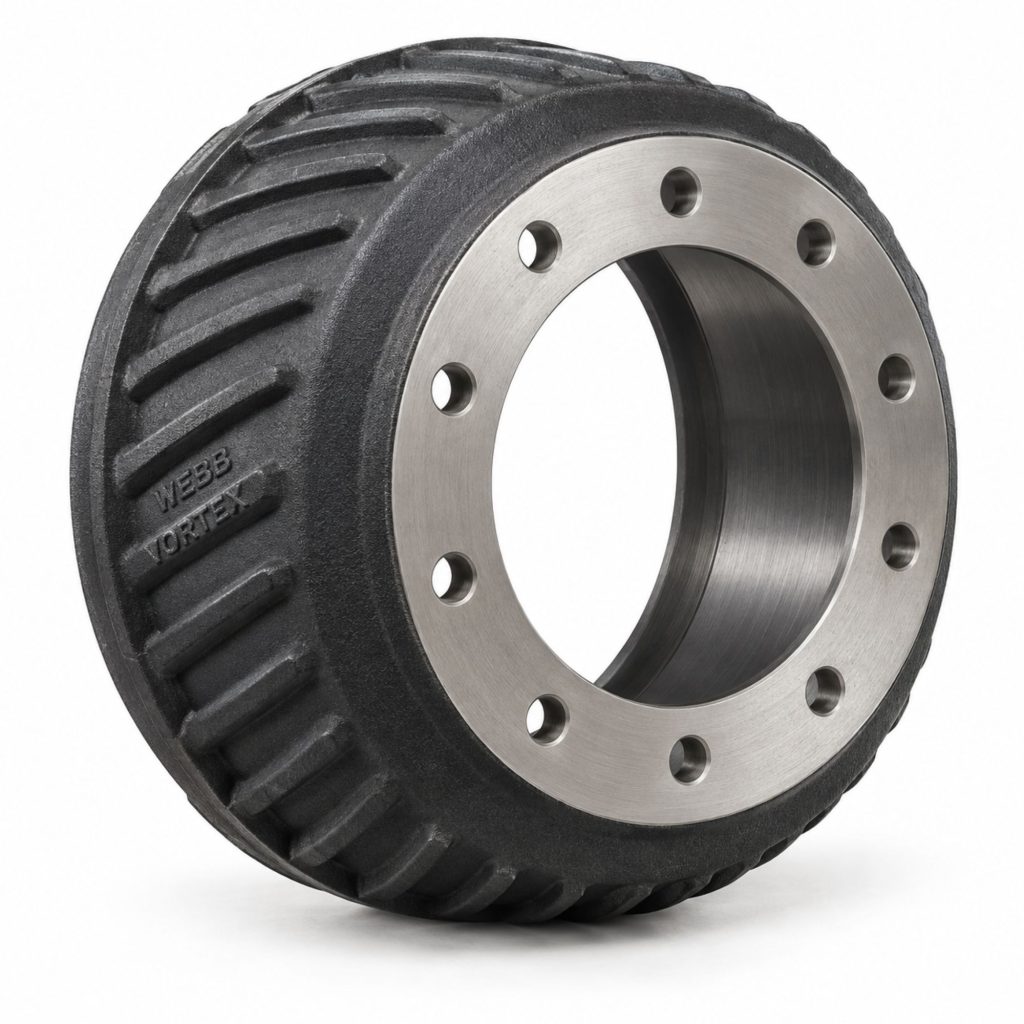

The Webb Vortex Unlimited is a premium commercial brake-drum family engineered to control heat and extend wheel-end service life. It is used with compatible S-cam drum brakes on commercial trucks, tractors, trailers, buses, and vocational vehicles.

Its defining feature is an external rib pattern that increases surface area and helps move heat away from the braking surface. Applicable Vortex Unlimited CRT models add strategically positioned vents that increase airflow through the drum.

Webb identifies these vents as Cool Running Technology. The company has reported that the CRT design can produce operating temperatures up to 15 percent cooler and contribute to brake-drum life up to 25 percent longer under applicable test and operating conditions.

The Vortex Unlimited family also incorporates a visual wear indicator. This helps technicians determine drum condition without depending solely on appearance or guesswork. The indicator does not replace dimensional measurement or the maximum-diameter marking cast into the drum.

Vortex Unlimited is a product family rather than one universal drum. Available sizes have included 15-by-4, 16.5-by-5, 16.5-by-7, 16.5-by-8, and 16.5-by-8⅝-inch configurations. Each part number has its own pilot diameter, bolt pattern, offset, mounting type, weight, application rating, and maximum wear diameter.

Key Characteristics

Premium commercial brake-drum family
External heat-dissipation ribs
Increased external surface area
CRT airflow vents on applicable models
Cooler operating-temperature design
Patented visual wear indicator
Multiple commercial brake sizes
Drive- and trailer-axle applications
Application-specific truck and bus availability
Balanced configurations
Compatible with common S-cam foundation brakes
Designed for longer maintenance intervals
Potential for longer lining life
Potential for longer drum life
Precision-machined mounting surfaces
Engineered and manufactured in the United States

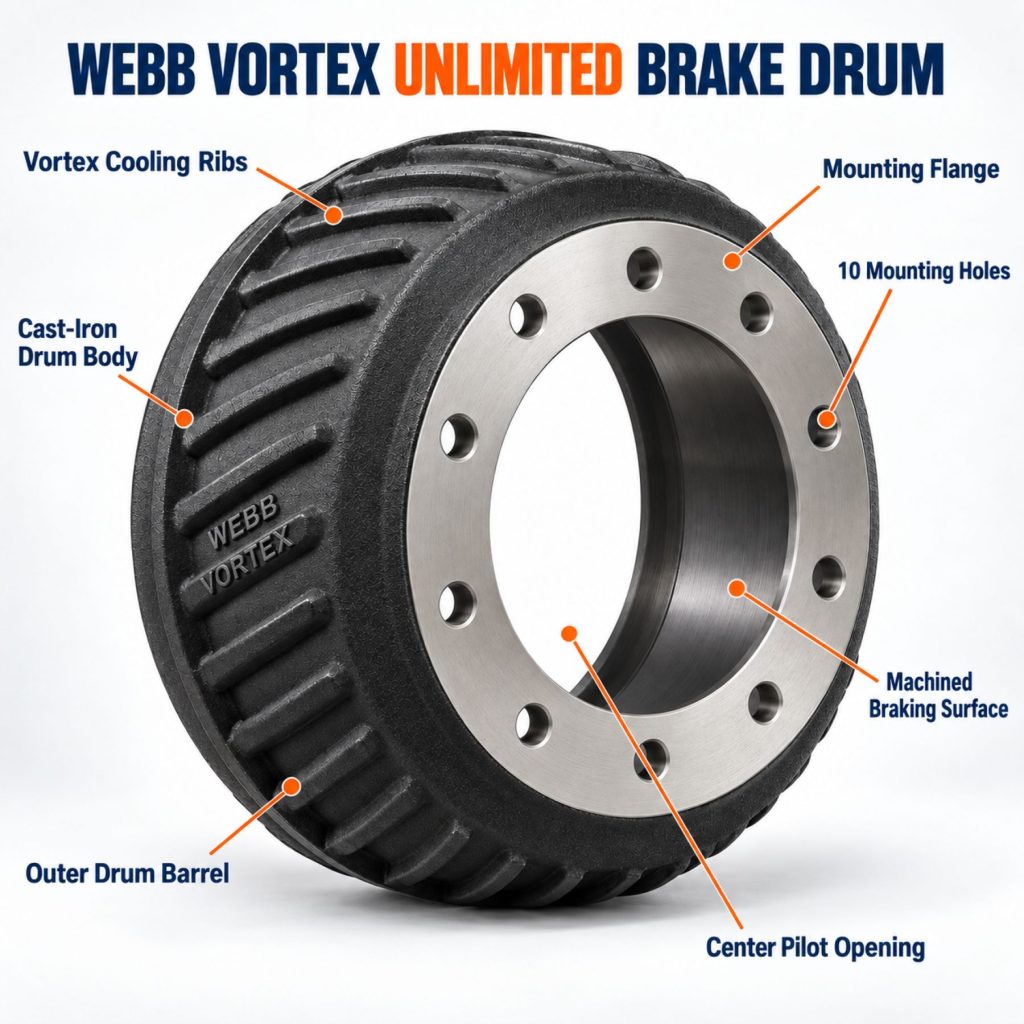

Major Components

Cast-iron drum body
Internal friction surface
External cooling ribs
CRT cooling vents when equipped
Mounting flange
Hub pilot
Bolt holes
Bolt circle
Open drum end
Closed back plate
Brake-surface section
Patented wear indicator
Maximum-diameter marking
Casting identification
Finished part-number marking
Balance correction on applicable models
Machined mounting surface
Machined pilot surface

How the Brake Component or System Works

The Vortex Unlimited drum mounts to the hub and rotates with the wheel. When the driver applies the brake pedal, compressed air enters the brake chamber and moves its pushrod.

The pushrod rotates the slack adjuster and S-camshaft. The S-cam spreads the brake shoes outward, causing the friction linings to contact the drum’s internal surface.

Friction slows the rotating drum and wheel. The vehicle’s kinetic energy is converted into heat that must be absorbed and released by the drum, linings, hub, wheel, and surrounding air.

The Vortex exterior ribs increase the drum’s exposed surface area and conduct heat away from the internal braking surface. CRT-equipped versions add vents that encourage air movement through and around the drum for additional cooling.

When the brake releases, return springs pull the shoes away from the drum. The drum continues rotating without intentional friction contact.

Position and Function Within the Brake System

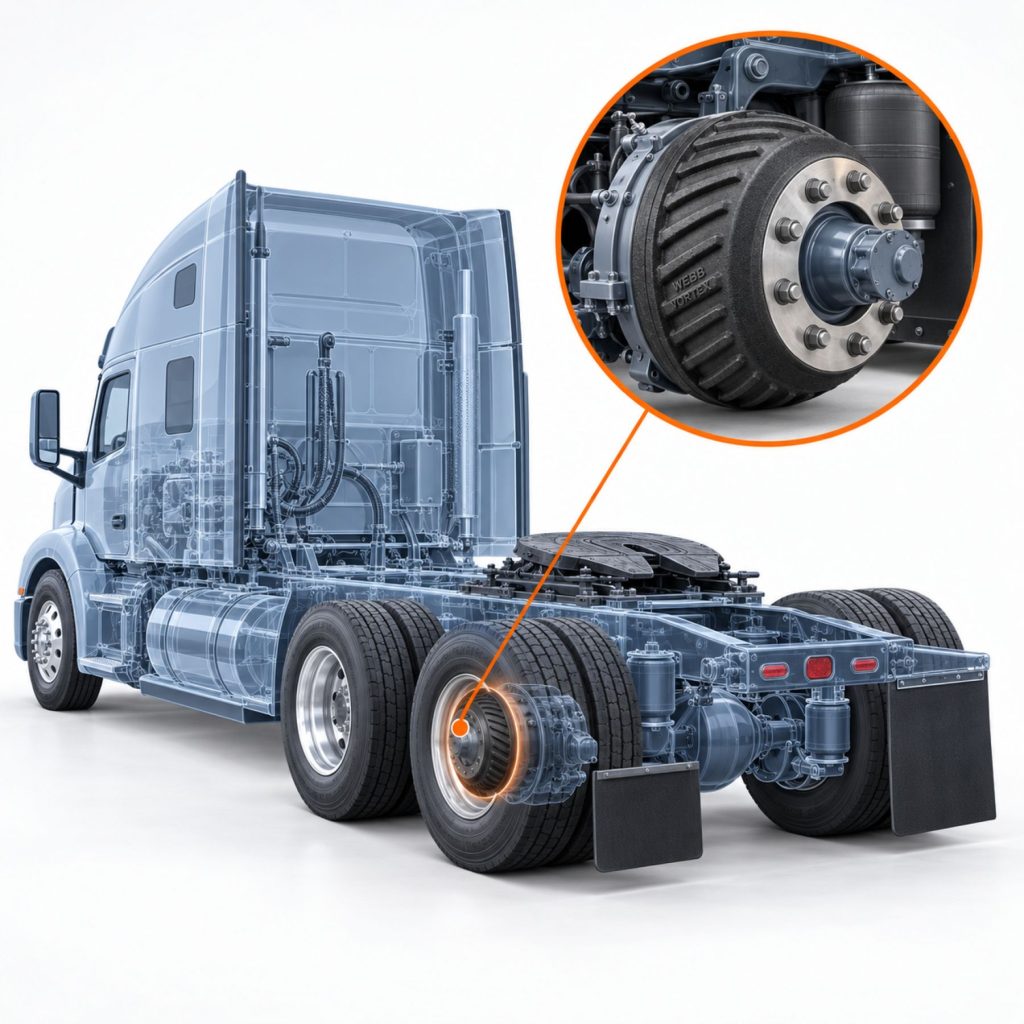

The Vortex Unlimited is installed over a compatible S-cam foundation brake at the wheel end. Depending on its part number, it may be used on a drive axle, trailer axle, steer axle, bus axle, or specialty application.

The drum performs several essential functions:

Provides the friction surface for the brake linings
Absorbs heat generated during braking
Releases heat into the surrounding air
Transfers braking torque through the hub and wheel end
Maintains the required relationship with the brake shoes
Encloses much of the foundation-brake assembly
Helps protect internal brake components from road debris

The drum does not regulate air pressure or control brake timing. Brake application is managed by the vehicle’s pneumatic controls, chambers, ABS, and electronic stability equipment.

Common Specifications

Product Family: Webb Vortex Unlimited
Brake Type: Commercial S-cam drum brake
Material: Application-engineered cast iron
Available Brake Sizes: 15-by-4, 16.5-by-5, 16.5-by-7, 16.5-by-8, and 16.5-by-8⅝ inches
Cooling Design: External heat-dissipation ribs
CRT Design: Additional airflow vents on applicable models
Wear Monitoring: Patented visual wear indicator
Balancing: Balanced configurations available
Common 16.5-by-7 Model: 77864BW
Common 16.5-by-7 CRT Model: 77807BW
Approximate 16.5-by-7 Weight: 109 pounds for commonly listed 77864BW and 77807BW configurations
Common 16.5-by-7 Pilot: 8.78 inches on applicable models
Common 16.5-by-7 Brake Surface: Approximately 7.54 inches on applicable models
Primary Positions: Drive and trailer axles, depending on part number
Mounting: Inboard or outboard, depending on model
Manufacturing Location: United States

Exact specifications must be confirmed using the complete Webb part number. Dimensions and capacity should not be applied to the entire Vortex Unlimited family based on one model.

Operating Specifications and Performance

Webb developed the Vortex Unlimited to manage one of the principal challenges affecting drum brakes: heat. High brake temperatures can reduce friction, accelerate lining wear, create heat checking, and shorten drum life.

The external ribs increase the amount of surface area exposed to moving air. CRT-equipped models add vents that promote greater airflow through the drum structure.

Webb has published performance claims of:

Up to 15 percent cooler operating temperatures with applicable CRT designs
Up to 25 percent longer brake-drum life under applicable conditions
Improved heat-transfer efficiency
Potentially longer brake-lining life
Lower maintenance costs
More consistent braking performance

These figures describe controlled comparisons and applicable operating conditions. Actual results depend on vehicle weight, route, speed, brake balance, friction material, driver technique, ambient temperature, maintenance, and wheel-end configuration.

The drum must be discarded when any portion of its braking surface exceeds the maximum diameter marked on the drum, regardless of the wear indicator’s appearance.

Braking Performance and System Integration

The Vortex Unlimited must be paired with the correct foundation-brake components. Brake shoes, friction material, chamber size, slack-adjuster length, camshaft geometry, and drum dimensions all influence brake torque.

Improved cooling can help the brake maintain more consistent friction during repeated applications. It does not eliminate brake fade or make the vehicle immune to overheating.

System performance depends on:

Air-system pressure
Brake-chamber condition
Applied pushrod stroke
Automatic slack-adjuster operation
Brake-shoe condition
Friction material
Drum diameter
Axle loading
Tire traction
ABS operation
Tractor-to-trailer brake balance
Driver braking technique

Drums and friction material should be matched across an axle. Significant differences in drum diameter, surface condition, or lining formulation can create unequal braking.

Air Supply, Controls, and Electronic Integration

The Vortex Unlimited has no direct pneumatic or electrical connections. It responds to mechanical force created by the vehicle’s foundation-brake system.

It can be used within properly configured systems containing:

Service brake chambers
Spring-brake chambers
Automatic slack adjusters
Manual slack adjusters
Relay valves
Antilock braking systems
Automatic traction control
Electronic stability control
Trailer roll-stability systems
Wheel-speed sensors
Electronic brake-stroke monitoring

ABS can reduce chamber pressure when it detects wheel lockup, but it cannot correct an oversized, cracked, contaminated, distorted, or improperly installed drum.

Electronic stability systems can selectively apply individual brakes. Their effectiveness still depends on properly maintained drums, linings, chambers, wheel-speed sensors, valves, tires, and wheel ends.

Installation, Adjustment, and Brake Balance

The correct Vortex Unlimited drum must match the axle, hub, wheel, brake size, mounting arrangement, and certified braking configuration.

Important installation checks include:

Confirming the complete Webb part number
Checking all suffix letters
Verifying brake diameter and width
Confirming the pilot diameter
Checking the bolt-circle diameter
Verifying the number and size of bolt holes
Confirming inboard or outboard mounting
Checking drum offset and overall depth
Inspecting the hub pilot
Cleaning the mounting surfaces
Inspecting wheel studs
Measuring the drum diameter
Checking the internal friction surface
Confirming brake-shoe compatibility
Checking wheel and suspension clearance
Following the correct wheel-fastener sequence
Tightening fasteners to the specified torque
Measuring pushrod stroke after assembly
Comparing brake operation across the axle

Corrosion, scale, or debris trapped between the hub and drum can prevent proper seating. Tightening the wheel over a poorly seated drum can distort or crack the drum.

Foundation Brake, Axle, and Wheel-End Compatibility

Vortex Unlimited drums are available for numerous commercial wheel-end configurations. Compatibility depends on more than the nominal brake size.

The correct drum must match:

Axle manufacturer
Axle model
Gross axle weight rating
Hub model
Hub-pilot diameter
Bolt-circle diameter
Bolt-hole count
Bolt-hole diameter
Drum offset
Overall depth
Brake-surface width
Foundation-brake size
Wheel size
Wheel offset
Tire configuration
Inboard or outboard mounting
ABS component clearance
Vehicle brake certification

A 16.5-by-7-inch Vortex drum cannot be assumed to replace every other 16.5-by-7-inch commercial drum. Webb’s product catalog or interchange system should be used to verify fit, form, and function.

Common Applications

Line-haul tractors
Regional-haul tractors
Heavy-duty straight trucks
Vocational trucks
Dump trucks
Concrete mixers
Refuse trucks
Construction vehicles
Logging trucks
Heavy-haul vehicles
Tank trucks
Municipal vehicles
Transit buses
School buses
Motorcoaches
Dry van trailers
Refrigerated trailers
Flatbed trailers
Tank trailers
Dump trailers
Hopper trailers
Container chassis
Specialty commercial vehicles

Vehicle and Brake-System Compatibility

The Vortex Unlimited can be used on many commercial vehicles when the correct part number is selected. Vehicle model alone does not confirm compatibility.

Fitment should be verified using:

Vehicle identification number
Truck or trailer manufacturer
Vehicle model and model year
Axle manufacturer
Axle model and serial number
Gross axle weight rating
Hub part number
Original drum part number
Webb finished part number
Brake diameter and width
Pilot diameter
Bolt-circle diameter
Bolt-hole dimensions
Drum offset
Overall depth
Wheel size
ABS configuration

A qualified heavy-duty parts supplier should verify the application when the original drum number or wheel-end configuration is uncertain.

Advantages

Enhanced heat-dissipation design
External cooling ribs
Additional airflow with applicable CRT models
Up to 15 percent cooler operation in applicable testing
Potential for up to 25 percent longer drum life
Potentially longer friction-lining life
Patented visual wear indicator
Reduced guesswork during inspection
Multiple commercial brake sizes
Drive- and trailer-axle coverage
Application-specific truck and bus availability
Balanced configurations
Premium heavy-duty construction
Broad aftermarket availability
Made in the United States

Limitations or Considerations

More expensive than many standard replacement drums
Heavier than some lightweight brake-drum designs
Complete inspection requires drum removal
Cooling claims depend on the exact model and conditions
Not every Vortex drum includes CRT vents
The wear indicator does not replace dimensional measurement
Different Vortex part numbers are not interchangeable
Drum dimensions must match the wheel end
Retains more heat than an exposed disc rotor
Can still experience brake fade
Can crack after severe overheating
Requires replacement when worn beyond the maximum diameter
Brake dust accumulates inside the drum
Improper wheel installation can distort the drum
Heavy drums require appropriate handling equipment

Driver and Operator Experience

A properly installed Vortex Unlimited drum should provide familiar S-cam drum-brake operation. The cooling design is intended to help control temperatures during repeated brake applications.

Drivers may not notice a difference during light braking. The potential benefit becomes more relevant during demanding conditions such as frequent stops, heavy loads, long descents, refuse collection, and vocational operation.

Drivers should report:

Increased stopping distance
Brake fade
Vehicle pulling during braking
Brake pulsation
Vibration
Burning odors
Wheel-end smoke
Grinding or scraping
Brakes that release slowly
Low-air warnings
ABS warning lamps
Unusual wheel-end temperatures
Parking brakes that do not hold

Improved cooling does not replace proper descent speed, transmission selection, engine braking, and safe driver technique.

Maintenance and Ownership Notes

Inspect the drum at scheduled intervals
Measure internal drum diameter
Check the maximum-diameter marking
Inspect the wear indicator
Check for visible cracks
Inspect for heat checking
Check for blue or discolored areas
Inspect for scoring
Check for deep grooves
Inspect for out-of-round wear
Check external cooling ribs
Inspect CRT vents when equipped
Remove debris from cooling openings
Check mounting surfaces
Inspect the hub pilot
Check bolt holes
Inspect wheel studs
Inspect brake shoes and linings
Check friction material for contamination
Measure applied pushrod stroke
Inspect slack-adjuster operation
Check camshafts and rollers
Inspect wheel bearings and seals
Compare wheel-end temperatures
Replace drums in matched axle pairs when required

Common Brake-System Problems

Cracked brake drum: Severe overheating, overloading, operation beyond the wear limit, improper wheel installation, mounting corrosion, or impact damage may cause cracking.
Blocked CRT vents: Mud, ice, road debris, or corrosion can restrict airflow and reduce the cooling benefit of the vented design.
Damaged cooling ribs: Impact damage or severe corrosion can reduce heat-dissipation surface area and may affect structural integrity.
Brake pulsation: Drum runout, out-of-round wear, hard spots, wheel-end looseness, or improper mounting can create pulsation.
Heat checking: Repeated heating and cooling can form small surface cracks. Heavy or propagating heat checks may require drum replacement.
Brake fade: Excessive brake temperature can reduce friction between the linings and drum even when a cooling drum is installed.
Deep scoring: Worn linings, exposed rivets, debris, or continued operation after friction material is exhausted can damage the braking surface.
Glazed friction surface: Excessive heat or incompatible friction material can polish the drum and reduce braking effectiveness.
Uneven lining wear: Drum distortion, incorrect shoes, worn rollers, camshaft movement, or foundation-brake problems may prevent complete lining contact.
Excessive pushrod stroke: Worn linings, an oversized drum, incorrect adjustment, worn mechanical components, or automatic slack-adjuster problems may increase stroke.
Wheel-end vibration: Imbalance, incorrect seating, a damaged pilot, loose fasteners, hub problems, or tire imbalance may produce vibration.
Misleading wear-indicator reading: Dirt, corrosion, or an incomplete inspection may obscure the indicator. Final serviceability must be confirmed by measurement.

Safety and Service Precautions

Commercial brake drums are heavy and may remain extremely hot after operation. Safe lifting and cooling procedures are required.

Before servicing the wheel end:

Park on a firm and level surface
Chock the wheels
Drain or isolate air pressure as required
Cage spring brakes when instructed
Never disassemble a spring-brake chamber
Support raised axles with approved stands
Allow the drum to cool naturally
Wear eye, hand, and foot protection
Use suitable drum-handling equipment
Control brake dust
Follow approved wheel-removal procedures
Use calibrated torque tools
Follow the correct fastener sequence

Never work under a vehicle supported only by a jack. Never rapidly cool a hot drum with water because thermal shock can damage the casting.

Brake dust should not be removed with compressed air. Use approved cleaning, vacuum, and containment procedures.

Identification Information

Identification may be cast, stamped, or marked on the drum’s exterior or mounting face.

Record the following information:

Vehicle manufacturer
Vehicle identification number
Vehicle model and model year
Axle manufacturer
Axle model
Axle serial number
Gross axle weight rating
Hub part number
Original drum part number
Complete Webb part number
Part-number suffix
Vortex Unlimited marking
CRT marking when applicable
Brake diameter
Brake-surface width
Pilot diameter
Bolt-circle diameter
Number of bolt holes
Bolt-hole diameter
Drum offset
Overall depth
Mounting type
Maximum wear diameter
Balanced configuration
Wheel size
Brake-shoe information
Friction-lining information

Webb suffixes can identify features such as balancing and wear indicators. The complete finished part number should be used when ordering.

Buying Considerations

Confirm the complete Webb part number
Determine whether CRT vents are required
Check for the Vortex Unlimited marking
Verify the brake diameter
Confirm the brake-surface width
Measure the pilot diameter
Verify the bolt-circle diameter
Count the bolt holes
Confirm the bolt-hole diameter
Check drum offset
Verify overall depth
Identify inboard or outboard mounting
Confirm the axle rating
Match the hub
Check wheel compatibility
Identify the foundation brake
Confirm friction-material compatibility
Determine whether a balanced drum is required
Inspect the opposite drum on the axle
Use Webb’s official interchange system

Variants and Configurations

Vortex Unlimited standard ribbed drum
Vortex Unlimited CRT vented drum
15-by-4-inch brake configuration
16.5-by-5-inch brake configuration
16.5-by-7-inch brake configuration
16.5-by-8-inch brake configuration
16.5-by-8⅝-inch brake configuration
Drive-axle configuration
Trailer-axle configuration
Truck configuration
Bus configuration
Inboard-mounted configuration
Outboard-mounted configuration
Balanced configuration
Balanced and wear-indicator configuration
Different pilot diameters
Different bolt patterns
Different axle ratings
Application-specific offsets

Comparison to Similar Equipment

Compared with the Gunite 3600A Brake Drum, the Vortex Unlimited adds Webb’s external cooling-rib design and visual wear indicator. Applicable CRT models also use cooling vents to increase airflow.

Compared with a standard Webb commercial brake drum, the Vortex Unlimited is positioned as a premium, cooler-running option designed to support longer drum and lining life.

Compared with the Webb Vortex CRT version, the original Vortex Unlimited uses external ribs for heat dissipation. The applicable CRT configuration adds airflow vents for further cooling.

Compared with a lightweight steel-shell drum, Vortex Unlimited uses conventional cast construction with specialized external cooling features. A steel-shell drum may provide greater weight savings but has a different construction and service profile.

Compared with the Meritor Q Plus Cam Brake, the Vortex Unlimited is the rotating friction drum. The Q Plus includes the brake spider, shoes, linings, rollers, springs, camshaft, and related foundation-brake components.

Compared with the Meritor EX+ LS Air Disc Brake, the Vortex Unlimited operates with internal brake shoes. The EX+ LS uses brake pads and a caliper that clamp an exposed rotor.

Best Fit For

Vehicles originally equipped with a Vortex drum
Fleets seeking improved drum cooling
High-mileage line-haul tractors
Regional-haul trucks
Heavy-duty drive axles
Commercial trailer axles
Stop-and-go vocational vehicles
Refuse trucks
Dump trucks
Concrete mixers
Tank vehicles
Commercial buses
Trailers operating on long grades
Fleets tracking brake maintenance costs
Operations seeking visual wear indication
Applications requiring premium cast brake drums

Related Vehicle and Trailer Types

Complete Guide to Semi Truck Types
Complete Guide to Semi-Trailer Types
Class 7 trucks
Class 8 trucks
Sleeper tractors
Day cab tractors
Vocational trucks
Dump trucks
Concrete mixers
Refuse trucks
Heavy-haul vehicles
Transit buses
Motorcoaches
Dry van trailers
Refrigerated trailers
Flatbed trailers
Tank trailers
Dump trailers
Hopper trailers
Container chassis

Related Truck and Trailer Models

Related Brake System Types

Brake Systems
Air Brake Systems
Drum Brake Systems
Trailer Brake Systems
Brake Chambers & Actuators
ABS & Electronic Braking Systems
S-cam foundation brakes
Service-brake systems
Spring parking brakes
Reduced Stopping Distance brake systems
Heavy-duty wheel-end systems

Related Brake Products

Gunite 3600A Brake Drum
Meritor Q Plus Cam Brake
Meritor Q Plus LX500 Cam Brake
Meritor EX+ LS Air Disc Brake
Hendrickson MAXX22T Trailer Air Disc Brake
Bendix ADB22X Air Disc Brake
Haldex ModulT Air Disc Brake
Automatic slack adjusters
Commercial brake shoes
S-camshafts
Air brake chambers
Wheel hubs
Brake hardware kits

Related Equipment Systems

Equipment Systems
Axles & Differentials
Suspension Systems
Tires & Wheels
Drive axles
Trailer axles
Wheel bearings
Wheel hubs
Commercial wheels
Vehicle air systems

Related Guides

Regulatory and Compliance Notes

Commercial brake drums must remain within applicable inspection and manufacturer service limits. The maximum diameter cast into the drum supersedes generalized catalog information.

A drum may require replacement if:

It is cracked
The back plate is cracked
Bolt holes are elongated
The braking surface has heavy heat checking
It is severely overheated
It is out of round
Deep grooves exceed the wear limit
Any portion exceeds the maximum diameter
Mounting surfaces are damaged
Structural cooling ribs or vents are damaged

Webb recommends replacing brake drums in axle pairs to help maintain comparable braking force.

A Vortex Unlimited drum does not increase the certified capacity of an axle or vehicle. The axle, hub, wheels, tires, suspension, foundation brakes, and vehicle certification remain controlling.

Real World Operating Notes

The visual wear indicator can speed inspections, but the drum must still be measured. The maximum diameter marking on the drum determines its final service limit.

CRT vents should remain open. Fleets operating in mud, snow, construction sites, or corrosive environments should inspect the openings for accumulated material.

Drums should be compared across the axle. Installing one new drum opposite a heavily worn drum can create differences in braking response and heat.

Cooler operation can improve component life, but it cannot overcome dragging brakes, incorrect adjustment, poor brake balance, overloading, or unsafe descent techniques.

New drums and friction material require correct burnishing. Braking performance may change as the surfaces establish full contact.

Wheel-end temperatures can help identify problems. An unusually hot drum may be dragging, while a much cooler drum may not be applying correctly.

Frequently Asked Questions

What is the Webb Vortex Unlimited?

It is a premium family of commercial brake drums using external cooling ribs, a visual wear indicator, and optional CRT airflow vents.

What does CRT mean?

CRT stands for Cool Running Technology. Applicable models use vents designed to increase airflow and improve heat transfer.

How much cooler does the CRT drum run?

Webb has reported operating temperatures up to 15 percent cooler under applicable testing and operating conditions.

Does the Vortex design increase brake-drum life?

Webb has reported up to 25 percent longer drum life under applicable conditions. Actual results depend on vehicle application, brake balance, route, loading, maintenance, and driver technique.

What brake sizes are available?

Vortex Unlimited configurations have included 15-by-4, 16.5-by-5, 16.5-by-7, 16.5-by-8, and 16.5-by-8⅝-inch sizes.

What is the common 16.5-by-7 model?

The 77864BW is a commonly listed 16.5-by-7-inch Vortex Unlimited drum. The 77807BW is an applicable CRT-equipped 16.5-by-7 configuration.

Does every Vortex Unlimited drum have CRT vents?

No. The product family includes ribbed Vortex drums and applicable versions with additional CRT vents.

What does the wear indicator do?

It provides a visual reference that helps technicians evaluate drum wear. The drum must still be measured and compared with its cast maximum-diameter marking.

Are Vortex drums balanced?

Balanced configurations are available. The complete suffix should be checked because it identifies product options.

Can it replace a Gunite 3600A?

Some Vortex part numbers may cross-reference common 16.5-by-7-inch drums, but pilot, bolt pattern, offset, overall depth, capacity, and mounting must be verified through Webb’s official interchange information.

Should brake drums be replaced in pairs?

Webb recommends replacing drums in axle pairs to help preserve comparable braking power.

How can the correct replacement be identified?

Use the original drum number, complete Webb part number, axle and hub information, brake size, pilot diameter, bolt pattern, offset, overall depth, mounting type, and wheel configuration.

Availability and Where to Find

Webb Vortex Unlimited drums may be available through Webb Wheel distributors, commercial-truck dealers, trailer dealers, fleet-parts suppliers, heavy-duty brake specialists, wheel-end distributors, and repair facilities.

Availability depends on brake size, axle, hub, mounting type, bolt pattern, offset, balancing, wear-indicator option, and CRT configuration.

Before ordering, buyers should provide the original brake-drum number and complete wheel-end information. Webb’s online interchange system can help identify an appropriate replacement.

Current product details, distributor resources, and technical literature are available through the Webb Wheel website, its brake-drum section, and the Webb product interchange.

Support Trucking Families

Truck Equipment Atlas supports the mission of Grey Cross, a nonprofit dedicated to helping families of truck drivers who lose their lives while on the road. As the site grows, part of its mission is to bring awareness and support to these families.

Podcast or Video Section

Learn More Through Audio and Video

Truck Equipment Atlas will continue expanding with podcast episodes, interviews, and equipment breakdowns to help drivers and fleets better understand trucks and equipment.

Follow the Growth of Truck Equipment Atlas

Truck Equipment Atlas continues to expand with new truck profiles, trailer coverage, diesel engine pages, equipment system resources, manufacturer information, and educational guides.

Visit our Site Updates page to explore recent additions, project milestones, and upcoming resources as we continue building one of the industry’s growing commercial trucking equipment reference libraries.

View the Latest Site Updates: Truck Equipment Atlas Site Updates
