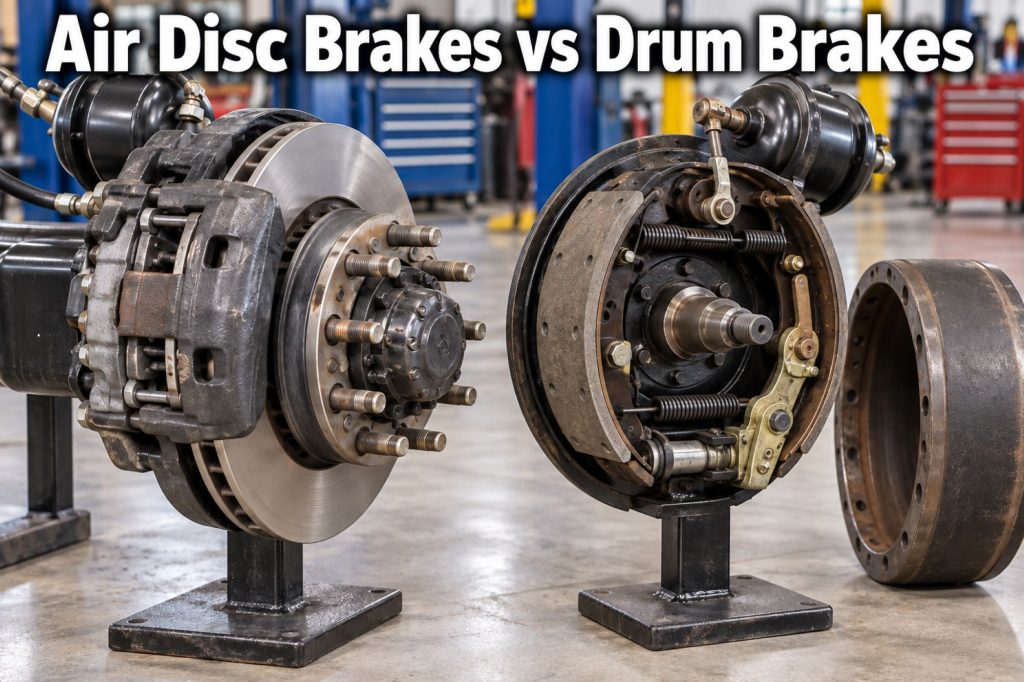

Air Disc Brakes vs Drum Brakes

Commercial trucks and trailers commonly use two types of air-operated foundation brakes: air disc brakes and drum brakes. Both convert compressed-air pressure into mechanical braking force, but they apply friction in different ways.

Air disc brakes use a caliper to clamp brake pads against a rotor. Drum brakes typically use an S-cam mechanism to push brake shoes against the inside of a brake drum.

Both designs can provide dependable commercial-vehicle braking when correctly specified, inspected, adjusted, and maintained. However, they differ in braking consistency, heat management, inspection, maintenance, initial cost, component availability, and suitability for specific operating environments.

This guide compares air disc brakes and drum brakes, explains how each system works, and identifies the factors fleets and equipment buyers should consider when selecting a foundation-brake design.

What Is a Foundation Brake?

The foundation brake is the wheel-end portion of a commercial vehicle’s braking system.

When the driver presses the brake pedal, the Air Brake System delivers compressed air to a brake chamber or actuator. The actuator converts that air pressure into mechanical movement that applies the foundation brake.

The two primary foundation-brake designs used on air-braked commercial vehicles are:

Air disc brakes
S-cam drum brakes

The air system supplies and controls the braking force. The foundation brake applies friction at the wheel end to slow or stop the vehicle.

How Air Disc Brakes Work

Air Disc Brake Systems use a rotor attached to the wheel hub and a caliper mounted around the rotor.

A simplified air disc brake application follows this sequence:

The driver presses the brake pedal.
Compressed air enters the brake chamber.
The chamber moves an internal actuator or pushrod.
The actuator operates the caliper mechanism.
The caliper presses the inner and outer brake pads against the rotor.
Friction between the pads and rotor slows the wheel.

When air pressure is released, the caliper mechanism reduces clamping force and provides the running clearance needed between the pads and rotor.

Major Air Disc Brake Components

A typical commercial-vehicle air disc brake includes:

Brake chamber or actuator
Caliper
Carrier or torque plate
Brake pads
Rotor
Tappets or pressure plates
Internal adjustment mechanism
Slide pins or guide mechanisms
Mounting hardware
Wear indicators or sensors on equipped systems

The exact construction varies by manufacturer and brake model.

How Drum Brakes Work

Drum Brake Systems use curved brake shoes positioned inside a rotating brake drum.

Most heavy commercial-vehicle drum brakes use an S-cam design.

A simplified S-cam drum-brake application follows this sequence:

The driver presses the brake pedal.
Compressed air enters the brake chamber.
The chamber extends its pushrod.
The pushrod rotates the automatic slack adjuster.
The slack adjuster turns the camshaft.
The S-shaped cam pushes the brake shoes outward.
The linings contact the inside of the rotating drum.
Friction between the linings and drum slows the wheel.

When the brakes are released, return springs pull the shoes away from the drum.

Major Drum-Brake Components

A typical S-cam drum brake includes:

Brake chamber or spring brake
Pushrod
Clevis
Automatic slack adjuster
Camshaft
S-cam head
Camshaft bushings
Brake spider
Anchor pins
Rollers
Brake shoes
Friction linings
Return springs
Brake drum
Dust shields on equipped systems

These components must work together while maintaining the correct brake stroke and shoe-to-drum clearance.

Air Disc Brakes vs Drum Brakes: Main Differences

Comparison Area	Air Disc Brakes	Drum Brakes
Friction components	Pads clamp against a rotor	Shoes press against the inside of a drum
Application mechanism	Caliper	S-cam, camshaft, and slack adjuster
Heat exposure	Rotor is open to surrounding airflow	Friction surfaces are enclosed by the drum
Braking consistency	Generally consistent through repeated applications	Can be more affected by heat and adjustment
Brake fade resistance	Generally stronger resistance to heat-related fade	More susceptible to fade under severe heat
Inspection	Pad and rotor condition are often easier to observe	Detailed inspection may require removing the drum
Adjustment	Internal caliper adjustment	Automatic slack adjuster maintains clearance
Routine service	Fewer traditional foundation-brake components	More mechanical wear points and moving components
Initial cost	Commonly higher	Commonly lower
Service availability	Increasing throughout the industry	Widely understood and supported
Contamination exposure	Open design exposes components to road conditions	Drum encloses the friction surfaces but can retain contamination
Common applications	Highway tractors, trailers, buses, and newer fleets	Highway, vocational, severe-duty, trailer, and legacy equipment

Individual performance, weight, cost, and maintenance requirements vary by brake manufacturer, model, axle rating, vehicle configuration, and application.

Braking Performance

Both systems are designed to meet the braking requirements of their intended vehicles. The important difference is often how consistently they perform as operating conditions change.

Air disc brakes provide direct clamping force against both sides of the rotor. Their design can produce a predictable response with relatively linear braking characteristics.

Drum brakes create friction by forcing curved shoes against the drum’s inner surface. Their geometry can produce a self-energizing effect that contributes to strong braking force, but performance can be influenced by adjustment, component wear, temperature, and drum condition.

Actual stopping performance depends on the complete vehicle, including:

Vehicle weight
Axle loading
Tire condition
Road traction
Brake balance
Air-system condition
ABS operation
Foundation-brake condition
Trailer brake condition
Driver response
Vehicle speed
Road grade

A vehicle equipped with air disc brakes does not automatically overcome poor tires, improper loading, inadequate maintenance, or low-traction road conditions.

Heat Management and Brake Fade

Commercial-vehicle brakes convert motion into heat. Heavier loads, higher speeds, repeated stops, and long downhill grades can generate substantial brake temperatures.

Air disc brake rotors are exposed to surrounding airflow, allowing heat to dissipate from the braking surfaces. This open design generally provides strong resistance to heat-related changes in braking response.

Drum brakes contain the friction surfaces inside the drum. Heat must travel through the drum before being released into the surrounding air.

As drum-brake temperatures increase, the drum can expand away from the brake shoes. Excessive heat can also affect friction-lining performance. These conditions can increase the risk of brake fade during repeated or severe braking.

Air disc brakes are not immune to overheating. Excessive brake use can still damage:

Pads
Rotors
Calipers
Seals
Wheel-end components
Lubricants
Nearby tires and components

Drivers must use proper speed control, transmission gearing, engine brakes, and other available retarders when descending long or steep grades.

Brake Adjustment

Correct running clearance is essential for both brake designs.

Air Disc Brake Adjustment

Most commercial air disc brakes use an internal adjustment mechanism that compensates for pad and rotor wear.

The caliper must maintain enough clearance to allow the rotor to turn freely while keeping the pads close enough for a prompt brake application.

Caliper adjustment mechanisms should not be manually altered unless the manufacturer’s service procedure specifically requires it.

Drum-Brake Adjustment

Modern S-cam drum brakes generally use automatic slack adjusters.

The automatic slack adjuster rotates the camshaft and is designed to maintain the correct lining-to-drum clearance as components wear.

Excessive pushrod stroke can indicate problems involving:

Brake adjustment
Worn linings
Worn drums
Camshaft bushings
Brake chamber installation
Slack adjuster condition
Incorrect component geometry
Foundation-brake damage

Repeatedly adjusting an automatic slack adjuster without correcting the underlying problem can conceal a mechanical defect.

Inspection Differences

One of the practical advantages of air disc brakes is the ability to inspect pad wear without removing a large brake drum on many designs.

Depending on the brake model, technicians may be able to examine:

Remaining pad material
Rotor surface condition
Caliper movement
Wear indicators
Guide-pin condition
Chamber condition
Mounting hardware

A complete inspection must still follow the brake manufacturer’s service procedures.

Drum-brake inspections may involve checking:

Pushrod stroke
Brake-lining thickness
Drum condition
Slack-adjuster operation
Camshaft movement
Camshaft bushings
Return springs
Brake shoes
Rollers
Anchor pins
Contamination
Cracks or heat damage

Some drum-brake conditions cannot be fully evaluated without removing the drum.

Maintenance Requirements

Air disc brakes often have fewer traditional external foundation-brake components than S-cam drum brakes. There are no conventional brake shoes, return springs, rollers, camshaft bushings, or external slack adjuster.

Common air disc brake maintenance areas include:

Brake-pad wear
Rotor wear and cracking
Caliper movement
Guide pins
Boots and seals
Internal adjuster operation
Brake chambers
Mounting hardware
Uneven pad wear
Wheel-end contamination

Common drum-brake maintenance areas include:

Brake linings
Brake drums
Return springs
Shoe rollers
Anchor pins
Camshafts
Camshaft bushings
Automatic slack adjusters
Brake chambers
Pushrod stroke
Shoe-to-drum clearance
Lubrication points

The simpler visible component count of an air disc brake does not eliminate the need for trained inspection and correct service procedures.

Pad Changes vs Brake-Shoe Service

Air disc brake pad replacement can often be completed without removing the wheel hub or rotor. The exact procedure depends on the caliper and vehicle configuration.

Drum-brake relining generally requires removing the brake drum to reach the shoes and related hardware. Drum removal also creates an opportunity to inspect the full foundation-brake assembly.

Service time should not be evaluated by component replacement alone. Fleets must also consider:

Inspection time
Wheel-removal requirements
Parts availability
Technician training
Specialized tools
Rotor or drum replacement
Caliper replacement cost
Downtime
Maintenance intervals
Warranty coverage

Rotor and Drum Wear

Air disc brake rotors and drum-brake drums are wear components.

Rotor Wear

Air disc brake rotors can experience:

Normal friction wear
Heat checking
Scoring
Cracking
Thickness variation
Corrosion
Uneven surface wear
Damage caused by worn-out pads

Rotor thickness and condition must remain within the brake manufacturer’s specifications.

Drum Wear

Brake drums can experience:

Diameter growth
Scoring
Heat checking
Cracking
Out-of-round wear
Hard spots
Grooving
Excessive heat damage
Contamination

A drum must not remain in service beyond its allowable wear diameter or with disqualifying damage.

Brake Fade

Brake fade is a reduction in braking effectiveness caused by excessive heat or other operating conditions.

Drum brakes can experience increased shoe-to-drum clearance as the heated drum expands. Friction materials can also lose effectiveness at extreme temperatures.

Air disc brakes generally maintain a more consistent relationship between the pads and rotor as temperatures change. This contributes to their resistance to fade during repeated brake applications.

However, no foundation brake should be used as the vehicle’s only method of controlling speed on a long descent.

Water, Dirt, and Contamination

The open architecture of an air disc brake exposes the rotor and caliper to water, road salt, dirt, and other environmental conditions. The rotating rotor can shed some moisture and debris, but corrosion and contamination remain important inspection concerns.

A drum brake encloses its friction surfaces, which can provide some protection from direct exposure. However, water, oil, grease, or debris that enters the drum may become trapped and affect braking performance.

Common contamination sources include:

Wheel-seal leaks
Hub-lubricant leaks
Road debris
Water intrusion
Improper lubrication
Damaged boots or seals
Chemical exposure
Severe off-road conditions

Contaminated friction material must be evaluated and serviced according to applicable manufacturer requirements.

Weight Differences

Air disc brakes were historically associated with a greater weight penalty than drum brakes. Continued design development has reduced that difference in many applications.

The actual weight comparison depends on:

Brake size
Axle rating
Rotor construction
Drum construction
Caliper design
Hub configuration
Vehicle application
Manufacturer

Weight should be compared using the exact brake packages offered for the truck, tractor, or trailer rather than relying on a general assumption.

Initial Cost

Drum brakes commonly offer a lower initial purchase cost. They are produced at large scale, use familiar components, and are supported by a broad commercial-vehicle service network.

Air disc brakes frequently cost more when the vehicle is purchased. Fleets may accept the higher initial cost in exchange for potential operational advantages such as:

Consistent braking response
Strong fade resistance
Easier friction-material inspection
Faster pad service on some designs
Fewer traditional moving components
Reduced adjustment-related concerns
Fleet brake standardization

The lowest purchase price does not always produce the lowest total operating cost.

Parts and Service Availability

Drum-brake parts and service knowledge are widely available throughout the commercial-trucking industry.

Common components such as brake shoes, drums, slack adjusters, camshafts, bushings, springs, and chambers are familiar to most heavy-truck repair facilities.

Air disc brake support has expanded significantly as the systems have become more common on tractors, trucks, buses, and trailers. However, fleets should still consider whether technicians, replacement parts, diagnostic knowledge, and manufacturer support are available throughout their operating territory.

Driver Feel and Brake Response

Drivers may notice differences between the two brake designs.

Air disc brakes are often associated with:

Smooth application
Predictable response
Consistent braking feel
Strong performance during repeated stops
Reduced sensitivity to foundation-brake adjustment

Drum brakes can also provide smooth and effective braking when properly adjusted and maintained. However, differences in adjustment, wear, temperature, or contamination across wheel ends may affect brake balance and response.

Driver reports of pulling, delayed application, unusual noise, vibration, or changed brake feel should be inspected promptly.

Air Disc Brake Advantages

Potential advantages of air disc brakes include:

Consistent braking response
Strong resistance to heat-related fade
Easier visual inspection on many designs
Fewer traditional moving foundation-brake components
No external automatic slack adjuster
No S-cam or camshaft bushings
Faster pad replacement on some configurations
Reduced sensitivity to drum expansion
Growing availability on trucks and trailers
Good suitability for frequent-stop and highway applications

These benefits depend on correct installation, maintenance, component selection, and vehicle configuration.

Air Disc Brake Disadvantages

Potential disadvantages include:

Higher initial purchase cost
Potentially higher caliper or rotor replacement expense
Need for model-specific service procedures
Road-salt and corrosion exposure
Possible limited parts availability in some service areas
Need for technician training
Risk of uneven pad wear if caliper movement is restricted
Differences between brake manufacturers and designs

An air disc brake should not be serviced as though every manufacturer uses the same adjustment or repair procedure.

Drum-Brake Advantages

Potential advantages of drum brakes include:

Lower initial cost in many applications
Broad parts availability
Familiar service procedures
Extensive technician experience
Long history in heavy commercial vehicles
Wide range of axle and application compatibility
Strong braking capability when correctly maintained
Established support for vocational and severe-duty equipment
Common component availability across large operating areas

Drum brakes remain a practical foundation-brake choice for many trucks and trailers.

Drum-Brake Disadvantages

Potential disadvantages include:

Greater susceptibility to heat-related fade
More mechanical wear points
Dependence on correct pushrod stroke and adjustment
More involved internal inspection
Drum removal for many service procedures
Potential wear in camshafts and bushings
Possible brake imbalance caused by adjustment or component condition
Retention of contamination inside the drum
More traditional foundation-brake hardware to inspect

These disadvantages can be managed through proper inspection and preventive maintenance.

Mixed Disc-and-Drum Configurations

A commercial vehicle does not always use the same brake design at every wheel position.

Possible configurations include:

Air disc brakes on the steer axle with drum brakes on the drive axles
Air disc brakes on the tractor with drum brakes on the trailer
Drum brakes on the tractor with air disc brakes on the trailer
Air disc brakes at every wheel position
Drum brakes at every wheel position

Mixed configurations can operate effectively when the vehicle is correctly engineered and maintained.

Brake compatibility, balance, ABS operation, axle ratings, chamber sizing, and manufacturer specifications must be considered. Brake components should never be changed solely to create a mixed configuration without proper engineering and approval.

Tractor and Trailer Brake Compatibility

The tractor and trailer operate as a combined braking system even when they use different foundation-brake designs.

During a normal brake application:

The driver operates the tractor’s brake pedal.
The tractor controls its service brakes.
A control signal is sent through the trailer service line.
The trailer relay system delivers air from the trailer reservoirs.
The trailer foundation brakes apply.
Tractor and trailer ABS systems monitor their respective wheel speeds.

Proper brake balance helps prevent one portion of the combination from doing an excessive share of the braking work.

Learn more about the trailer side of the system on the Trailer Brake Systems page.

Which Brake Type Is Better for Highway Trucks?

Air disc brakes can be especially attractive for highway tractors that operate at high gross combination weights, travel through mountainous terrain, or require predictable braking across long routes.

Potential highway advantages include:

Consistent brake response
Resistance to fade
Easier pre-service inspection
Reduced adjustment concerns
Compatibility with modern electronic braking technologies

Drum brakes remain widely used in highway service because of their lower initial cost, broad support network, and proven durability.

The better choice depends on the fleet’s acquisition strategy, maintenance program, operating territory, replacement cycle, and total-cost analysis.

Which Brake Type Is Better for Vocational Trucks?

Vocational equipment may operate in mud, dust, water, construction debris, steep terrain, frequent-stop service, or severe-duty environments.

Air disc brakes may provide advantages for:

Refuse collection
Urban delivery
Emergency vehicles
Municipal fleets
Buses
Repeated-stop operations
Mountainous routes

Drum brakes may remain attractive where:

Initial cost is a major concern
Parts standardization is important
Existing maintenance operations are built around drum brakes
Equipment operates far from specialized support
A proven application already performs reliably
Severe contamination exposure influences component selection

The operating environment must be considered along with braking performance.

Which Brake Type Is Better for Trailers?

Both air disc and drum brakes are used on commercial trailers.

Air disc brakes can provide:

Consistent trailer-brake response
Easier pad inspection
Strong fade resistance
Reduced traditional adjustment concerns
Brake-system standardization with disc-equipped tractors

Drum brakes can provide:

Lower trailer acquisition cost
Broad roadside service availability
Familiar maintenance
Extensive compatibility across trailer fleets
Common replacement components

Trailer utilization is an important factor. A high-mileage trailer may justify a different brake investment than equipment that operates intermittently or remains within a limited service territory.

How to Choose Between Air Disc and Drum Brakes

Important selection factors include:

Truck or trailer application
Gross vehicle weight
Gross combination weight
Axle ratings
Highway or vocational use
Number of daily brake applications
Terrain and road grades
Operating speed
Trailer compatibility
Fleet replacement cycle
Initial purchase cost
Expected maintenance cost
Technician training
Parts availability
Service-network coverage
Corrosion exposure
Downtime requirements
Existing fleet standardization
Manufacturer support

Brake selection should be based on the complete vehicle and its operating duty cycle.

Can a Truck Be Converted From Drum Brakes to Air Disc Brakes?

A drum-to-disc conversion is more complex than replacing the visible wheel-end components.

A proper conversion may require evaluation of:

Axle compatibility
Spindle and wheel-end design
Brake mounting provisions
Chamber size
Air-system balance
Wheel clearance
Hub and rotor compatibility
ABS components
Brake timing
Axle ratings
Vehicle certification
Manufacturer approval

Conversion components must be engineered and approved for the specific axle and vehicle application. Fleets should consult the vehicle, axle, and brake manufacturers before attempting a conversion.

ABS and Electronic Brake Integration

Both air disc brakes and drum brakes can operate with ABS and Electronic Braking Systems.

Electronic systems may include:

Antilock braking systems
Automatic traction control
Electronic stability control
Roll-stability systems
Wheel-speed sensors
Pressure modulators
Electronic control units
Brake warning systems

ABS helps reduce wheel lock by controlling brake pressure during certain braking conditions. It does not replace proper foundation-brake inspection, adjustment, or maintenance.

The Importance of Brake Chambers and Actuators

Both foundation-brake designs depend on correctly matched and functioning actuators.

Brake Chambers and Actuators convert compressed-air pressure into the mechanical force that applies the wheel brakes.

Incorrect chamber size, excessive pushrod stroke, damaged diaphragms, broken power springs, air leaks, or improper installation can affect braking performance regardless of whether the vehicle uses disc or drum brakes.

Final Comparison

Air disc brakes generally offer more consistent braking response, stronger resistance to heat-related fade, easier friction-material inspection, and fewer traditional foundation-brake moving parts.

Drum brakes generally offer a lower initial cost, widespread service availability, familiar maintenance procedures, and a long record of reliable operation across highway, vocational, and trailer applications.

Neither design is automatically correct for every commercial vehicle.

The best choice is the system that matches the vehicle’s weight, duty cycle, terrain, operating environment, maintenance capabilities, service network, and total ownership requirements.

Continue Exploring Commercial Truck Brake Systems

Explore these related Truck Equipment Atlas pages:
