Hyundai Translead Dry Van

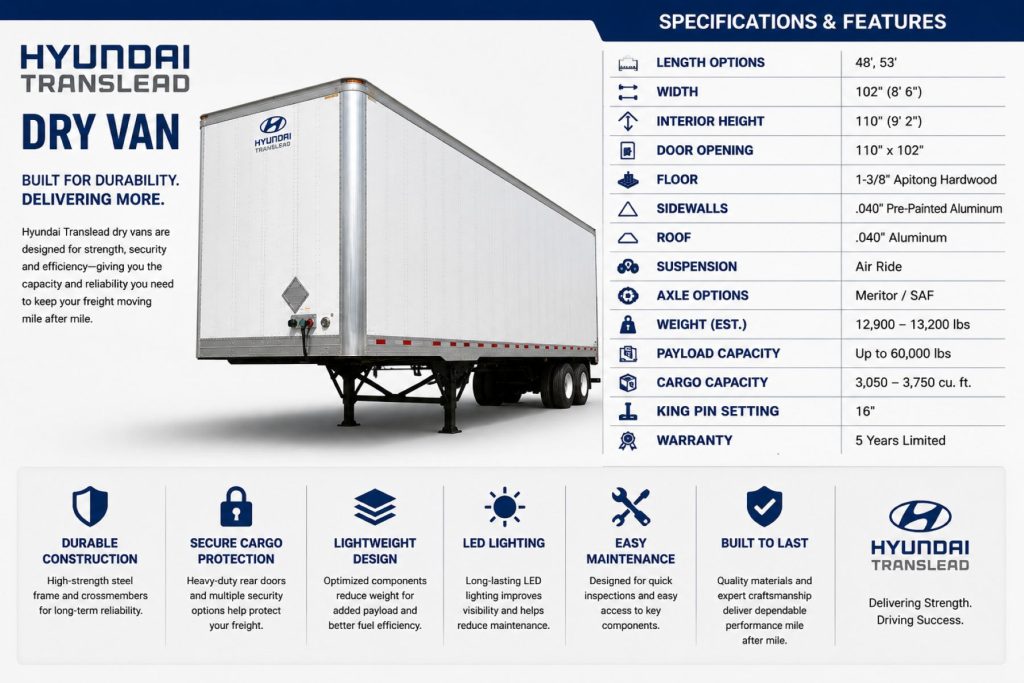

Quick Facts

Manufacturer: Hyundai Translead
Trailer Type: Dry Van Trailer
Common Models: Original, HY-Cube, Composite, Composite XT, HT-X
Standard Trailer Length: 53 ft
Exterior Width: Approximately 102.36 inches
Exterior Height: Approximately 13 ft 6 in
Interior Length: Approximately 52 ft 6 in
Interior Height: Approximately 110 inches
Interior Volume: Approximately 3,950–4,070 cubic feet depending on model
Typical GVWR: Approximately 68,000 lbs
Standard Tare Weight: Approximately 13,350–13,855 lbs depending on model and equipment
Floor Rating: Up to approximately 18,000 lbs
Common Axle Configuration: Tandem Axle Sliding Suspension
Common Door Options: Rear Swing Doors and Roll-Up Doors
Primary Applications: General Freight, Retail Distribution, Consumer Products, Manufacturing Freight, E-Commerce, Dedicated Freight, and Regional Distribution
Production Status: Active Production

Overview

The Hyundai Translead Dry Van is a commercial semi-trailer platform designed for general freight, retail distribution, manufacturing, e-commerce, dedicated transportation, and regional or long-haul delivery operations.

Hyundai Translead offers several dry van configurations, including the Original, HY-Cube, Composite, Composite XT, and HT-X. These models allow fleets to select different combinations of interior width, cargo volume, wall construction, repairability, weight, corrosion protection, and warranty coverage.

Most Hyundai Translead dry vans are built as 53 ft dry van trailers with approximately 13 feet 6 inches of exterior height and a 68,000-pound GVWR.

Depending on the model, interior volume ranges from approximately 3,950–4,070 cubic feet. Standard tare weight generally ranges from approximately 13,350–13,855 pounds before additional options are installed.

The trailers are designed to balance payload capacity, cargo protection, aerodynamic efficiency, repairability, and long-term fleet ownership costs.

Key Characteristics

Hyundai Translead dry vans are designed around cargo capacity, structural durability, repairability, and fleet customization.

Available models use different wall-construction methods. The Original uses a conventional sheet-and-post design, while the Composite and Composite XT use composite plate sidewalls intended to provide strength, thinner walls, and easier panel replacement.

The HY-Cube provides additional interior width for greater cargo capacity and double-deck loading applications.

Key characteristics include:

Standard 53-foot trailer length
Approximately 102.36-inch exterior width
Approximately 13-foot-6-inch exterior height
Up to approximately 4,070 cubic feet of interior volume
Approximately 68,000-pound GVWR
Approximately 18,000-pound floor rating
Multiple sidewall-construction options
Tandem-axle sliding suspension
Swing-door and roll-up-door availability
Aerodynamic side-skirt options
Factory-installed liftgate availability
Available tire-inflation systems
Hot-dipped galvanized rear-frame components
Optional corrosion-protection packages
Wide-base tire availability
Air-disc-brake availability
Multiple cargo-securement options
Tri-axle availability for applicable operations

Common Specifications

Trailer Length

The standard Hyundai Translead dry van length is approximately 53 feet.

The interior cargo length is generally approximately 52 feet 6 inches, depending on the selected model, rear-door configuration, front wall, and installed equipment.

The 53 ft dry van trailer remains one of the most common configurations for North American truckload and distribution operations.

Width

The exterior width is approximately 102.36 inches.

Interior width depends on wall construction.

The Original provides approximately 98.5 inches between the interior liners.

The HY-Cube provides approximately 101 inches between the interior liners.

The Composite and Composite XT provide approximately 101.5 inches of interior width above the side scuff area.

Wider interiors can provide additional cargo volume and greater flexibility for pallet positioning or double-deck freight systems.

Height

The standard exterior height is approximately 13 feet 6 inches.

Interior height is approximately 110 inches, although usable loading height can be affected by rear-door style, roof construction, floor height, and installed equipment.

Interior Volume

Interior cargo volume varies by model.

Original models provide approximately 3,950 cubic feet.

HY-Cube models provide approximately 4,050 cubic feet.

Composite and Composite XT models provide approximately 4,070 cubic feet.

Actual usable volume depends on cargo shape, pallet dimensions, load-securing equipment, interior liners, and double-deck systems.

GVWR

Hyundai Translead dry van models generally have a GVWR of approximately 68,000 pounds.

The trailer’s practical cargo capacity depends on its empty weight, tractor weight, fuel, installed accessories, axle placement, and applicable federal or state weight regulations.

A trailer’s GVWR does not mean that its entire rated capacity can always be used on public roads.

Tare Weight

Standard tare weight varies by model and configuration.

The Original has a standard weight of approximately 13,510 pounds.

The HY-Cube has a standard weight of approximately 13,855 pounds.

The Composite has a standard weight of approximately 13,350 pounds.

The Composite XT has a standard weight of approximately 13,460 pounds.

Liftgates, additional batteries, aerodynamic equipment, tire-inflation systems, additional lining, cargo-control equipment, and specialized rear frames increase empty weight.

Floor Rating

Many Hyundai Translead dry van models offer an approximately 18,000-pound floor rating.

Floor rating is important for trailers loaded with forklifts and other concentrated loading equipment. Operators must follow the manufacturer’s loading procedures and remain within both floor and axle limitations.

Sidewall Construction

Wall construction varies by model.

The Original uses a conventional sheet-and-post design that can be customized around fleet needs.

The HY-Cube uses a wider interior design with replaceable snap-in plastic liners.

The Composite uses composite plate sidewalls designed to combine reduced wall thickness, strength, and individual panel replacement.

The Composite XT uses a patented composite design intended to improve repairability and reduce downtime.

Roof Construction

Available models commonly use a one-piece, full-width aluminum roof sheet supported by galvanized steel roof bows.

The roof system is designed to help protect cargo from weather while maintaining structural strength and interior clearance.

Rear Frame

Composite models use hot-dipped galvanized, high-tensile steel rear-frame construction.

The rear frame commonly includes a low-profile header, reinforced corner construction, recessed lights, and protection around vulnerable lighting components.

Rear-frame options may include pintle hooks, steps, additional lighting, and other fleet-specific equipment.

Rear Doors

Composite swing doors are commonly available and use sealing systems designed to help protect cargo from weather and road conditions.

Roll-up doors are available for operations requiring frequent loading at locations where swing-door clearance is limited.

Swing doors generally provide maximum opening height and sealing capability, while roll-up doors can improve convenience during urban and dockside operations.

Axles and Suspension

Most Hyundai Translead dry vans use a tandem-axle sliding suspension.

A sliding tandem allows operators to adjust axle position for weight distribution, bridge-law compliance, loading-dock access, and maneuverability.

Tri-axle configurations are available for applicable operations requiring different load-distribution capabilities.

Additional information is available through Axles and Differentials and Suspension Systems.

Braking Options

Common configurations use commercial trailer air-brake systems with ABS.

Air-disc brakes may be available for fleets seeking improved braking consistency, reduced fade, and different maintenance characteristics.

More information is available through Brake Systems and Air Brake Systems Explained.

Aerodynamic Equipment

Available aerodynamic equipment can include side skirts, rear aerodynamic devices, low-rolling-resistance tires, and wide-base tire configurations.

These components can help reduce aerodynamic drag and improve fuel efficiency, especially during highway operation.

More information is available in Aerodynamics and Fairings.

Common Applications

Hyundai Translead dry vans are used across numerous freight and distribution operations.

Dry Van Freight
Retail distribution
Consumer products
Packaged goods
Manufacturing freight
E-commerce shipments
Warehouse distribution
Dedicated freight
Regional distribution
Long-haul freight
Less-than-truckload operations
Automotive parts
Food and beverage products not requiring refrigeration
Furniture and appliance transportation
Paper products
Household goods
General palletized freight

The enclosed body protects freight from weather, road debris, and unauthorized access while supporting standard warehouse and loading-dock operations.

Advantages

The Hyundai Translead Dry Van offers several advantages for commercial fleets.

Multiple dry van models
Large interior cargo volume
Multiple wall-construction options
Strong fleet customization
Composite-panel repairability
Standard corrosion-resistant components
Available extended corrosion-protection packages
Factory-installed liftgate availability
Roll-up and swing-door options
Aerodynamic side-skirt availability
Tire-inflation-system availability
Air-disc-brake availability
Strong compatibility with palletized freight
Double-deck capability on applicable models
Wide interior options
Multiple cargo-securement configurations
Potentially lower downtime through replaceable panels
Broad suitability for regional and long-haul freight

Limitations or Considerations

Hyundai Translead dry vans also have limitations and ownership considerations.

Not suitable for freight requiring active refrigeration
Enclosed body limits oversized-cargo capability
Interior height and width restrict unusually large freight
Composite panels require proper repair procedures
Roof and sidewall damage can allow water intrusion
Additional equipment increases empty weight
Liftgates reduce available payload
Roll-up doors may reduce usable opening height
Aerodynamic components can be damaged by curbs or road debris
Tandem position must be adjusted for legal weight distribution
Floor damage can occur from improper forklift operation
Corrosion remains possible despite protective components
Specialized replacement components may require dealer or manufacturer sourcing
Actual cargo capacity depends on tractor and trailer weight

The trailer should be matched carefully to cargo type, loading methods, route environment, maintenance support, and expected ownership period.

Driver and Operator Considerations

Drivers operating a Hyundai Translead Dry Van must monitor trailer height, length, tandem position, cargo weight, door clearance, and loading-dock conditions.

Before departure, the driver should inspect the kingpin, upper coupler, landing gear, air lines, electrical connection, brakes, tires, wheels, suspension, lights, doors, roof, sidewalls, and rear frame.

Cargo must be distributed properly to prevent axle overloads and handling problems. Heavy freight positioned too far forward or rearward can cause the steer, drive, or trailer axles to exceed legal weight limits.

Drivers should verify that swing doors are closed and secured before moving the trailer. Roll-up doors should be checked for proper latching and track operation.

The driver must also account for the trailer’s approximately 13-foot-6-inch exterior height when approaching bridges, tunnels, parking structures, loading areas, trees, utility lines, and other overhead obstructions.

Maintenance and Ownership Notes

Consistent preventive maintenance is important for protecting trailer reliability, cargo, and resale value.

Routine maintenance should include:
Brake inspection and adjustment
ABS warning-system inspection
Tire-pressure and tread inspection
Wheel-end and bearing service
Suspension inspection
Axle alignment
Landing-gear lubrication
Kingpin and upper-coupler inspection
Rear-door hinge and seal inspection
Roll-up-door track inspection when equipped
Roof inspection
Sidewall and panel inspection
Floor and crossmember inspection
Rear-frame inspection
Lighting and electrical-system testing
Air-line and hose inspection
Aerodynamic side-skirt inspection
Tire-inflation-system inspection when equipped
Liftgate service when equipped
Cargo-control-system inspection

Composite sidewall damage should be repaired according to approved procedures. Improper repairs can affect structural strength, appearance, cargo protection, and warranty coverage.

Roof seams, door seals, front corners, and repaired wall sections should be checked regularly for water intrusion.

Buying Considerations

Before purchasing a Hyundai Translead Dry Van, buyers should compare the available models and determine which construction method best supports their operation.

Important considerations include:

Original, HY-Cube, Composite, Composite XT, or HT-X model
Required interior width
Required cargo volume
Expected payload
Trailer empty weight
Wall-construction preference
Repair procedures
Swing doors or roll-up door
Floor rating
Forklift-loading requirements
Cargo-control equipment
Double-deck requirements
Liftgate requirements
Suspension configuration
Axle and brake specifications
Tire-inflation system
Aerodynamic equipment
Corrosion-protection package
Operating region
Dealer and parts support
Warranty coverage
Expected ownership period
Used-trailer condition

Buyers evaluating used trailers should inspect the roof, sidewalls, floor, crossmembers, rear frame, landing gear, kingpin area, suspension, axles, brakes, wheel ends, tires, doors, seals, and electrical system.

Evidence of repeated roof repairs, water intrusion, forklift damage, twisted rear frames, or poorly completed sidewall repairs can indicate significant future maintenance expenses.

Common Brands or Manufacturers

Hyundai Translead competes with several established North American dry van trailer manufacturers.

Utility Trailer Manufacturing Company

Great Dane

Wabash

Stoughton Trailers

Vanguard National Trailer

Manac

Strick Trailers

Variants and Related Configurations

Hyundai Translead offers several dry van models and configurations.

Original

The Original uses a conventional sheet-and-post design focused on flexibility, strength, serviceability, and fleet customization.

It provides approximately 3,950 cubic feet of interior volume and has a standard weight of approximately 13,510 pounds.

HY-Cube

The HY-Cube is designed with greater interior width for increased cargo volume and double-deck loading capability.

It provides approximately 4,050 cubic feet of interior volume and has a standard weight of approximately 13,855 pounds.

Composite

The Composite uses composite plate sidewalls designed to provide strength, reduced wall thickness, and individual panel replacement.

It provides approximately 4,070 cubic feet of interior volume and has a standard weight of approximately 13,350 pounds.

Composite XT

The Composite XT uses Hyundai Translead’s patented composite construction with a focus on repairability, durability, and reduced downtime.

It provides approximately 4,070 cubic feet of interior volume and has a standard weight of approximately 13,460 pounds.

HT-X

The HT-X is designed around longer fleet ownership cycles and expanded warranty protection.

It represents Hyundai Translead’s newer approach to trailer lifecycle performance, component collaboration, durability, and total ownership cost.

Liftgate Configuration

A factory-installed liftgate can be added for delivery operations that do not always have access to a loading dock.

Roll-Up-Door Configuration

A roll-up rear door can improve access in confined delivery locations but may reduce the trailer’s usable rear-opening height.

Tri-Axle Configuration

A tri-axle configuration may be available for applicable operations requiring different weight-distribution capabilities.

Comparison to Similar Trailers

The Hyundai Translead Dry Van competes with established models including the Utility 3000D Dry Van, Great Dane Champion Dry Van, and Wabash DuraPlate Dry Van.

Compared with conventional sheet-and-post dry vans, Hyundai’s Composite and Composite XT models provide thinner composite walls, wider interiors, and replaceable panel designs.

Compared with the Utility 3000D, Hyundai Translead provides several different wall systems and interior-volume choices across its dry van family.

Compared with the Great Dane Champion, Hyundai Translead competes through customization, composite construction, corrosion protection, cargo volume, and repairability.

Compared with the Wabash DuraPlate, Hyundai Translead offers its own composite-panel designs along with conventional Original and wider HY-Cube alternatives.

The best trailer depends on acquisition cost, weight, cargo volume, wall construction, repair network, warranty, fleet maintenance practices, and expected ownership period.

Best Fit For

The Hyundai Translead Dry Van is best suited for:

Truckload carriers

Regional freight fleets

Dedicated transportation fleets

Retail distributors

E-commerce operations

Manufacturing companies

Private fleets

Warehouse distribution

Consumer-goods transportation

Packaged-food transportation not requiring refrigeration

Automotive-parts distribution

Furniture and appliance transportation

Carriers seeking composite-wall options

Fleets prioritizing repairability

Fleets requiring wider interior configurations

Operations requiring factory-installed liftgates

Businesses seeking multiple dry van configurations from one manufacturer

Related Equipment

Related Freight Types

Related Trailer Types

Related Trailer Models

Related Guides

Regulatory and Compliance Notes

The Hyundai Translead Dry Van must comply with federal, state, provincial, and local regulations governing commercial trailers, vehicle dimensions, axle weights, brakes, lighting, tires, cargo securement, and overall vehicle condition.

Operators should monitor:

Maximum trailer width
Maximum vehicle height
Trailer GVWR
Actual loaded trailer weight
Gross combination weight
Individual axle weights
Sliding-tandem position
Bridge-formula requirements
Brake and ABS requirements
Lighting and conspicuity requirements
Tire and wheel ratings
Cargo-securement requirements
Annual inspection requirements
Rear-impact-guard condition
Aerodynamic-equipment requirements where applicable

A trailer with a 68,000-pound GVWR cannot necessarily carry 68,000 pounds of cargo. Legal payload is limited by the combined weight of the tractor, trailer, fuel, driver, equipment, and freight, as well as federal and state axle-weight regulations.

Real World Operating Notes

In real-world freight operations, Hyundai Translead dry vans are valued for interior capacity, model variety, customization, and compatibility with standard loading docks.

The correct model depends on fleet priorities. The Original may appeal to fleets preferring conventional construction, while the HY-Cube provides additional interior width. The Composite and Composite XT focus on thinner composite walls, cargo volume, and panel repairability.

Loading practices have a major effect on trailer life. Forklift impacts, improperly secured freight, overloaded floors, dock collisions, and repeated rear-frame contact can cause expensive structural damage.

Drivers should inspect trailer doors, roof, sidewalls, tires, lights, suspension, brakes, and aerodynamic equipment during pre-trip inspections.

Fleets should also monitor trailer empty weight carefully. Liftgates, additional batteries, cargo-control systems, tri-axle equipment, heavy-duty floors, and specialized rear frames can reduce available payload.

Frequently Asked Questions

What type of trailer is the Hyundai Translead Dry Van?

It is an enclosed dry van trailer designed to transport general freight that does not require active temperature control.

How long is a Hyundai Translead Dry Van?

The standard Hyundai Translead Dry Van is approximately 53 feet long, with an interior cargo length of approximately 52 feet 6 inches.

What is the GVWR of a Hyundai Translead Dry Van?

Common Hyundai Translead dry van models have a GVWR of approximately 68,000 pounds.

How much does a Hyundai Translead Dry Van weigh?

Standard tare weight generally ranges from approximately 13,350–13,855 pounds, depending on the model and installed equipment.

What Hyundai Translead dry van models are available?

Current and recent models include the Original, HY-Cube, Composite, Composite XT, and HT-X.

What is the difference between the Hyundai Composite and Composite XT?

Both use composite plate sidewalls. The Composite XT uses Hyundai Translead’s patented design with an additional focus on individual panel repairability, durability, and reduced downtime.

Is a roll-up door available?

Yes. Roll-up rear doors are available for operations requiring access in locations where swing-door clearance may be limited.

Can a Hyundai Translead Dry Van have a liftgate?

Yes. Factory-installed liftgates are available for applicable configurations.

Can a Hyundai Translead Dry Van carry refrigerated freight?

A standard dry van does not have the insulation or refrigeration unit required for temperature-controlled cargo. Hyundai Translead offers separate refrigerated trailer products for that application.

What freight is commonly carried in a Hyundai Translead Dry Van?

Common freight includes packaged goods, retail products, manufacturing freight, consumer products, furniture, appliances, e-commerce shipments, and palletized cargo that does not require refrigeration.

Availability and Where to Find

New Hyundai Translead dry vans are available through Hyundai Translead dealers, trailer distributors, fleet-purchasing programs, and commercial-equipment sales organizations.

Availability depends on model, production schedule, wall construction, axle configuration, suspension, brakes, tires, rear-door type, liftgate, aerodynamic equipment, and cargo-control options.

Used Hyundai Translead dry vans are available through trailer dealerships, fleet-retirement sales, equipment auctions, leasing companies, and online commercial-trailer marketplaces.

When evaluating a used trailer, buyers should inspect the roof, sidewalls, composite panels, floor, crossmembers, rear frame, doors, seals, kingpin, upper coupler, landing gear, suspension, axles, brakes, tires, wheel ends, lighting, and aerodynamic equipment.

Maintenance records, previous cargo, repair history, corrosion, water intrusion, and evidence of forklift or loading-dock damage should also be reviewed before purchase.

Support Trucking Families

Truck Equipment Atlas supports the mission of Grey Cross, a nonprofit dedicated to helping families of truck drivers who lose their lives while on the road. As the site grows, part of its mission is to bring awareness and support to these families.

Podcast or Video Section

Learn More Through Audio and Video

Truck Equipment Atlas will continue expanding with podcast episodes, interviews, and equipment breakdowns to help drivers and fleets better understand trucks and equipment.

Follow the Growth of Truck Equipment Atlas

Truck Equipment Atlas continues to expand with new truck profiles, trailer coverage, diesel engine pages, equipment system resources, manufacturer information, and educational guides.

Visit our Site Updates page to explore recent additions, project milestones, and upcoming resources as we continue building one of the industry’s growing commercial trucking equipment reference libraries.

View the Latest Site Updates: Truck Equipment Atlas Site Updates
