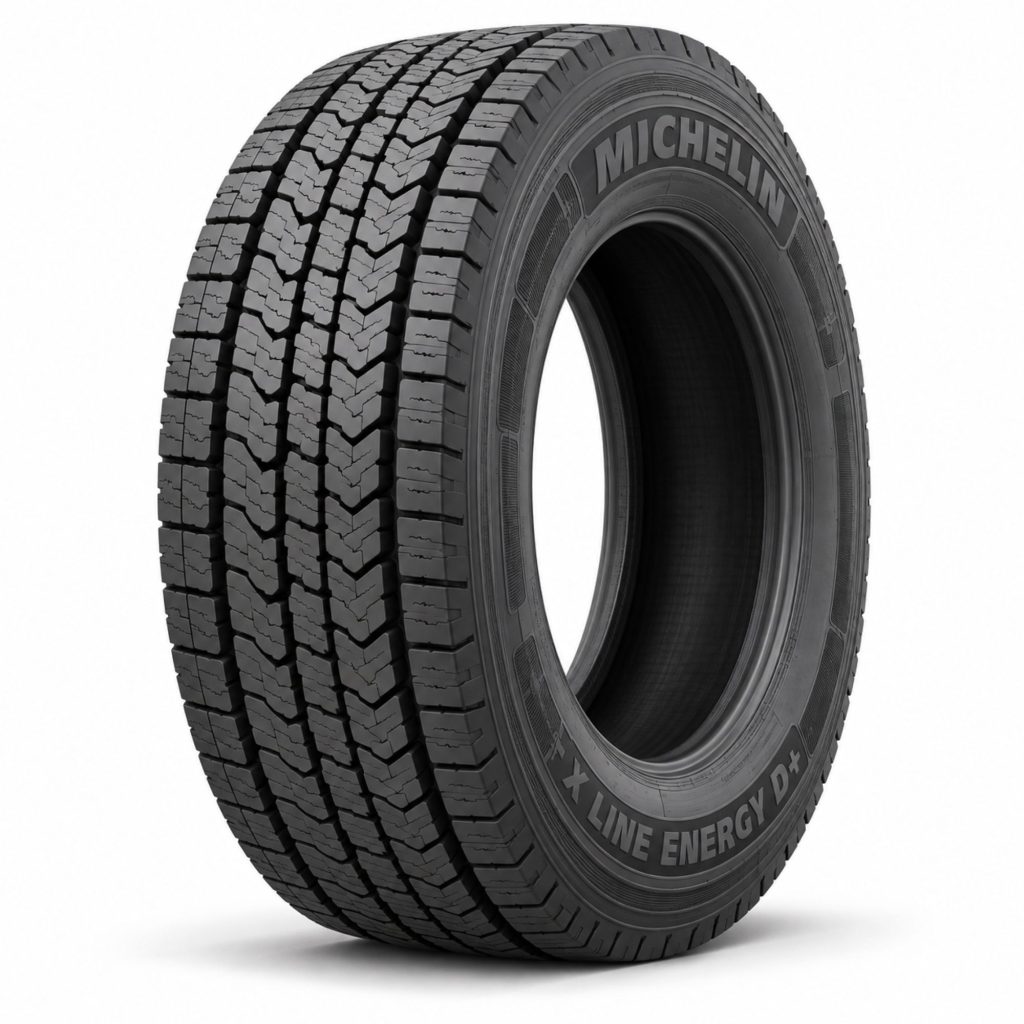

Michelin X Line Energy D+ Drive Tire

Quick Facts

  • Manufacturer: Michelin
  • Product Name: X Line Energy D+
  • Product Type: Commercial truck radial drive tire
  • Primary Position: Drive axle
  • Wheel Configuration: Dual-tire drive-axle applications
  • Service Category: Long-haul highway service
  • Tire Construction: Radial, tubeless
  • Common Sizes: 11R22.5, 275/80R22.5, and 295/75R22.5
  • Published Tread Depth: 21/32 inch for the 11R22.5 configuration
  • Maximum Published Speed: 75 mph for the 11R22.5 configuration
  • Traction Markings: M+S and Three-Peak Mountain Snowflake
  • Environmental Qualifications: Meets SmartWay requirements, CARB compliant, and approved for applicable GHG2 fitments through 2027
  • Retreadable: Yes
  • Primary Applications: Long-haul tractors, highway freight fleets, and high-mileage dual-drive-axle trucks
  • Production Status: Current product

Overview

The Michelin X Line Energy D+ is a fuel-efficient commercial truck tire developed for dual-tire drive-axle positions in long-haul highway service. It combines low rolling resistance, all-season traction, even tread wear, and a premium casing intended to support multiple retread lives.

Michelin positions the X Line Energy D+ as its most fuel-efficient dual-drive tire. The company reports 22-percent lower rolling resistance than the preceding X Line Energy D and 10-percent better wet stopping traction than selected competing long-haul drive tires under Michelin’s test conditions.

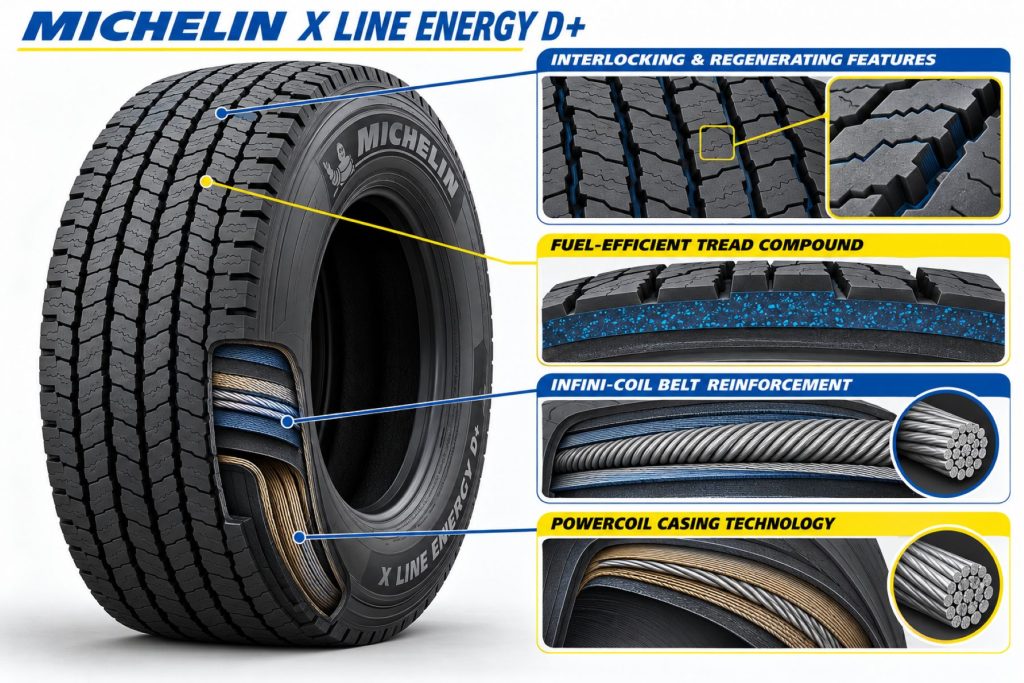

The tire uses Infini-Coil technology to stabilize the casing and maintain a consistent footprint. PowerCoil technology uses high-strength steel casing cables to improve endurance while helping reduce tire weight and rolling resistance.

Interlocking sipes and regenerating tread features provide traction throughout the usable tread life. The tire carries M+S and Three-Peak Mountain Snowflake markings, indicating suitability for all-season operation and tested severe-snow performance.

Key Characteristics

  • Designed for long-haul dual-drive-axle service
  • Michelin’s most fuel-efficient dual-drive tire
  • Advanced dual-compound tread construction
  • 22-percent lower rolling resistance than the preceding X Line Energy D
  • Interlocking tread sipes
  • Regenerating tread features
  • Infini-Coil continuous-steel reinforcement
  • PowerCoil high-strength casing cables
  • Consistent footprint designed for long, even wear
  • M+S marked
  • Three-Peak Mountain Snowflake certified
  • Meets applicable SmartWay requirements
  • Retreadable premium casing
  • Casing designed to reach one million miles with as many as four retreads

Major Components

  • Dual-compound tread
  • Drive-traction tread blocks
  • Interlocking tread sipes
  • Regenerating traction features
  • Circumferential grooves
  • Shoulder blocks
  • Infini-Coil continuous-steel reinforcement
  • PowerCoil casing cables
  • Steel belt package
  • Radial casing
  • Sidewalls
  • Bead bundles
  • Inner liner
  • Tread-wear indicators

Product Type and Construction

The X Line Energy D+ is a radial, tubeless commercial truck tire developed for dual-drive-wheel applications. Its tread, belt package, casing, sidewalls, beads, and inner liner form a complete load-supporting structure.

The tire uses advanced dual compounding to balance tread life, traction, and rolling resistance. Different compound characteristics within the tread structure allow the road-contacting surface to resist wear while the underlying material helps control heat and energy loss.

Infini-Coil technology uses a continuous steel wire wrapped around the tire to reinforce the casing and stabilize the footprint. PowerCoil uses high-strength steel cables protected by rubber to improve casing endurance and resist damage from air, water, and friction.

How the Tire Works

Compressed air inside each tire supports a portion of the drive-axle load. As engine torque passes through the transmission, driveshaft, differential, axle shafts, hubs, and wheels, the tread transfers that torque to the road.

The tread blocks create traction for acceleration and braking. Interlocking sipes limit excessive block movement while creating additional biting edges for wet, snowy, and low-traction surfaces.

Regenerating features emerge or continue functioning as the tread wears, helping preserve traction deeper into the tire’s service life. Circumferential grooves evacuate water and help maintain road contact during wet highway operation.

Position and Function Within the Vehicle

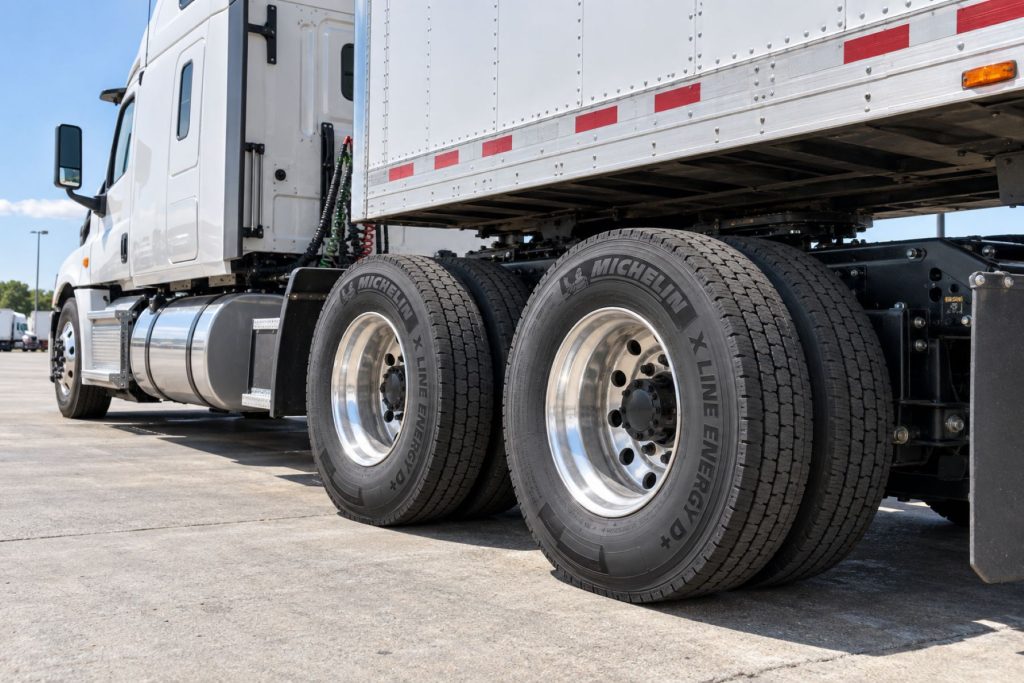

The X Line Energy D+ is installed on powered drive axles. In a conventional Class 8 tractor, these are commonly the two rear axles located beneath the fifth wheel and behind the cab.

Drive tires transfer engine torque to the pavement while also supporting tractor and trailer weight. They influence acceleration, braking, grade-climbing ability, wet and snow traction, fuel consumption, and vehicle stability.

This model is intended for dual-wheel arrangements rather than wide-base single-tire drive applications. The inner and outer tires within each dual assembly must be properly matched.

Common Specifications

  • 11R22.5 Load Range G: 41.5-inch published overall diameter, 21/32-inch tread depth, 19.4-inch loaded radius, 22.5-inch bead-seat diameter, and maximum published speed of 75 mph.
  • 11R22.5 Wheel Fitment: Michelin lists an 8.25-inch recommended wheel and a 7.50-inch approved alternative.
  • 11R22.5 Dual Spacing: Published minimum dual spacing is 11.8 inches.
  • 11R22.5 Maximum Single-Tire Load: 6,175 pounds under the applicable load-and-inflation conditions.
  • 275/80R22.5: Available as a low-profile 22.5-inch long-haul drive-tire configuration.
  • 295/75R22.5: Available as a common North American low-profile 22.5-inch drive-tire configuration.
  • Traction Markings: M+S and Three-Peak Mountain Snowflake.
  • Application: Long-distance transportation with dual drive wheels.

Specifications vary by tire size and product number. Confirm the tire sidewall, Michelin data book, wheel rating, axle rating, inflation table, and vehicle manufacturer requirements before installation.

Size, Load Range, and Operating Capacity

The correct size and load range depend on the drive-axle rating, actual scale weight, dual-wheel spacing, wheel capacity, inflation pressure, vehicle speed, and manufacturer requirements.

Common North American configurations include 11R22.5, 275/80R22.5, and 295/75R22.5. These sizes are not automatically interchangeable because they can differ in overall diameter, revolutions per mile, loaded radius, rim requirements, and dual spacing.

A tire with a higher carrying capacity does not increase the vehicle’s certified axle or gross vehicle weight rating. The complete vehicle remains limited by its lowest-rated component.

Intended Axle Position and Service

The X Line Energy D+ is intended for dual drive-axle positions on trucks and tractors operating primarily in long-distance highway service. It is especially suited to fleets that prioritize fuel economy, casing value, and predictable traction.

The tire is not designed as a dedicated steer, trailer, severe-construction, waste, or off-road product. Michelin application recommendations should be followed before using the tire outside its intended service.

Tread Design and Traction Features

The tread uses drive-traction blocks separated by grooves and interlocking sipes. These elements provide biting edges while controlling the amount of movement within each block.

Interlocking siping supports traction without allowing the tread blocks to flex excessively under torque. Reduced tread squirm can improve wear consistency and help control rolling resistance.

Regenerating tread features help preserve usable traction as the original tread wears. The Three-Peak Mountain Snowflake marking confirms that the tire meets the applicable standardized performance requirement for severe-snow traction.

Casing and Sidewall Construction

Michelin designed the X Line Energy D+ casing for extended service through the original tread and multiple retread cycles. Infini-Coil reinforcement stabilizes the tire, while PowerCoil cables improve casing endurance and help reduce rolling resistance.

The casing is designed to reach as much as one million miles with up to four retreads. Actual casing life depends on pressure maintenance, loading, heat exposure, road hazards, repairs, operating environment, and casing inspection results.

The sidewalls and bead areas should be protected from curb damage, petroleum products, underinflation, improper mounting, excessive heat, and contact with vehicle components.

Inflation Pressure and Load Management

Inflation pressure should be established using actual drive-axle weights, tire size, dual configuration, vehicle speed, and Michelin’s current load-and-inflation tables. The maximum pressure molded on the tire is not automatically the correct fleet operating pressure.

Underinflation increases casing flex, heat generation, rolling resistance, shoulder wear, and the risk of casing damage. Overinflation may reduce ride quality, concentrate tread loading, and increase sensitivity to impacts.

Pressure should be checked cold with a calibrated gauge. Repeated air loss must be investigated rather than addressed only by continually adding air.

Rolling Resistance and Fuel-Efficiency Design

Michelin reports that the X Line Energy D+ has 22-percent lower rolling resistance than the preceding X Line Energy D based on internal ISO 28580 testing of comparable 275/80R22.5 Load Range G tires.

Advanced dual compounding helps manage heat and energy loss while maintaining a durable road-contacting tread surface. Infini-Coil and PowerCoil technologies also contribute to casing stability and reduced energy consumption.

Actual fuel savings depend on pressure, alignment, vehicle speed, aerodynamic drag, route, terrain, temperature, vehicle loading, driver behavior, and the tires installed on the steer and trailer axles.

Weather and Road-Surface Performance

The X Line Energy D+ carries M+S and Three-Peak Mountain Snowflake markings. Its interlocking sipes, regenerating features, and tread grooves support traction on wet, snowy, and variable highway surfaces.

The 3PMSF marking does not eliminate the need for cautious winter operation. Drivers must adjust speed, following distance, acceleration, braking, and cornering for snow, ice, standing water, and reduced visibility.

The tire is primarily a paved-road product. Regular operation on sharp rock, demolition debris, severe construction sites, or unimproved roads may require a more damage-resistant vocational tire.

Mounting and Installation

Commercial truck tires should be mounted only by trained personnel using approved equipment, inflation restraints, and safety procedures. The tire size, load range, rim diameter, rim width, wheel rating, valve hardware, and vehicle application must be compatible.

Inspect the tire beads, wheel, valve, mounting surfaces, and fasteners before installation. Do not mount the tire on a cracked, distorted, excessively corroded, incorrectly sized, or otherwise damaged wheel.

Dual assemblies require sufficient spacing to prevent sidewall contact under load. Wheel centering, fastener torque, inflation pressure, tire matching, and clearance should be verified after installation.

Vehicle and Operating Compatibility

Compatibility depends on the truck manufacturer, model, drive-axle rating, wheel size, wheel offset, dual spacing, suspension, brake package, fender clearance, gearing, governed speed, and operating weight.

The replacement size should match the vehicle certification label or an approved alternative. Changes in tire diameter can affect engine speed, axle gearing, speedometer accuracy, electronic safety systems, ground clearance, and tractor ride height.

Tire and Wheel Compatibility

The selected wheel must have the correct rim diameter, approved rim width, mounting system, offset, load capacity, and pressure rating. Both aluminum and steel commercial wheels may be compatible when correctly specified.

Dual tires should be matched for size, construction, inflation, overall diameter, tread depth, and load capacity. A significant mismatch can overload one tire, create heat, accelerate wear, and damage the casing.

Common Applications

  • Long-haul sleeper tractors
  • Long-haul day-cab tractors
  • Interstate truckload fleets
  • Less-than-truckload linehaul fleets
  • Dry-van operations
  • Refrigerated freight operations
  • Highway tanker fleets
  • High-mileage private fleets
  • National and regional freight carriers
  • Owner-operator highway tractors

Advantages

  • Michelin’s most fuel-efficient dual-drive tire
  • 22-percent lower rolling resistance than its predecessor
  • SmartWay-compliant design
  • CARB compliant
  • Applicable GHG2-approved fitment
  • Three-Peak Mountain Snowflake certified
  • Interlocking sipes support wet and snow traction
  • Regenerating features maintain traction as the tread wears
  • Infini-Coil technology stabilizes the footprint
  • PowerCoil technology supports casing endurance
  • Premium casing designed for as many as four retreads
  • Potential one-million-mile casing life under suitable conditions

Limitations or Considerations

  • Designed for dual-drive-wheel applications rather than wide-base singles
  • Primarily intended for paved long-haul service
  • Not a dedicated severe-service or off-road tire
  • Fuel savings depend on correct inflation and vehicle maintenance
  • Dual tires must be closely matched
  • Improper dual spacing can cause sidewall contact
  • Deep traction tread can be sensitive to alignment and torque-related wear
  • Retreadability depends on casing condition
  • One-million-mile casing life is a design objective, not a guarantee for every tire
  • Availability may vary by size and region

Driver and Operator Experience

The X Line Energy D+ is designed to provide dependable acceleration and braking traction while minimizing the fuel penalty normally associated with a block-pattern drive tire.

Drivers should report wheel spin, vibration, unusual road noise, repeated pressure loss, visible damage, or changes in traction. These symptoms may indicate pressure problems, mismatched duals, mechanical wear, or tire damage.

The 3PMSF-certified tread can improve confidence in winter conditions, but the vehicle’s speed and driving technique must still match the available traction.

Inspection and Wear Points

  • Tread depth across each major groove
  • Drive-block heel-and-toe wear
  • Inside and outside shoulder wear
  • Diagonal wear
  • Cupping or scalloping
  • Flat spotting
  • Spin-related tread damage
  • Cuts, punctures, and embedded objects
  • Sidewall abrasion, cracking, bulges, and exposed cords
  • Damage between dual tires
  • Bead-area damage
  • Valve stems, cores, extensions, and caps
  • Wheel cracks, corrosion, and fastener damage
  • Evidence of overheating or underinflated operation

Tire Rotation and Position Management

Drive-tire rotation can help manage axle-to-axle and inside-to-outside wear differences. The correct pattern depends on tread condition, vehicle configuration, tire diameter, fleet policy, and manufacturer recommendations.

Tires moved within a dual assembly should remain closely matched. Rotation should not be used to conceal an unresolved alignment, pressure, torque, suspension, or wheel-end problem.

Balancing, Alignment, and Runout

Wheel balance, tire uniformity, radial runout, lateral runout, axle alignment, suspension condition, and driveline operation can influence ride quality and tread wear.

Drive axles should remain parallel with each other and square with the vehicle frame. Incorrect thrust angle can produce diagonal wear, vehicle dog-tracking, increased rolling resistance, and shortened tire life.

Vibration may result from imbalance, wheel-centering problems, runout, mismatched duals, damaged wheels, worn driveline components, or improper bearing adjustment.

Retreadability and Casing Life

The casing is a central feature of the X Line Energy D+. Michelin states that it is designed to reach as much as one million miles through the original tread and up to four retreads.

Infini-Coil and PowerCoil technologies reinforce the casing and help protect its long-term structural value. Michelin offers compatible X Line Energy D retread designs for qualifying casings.

Retread eligibility is determined through professional casing inspection. Impact damage, excessive heat, moisture intrusion, improper repairs, severe underinflation, bead damage, and casing fatigue can make a tire unsuitable for continued service.

Maintenance and Ownership Notes

Check cold inflation pressure regularly and investigate repeated air loss. Inflation management affects fuel efficiency, traction, tread life, casing temperature, and retreadability.

Measure tread depth across multiple grooves and compare tires across each drive axle. Differences can reveal pressure problems, axle misalignment, mismatched duals, suspension wear, or unequal torque loading.

Record installation mileage, tire position, pressure history, tread depth, repairs, rotations, removal reason, retread history, and casing disposition. These records allow the fleet to evaluate cost per mile over the casing’s complete life.

Common Tire Problems

  • Heel-and-toe wear: Drive torque, braking forces, pressure problems, or excessive tread-block movement can create uneven leading and trailing block edges.
  • Diagonal wear: Drive-axle misalignment, incorrect thrust angle, loose wheel bearings, or suspension movement may create angled wear bands.
  • Shoulder wear: Underinflation, overloading, mismatched duals, or incorrect wheel alignment may accelerate shoulder wear.
  • Center wear: Excessive inflation or an unsuitable wheel width may concentrate loading toward the tread center.
  • Spin damage: Excessive wheel spin followed by sudden traction can tear tread rubber or damage internal tire components.
  • Dual kissing: Insufficient spacing, low pressure, overloading, or mismatched tires may allow paired sidewalls to contact each other.
  • Heat damage: Underinflation, overloading, brake drag, inadequate dual spacing, or prolonged high-speed operation can generate damaging heat.
  • Repeated pressure loss: Punctures, valve leakage, damaged beads, rim corrosion, failed repairs, or cracked wheels may be responsible.

Safety and Service Precautions

Commercial tire and wheel assemblies store substantial energy. Mounting, demounting, inflation, inspection, and repair should be performed only by trained personnel using approved equipment and procedures.

A tire operated while flat or severely underinflated may contain hidden internal damage. It should be removed from the wheel and inspected by a qualified commercial-tire professional before reinflation or return to service.

Never exceed the tire, wheel, valve, axle, or vehicle manufacturer’s limits. Tires with exposed cords, bulges, tread separation, severe impact damage, or repairs outside accepted limits should be removed from service.

Identification Information

Identification information is molded into the tire sidewall. Record the complete designation before ordering replacements or comparing specifications.

  • Michelin manufacturer name
  • X Line Energy D+ model designation
  • Complete tire size
  • Load range
  • Load index and speed symbol
  • Maximum load and pressure markings
  • DOT tire identification number
  • Production date code
  • M+S marking
  • Three-Peak Mountain Snowflake symbol
  • Radial and tubeless markings
  • Michelin MSPN and CAI numbers
  • Country of manufacture

Buying Considerations

  • Confirm the vehicle’s approved drive-tire size
  • Verify the tandem or single drive-axle rating
  • Use actual scale weights when setting pressure
  • Select the correct load range and service description
  • Confirm wheel width, load rating, and pressure rating
  • Measure required dual spacing
  • Match paired tires for size, diameter, and tread depth
  • Compare fuel efficiency and expected removal mileage
  • Review casing warranty and retread support
  • Check the DOT production date
  • Verify local Michelin dealer availability
  • Evaluate total casing cost per mile

Variants and Configurations

  • 11R22.5 Load Range G
  • 275/80R22.5
  • 295/75R22.5
  • Application-specific product and load configurations
  • Compatible Michelin X Line Energy D retread designs

Size availability, product numbers, specifications, and regional inventory may change. Confirm the current Michelin commercial-tire catalog before ordering.

Comparison to Similar Equipment

Compared with the Bridgestone M713 Ecopia Drive Tire, the Michelin X Line Energy D+ uses Michelin’s Infini-Coil, PowerCoil, interlocking-sipe, and regenerating-tread technologies.

Compared with the Goodyear Fuel Max LHD 2 Drive Tire, both are designed for fuel-conscious long-haul fleets using conventional dual drive wheels.

Compared with the Continental HDL2 Eco Plus Drive Tire, the Michelin emphasizes its million-mile casing design, Infini-Coil reinforcement, and PowerCoil casing cables.

Compared with the Michelin X Line Grip D Drive Tire, the X Line Energy D+ places greater emphasis on ultra-low rolling resistance, while the Grip D places additional emphasis on lasting traction across long-haul and regional service.

Best Fit For

  • Long-haul fleets prioritizing fuel economy
  • Tractors using conventional dual drive tires
  • High-mileage interstate operations
  • Fleets tracking tire cost per mile
  • Operations preserving casings for multiple retreads
  • Fleets requiring 3PMSF-rated drive traction
  • Truckload and linehaul carriers
  • Owner-operators seeking a premium drive tire
  • Fleets with structured pressure and alignment programs

Related Vehicle and Trailer Types

Related Truck and Trailer Models

These truck families may use compatible tire sizes, but each installation must be verified against the individual vehicle’s certification label, drive-axle rating, wheels, gearing, and operating requirements.

Related Tire Types

Related Tire and Wheel Products

Related Equipment Systems

Related Guides

Regulatory and Compliance Notes

Commercial tires must comply with applicable federal, state, provincial, and local requirements governing tire condition, inflation, load capacity, repairs, tread depth, and vehicle operation.

Michelin identifies the X Line Energy D+ as meeting SmartWay requirements and being CARB compliant. Applicable configurations are also identified as approved fitments under federal Phase 2 greenhouse-gas requirements through model year 2027.

The tire’s rated capacity does not override the ratings of the wheel, axle, suspension, brakes, frame, or complete vehicle. The lowest-rated component controls the allowable load.

Real World Operating Notes

The fuel-economy advantage of a low-rolling-resistance drive tire can be reduced by low pressure, mismatched duals, axle misalignment, brake drag, excessive speed, or aggressive acceleration.

Dual matching is especially important. Tires with different diameters can rotate at different effective speeds, causing one tire to carry more load and scrub against the road.

Fleets should evaluate removal mileage, fuel consumption, winter traction, irregular wear, casing acceptance, retread performance, and road-service events when calculating total cost per mile.

Frequently Asked Questions

What is the Michelin X Line Energy D+?

It is a fuel-efficient commercial truck tire designed for dual drive-wheel positions in long-haul highway service.

Is the X Line Energy D+ a steer or drive tire?

It is a drive-position tire intended primarily for conventional dual-wheel drive axles.

What sizes are available?

Michelin currently lists 11R22.5, 275/80R22.5, and 295/75R22.5 configurations for the North American product.

Is the tire SmartWay compliant?

Yes. Michelin identifies the X Line Energy D+ as meeting SmartWay requirements.

Does it have the Three-Peak Mountain Snowflake symbol?

Yes. The tire carries M+S and Three-Peak Mountain Snowflake markings for all-season and certified severe-snow traction performance.

Can the X Line Energy D+ be retreaded?

Yes. Its casing is designed to support as many as four retreads when it remains serviceable and passes inspection.

Can the casing really reach one million miles?

Michelin states that the casing is designed to reach up to one million miles through the original tread and as many as four retreads. Actual casing life depends on application, maintenance, operating conditions, damage, and inspection results.

Can it replace a wide-base single drive tire?

Not directly. The X Line Energy D+ is a dual-drive tire. Converting between dual and wide-base assemblies requires approved wheels, axle capacity, spacing, offset, load calculations, and vehicle compatibility.

What causes irregular wear on a drive tire?

Common causes include incorrect inflation, mismatched duals, drive-axle misalignment, suspension wear, brake drag, excessive wheel spin, imbalance, runout, and improper bearing adjustment.

How is the correct replacement identified?

Use the complete tire size, load range, service description, Michelin product number, wheel specification, axle rating, and vehicle manufacturer requirements.

Availability and Where to Find

The Michelin X Line Energy D+ may be available through Michelin commercial-tire dealers, fleet-tire suppliers, truck dealers, heavy-duty service centers, and commercial retread networks.

Availability depends on tire size, load range, production schedules, and regional inventory. Buyers should verify the complete product number, sidewall specification, and production date before purchase.

Current specifications, product documents, warranty information, and dealer resources are available through the Michelin X Line Energy D+ product page.

Support Trucking Families

Truck Equipment Atlas supports the mission of Grey Cross, a nonprofit dedicated to helping families of truck drivers who lose their lives while on the road. As the site grows, part of its mission is to bring awareness and support to these families.

Podcast or Video Section

Learn More Through Audio and Video

Truck Equipment Atlas will continue expanding with podcast episodes, interviews, and equipment breakdowns to help drivers and fleets better understand trucks and equipment.

Follow the Growth of Truck Equipment Atlas

Truck Equipment Atlas continues to expand with new truck profiles, trailer coverage, diesel engine pages, equipment system resources, manufacturer information, and educational guides.

Visit our Site Updates page to explore recent additions, project milestones, and upcoming resources as we continue building one of the industry’s growing commercial trucking equipment reference libraries.

View the Latest Site Updates: Truck Equipment Atlas Site Updates

Scroll to Top
