Bridgestone Greatec R197 Ecopia Trailer Tire

Quick Facts

Manufacturer: Bridgestone
Product Name: Greatec R197 Ecopia
Product Type: Fuel-efficient wide-base commercial trailer tire
Tire Position: Trailer axle
Primary Service: Long-haul tandem-axle trailer applications
Wheel Configuration: Wide-base single tire
Documented Size: 445/50R22.5
Load Range: L
Construction: Steel-belted radial, tubeless
Documented Tread Depth: 22/32 inch in the current Bridgestone commercial product guide
Maximum Tire Load: 10,200 pounds in single service at 120 psi
Maximum Rated Speed: 75 mph
SmartWay Status: SmartWay verified
CARB Status: California Air Resources Board compliant
Retreadable: Yes
Primary Benefits: Reduced rolling resistance, weight savings, long wear, casing protection, and retreadability

Overview

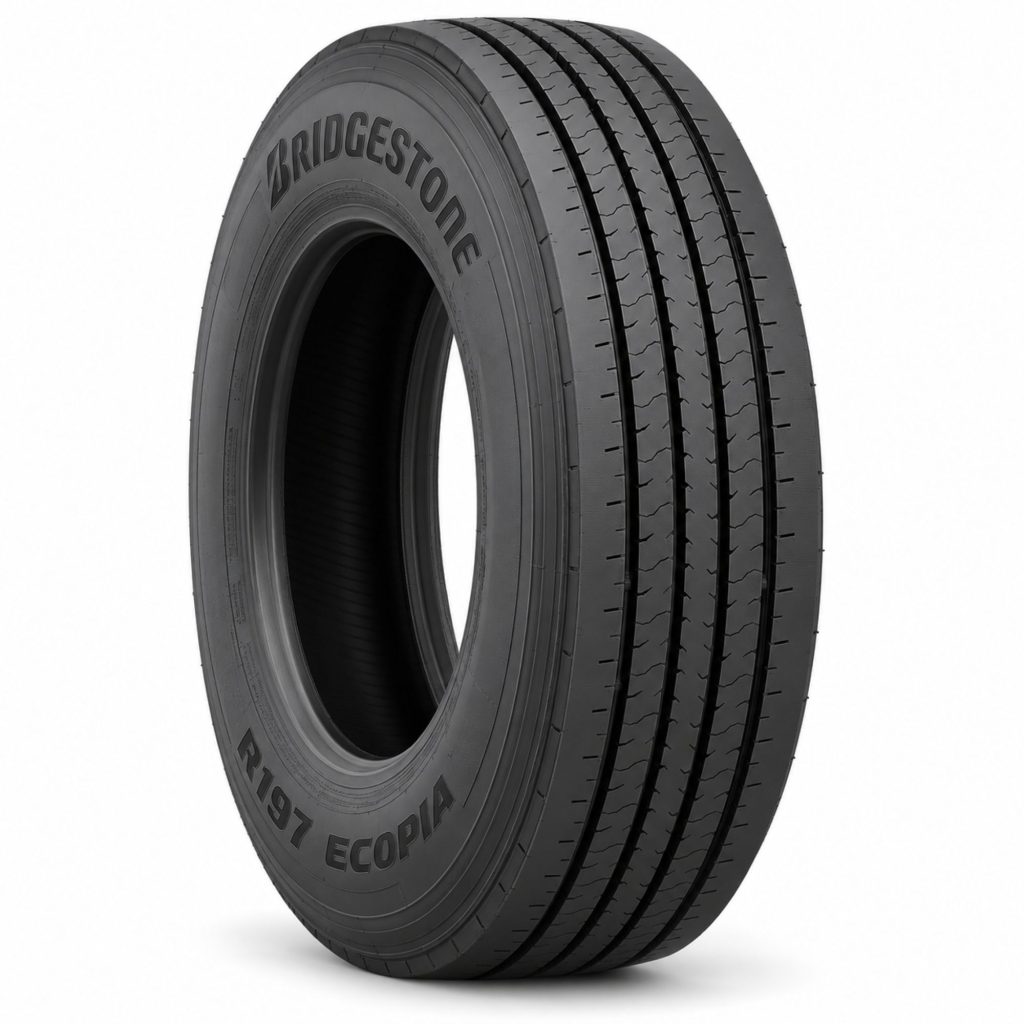

The Bridgestone Greatec R197 Ecopia is a wide-base single trailer tire designed for tandem-axle trailers operating in long-haul highway service. A single R197 tire and wide-base wheel replace the two conventional tires and wheels normally installed at each trailer wheel position.

The tire combines Bridgestone’s NanoPro-Tech compound, Fuel Saver Sidewall, optimized shoulder design, high-rigidity tread pattern, protective sidewall ribs, and specialized casing construction. These technologies are intended to improve fuel efficiency, promote long and even wear, and preserve the casing for retreading.

Bridgestone reports that the R197 delivers 6% better rolling-resistance performance and up to 20% longer projected removal mileage than the preceding Greatec R135. Actual results depend on inflation pressure, alignment, loading, vehicle condition, road surface, speed, maintenance, and operating practices.

The wide-base configuration can reduce tire-and-wheel assembly weight compared with conventional duals. This may provide additional payload opportunity, but only when the trailer, axles, hubs, wheels, suspension, and certification support the conversion.

Key Characteristics

Wide-base single trailer tire
Designed for tandem-axle long-haul trailers
445/50R22.5 size
Load Range L construction
SmartWay verified
CARB compliant
NanoPro-Tech compound technology
Fuel Saver Sidewall construction
High-rigidity tread pattern
Optimized shoulder design
Water-slicing cross-rib sipes
Protective ribs on both sidewalls
Patented waved-belt construction
Patented turn-in-ply design
Designed for retreading

Major Components

NanoPro-Tech tread compound
High-rigidity tread ribs
Optimized shoulder ribs
Cross-rib sipes
Circumferential grooves
Fuel Saver Sidewall compound
Sidewall protector ribs
Patented waved-belt package
Turn-in-ply casing construction
Steel radial casing
Inner liner
Bead bundles
Bead-area reinforcement
Tread-wear indicators

Product Type and Construction

The R197 is a tubeless steel-belted radial tire intended for wide-base single trailer installations. Unlike a conventional dual arrangement, one wide tire supports each trailer wheel position.

Its wider footprint distributes the assigned wheel-position load across a broad contact area. The optimized shoulder and high-rigidity tread designs control movement within the ribs and shoulders to promote even wear.

The casing incorporates waved-belt and turn-in-ply technologies designed to enhance durability, resist irregular wear, protect against penetrations, and preserve the casing for retreading.

How the Tire Works

The trailer axle supports the trailer and cargo without transmitting engine torque. The R197 carries its assigned wheel-position load while transferring braking, cornering, and road forces between the trailer and pavement.

NanoPro-Tech polymer technology limits energy loss as the tread and casing deform. The Fuel Saver Sidewall further reduces energy loss through a proprietary sidewall compound, helping control rolling resistance when the tire is new and after it is retreaded.

The high-rigidity tread pattern controls rib movement, while the optimized shoulders balance the footprint. Cross-rib sipes cut through surface water and create additional gripping edges for wet-road operation.

Position and Function Within the Vehicle

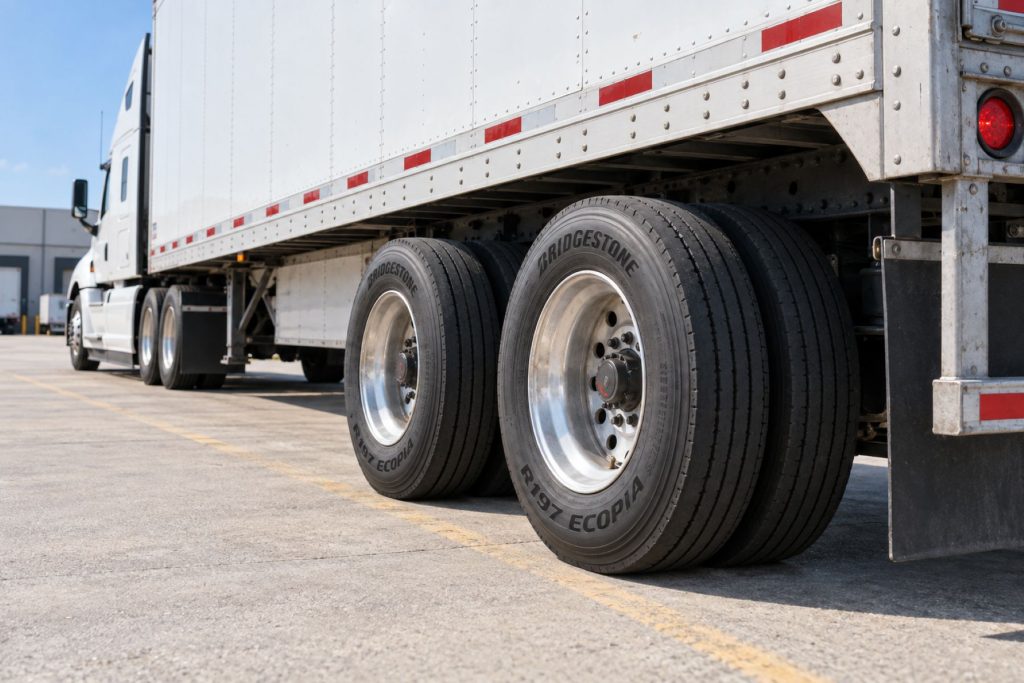

The Greatec R197 Ecopia is installed on non-powered trailer axles. It is intended primarily for tandem-axle long-haul trailers equipped for 445/50R22.5 wide-base single tires.

Each tire replaces a conventional dual pair at its wheel position. This reduces the number of tires and wheels on a tandem trailer from eight to four, but it also means that each tire carries the complete load assigned to that side of the axle.

A pressure loss or tire failure can therefore have a greater immediate effect than the loss of one tire in a dual assembly. Inflation monitoring, inspections, and prompt response to warnings are particularly important.

Common Specifications

Tire Category: Wide-base single commercial trailer tire
Primary Application: Long-haul tandem-axle trailer service
Documented Size: 445/50R22.5
Load Range: L
Documented Tire Weight: Approximately 173.5 pounds
Measuring Wheel: 14.00 inches
Overall Diameter: Approximately 39.7 inches
Overall Width: Approximately 17.7 inches
Loaded Width: Approximately 18.6 inches
Loaded Radius: Approximately 19.4 inches
Revolutions Per Mile: Approximately 523
Documented Tread Depth: 22/32 inch
Maximum Load: 10,200 pounds at 120 psi cold inflation pressure
Maximum Rated Speed: 75 mph
Retreadable: Yes, subject to professional casing inspection

Specifications are subject to change. Confirm the current Bridgestone technical data, tire sidewall, wheel rating, and trailer requirements before installation.

Size, Load Range, and Speed Rating

The documented R197 configuration is 445/50R22.5 Load Range L. Bridgestone lists a maximum load capacity of 10,200 pounds at 120 psi cold inflation pressure.

The tire carries its load in single service and does not use a dual-load rating. It requires a compatible 22.5-inch wide-base wheel, with a 14.00-inch measuring-wheel width documented by Bridgestone.

The documented maximum speed is 75 mph. This is a tire rating rather than an operating recommendation, and legal speed limits and safe conditions must always be observed.

The tire’s maximum load does not increase the rating of the axle, suspension, hub, wheel, brakes, frame, or completed trailer.

Intended Axle Position and Service

The R197 is designed for free-rolling trailer axles in tandem-axle long-haul service. It is not intended as a conventional dual tire or as a steer- or drive-axle replacement.

Its primary operating environment is sustained paved-highway travel with controlled axle loading, regular pressure maintenance, and limited severe scrub.

Spread-axle trailers, city delivery routes, severe curb exposure, and frequent tight turns can create greater lateral scrub. The application should be reviewed with Bridgestone or a qualified commercial-tire specialist before using the tire under those conditions.

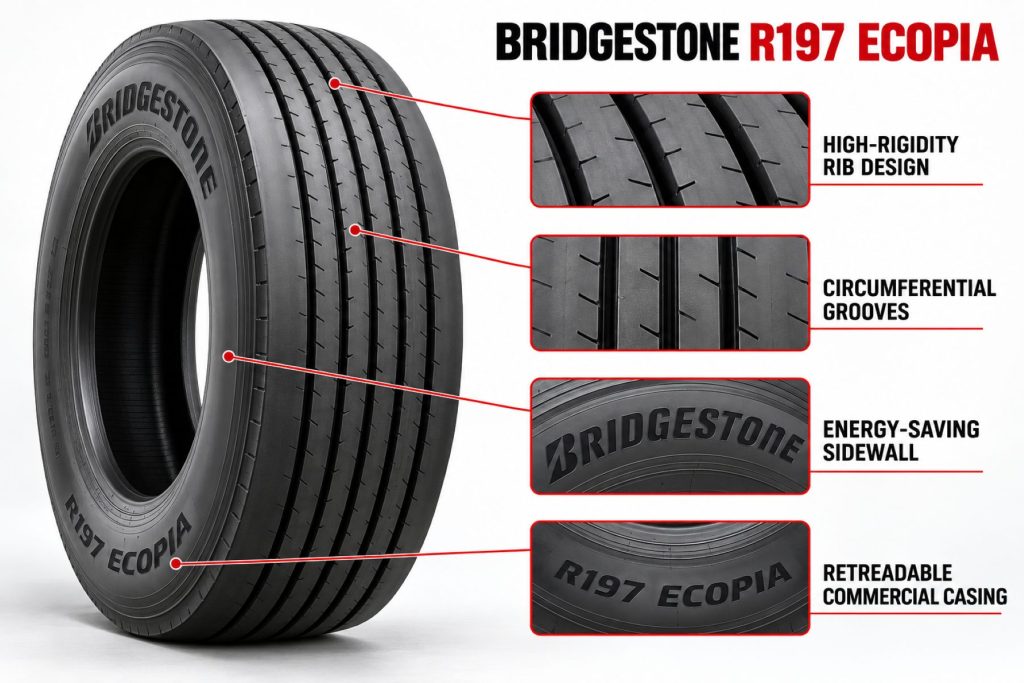

Tread Design and Traction

The high-rigidity tread pattern limits movement within the ribs and blocks. Controlling this movement reduces energy loss and helps prevent irregular wear during sustained highway operation.

The shoulder design optimizes the footprint and balances contact pressure across the tread. This is important on a wide-base tire because shoulder loading and trailer alignment can strongly influence wear.

Cross-rib sipes slice through surface water and create additional gripping edges. These features support wet-road traction, but drivers must still reduce speed and increase following distance during rain or other low-traction conditions.

Casing and Sidewall Construction

The R197 uses a retreadable steel radial casing engineered for heavy trailer loads. Bridgestone’s patented waved-belt construction is designed to enhance durability, resist irregular wear, extend tread life, and improve penetration protection.

The patented turn-in-ply design strengthens the casing and supports retreadability. Thick protective ribs on both sidewalls help defend against curbing, cuts, and abrasion.

The Fuel Saver Sidewall compound reduces energy loss as the sidewall flexes through the tire’s contact patch. Casing durability still depends on correct pressure, load, mounting, alignment, wheel condition, and operating practices.

Inflation Pressure and Load Management

Cold inflation pressure should be established from the actual wheel-position or axle load, Bridgestone’s current load-and-inflation tables, and the ratings of the wheel, axle, suspension, hub, and trailer.

Underinflation creates excessive casing flex, internal heat, shoulder loading, increased rolling resistance, and potential structural damage. Because the R197 is a single tire at each wheel position, there is no companion dual tire to share the load after significant pressure loss.

Overinflation can alter the contact patch, increase sensitivity to impact damage, reduce ride quality, and contribute to irregular wear. The published 120 psi figure is associated with the maximum rated load and is not automatically the correct pressure for every trailer load.

Rolling Resistance and Fuel Efficiency

The R197 is a SmartWay-verified and CARB-compliant trailer tire designed to reduce rolling resistance. NanoPro-Tech polymer technology, the Fuel Saver Sidewall, and the high-rigidity tread work together to limit energy loss.

Bridgestone reports a 6% improvement in rolling-resistance coefficient compared with the previous-generation Greatec R135. Actual fleet savings depend on inflation pressure, vehicle speed, axle alignment, load, route, weather, aerodynamic drag, and driver behavior.

The wide-base configuration may also reduce rotating and unsprung weight by eliminating one tire and wheel at each position. The actual weight difference depends on the wheels and conventional dual assemblies being compared.

Weather and Terrain Performance

The R197 is intended primarily for paved long-haul routes in dry and wet conditions. Its circumferential grooves and cross-rib sipes help move water and provide additional grip.

It is not an aggressive snow, off-road, construction, or severe-service tire. Fleets operating in winter conditions should verify the exact tire markings and comply with applicable chain and traction-device laws.

Repeated exposure to sharp rock, demolition debris, deep mud, severe curb impacts, or highly abrasive surfaces can shorten tread and casing life.

Mounting and Installation

The R197 must be mounted on a compatible wide-base wheel by trained commercial-tire personnel. The wheel diameter, width, offset, load rating, pressure rating, hub system, and valve equipment must match the tire and trailer.

The wheel, valve, beads, inner liner, and mounting surfaces should be inspected before assembly. Cracked, bent, corroded, improperly repaired, or incorrectly sized wheels must not be used.

Conversion from conventional duals requires more than replacing tires and wheels. Axle capacity, hub and bearing ratings, track width, wheel offset, brake clearance, suspension clearance, body clearance, stability, and trailer certification must be evaluated.

Vehicle Compatibility

The Greatec R197 Ecopia is compatible with commercial trailers engineered or approved for 445/50R22.5 wide-base single tires.

Compatibility depends on the trailer certification label, axle and suspension ratings, hub system, wheel dimensions, offset, track width, available clearance, brake package, operating weight, and intended service.

A trailer model’s inclusion in a related list does not confirm that every configuration accepts the R197. The individual trailer specification must be verified before installation or conversion.

Tire and Wheel Compatibility

The R197 requires a 22.5-inch wide-base commercial wheel approved for a 445/50R22.5 Load Range L tire. Bridgestone documents a 14.00-inch measuring-wheel width.

The wheel must support the required load and inflation pressure. Its offset must maintain the intended trailer track width while providing adequate clearance from the suspension, brakes, frame, body, and adjacent components.

The tire’s 10,200-pound maximum load rating does not increase the rating of the wheel or any other component. The lowest-rated part controls the completed installation.

Common Applications

Long-haul dry van trailers
Long-haul refrigerated trailers
Truckload freight operations
Tandem-axle highway trailers
Highway tanker trailers
Dedicated-route trailer fleets
Weight-sensitive freight operations
Fleets using wide-base single tires
Fleets prioritizing fuel efficiency
Fleets using professional casing and retread programs

Advantages

Wide-base single configuration can reduce assembly weight
SmartWay verified
CARB compliant
Low-rolling-resistance design
Reported 6% rolling-resistance improvement over the R135
Up to 20% longer projected removal mileage than the R135
Optimized shoulder promotes even wear
Cross-rib sipes support wet traction
Protective ribs defend both sidewalls
Waved belts support casing durability
Turn-in-ply construction supports retreadability
Fewer tire-and-wheel assemblies than a conventional dual configuration

Limitations or Considerations

Requires a compatible wide-base wheel and trailer configuration
Cannot be substituted directly for one tire in a dual assembly
Loss of one tire removes support from that wheel position
Pressure maintenance is especially important
May require changes to wheel offset or track width
Conversion requires axle, hub, suspension, and clearance verification
Designed primarily for paved long-haul service
Not intended for severe off-road operation
High-scrub applications may accelerate shoulder wear
Replacement availability should be considered for remote routes
Retreadability depends on casing condition
Fuel and weight savings vary by fleet configuration

Driver and Operator Experience

Wide-base trailer tires may provide stable highway operation and reduce the total number of tire assemblies requiring inspection. They also require careful pressure management because each tire carries an entire wheel-position load.

Drivers should respond promptly to tire-pressure warnings, visible damage, unusual trailer lean, vibration, smoke, excessive heat, or changes in trailer tracking.

Careful maneuvering around curbs, loading docks, barriers, and tight yards can protect the sidewalls and casing from avoidable damage.

Inspection and Wear Points

Cold inflation pressure
Remaining tread depth
Shoulder wear
Center wear
Diagonal wear
Rib-edge wear
Flat spotting
Tread cuts and punctures
Embedded stones or debris
Sidewall-protector ribs
Cuts, abrasions, bulges, or exposed cords
Bead-area damage
Evidence of separation
Valve and valve-cap condition
Wheel cracks, damage, or corrosion
Hub, bearing, and fastener condition

Tire Rotation and Position Management

Trailer-tire position management should be based on measured wear. Forward and rear tandem axles, left and right sides, and different trailer operating patterns may produce different wear rates.

R197 tires may be repositioned within compatible trailer wheel positions when permitted by Bridgestone guidance and fleet policy. Tires installed on the same axle should be compatible in size, construction, remaining tread depth, and overall diameter.

The source of abnormal wear should be corrected before the tire is moved. Rotation will not correct axle misalignment, incorrect inflation, wheel runout, worn suspension components, or dragging brakes.

Balancing, Alignment, and Runout

Trailer axle alignment has a major effect on wide-base tire wear. An axle that is not square with the trailer centerline forces the tire to scrub continuously, increasing rolling resistance and damaging its wide footprint.

Alignment should be inspected after suspension repairs, axle replacement, collision damage, severe curb impacts, ride-height changes, or the appearance of abnormal wear.

Wheel balance, radial runout, lateral runout, hub condition, brake-drum or rotor runout, and wheel-bearing adjustment can also affect vibration and tread wear.

Retreadability and Casing Life

The R197 casing is designed for retreading. Its waved-belt and turn-in-ply construction support durability, while protective sidewall ribs help prevent damage that could disqualify the casing.

A compatible wide-base Bandag retread may allow the casing to complete additional service lives. Retread selection should match the trailer position, casing size, route, load, and intended application.

Every casing must pass professional inspection. Damage from underinflation, overloading, excessive heat, impact breaks, failed repairs, exposed cords, bead damage, separation, or operation while flat may make it unsuitable for retreading.

Maintenance and Ownership Notes

Check cold inflation pressure regularly and investigate repeated pressure loss. Tire-pressure monitoring or automatic inflation equipment is particularly valuable on wide-base single trailer tires.

Electronic monitoring and inflation systems do not replace physical inspections. Sensors, hoses, valves, rotary unions, seals, warning lights, and control equipment must remain functional.

Measure tread depth across the full width and record wear by trailer and wheel position. Maintain axle alignment, suspension components, wheel bearings, brakes, hubs, and shock absorbers to protect the tire and casing.

Common Tire Problems

Shoulder wear: Incorrect inflation, axle misalignment, overloading, excessive scrub, or worn suspension components can accelerate shoulder wear.
Center wear: Excessive inflation for the actual load can concentrate wear near the center of the footprint.
Diagonal wear: Misaligned axles, loose wheel bearings, wheel runout, or damaged suspension components can produce diagonal wear.
Rib-edge wear: Misalignment, inflation problems, and lateral trailer forces may create irregular wear along the ribs.
Flat spotting: Locked brakes, dragging brakes, sudden stops, or prolonged parking under heavy load can create localized wear.
Sidewall damage: Curb contact, debris, insufficient clearance, and underinflation can damage the sidewall or protective ribs.
Heat damage: Underinflation, overloading, bearing problems, dragging brakes, or excessive speed can raise casing temperature.
Air loss: Punctures, damaged valves, wheel leaks, bead damage, or failed repairs can cause pressure loss and require immediate attention.

Safety and Service Precautions

Commercial tire service involves heavy components and dangerous stored air pressure. Mounting, demounting, inflation, repair, and wheel service should be completed by trained personnel using approved equipment and procedures.

Do not inflate a visibly damaged tire-and-wheel assembly. A tire suspected of operating while severely underinflated, overloaded, overheated, or flat should be removed and inspected internally before returning to service.

A wide-base single tire supports the complete wheel-position load. Drivers should stop safely and investigate pressure warnings or suspected damage rather than continuing to operate the trailer.

Identification Information

Identification information is molded into the tire’s sidewall. Record the complete service description rather than relying only on the tread pattern or Greatec name.

Bridgestone brand name
Greatec R197 Ecopia designation
445/50R22.5 tire size
Load Range L
Load index and speed symbol where shown
Radial and tubeless markings
Maximum load and inflation information
DOT serial number
Manufacturing date code
Country of manufacture
SmartWay-related product identification
Bridgestone article or material number

Buying Considerations

Confirm that the trailer supports wide-base single tires
Verify the 445/50R22.5 size
Confirm Load Range L capacity
Match the required 22.5-inch wide-base wheel
Verify wheel width, offset, load, and pressure ratings
Check hub, bearing, axle, and suspension capacity
Confirm brake, frame, and body clearance
Evaluate trailer track width and stability
Compare actual assembly weight with conventional duals
Review roadside replacement availability
Plan for tire-pressure monitoring or automatic inflation
Review casing and retread options
Compare total cost per mile rather than purchase price alone

Variants and Configurations

445/50R22.5 tire size
Load Range L
22.5-inch wide-base wheel installation
Tandem-axle trailer application
New-tire configuration
Compatible wide-base retread configurations
Application-specific tire-pressure monitoring integration
Application-specific automatic inflation-system integration

The exact tread depth, article number, manufacturing specification, and availability should be verified through current Bridgestone documentation before ordering.

Comparison to Similar Equipment

Compared with the Michelin X Line Energy T2 Trailer Tire, the R197 is a wide-base single tire rather than a conventional dual trailer tire. The two products require different wheels and installation configurations.

Compared with the Michelin X One Line Energy T2 Trailer Tire, both are wide-base single products developed for fuel-efficient trailer service. Their tread designs, casing technologies, dimensions, and retread programs differ.

Compared with the Bridgestone R123 Ecopia Trailer Tire, the R197 uses a 445/50R22.5 wide-base configuration. The R123 is a conventional-size trailer tire used in dual assemblies.

Compared with the preceding Bridgestone Greatec R135 Trailer Tire, Bridgestone reports improved rolling resistance and longer projected removal mileage for the R197.

Best Fit For

Long-haul tandem-axle trailers
Truckload freight fleets
Dry van and refrigerated operations
Fleets already using wide-base single tires
Weight-sensitive freight operations
Fleets prioritizing rolling-resistance reduction
Trailers operating mainly on paved highways
Fleets with strong inflation-maintenance programs
Operators using professional casing and retread programs

Related Vehicle and Trailer Types

Related Truck and Trailer Models

Related Tire Types

Related Tire Products

Related Equipment Systems

Related Guides

Regulatory and Compliance Notes

The tire must comply with federal, state, provincial, and local requirements governing tire size, load capacity, inflation pressure, speed rating, tread depth, condition, repairs, and vehicle weight.

SmartWay verification and CARB compliance identify qualifying low-rolling-resistance performance. They do not increase the trailer’s certified axle or gross vehicle weight ratings and do not guarantee a specific fuel saving.

A conversion from conventional dual tires to wide-base singles may require engineering review, component verification, and updated certification. Tire capacity alone does not approve the conversion.

Real World Operating Notes

The R197’s fuel-efficiency and mileage benefits depend on disciplined inflation maintenance and axle alignment. An underinflated or misaligned wide-base tire can lose those benefits quickly.

A tire-pressure monitoring or automatic inflation system can be especially valuable because each tire supports an entire wheel position. Drivers and maintenance personnel must still perform physical inspections.

Fleets planning to retread the casing should protect it from the beginning of service. Prompt pressure-loss response, careful curb management, regular inspections, and removal before excessive wear can improve casing acceptance.

Frequently Asked Questions

What is the Bridgestone Greatec R197 Ecopia?

It is a fuel-efficient wide-base single trailer tire designed primarily for tandem-axle long-haul applications.

Is the R197 a conventional dual trailer tire?

No. It is a 445/50R22.5 wide-base single tire that replaces a conventional dual pair at each compatible wheel position.

What load range is the R197?

The documented 445/50R22.5 configuration is Load Range L.

What is its maximum load capacity?

Bridgestone documents a maximum load of 10,200 pounds at 120 psi cold inflation pressure.

Is the R197 SmartWay verified?

Yes. Bridgestone identifies the tire as SmartWay verified and CARB compliant.

Can the R197 casing be retreaded?

Yes. The tire uses a casing designed for retreadability, but every casing must pass professional inspection.

Can conventional duals be replaced directly with the R197?

Not without verification. The trailer requires compatible wheels, hubs, axles, suspension, offset, track width, clearances, ratings, and completed-vehicle approval.

Why is tire-pressure monitoring important?

Each wide-base tire supports the complete wheel-position load. A substantial pressure loss can therefore affect trailer support, handling, casing condition, and roadworthiness immediately.

What causes irregular wear?

Common causes include incorrect inflation, trailer-axle misalignment, excessive scrub, overloading, wheel runout, worn suspension components, bearing problems, and dragging brakes.

How is the correct inflation pressure determined?

Use actual scale weights with Bridgestone’s current load-and-inflation tables and the limits established by the trailer and wheel manufacturers.

Availability and Where to Find

The Bridgestone Greatec R197 Ecopia is available through participating Bridgestone commercial-tire dealers, truck-tire distributors, fleet suppliers, service centers, and retread networks.

Availability depends on production, regional inventory, distributor supply, and the required wheel equipment. Buyers should confirm the tire’s manufacturing date, article number, specifications, warranty coverage, and compatible retread options before ordering.

Current specifications, dealer resources, warranty information, and product details are available through the official Bridgestone Greatec R197 Ecopia product page.

Support Trucking Families

Truck Equipment Atlas supports the mission of Grey Cross, a nonprofit dedicated to helping families of truck drivers who lose their lives while on the road. As the site grows, part of its mission is to bring awareness and support to these families.

Podcast or Video Section

Learn More Through Audio and Video

Truck Equipment Atlas will continue expanding with podcast episodes, interviews, and equipment breakdowns to help drivers and fleets better understand trucks and equipment.

Follow the Growth of Truck Equipment Atlas

Truck Equipment Atlas continues to expand with new truck profiles, trailer coverage, diesel engine pages, equipment system resources, manufacturer information, and educational guides.

Visit our Site Updates page to explore recent additions, project milestones, and upcoming resources as we continue building one of the industry’s growing commercial trucking equipment reference libraries.

View the Latest Site Updates: Truck Equipment Atlas Site Updates
