Quick Facts

  • Manufacturer: Premier Manufacturing Company
  • Product Model: Premier 2200
  • Product Type: Slack-reducing pintle coupling
  • Coupling Type: Drawbar-eye and pintle-style coupling
  • Mounting Type: Four-bolt vehicle crossmember mounting
  • Maximum Gross Trailer Weight: 100,000 pounds
  • Maximum Tongue Weight: 20,000 pounds
  • Ultimate Latch Capacity: 60,000 pounds
  • Maximum Drawbar-Eye Cross-Section: 1-13/16 inches
  • Minimum Drawbar-Eye Opening: 2-3/8 inches
  • Operating Configuration: Mechanical operation with optional air-service chamber
  • Published Unit Weight: Approximately 29 pounds
  • Primary Applications: Truck-and-trailer combinations, vocational equipment, converter dollies, and heavy commercial towing
  • Production Status: Current product; specifications and configurations should be confirmed with Premier Manufacturing

Overview

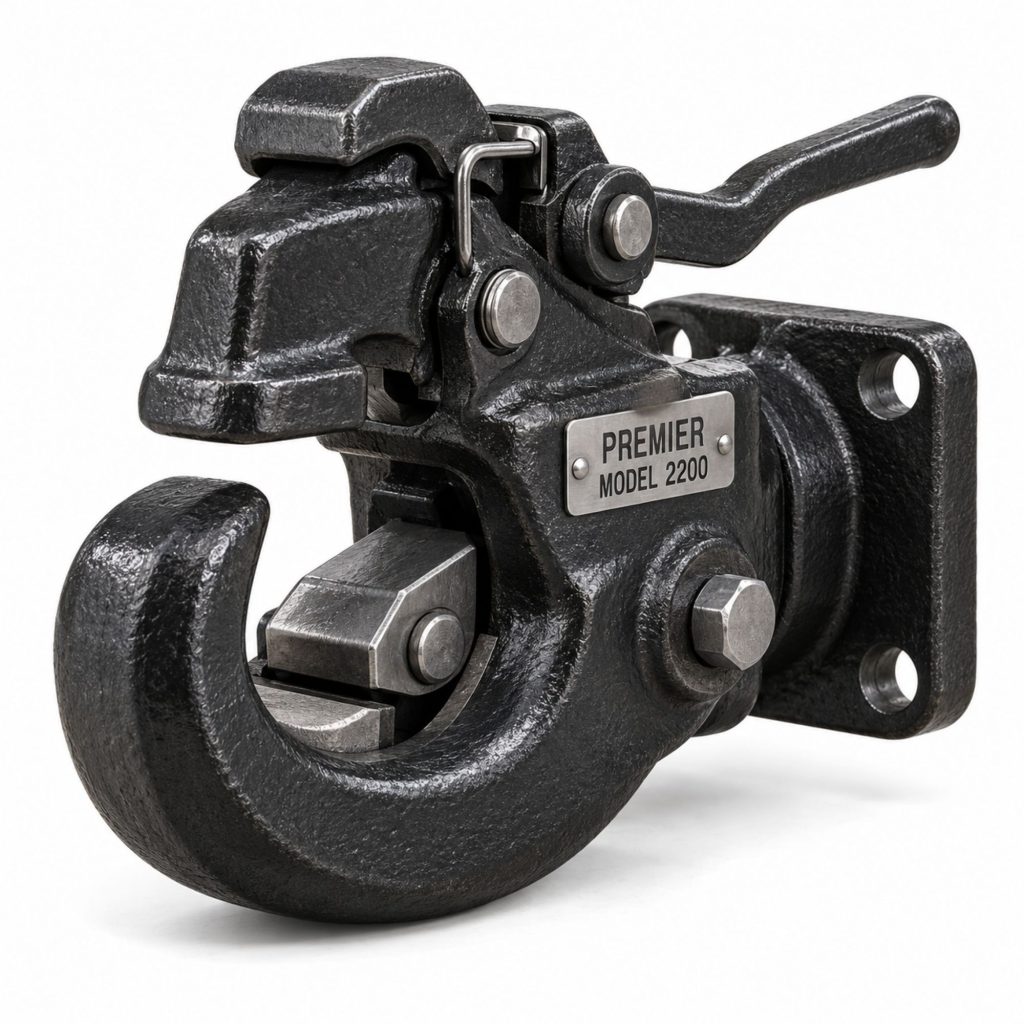

The Premier 2200 is a heavy-duty slack-reducing coupling designed to connect a towing vehicle with a trailer or converter dolly equipped with a compatible drawbar eye. Its internal shoe applies pressure against the drawbar eye to reduce free movement inside the coupling.

Reducing slack can lessen impact loading, noise, and abrupt movement during acceleration, braking, and directional changes. The coupling can operate mechanically or with an optional air-service chamber that maintains force against the slack-reducing shoe.

The 2200 uses a widely adopted four-bolt mounting pattern and is built from Premier’s wear-resistant Premalloy material. The related 2200L configuration includes a low-profile lever kit for installations with limited operating clearance.

Key Characteristics

  • Slack-reducing pintle-style coupling
  • Heavy-duty Premalloy construction
  • Popular four-bolt mounting pattern
  • Maximum gross trailer weight rating of 100,000 pounds
  • Maximum tongue weight rating of 20,000 pounds
  • Ultimate latch capacity of 60,000 pounds
  • Can operate with or without an air-service chamber
  • Internal shoe reduces movement around the drawbar eye
  • Strong enclosed latch mechanism
  • Low-profile lever configuration available
  • Compatible air-chamber and bracket options
  • Replaceable latch, shoe, spring, lever, pin, and bushing components
  • Wear and latch gauges available

Major Components

  • Premalloy coupling body and hook
  • Latch
  • Latch lock
  • Slack-reducing shoe
  • Shoe spring
  • Operating lever
  • Lever pin and spacer
  • Latch and lock springs
  • Bushings
  • Retaining rings
  • Mounting thimble
  • Mounting bolts and locknuts
  • Optional air-service chamber
  • Optional air-chamber adapter bracket
  • Optional low-profile lever kit
  • Optional drawbar guides

Coupling Type and Design

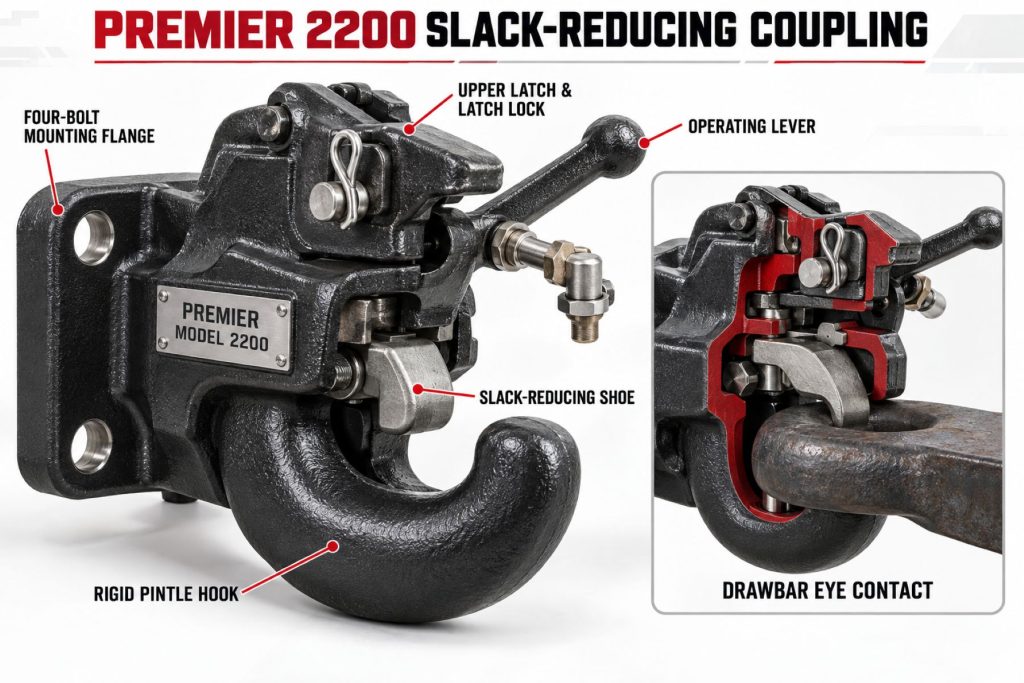

The Premier 2200 uses an open-hook coupling body with a movable upper latch. A compatible trailer drawbar eye enters through the front of the coupling and rests around the hook.

After the drawbar eye is seated, the latch closes above it and the slack-reducing shoe applies force against the eye. This design limits excessive movement without preventing the articulation needed for normal towing.

How the Coupling System Works

During coupling, the towing vehicle is aligned with the trailer drawbar. The latch is opened, and the drawbar eye enters the coupling until it is fully seated around the hook.

The latch then closes and its locking mechanism prevents unintended opening. The slack-reducing shoe presses against the drawbar eye to reduce clearance and movement between the mating components.

When an air-service chamber is installed, supplied air pressure applies additional controlled force through the coupling mechanism. The mechanical latch remains the primary retention system.

Position and Function Within the Vehicle

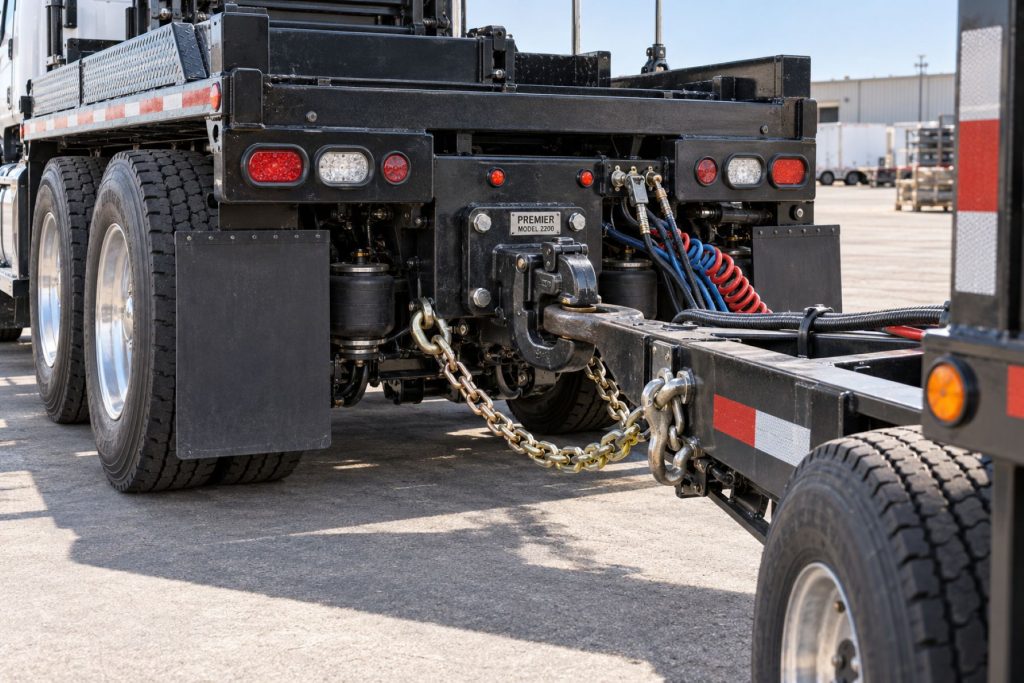

The Premier 2200 is mounted to a reinforced crossmember or coupling structure at the rear of a truck, tractor, converter dolly, or other approved towing vehicle. The mating drawbar eye is attached to the trailer or towed equipment.

The coupling transfers pulling, braking, tongue-load, and turning forces between the vehicles while allowing the drawbar eye to rotate and articulate during operation.

Common Specifications

  • Coupling Type: Slack-reducing pintle coupling
  • Maximum Gross Trailer Weight: 100,000 pounds
  • Maximum Tongue Weight: 20,000 pounds
  • Ultimate Latch Capacity: 60,000 pounds
  • Maximum Drawbar-Eye Cross-Section: 1-13/16 inches
  • Minimum Drawbar-Eye Opening: 2-3/8 inches
  • Published Unit Weight: Approximately 29 pounds
  • Mounting Pattern: Four-bolt commercial coupling pattern
  • Standard Air Chamber: Premier 281 Type-24
  • Optional Air Chamber: Premier 282 Type-30
  • Recommended Air Pressure: 90–120 PSI when an approved air-service chamber is used
  • Standard Thimble: Premier 271
  • Standard Installation Kit: Premier 2200A
  • Low-Profile Configuration: Premier 2200L with 2075K lever kit

Load Ratings and Operating Capacity

The Premier 2200 carries a published maximum gross trailer weight rating of 100,000 pounds and maximum tongue weight rating of 20,000 pounds. Premier also lists an ultimate latch capacity of 60,000 pounds.

These ratings apply only when the coupling is properly installed, maintained, and matched with compatible equipment. The actual combination is limited by its lowest-rated component, including the drawbar eye, drawbar, mounting structure, fasteners, chassis, axles, suspension, brakes, tires, and wheels.

Articulation and Oscillation

The drawbar eye rotates and moves within the coupling as the towing vehicle and trailer turn, travel over grades, and cross uneven surfaces. The coupling must retain enough clearance for required movement while its shoe reduces unnecessary slack.

Drivers must avoid binding or jackknifing the coupling. Extreme articulation can place damaging side loads on the hook, latch, drawbar eye, mounting structure, and trailer drawbar.

Sliding and Adjustment System

The Premier 2200 does not use a sliding mounting system like a tractor fifth wheel. It is bolted in a fixed position to the towing vehicle’s mounting structure.

The internal shoe automatically reduces clearance around the drawbar eye. Any service adjustment must follow Premier procedures and should not be used to compensate for worn components that have exceeded their limits.

Release and Locking Mechanism

The upper latch closes above the seated drawbar eye. A separate latch-lock mechanism helps prevent the latch from opening unintentionally during towing.

The standard operating lever provides manual control. The optional 2075K low-profile lever kit supports one-handed latch operation from the left side where installation clearance is limited.

Air and Electronic Controls

The Premier 2200 can operate with or without an air-service chamber. The standard 2200A installation kit includes a Premier 281 Type-24 air chamber and 267 adapter bracket.

A Premier 282 Type-30 chamber is available when greater diaphragm area and shoe force are required. Approved Type-24 or Type-30 chambers should receive an air supply within Premier’s specified 90–120 PSI range.

The coupling itself does not require an electronic control system. Vehicle installations may incorporate protected pneumatic controls, warning labels, or operational interlocks.

Mounting and Installation

The coupling must be bolted to a reinforced mounting structure capable of supporting the published loads. Premier specifies Grade 8 mounting fasteners that are correctly sized, positioned, and torqued.

The standard installation uses the 501 bolt kit, 271 thimble, 281 air chamber, and 267 air-chamber bracket when pneumatic operation is selected. Alternative brackets and thimble lengths are available for different structures.

The coupling assembly must not be welded. Welding can change material properties, distort components, and create an unsafe condition.

Vehicle Frame and Mounting Compatibility

Compatibility depends on the towing vehicle’s rear crossmember, frame strength, available mounting space, bolt pattern, structure thickness, coupling height, air-system layout, and required trailer clearance.

The mounting structure must be engineered for the trailer’s gross weight, tongue load, dynamic forces, and intended service. Matching bolt holes alone does not confirm that the vehicle structure is adequately rated.

Mating Component and Trailer Compatibility

The drawbar eye must have a cross-section no larger than 1-13/16 inches and an opening no smaller than 2-3/8 inches. It must also carry a rating equal to or greater than the intended towing load.

Drawbar geometry, eye thickness, articulation requirements, tongue load, trailer brakes, safety chains, and vehicle clearances must be evaluated as part of the complete towing system.

Common Applications

  • Converter dollies
  • Full trailers
  • Truck-and-trailer combinations
  • Vocational trucks
  • Dump trucks and pup trailers
  • Municipal equipment
  • Construction equipment
  • Utility vehicles
  • Aggregate and material-hauling combinations
  • Off-highway support equipment within approved limits
  • Industrial towing applications
  • Heavy commercial drawbar trailers

Advantages

  • Reduces movement between the hook and drawbar eye
  • Can reduce impact loading and coupling noise
  • High gross trailer and tongue weight ratings
  • Strong latch mechanism
  • Can operate with or without an air-service chamber
  • Uses a widely adopted four-bolt mounting pattern
  • Wear-resistant Premalloy construction
  • Low-profile lever option available
  • Several air-chamber brackets and thimbles are available
  • Replaceable internal components
  • Wear and latch gauges support measurable inspections
  • Drawbar guides can simplify alignment

Limitations or Considerations

  • Requires a compatible and adequately rated drawbar eye
  • Mounting structure must support high dynamic loads
  • Coupling assembly must not be welded
  • Hook surface must not be lubricated
  • Internal components still require scheduled lubrication
  • Air-equipped versions require a dependable 90–120 PSI supply
  • Extreme articulation or jackknifing can damage components
  • Slack reduction does not eliminate normal coupling movement
  • Worn hook, latch, shoe, or drawbar-eye components require service
  • Maximum ratings do not increase the vehicle’s certified capacity
  • Incorrectly matched eyes may prevent closure or safe articulation
  • Mounting fasteners require periodic inspection

Driver and Operator Experience

A correctly maintained 2200 can provide a tighter and more controlled connection than a conventional coupling with excessive clearance. The driver may notice less clunking and abrupt movement during starts, stops, and gear changes.

The operator must still confirm that the drawbar eye is fully seated, the latch is completely closed, the latch lock is engaged, the air chamber is operating correctly when equipped, and all required safety connections are installed.

Coupling and Uncoupling Procedure

Before coupling, inspect the hook, latch, latch lock, shoe, mounting fasteners, drawbar eye, and surrounding structure. Open the coupling and align the towing vehicle squarely with the trailer drawbar.

Seat the drawbar eye fully around the hook, close the latch, verify that the latch lock is engaged, and inspect the connection. Attach the required safety chains, electrical connector, and brake or air lines before moving the combination.

Before uncoupling, secure the trailer, relieve force between the coupling and drawbar eye, disconnect the appropriate lines and safety connections, release the latch lock, and open the coupling according to Premier procedures.

Inspection and Wear Points

  • Coupling hook
  • Hook wear surface
  • Latch
  • Latch gap
  • Latch lock
  • Slack-reducing shoe
  • Shoe spring
  • Operating lever
  • Pins, bushings, and retaining rings
  • Mounting bolts and locknuts
  • Mounting thimble
  • Air-service chamber and pushrod
  • Air lines and fittings
  • Drawbar eye
  • Vehicle crossmember and surrounding structure

Lubrication Requirements

Premier specifies lubrication of the coupling’s operating components at intervals no longer than 90 days. Severe service, contamination, frequent trailer changes, or pressure washing may require shorter intervals.

Lubricant should not be applied to the coupling hook. The latch, lock, lever, pins, bushings, shoe mechanism, and other specified service points should be lubricated using Premier’s current instructions.

Maintenance and Ownership Notes

The coupling should be cleaned and inspected before every use for damage, wear, correct latch operation, and secure mounting. The drawbar eye requires inspection at the same time because it is the coupling’s mating component.

Premier offers wear gauge 14014 for evaluating hook wear and latch gauge 14026 for checking the latch gap. Measuring these areas provides a more reliable service decision than appearance alone.

Replacement kits are available for the latch system, slack-reducing components, and low-profile lever. Replacement parts should match the exact coupling model and configuration.

Common Coupling Problems

  • Excessive coupling slack: A worn hook, drawbar eye, shoe, spring, or latch component may allow excessive movement.
  • Latch will not close: An oversized or incorrectly positioned drawbar eye, contamination, component damage, or a worn latch mechanism may prevent closure.
  • Latch will not release: Tension between the vehicles, corrosion, contamination, inadequate lubrication, or damaged components can bind the mechanism.
  • Weak slack-reducing action: A damaged shoe, weak spring, insufficient air pressure, incorrect chamber, or air leak may reduce shoe force.
  • Air leakage: Damaged hoses, fittings, chamber diaphragms, or control valves can affect pneumatic operation.
  • Rapid hook wear: Misalignment, an incompatible drawbar eye, contamination, overloading, or extreme articulation can accelerate wear.
  • Loose mounting bolts: Incorrect torque, damaged mounting material, improper fasteners, or repeated impact loading may loosen the assembly.
  • Damaged mounting structure: Overloading, poor reinforcement, corrosion, or repeated shock loading can crack or deform the crossmember.

Safety and Service Precautions

Inspect the coupling and drawbar eye before every use. Do not tow with a coupling that is cracked, excessively worn, improperly latched, loosely mounted, or missing required components.

Do not weld on the coupling assembly. Use the specified Grade 8 fasteners and tighten them according to Premier’s current instructions.

Do not lubricate the hook, exceed the published ratings, use an incompatible drawbar eye, or force the combination into a binding or jackknifed position.

Identification Information

Record the following information before ordering a coupling, installation kit, accessory, or replacement component:

  • Premier coupling model
  • Eight-digit Premier part number
  • 2200, 2200L, or 2200A configuration
  • Gross trailer weight requirement
  • Tongue weight requirement
  • Drawbar-eye dimensions
  • Mounting-bolt pattern
  • Mounting-structure thickness
  • Thimble length
  • Air-chamber model
  • Air-chamber bracket model
  • Lever configuration
  • Replacement-kit numbers
  • Towing vehicle information

Buying Considerations

  • Confirm gross trailer and tongue weight requirements
  • Measure the drawbar-eye opening and cross-section
  • Verify the mounting-bolt pattern
  • Inspect the towing vehicle’s mounting structure
  • Choose mechanical or air-assisted operation
  • Select a Type-24 or Type-30 chamber when required
  • Choose the correct air-chamber bracket
  • Confirm the required thimble length
  • Determine whether a low-profile lever is needed
  • Determine whether drawbar guides are required
  • Order the correct Grade 8 mounting kit
  • Review replacement-part and gauge availability
  • Use a qualified commercial coupling installer

Variants and Configurations

  • Premier 2200 coupling with 271 thimble
  • Premier 2200L with low-profile 2075K lever kit
  • Premier 2200A standard air-assisted installation kit
  • Coupling configuration without the slack-reducing shoe
  • Type-24 air-service chamber
  • Type-30 air-service chamber
  • Standard air-chamber bracket
  • Alternative-height air-chamber brackets
  • Different mounting-thimble lengths
  • Low-profile lever installation
  • Drawbar-guide accessories
  • Application-specific mounting kits

Comparison to Similar Equipment

Compared with the Premier 270 Slack-Reducing Coupling, the 2200 can operate with or without an air-service chamber. The Premier 270 requires an air-service chamber.

Compared with the Premier 2300 Slack-Reducing Coupling, the 2200 uses a different mounting pattern and latch configuration.

Compared with the Holland PH-410 Pintle Hook, the Premier 2200 incorporates a dedicated slack-reducing shoe and different latch, mounting, and air-assist options.

Compared with a conventional pintle hook, the 2200 is designed to reduce free movement around the drawbar eye but requires additional shoe, latch, and optional pneumatic components.

Best Fit For

  • Heavy commercial drawbar trailers
  • Converter dollies
  • Truck-and-pup-trailer combinations
  • Vocational trucks
  • Municipal and utility fleets
  • Construction and aggregate operations
  • Applications requiring reduced coupling slack
  • Installations using the common four-bolt pattern
  • Applications requiring optional air-assisted shoe force
  • Fleets seeking replaceable coupling components

Related Vehicle and Trailer Types

Related Truck and Trailer Models

Related Coupling Types

Related Coupling Products

Related Equipment Systems

Related Guides

Regulatory and Compliance Notes

The coupling, drawbar eye, mounting structure, safety chains, trailer brakes, lighting, and connected vehicle components must comply with applicable commercial-vehicle and workplace requirements.

The Premier rating does not override the towing vehicle’s gross combination rating, trailer rating, axle ratings, or legal weight limits. The coupling must be installed and operated within all applicable manufacturer and regulatory restrictions.

Real World Operating Notes

The slack-reducing feature is most effective when the hook, shoe, latch, and drawbar eye are all within their service limits. A new shoe cannot fully compensate for a severely worn hook or drawbar eye.

Coupling noise or harsh impact during starts and stops can indicate excessive wear, insufficient shoe force, poor vehicle operation, or an incorrectly matched drawbar eye.

When an air chamber is used, air pressure should be verified during troubleshooting. A mechanically sound coupling may still provide weak slack reduction when the chamber, air supply, or pushrod geometry is incorrect.

Frequently Asked Questions

What is the Premier 2200?

It is a heavy-duty slack-reducing coupling designed to connect a towing vehicle with a compatible trailer drawbar eye.

What does slack reducing mean?

An internal shoe applies force against the drawbar eye to reduce excessive movement inside the coupling.

What is the maximum gross trailer weight?

Premier lists a maximum gross trailer weight of 100,000 pounds.

What is the maximum tongue weight?

The published maximum tongue weight is 20,000 pounds.

Does the 2200 require an air chamber?

No. The Premier 2200 can operate with or without an approved air-service chamber.

What is the Premier 2200L?

The 2200L is a Premier 2200 equipped with the 2075K low-profile lever kit.

Can the coupling hook be greased?

No. Premier instructs users not to apply lubricant to the coupling hook. Other specified operating components still require scheduled lubrication.

How is hook wear checked?

Premier offers wear gauge 14014 for checking the hook against its service limit.

How is latch wear checked?

Premier offers latch gauge 14026 for evaluating the latch-gap limit.

How can the correct replacement parts be identified?

Use the coupling model, eight-digit Premier part number, lever configuration, air-chamber model, mounting bracket, thimble, and replacement-kit numbers.

Availability and Where to Find

The Premier 2200, 2200L, 2200A installation kit, replacement parts, gauges, air chambers, brackets, thimbles, and mounting hardware may be available through Premier distributors, commercial-truck dealerships, heavy-duty parts suppliers, trailer-equipment specialists, and vocational-truck upfitters.

Availability depends on the exact coupling configuration, air chamber, bracket height, thimble length, lever type, and mounting kit. Buyers should confirm the complete Premier model and eight-digit part number before ordering.

Current catalogs, specifications, parts information, and support resources are available through the Premier Manufacturing website.

Support Trucking Families

Truck Equipment Atlas supports the mission of Grey Cross, a nonprofit dedicated to helping families of truck drivers who lose their lives while on the road. As the site grows, part of its mission is to bring awareness and support to these families.

Podcast or Video Section

Learn More Through Audio and Video

Truck Equipment Atlas will continue expanding with podcast episodes, interviews, and equipment breakdowns to help drivers and fleets better understand trucks and equipment.

Follow the Growth of Truck Equipment Atlas

Truck Equipment Atlas continues to expand with new truck profiles, trailer coverage, diesel engine pages, equipment system resources, manufacturer information, and educational guides.

Visit our Site Updates page to explore recent additions, project milestones, and upcoming resources as we continue building one of the industry’s growing commercial trucking equipment reference libraries.

View the Latest Site Updates: Truck Equipment Atlas Site Updates

Scroll to Top
