Continental Conti EcoPlus HD3 Drive Tire

Quick Facts

Manufacturer: Continental
Product Name: Conti EcoPlus HD3
Product Type: Commercial truck radial tire
Tire Position: Drive axle
Primary Service: Long-distance and regional highway transportation
Construction: Steel-belted radial, tubeless
Tread Design: Open-shoulder traction pattern
Weather Designations: M+S and 3PMSF
Common Wheel Diameter: 22.5 inches
Primary Benefits: Low rolling resistance, high mileage, drive traction, and retreadable casing construction
Market: Primarily global and European commercial-truck applications
Production Status: Original product succeeded in current markets by the Conti EcoPlus HD3+

Overview

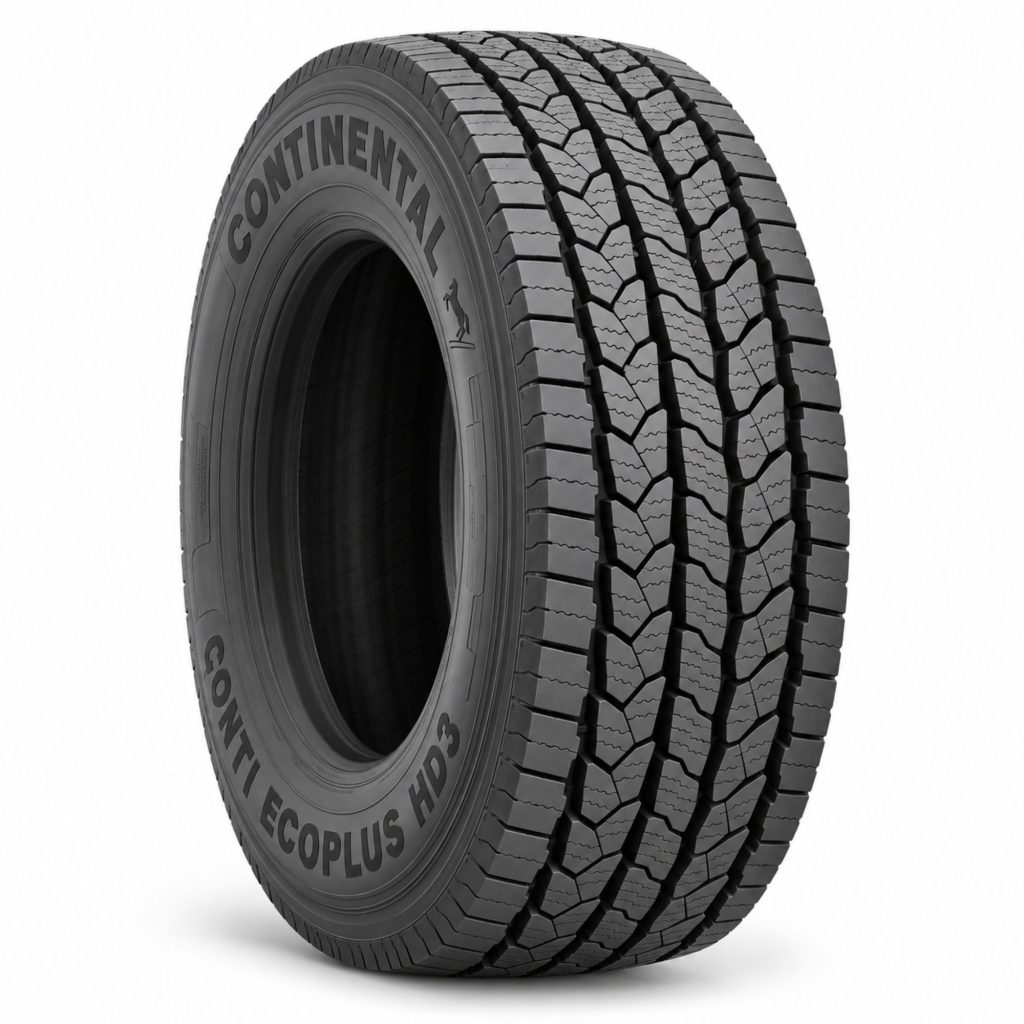

The Continental Conti EcoPlus HD3 is a drive-axle tire developed for long-distance commercial trucks operating primarily on paved highways. It combines an open-shoulder traction pattern with a fuel-efficient tread compound and a casing engineered for multiple service lives.

Continental designed the tire to balance several requirements that can compete with one another in highway service: dependable drive traction, low rolling resistance, even tread wear, high mileage, and casing durability.

A two-layer tread construction combines a mileage-focused cap compound with a low-rolling-resistance base compound. Wide tread blocks help create a stable footprint, while open shoulders and multiple gripping edges support traction on wet roads and in winter conditions.

The original Conti EcoPlus HD3 is principally associated with global and European truck-tire markets. It is different from Continental’s North American Conti HDL 3 EP, even though both products serve fuel-conscious drive-axle applications. Buyers should verify the exact market designation, size, service description, and product generation before ordering.

Key Characteristics

Designed for commercial-truck drive axles
Intended primarily for long-distance highway transportation
Open-shoulder tread pattern
Two-layer cap-and-base tread compound
Wide tread blocks designed to stabilize the contact patch
Multiple gripping edges for drive traction
M+S and 3PMSF winter-service markings
Low-rolling-resistance design
High-mileage tread construction
Regroovable tread where permitted
Retreadable premium casing
Application-specific load and speed ratings

Major Components

Tread cap compound
Low-rolling-resistance tread base compound
Open shoulder blocks
Center tread blocks
Traction grooves
Grip edges and sipes
Steel-belt package
Triangular belt construction
Steel radial casing
Air-Keep inner liner
Sidewalls
Bead bundles
Steel-cord bead chafer
Regrooving indicators

Product Type and Construction

The Conti EcoPlus HD3 is a tubeless commercial radial tire built for powered drive axles. Its casing uses steel reinforcement to support heavy loads, resist operating forces, and preserve the casing for potential regrooving and retreading.

The tire’s two-layer tread separates the primary wear surface from the base compound beneath it. The cap is formulated to provide mileage and traction, while the base helps limit energy loss as the tire repeatedly flexes through the contact patch.

Continental’s casing design includes an air-retaining inner liner and reinforced bead-area construction. These features are intended to support inflation retention, casing stability, and suitability for additional service lives when the casing passes inspection.

How the Tire Works

The drive axle transfers engine torque through the tire to the road. The Conti EcoPlus HD3 uses large tread blocks and numerous gripping edges to create traction while limiting unnecessary tread movement.

As the tire enters the contact patch, the tread, belts, sidewalls, and casing deform under load. Continental’s compound and construction strategy is intended to reduce the energy lost through this deformation, helping decrease rolling resistance.

The open shoulder channels help move water and loose material away from the contact area. The tread edges then provide biting surfaces for acceleration and controlled operation on wet or winter-affected roads.

Position and Function Within the Vehicle

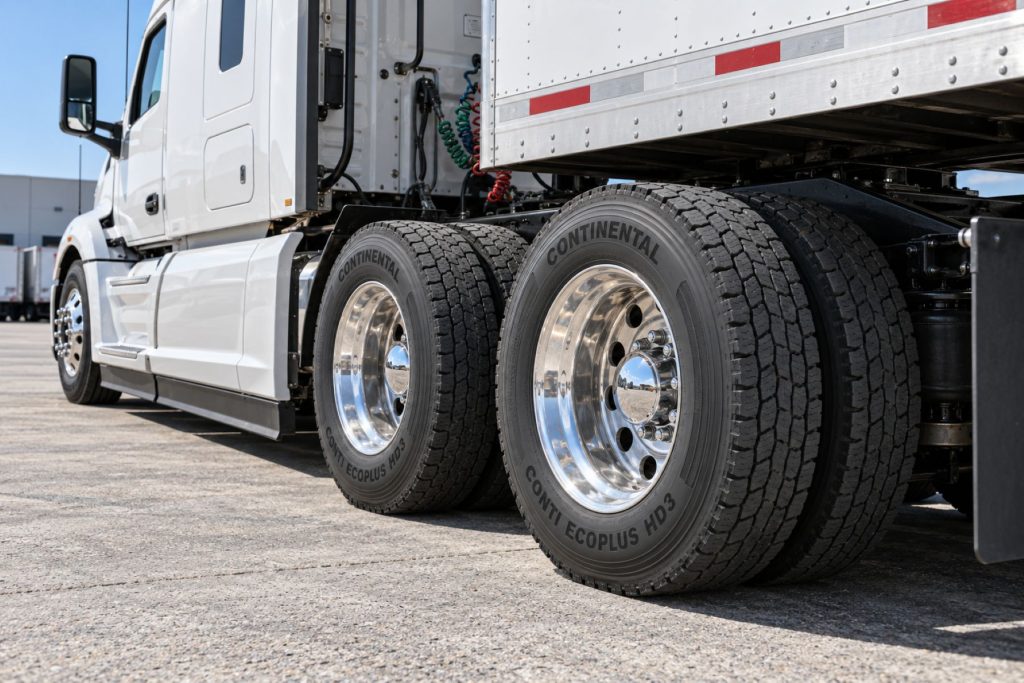

The Conti EcoPlus HD3 is installed on a truck or tractor’s powered rear axle or tandem drive-axle group. Its primary function is to transfer engine torque to the road while supporting the assigned axle load.

Drive tires must also provide traction during acceleration, help maintain directional stability, and withstand braking forces. They operate under substantial torque and are particularly sensitive to axle alignment, tire-pressure differences, and mechanical conditions within the drivetrain and suspension.

Common Specifications

Tire Category: Commercial truck drive tire
Service Application: Long-distance and regional highway operation
Construction: Radial, tubeless
Tread Pattern: Open shoulder
Common Rim Diameter: 22.5 inches
Documented Sizes: 315/45R22.5, 295/55R22.5, 295/60R22.5, 315/60R22.5, 315/70R22.5, 295/80R22.5, and 315/80R22.5
Documented Load Indexes: Application-specific, including ratings from 147/145 through 156/150
Documented Speed Symbols: K, L, or M depending on size and service description
Weather Markings: M+S and 3PMSF
Regroovable: Yes, where the casing condition and local regulations permit
Retreadable: Yes, subject to professional casing inspection

Exact dimensions, approved rim widths, inflation pressures, load capacities, speed ratings, and availability must be confirmed for the individual tire size and operating market.

Size, Load Range, and Speed Rating

The Conti EcoPlus HD3 was offered in multiple low-profile and standard-profile 22.5-inch sizes for long-distance tractors and trucks. Documented sizes range from 295-section-width tires through 315-section-width tires.

Load index, ply rating, maximum load, required inflation pressure, and speed symbol vary by size. Similar-looking tires may have different service descriptions and must not be treated as interchangeable.

The replacement tire must meet the vehicle manufacturer’s requirements for size, load capacity, speed capability, rim width, axle position, clearance, and dual-spacing dimensions.

Intended Axle Position and Service

The Conti EcoPlus HD3 is intended for drive-axle service rather than steer-axle or free-rolling trailer positions. Its tread arrangement is designed to transmit torque and provide traction from a powered axle.

Its primary operating environment is long-distance paved-road transportation. Regional highway use may also be appropriate when the route, load, speed, turning frequency, road surface, and tire specifications match the application.

It is not intended to replace a dedicated severe-service or mixed-service tire in applications involving frequent construction-site operation, sharp rock, deep mud, substantial off-road travel, or repeated high-scrub maneuvering.

Tread Design and Traction

The open-shoulder design provides channels that help evacuate water and create additional tread edges. The pattern is intended to provide dependable drive traction without the rolling-resistance penalty associated with more aggressive off-road tread designs.

Wide blocks help stabilize the footprint and reduce unnecessary tread deformation. Limiting this movement can support more consistent wear and reduce energy loss as the tread enters and leaves the road-contact area.

The M+S and 3PMSF markings identify the tire’s suitability for specified mud, snow, and severe-snow performance standards. These markings do not eliminate the need for careful driving or compliance with regional chain and winter-equipment laws.

Casing and Sidewall Construction

Continental developed the Conti EcoPlus HD3 around its ContiLifeCycle casing approach. The casing is intended to provide a stable foundation for the original tread and potential regroove and retread service.

An Air-Keep inner liner helps retain inflation pressure, while a triangular belt structure supports tread stability. Steel-cord bead-area reinforcement helps protect the casing near the wheel flange and mounting area.

Casing durability still depends on correct inflation, loading, mounting, alignment, wheel condition, and operating practices. Impact damage, chronic underinflation, excessive heat, or improper repairs can make a casing unsuitable for continued use or retreading.

Inflation Pressure and Load Management

Inflation pressure should be established from the actual axle load, tire size, tire manufacturer’s load-and-inflation information, wheel rating, and vehicle manufacturer’s requirements.

Underinflation increases casing flex and heat generation. It can reduce fuel efficiency, damage the inner liner and sidewall, cause irregular wear, and shorten casing life.

Overinflation can reduce ride quality, alter the footprint, increase sensitivity to impact damage, and contribute to center wear. Tires in a dual assembly should be matched for size, inflation pressure, and overall diameter so that both tires share the load correctly.

Rolling Resistance and Fuel Efficiency

The Conti EcoPlus HD3 was developed as a fuel-efficient highway drive tire. Its cap-and-base compound, stable tread blocks, casing construction, and bead-area design work together to reduce deformation and energy loss.

Actual fuel savings depend on the complete vehicle and operation. Inflation maintenance, axle alignment, vehicle speed, aerodynamic drag, load, terrain, temperature, traffic, and driver behavior can have a greater effect than the tire model alone.

Fleet fuel analysis should compare similar vehicles, routes, loads, seasons, and tread depths. New tires naturally have deeper tread and may not produce the same rolling resistance as partially worn tires.

Weather and Terrain Performance

The tire is designed primarily for paved long-distance routes in dry, wet, and winter-affected conditions. Its open shoulders and numerous tread edges support water evacuation and traction when roads are slippery.

The tire carries M+S and 3PMSF markings, but traction remains dependent on tread depth, loading, inflation pressure, temperature, vehicle condition, and driver operation.

Repeated operation on sharp rock, demolition debris, deep mud, construction sites, and highly abrasive surfaces can damage the casing or accelerate wear. A vocational or severe-service tire is generally more appropriate for those conditions.

Mounting and Installation

Commercial truck tires should be mounted and inflated by trained personnel using approved equipment and safety procedures. The selected tire must match the wheel diameter, approved rim width, load rating, and intended axle position.

Before installation, inspect the wheel, valve, casing, beads, and mounting surfaces. Damaged, corroded, bent, cracked, or incorrectly sized wheels must not be used.

Dual tires should be matched for overall diameter and circumference according to the tire manufacturer’s limits. Mismatched tires can force one casing to carry excessive load and can create drivetrain stress.

Vehicle Compatibility

The Conti EcoPlus HD3 may fit highway tractors and commercial trucks using an approved 22.5-inch drive-tire size. Compatibility is determined by the exact tire size and service description rather than by the vehicle name alone.

Selection depends on the vehicle certification label, drive-axle rating, wheel size, rim width, available clearance, dual spacing, governed speed, gearing, expected load, route, and operating market.

Because the Conti EcoPlus HD3 is primarily a global-market designation, operators in North America should verify local availability and determine whether a market-specific Continental drive tire is the appropriate alternative.

Tire and Wheel Compatibility

The tire must be installed on a wheel approved for its nominal diameter, section width, rim-width range, inflation pressure, and load capacity. Wheel offset and dual spacing must provide adequate clearance between the tires, suspension, frame, brake components, and body equipment.

Never combine incompatible tire and wheel sizes. The tire’s load capacity does not increase the wheel, axle, suspension, or vehicle rating.

Valve hardware, extensions, pressure sensors, and balancing equipment must be compatible with the wheel and the fleet’s inspection procedures.

Common Applications

Long-distance highway tractors
International freight operations
Regional highway tractors
Line-haul truck fleets
Dry-van operations
Refrigerated freight operations
Tanker operations
Container transportation
Highway doubles combinations
Commercial trucks requiring a 22.5-inch drive tire

Advantages

Designed for low rolling resistance
High-mileage cap compound
Open shoulders provide drive traction
Wide tread blocks help stabilize the footprint
M+S and 3PMSF winter markings
Multiple documented sizes and service descriptions
Regroovable tread design
Retreadable premium casing
Inner-liner technology supports inflation retention
Suitable for fuel-conscious highway fleets

Limitations or Considerations

Original product availability varies by country and distributor
The HD3 has been succeeded in current global markets by the HD3+
Not the same product as the North American Conti HDL 3 EP
Not intended for severe off-road or construction-site service
Exact specifications vary significantly by size
Requires correct inflation to deliver fuel and casing-life benefits
Drive-axle misalignment can cause rapid irregular wear
Dual assemblies require closely matched tires
Fuel savings depend on complete vehicle and operating conditions
Retreadability depends on casing condition and professional inspection

Driver and Operator Experience

A properly maintained set of Conti EcoPlus HD3 drive tires should provide stable highway operation, predictable acceleration traction, and controlled performance under normal long-distance loads.

Drivers should report new vibration, pulling, wheel hop, loss of traction, air-pressure warnings, visible damage, or unusual noise. These conditions may indicate a tire, wheel, suspension, axle, or driveline problem.

Operators should also avoid wheelspin, harsh curb contact, and operation with underinflated dual tires. These conditions generate heat and stress that can shorten tread and casing life.

Inspection and Wear Points

Remaining tread depth
Drive-lug wear pattern
Shoulder wear
Heel-and-toe wear
Center and edge wear
Cuts, cracks, punctures, and embedded objects
Sidewall abrasion or bulges
Bead-area damage
Exposed cords or belt material
Evidence of separation
Valve and valve-cap condition
Cold inflation pressure
Dual-tire spacing
Matching diameter within dual assemblies
Wheel damage or loose fasteners

Tire Rotation and Position Management

Drive-tire position management should be based on measured wear rather than a single fixed mileage interval. Differences between forward and rear tandem axles, left and right sides, and inner and outer dual positions can create uneven wear.

A fleet may reposition tires within the drive-axle group when permitted by its maintenance policy and the tire manufacturer’s guidance. Tires should remain matched for size, construction, tread design, circumference, and remaining tread depth.

Abnormal wear should be diagnosed before tires are moved. Rotation alone will not correct axle misalignment, worn suspension components, inflation problems, or mismatched duals.

Balancing, Alignment, and Runout

Wheel balance, tire uniformity, radial runout, lateral runout, axle alignment, and wheel-end condition can affect ride quality and tread life. A vibration should not automatically be blamed on the tire without inspecting the complete wheel-end and drivetrain system.

Drive axles should be square with the vehicle centerline and aligned correctly with one another. Tandem misalignment can force the tires to scrub continuously, increasing rolling resistance and producing diagonal or rapid shoulder wear.

Runout should be checked after confirming proper bead seating, wheel condition, inflation pressure, mounting, and fastener torque. Bent wheels, damaged hubs, worn bearings, and out-of-round brake components can contribute to vibration.

Retreadability and Casing Life

The Conti EcoPlus HD3 uses a casing designed for regrooving and retreading when it remains structurally suitable. These additional service lives can reduce the fleet’s tire cost per mile and the number of casings removed from service.

Regrooving must be completed by trained personnel using the tire manufacturer’s procedures and remaining-under-tread limits. Excessive cutting can expose or damage structural material.

Retread eligibility is determined through professional inspection. Chronic underinflation, overloading, excessive heat, impact breaks, improper repairs, exposed cords, bead damage, or separation may disqualify the casing.

Maintenance and Ownership Notes

Check cold inflation pressures regularly and investigate any tire requiring repeated air additions. Inspect both tires in each dual assembly, because the inner tire can be difficult to see during a basic walkaround.

Measure tread depth at consistent locations and record wear by vehicle and wheel position. Fleet records can reveal alignment, inflation, route, and maintenance problems before they damage additional tires.

Maintain drive-axle alignment, suspension bushings, torque rods, wheel bearings, shock absorbers, brakes, and driveline components. Mechanical defects can shorten tire life even when the tire itself is correctly specified.

Common Tire Problems

Rapid shoulder wear: Incorrect inflation, axle misalignment, worn suspension components, excessive turning scrub, or overloading can accelerate shoulder wear.
Center wear: Excessive inflation for the actual load can concentrate wear near the center of the tread.
Heel-and-toe wear: Drive torque, braking, underinflation, and certain operating patterns can cause uneven wear across individual tread blocks.
Diagonal wear: Tandem misalignment, loose wheel bearings, wheel runout, or worn suspension components may create diagonal wear patterns.
Dual mismatch: Differences in diameter, tread depth, pressure, or load can cause one tire to carry more weight and wear faster.
Heat damage: Underinflation, overloading, excessive speed, dragging brakes, or bearing problems can create damaging heat.
Punctures and casing damage: Road debris, curb impacts, potholes, improper repairs, and operation while flat can damage the tread, belts, sidewalls, or inner liner.
Poor traction: Low tread depth, incorrect inflation, contamination, ice, excessive throttle, or an unsuitable tire for the operating conditions can reduce traction.

Safety and Service Precautions

Commercial tire service involves stored air pressure and heavy components. Mounting, demounting, inflation, regrooving, repair, and wheel service should be performed by trained personnel using approved procedures and protective equipment.

Do not inflate a visibly damaged tire-and-wheel assembly. Tires suspected of having operated while severely underinflated or overloaded should be removed and inspected internally before returning to service.

Never exceed the lowest load or pressure rating among the tire, wheel, valve, axle, suspension, and vehicle. Replacement tires must maintain adequate clearance and must not interfere with adjacent tires or vehicle components.

Identification Information

Identification information is molded into the tire sidewall. Record the complete product name and service description rather than relying on tread appearance alone.

Continental brand name
Conti EcoPlus HD3 model designation
Complete tire size
Load index
Speed symbol
Ply rating or load-range information
Tubeless designation
M+S marking
3PMSF symbol
Manufacturing date code
Regroovable marking
Market-specific approval markings
Maximum load and pressure information

Buying Considerations

Confirm the exact tire size and service description
Verify that the tire is approved for drive-axle use
Check the required load index and speed symbol
Confirm approved wheel diameter and rim width
Verify dual-spacing and vehicle-clearance requirements
Compare highway and regional service needs
Review winter-performance requirements
Confirm current regional availability
Determine whether the offered tire is the original HD3 or newer HD3+
Do not confuse the HD3 with the North American HDL 3 EP
Review regrooving and retreading plans
Compare total cost per mile rather than purchase price alone
Inspect manufacturing date and storage condition when buying older inventory

Variants and Configurations

315/45R22.5
295/55R22.5
295/60R22.5
315/60R22.5
315/70R22.5
295/80R22.5
315/80R22.5
Different load-index combinations
Different speed symbols
Different ply ratings
Market-specific approvals and labeling

Not every configuration is available in every country. The current successor product, Conti EcoPlus HD3+, may have a different size range, tread design, labeling, and performance specification.

Comparison to Similar Equipment

Compared with the Continental Conti HDL 3 EP Drive Tire, the Conti EcoPlus HD3 is primarily a global-market long-distance product. The HDL 3 EP is a distinct North American drive tire and should not be treated as an alternate name for the HD3.

Compared with the Michelin X Line Energy D+ Drive Tire, both products target fuel-conscious long-distance fleets. Their tread designs, sizes, casing programs, regional availability, and fleet-support networks differ.

Compared with the Bridgestone M713 Ecopia Drive Tire, the Conti EcoPlus HD3 provides another low-rolling-resistance drive-tire option with a different compound, casing, and traction design.

Compared with the Goodyear Fuel Max LHD 2 Drive Tire, both emphasize highway fuel efficiency and casing value. Final selection should consider available sizes, measured fleet performance, weather, retread support, and regional supply.

Best Fit For

Long-distance highway fleets
Regional operations dominated by paved roads
Fleets prioritizing fuel efficiency
Operators seeking an open-shoulder drive tire
Vehicles requiring M+S and 3PMSF drive traction
Fleets using regrooving and retreading programs
International operators with access to Continental commercial-tire support
Tractors using an approved 22.5-inch tire size

Related Vehicle and Trailer Types

Related Truck and Trailer Models

Related Tire Types

Related Tire Products

Related Equipment Systems

Related Guides

Regulatory and Compliance Notes

The tire must comply with the regulations and approval requirements of the country where it is installed and operated. Required markings, minimum tread depth, load capacity, speed rating, winter-equipment rules, regrooving, and repair standards vary by jurisdiction.

The 3PMSF marking identifies compliance with a defined severe-snow traction test. It does not replace tire chains where chains are legally required.

The tire’s rated capacity does not increase the truck’s certified axle or gross vehicle weight rating. The complete vehicle remains limited by its lowest-rated component and applicable road-weight laws.

Real World Operating Notes

The best fuel and mileage results require disciplined pressure maintenance and axle alignment. A low-rolling-resistance tire cannot compensate for chronic underinflation, dragging brakes, misaligned tandems, or aggressive driving.

Drive-tire wear should be evaluated across all wheel positions. A pattern repeated on the same axle or side of multiple vehicles often indicates an application or maintenance issue rather than a defective tire.

Fleets considering remaining stocks of the original HD3 should verify manufacturing dates, storage conditions, casing condition, local support, and whether a newer Continental product offers better availability for the intended market.

Frequently Asked Questions

What is the Continental Conti EcoPlus HD3?

It is a commercial drive-axle radial tire developed for long-distance highway service, fuel efficiency, traction, mileage, and retreadable casing value.

Is the Conti EcoPlus HD3 a steer or drive tire?

It is a drive-axle tire. It should not be substituted for a dedicated steer or trailer tire without specific approval.

Is the Conti EcoPlus HD3 the same as the Conti HDL 3 EP?

No. The Conti EcoPlus HD3 is primarily a global-market product, while the Conti HDL 3 EP is a distinct North American drive tire.

What replaced the original Conti EcoPlus HD3?

The Conti EcoPlus HD3+ is the newer product in Continental’s global long-distance drive-tire family. Specifications and availability differ from the original HD3.

Does the tire carry the 3PMSF marking?

Yes. Documented original Conti EcoPlus HD3 configurations carry M+S and 3PMSF winter-performance markings.

Can the Conti EcoPlus HD3 be regrooved?

Yes, where allowed. Regrooving should be performed by trained personnel using Continental’s specifications and only when sufficient undertread remains.

Can its casing be retreaded?

The casing is designed for retreadability, but each casing must pass a professional inspection before it is accepted for retreading.

What causes irregular wear on drive tires?

Common causes include incorrect inflation, tandem misalignment, mismatched dual tires, worn suspension components, wheel-end problems, overloading, and repeated high-torque operation.

How is the correct inflation pressure determined?

Use actual scale weights together with Continental’s load-and-inflation information and the vehicle and wheel manufacturers’ limits. The sidewall maximum is not automatically the correct operating pressure for every load.

How can the correct replacement tire be identified?

Record the complete model name, tire size, load index, speed symbol, wheel requirements, axle position, and market-specific approval markings from the existing tire and vehicle documentation.

Availability and Where to Find

The original Continental Conti EcoPlus HD3 may be available through Continental commercial-tire dealers, truck-tire distributors, fleet suppliers, retread networks, and sellers with remaining regional inventory.

Availability depends on the country, tire size, service description, production date, and current Continental product lineup. Buyers may be directed to the newer Conti EcoPlus HD3+ or a market-specific Continental drive tire.

Before ordering, confirm the complete sidewall designation and make sure the tire is not being confused with the North American Conti HDL 3 EP. Current product and dealer information is available through the Continental truck-tire website.

Support Trucking Families

Truck Equipment Atlas supports the mission of Grey Cross, a nonprofit dedicated to helping families of truck drivers who lose their lives while on the road. As the site grows, part of its mission is to bring awareness and support to these families.

Podcast or Video Section

Learn More Through Audio and Video

Truck Equipment Atlas will continue expanding with podcast episodes, interviews, and equipment breakdowns to help drivers and fleets better understand trucks and equipment.

Follow the Growth of Truck Equipment Atlas

Truck Equipment Atlas continues to expand with new truck profiles, trailer coverage, diesel engine pages, equipment system resources, manufacturer information, and educational guides.

Visit our Site Updates page to explore recent additions, project milestones, and upcoming resources as we continue building one of the industry’s growing commercial trucking equipment reference libraries.

View the Latest Site Updates: Truck Equipment Atlas Site Updates
