Accuride Accu-Lite Aluminum Wheel

Quick Facts

Manufacturer: Accuride Corporation
Product Family: Accu-Lite
Product Type: Lightweight commercial aluminum wheel
Wheel Category: Highway truck and trailer wheel
Material: Proprietary aluminum alloy
Construction: One-piece aluminum wheel
Current Wheel Sizes: 22.5 × 8.25, 22.5 × 14.00, and 24.5 × 8.25 inches
Current Published Weight Range: Approximately 38 to 51 pounds
Current Published Load Range: 7,400 to 12,800 pounds per wheel
Maximum Published Inflation: 131 psi for current listed configurations
Mounting Type: Hub-piloted

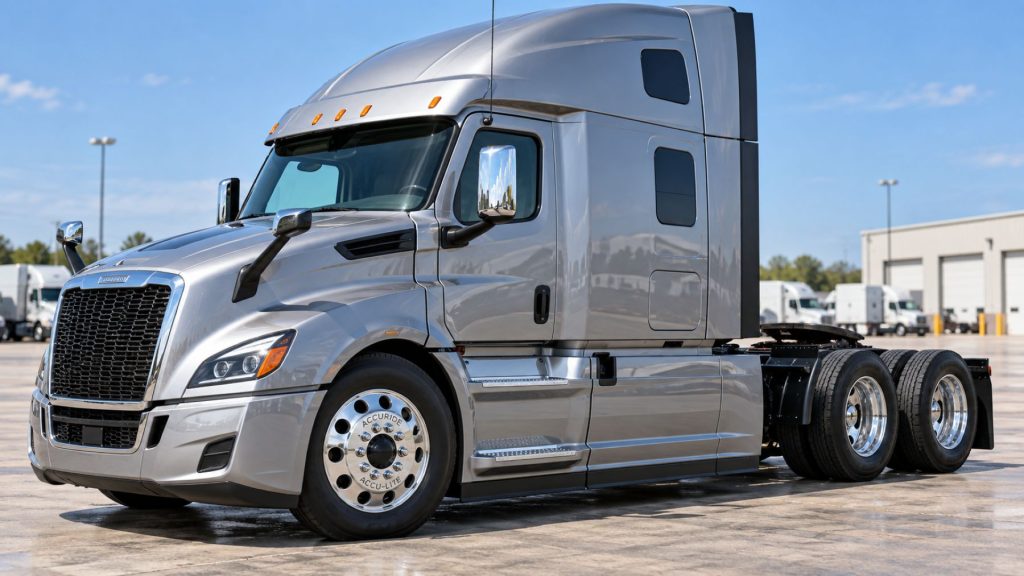

Primary Applications: Highway tractors, commercial trucks, and trailers
Production Status: Current product family
Primary Benefit: Reduces wheel weight while retaining commercial-vehicle load capacity

Overview

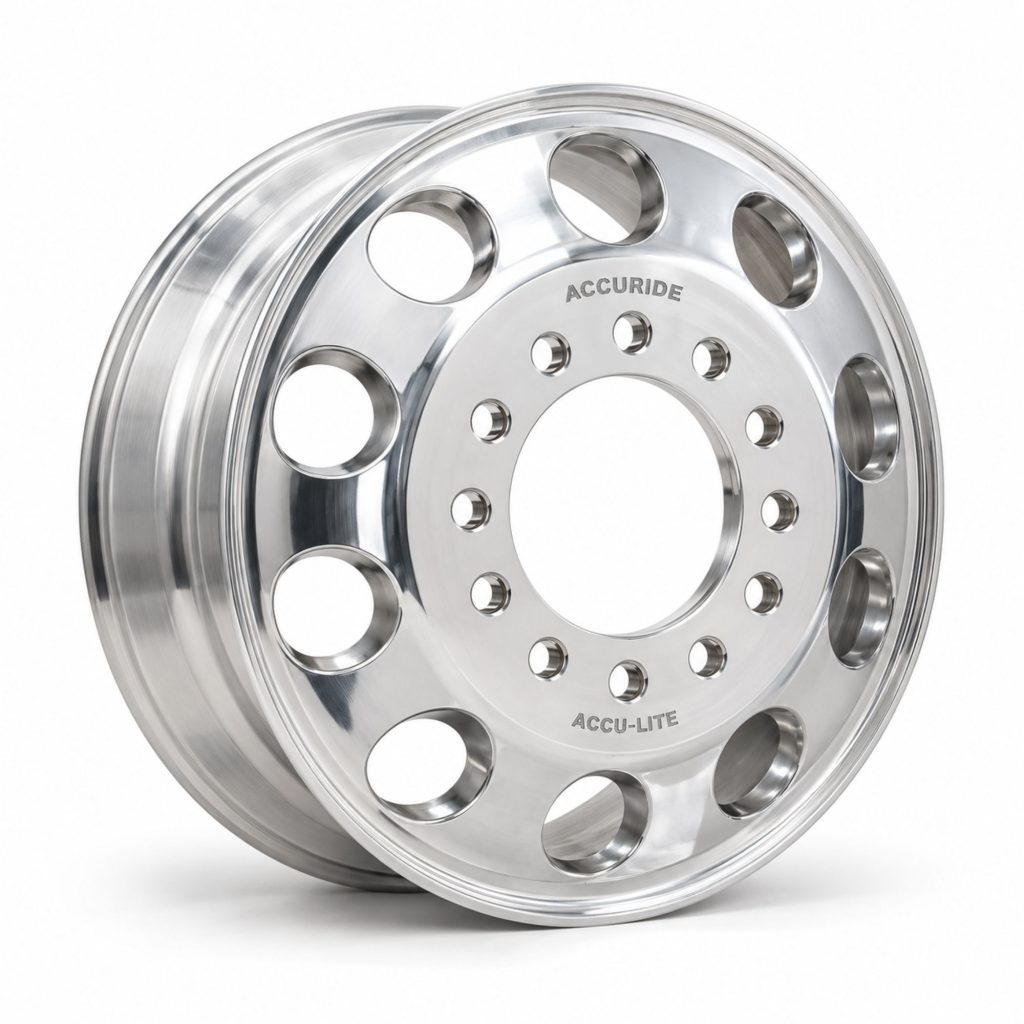

The Accuride Accu-Lite Aluminum Wheel is a lightweight commercial-wheel family developed for highway trucks and trailers. Accuride uses a proprietary aluminum alloy with an enhanced grain structure to reduce the amount of material required while preserving the wheel strength needed for its rated application.

The current Accu-Lite aluminum family includes standard 22.5- and 24.5-inch truck wheels as well as 22.5 × 14.00-inch DupleX wide-base wheels. These configurations support conventional dual-tire installations and wide-base single-tire applications when matched with the correct tire, hub, offset, axle, and vehicle requirements.

Accu-Lite identifies a family of wheels rather than one universal wheel. Each part number has its own dimensions, weight, offset or outset, load rating, finish options, tire compatibility, and intended mounting arrangement.

Key Characteristics

Lightweight commercial aluminum-wheel family
Proprietary aluminum alloy with an enhanced grain structure
Designed to reduce weight without sacrificing rated performance
Current 22.5- and 24.5-inch configurations
Standard-width and wide-base DupleX options
Hub-piloted mounting
Ten-bolt-hole configurations
Highway truck and trailer applications
Multiple polish and protective-finish options
Maximum published inflation of 131 psi for current configurations
Compatible with conventional and wide-base tires when properly specified
Part-number-specific dimensions and capacities

Major Components

Aluminum wheel disc
Rim base
Inboard and outboard rim flanges
Tire bead seats
Drop center
Hub mounting face
Center bore
Bolt holes
Hand holes or ventilation openings
Valve-stem opening
Valve stem and sealing components
Wheel-nut contact surfaces
Identification and rating markings
Polished or treated exterior surfaces

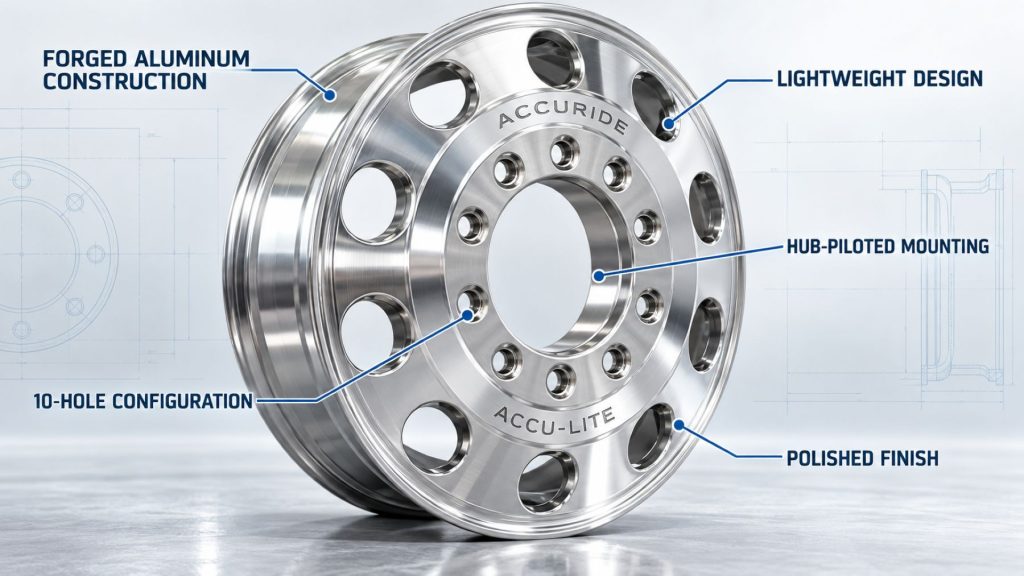

Wheel Type and Design

The Accu-Lite family uses one-piece aluminum construction for tubeless commercial tires. Accuride’s lightweight alloy employs an enhanced grain structure that allows less material to be used while maintaining the wheel’s required strength and load capacity.

Standard-width Accu-Lite wheels are designed for conventional commercial tire applications and may be installed as steer-position single wheels or as dual-mounted drive and trailer wheels when approved. The 22.5 × 14.00 DupleX configurations are designed for wide-base single tires that replace a conventional dual-wheel assembly.

Current Accu-Lite products use hub-piloted mounting with ten bolt holes on a 285.75-millimeter bolt circle and a nominal 220-millimeter center bore. Exact dimensions must always be confirmed using the selected part number.

How the Wheel Supports the Vehicle

The wheel connects the tire to the vehicle’s hub and axle. Vehicle and cargo weight passes through the axle, hub, wheel disc, rim, and inflated tire before reaching the road.

Acceleration and braking torque also pass through the wheel-to-hub connection. Proper wheel-nut clamping force keeps the mounting face firmly seated against the hub so these forces can be transferred without unwanted movement.

The rim supports the tire beads and contains the inflation pressure. Its diameter, width, contour, and load rating must match the approved tire and operating application.

Position and Function Within the Vehicle

Depending on the selected part number, an Accu-Lite aluminum wheel may be used at a steer, drive, or trailer axle position. Standard-width wheels may support single or dual installations, while DupleX wide-base wheels support approved wide-single tire applications.

The wheel performs several functions:

Supports the tire and its inflation pressure
Transfers vehicle weight to the tire contact patch
Transfers acceleration and braking forces
Maintains the tire beads in their correct operating position
Provides clearance around hubs, drums, rotors, and brake calipers
Helps transfer heat away from the wheel end
Establishes axle track width and dual spacing
Provides service access through its hand holes
Reduces vehicle tare weight compared with heavier wheel alternatives

Common Specifications

Part Number 43644: 22.5 × 8.25 inches, ten bolt holes, 285.75-millimeter bolt circle, 220-millimeter center bore, 6.59-inch offset, approximately 38 pounds, 7,400-pound maximum load, and 131-psi maximum inflation
Part Number 43142: 22.5 × 14.00 inches, ten bolt holes, 285.75-millimeter bolt circle, 220-millimeter center bore, 2.00-inch outset, approximately 51 pounds, 12,800-pound maximum load, and 131-psi maximum inflation
Part Number 43140: 22.5 × 14.00 inches, ten bolt holes, 285.75-millimeter bolt circle, 220-millimeter center bore, 0.50-inch outset, approximately 51 pounds, 12,800-pound maximum load, and 131-psi maximum inflation
Part Number 42362: 24.5 × 8.25 inches, ten bolt holes, 285.75-millimeter bolt circle, 220-millimeter center bore, 6.59-inch offset, approximately 50 pounds, 7,400-pound maximum load, and 131-psi maximum inflation
Mounting: Hub-piloted
Wheel Type: Tubeless commercial aluminum wheel
Finish Options: Configuration-dependent Standard Polish, Extra Polish, Accu-Shield, Accu-Armor, Accu-Flange, ProShield Black, or other currently approved treatments

Load Ratings and Operating Capacity

Current standard-width Accu-Lite configurations carry a published maximum load of 7,400 pounds per wheel. Current 22.5 × 14.00 DupleX wide-base configurations carry a published maximum load of 12,800 pounds per wheel. All four current configurations listed by Accuride have a published maximum inflation pressure of 131 psi.

The wheel must never be loaded beyond the rating stamped into it or listed for its exact part number. The safe operating capacity of the completed assembly is controlled by its lowest-rated component, which may be the wheel, tire, valve, hub, axle, suspension, brake system, or vehicle.

Installing a higher-capacity wheel does not increase the vehicle’s certified gross axle weight rating, gross vehicle weight rating, or legal road-weight allowance.

Wheel Size, Offset, and Dual Spacing

The wheel diameter and width must match an approved commercial tire size. Offset or outset determines the relationship between the rim centerline and the hub mounting face and influences track width, bearing loading, brake clearance, suspension clearance, and tire position.

Standard 8.25-inch-wide wheels used in a dual assembly must provide sufficient space between the inflated and loaded tires. Incorrect offset, mismatched tires, underinflation, or overloading can allow dual sidewalls to contact each other and generate damaging heat.

The 14.00-inch DupleX wheels use different outset configurations to match particular wide-base tire and axle installations. The 43140 and 43142 should not be treated as interchangeable merely because their diameter, width, weight, and load ratings are similar.

Hub, Fastener, and Mounting System

Current Accu-Lite aluminum configurations use hub-piloted mounting. The hub pilots center the wheel, while two-piece flange nuts provide the clamping force that secures it against the hub.

The mounting faces must be clean, flat, and free of heavy corrosion, debris, excess paint, damaged material, and foreign objects. Wheel nuts must match the vehicle’s studs and be tightened in the required sequence to the specified torque using calibrated equipment.

Aluminum and steel wheels can have different disc thicknesses. When converting wheel material or combining aluminum and steel wheels in an approved dual assembly, stud length, thread engagement, nut design, and mounting procedures must be verified.

Tire and Valve Compatibility

The tire must be approved for the wheel diameter and rim width. Its required load and inflation must remain within the ratings of the wheel, valve, axle, and complete vehicle.

Standard-width Accu-Lite wheels use commercial tires approved for an 8.25-inch rim. DupleX configurations require compatible 14.00-inch wide-base tires and an approved axle and offset arrangement.

Valve selection and orientation depend on the wheel part number and mounting position. Accuride identifies the DV545D as the recommended installed valve for part number 43644. Other wheel configurations may require different valves, grommets, extensions, or tire-pressure system hardware.

Brake and Wheel-End Compatibility

The selected wheel must clear the vehicle’s brake drum or air-disc-brake rotor and caliper. Disc contour, offset, hand-hole arrangement, and mounting-face position can affect available clearance.

The wheel must also match the hub, studs, flange nuts, axle rating, bearing system, and tire-pressure equipment. No brake, hub, suspension, or steering component should contact the wheel during normal operation, steering movement, suspension travel, or thermal expansion.

Aluminum transfers heat efficiently, which can help dissipate wheel-end heat. It cannot correct dragging brakes, improper bearing adjustment, tire underinflation, overloading, or excessive brake temperatures.

Installation and Mounting

Accu-Lite wheel installation should be completed by trained commercial tire and wheel personnel. Before mounting, technicians should verify the wheel part number, dimensions, load rating, inflation rating, offset, tire size, valve equipment, mounting hardware, and brake clearance.

Important installation practices include:

Inspecting the wheel for cracks, distortion, wear, gouges, and damaged mounting surfaces
Confirming that the tire is approved for the rim size
Using approved tire-mounting lubricant
Keeping the hub and wheel mounting faces clean
Using the correct wheel studs and two-piece flange nuts
Confirming adequate thread engagement
Tightening the nuts in the specified sequence
Applying the required torque with calibrated equipment
Checking valve orientation and accessibility
Verifying dual-tire spacing where applicable
Checking brake, suspension, steering, and body clearance
Following fleet procedures for post-installation inspection

Vehicle, Axle, and Wheel-End Compatibility

Compatibility depends on the complete Accuride part number and the vehicle’s original equipment requirements. The selection process must account for:

Vehicle manufacturer, model, and model year
Steer, drive, or trailer axle position
Gross axle weight rating
Hub-piloted mounting design
Bolt pattern and center-bore dimensions
Wheel-stud length and thread specification
Two-piece flange-nut requirements
Wheel diameter and width
Offset or outset
Single, dual, or wide-base installation
Tire size, load range, and inflation pressure
Brake-drum or air-disc-brake clearance
Valve and tire-pressure system
Suspension, steering, frame, and body clearance

Common Applications

Long-haul highway tractors
Regional-haul tractors
Commercial straight trucks
Dry van trailers
Refrigerated trailers
Flatbed trailers
Tank trailers
Automotive transport trailers
Wide-base single-tire applications
Weight-sensitive truck and trailer configurations
Fleets seeking reduced tare weight
Vehicles using hub-piloted wheel systems

Advantages

Lower weight than many conventional wheel alternatives
Potential payload improvement compared with heavier wheels
Reduced unsprung and rotating mass
Standard-width and wide-base configurations
High load capacity relative to wheel weight
Natural aluminum resistance to red rust
Efficient transfer of wheel-end heat
Multiple appearance and protective-finish options
Hub-piloted mounting for modern commercial vehicles
Supports fuel-efficiency and vehicle-weight-reduction strategies
Current published product specifications
Backed by Accuride’s commercial wheel and wheel-end support network

Limitations or Considerations

Accu-Lite includes multiple wheel configurations rather than one universal model
Part numbers with different offsets or outsets are not automatically interchangeable
Initial cost may be higher than that of a conventional steel wheel
Incorrect tire tools can gouge or damage aluminum surfaces
Improper fasteners or torque can cause wheel movement and mounting damage
Appearance maintenance depends on the selected finish
Harsh or incompatible cleaners can damage polished or treated surfaces
Wide-base conversions require complete axle, hub, tire, and offset verification
Rim-flange wear must be measured and evaluated
Cracked or distorted aluminum wheels must be removed from service
Wheel-weight reduction varies with the products being compared
The wheel does not increase the vehicle’s certified weight ratings

Driver and Operator Experience

Drivers may notice Accu-Lite wheels through their polished appearance and the reduced weight they contribute to the vehicle. The operational effect of the weight reduction depends on the number of wheels installed, the wheels being replaced, the truck’s loading, and its duty cycle.

A properly installed wheel should not create noticeable vibration or noise. Steering shake, repeated air loss, unusual wheel-end heat, visible wheel movement, damaged valve equipment, or abnormal tire wear should be reported and inspected promptly.

Inspection and Wear Points

Routine inspections should include:

Inboard and outboard rim flanges
Tire bead seats
Bolt holes
Center bore and hub-pilot contact areas
Mounting face
Hand holes and ventilation openings
Valve-stem hole and valve hardware
Disc-to-rim transition areas
Wheel-nut contact surfaces
Signs of cracking, impact damage, gouging, or distortion
Evidence of wheel movement or loose fasteners
Rim-flange wear
Air leakage around the bead or valve
Evidence of excessive brake or bearing heat

A wheel involved in a collision, severe pothole impact, curb strike, tire failure, loose-wheel event, fire, or wheel-end overheating should receive a detailed inspection before reuse.

Cleaning and Finish Care

Cleaning requirements depend on the selected Accuride finish. Standard Polish and Extra Polish wheels require routine cleaning and may need polishing to maintain maximum brightness. Accu-Shield provides a protected polished appearance intended to simplify regular care, while Accu-Armor is designed for harsher operating environments.

Allow hot wheels to cool before washing. Remove loose debris with water and use cleaning products and soft tools approved for the wheel’s finish. Strong acids, aggressive alkaline chemicals, abrasive pads, and unsuitable brushes may stain, scratch, or damage the surface.

Finish care does not replace structural inspection. Dirt, polish, paint, or other materials should never be used to conceal cracks, corrosion, mounting damage, or excessive rim-flange wear.

Balancing, Alignment, and Runout

Correct tire-and-wheel balance helps reduce vibration, tire wear, and stress on wheel-end components. Before balance weight is added, technicians should verify proper tire seating, clean mounting faces, correct hub piloting, and acceptable tire and wheel runout.

Persistent vibration can result from tire nonuniformity, improper mounting, wheel damage, hub runout, brake-drum or rotor imbalance, bearing problems, worn suspension components, steering issues, or driveline vibration.

Axle alignment and steering geometry also affect tire wear. Irregular wear should prompt inspection of tire pressure, alignment, bearing condition, suspension components, wheel runout, and vehicle loading.

Wheel Service Life and Refinishing

Accu-Lite wheel service life depends on vehicle loading, inflation pressure, road conditions, impact exposure, brake temperature, mounting practices, cleaning chemicals, and inspection quality. No single replacement interval applies to every wheel.

Standard and Extra Polish surfaces may be cosmetically polished using approved procedures. Protective finishes require finish-specific care and should not be refinished using procedures intended for untreated aluminum.

Structural repair must not be improvised. Welding, heating, bending, drilling, machining, or filling a damaged wheel can alter its strength and conceal defects. Wheels with cracks, distortion, excessive wear, elongated bolt holes, or damaged mounting surfaces should be removed from service.

Maintenance and Ownership Notes

Maintain tire inflation according to load and tire requirements
Inspect the wheel whenever the tire is removed
Keep the hub and wheel mounting surfaces clean
Use correct two-piece flange nuts and service tools
Follow the required tightening sequence and torque
Inspect bolt holes for movement or elongation
Measure rim-flange wear when indicated
Check valve stems and pressure-system hardware for leaks
Remove road salt and corrosive contamination regularly
Use cleaners approved for the selected finish
Investigate vibration and repeated pressure loss
Record complete wheel part and finish numbers
Replace damaged or incorrect mounting hardware
Follow Accuride’s wheel safety and service instructions

Common Wheel Problems

Air leakage: Valve damage, tire-bead problems, bead-seat contamination, incorrect installation, impact damage, or a cracked wheel may cause pressure loss.
Loose wheel nuts: Incorrect torque, dirty mounting faces, damaged fasteners, insufficient thread engagement, or incorrect hardware can reduce clamping force.
Elongated bolt holes: Movement caused by inadequate clamping force can damage the bolt holes and wheel mounting face.
Rim-flange wear: Tire movement against the flange can gradually remove aluminum, especially in high-load and high-scrub applications.
Cracks or distortion: Overloading, severe impacts, loose-wheel operation, excessive heat, or improper tire service can damage the wheel.
Vibration: Tire imbalance, runout, incorrect centering, hub problems, bent components, alignment issues, or suspension wear may be responsible.
Dual-tire contact: Incorrect offset, mismatched tires, underinflation, overloading, or insufficient spacing can allow the tires to touch.
Finish damage: Harsh chemicals, abrasive tools, road debris, neglected cleaning, or incorrect refinishing procedures can damage the wheel’s appearance.
Valve failure: Incorrect orientation, damaged seals, unsupported extensions, or contact with nearby components can create air leaks.

Safety and Service Precautions

Deflate the tire completely before disassembling the tire-and-wheel assembly
Use trained personnel and approved commercial tire-service equipment
Never exceed the wheel’s stamped load or inflation rating
Never use heat to loosen, straighten, or repair an aluminum wheel
Do not weld, bend, drill, machine, or otherwise alter the wheel
Use mounting hardware approved for the wheel and hub
Keep wheel and hub mating surfaces clean and flat
Follow the correct wheel-nut sequence and torque
Use an inflation restraint and remote inflation equipment when required
Remove cracked, distorted, fire-damaged, or excessively worn wheels from service
Investigate evidence of loose-wheel operation immediately
Follow Accuride, tire-manufacturer, vehicle-manufacturer, and applicable industry procedures

Identification Information

Accuride wheel identification and rating information is stamped into the wheel. Record all available markings before ordering a replacement.

Accuride manufacturer identification
Complete wheel part number
Finish or surface-treatment suffix
Wheel diameter and rim width
Maximum load rating
Maximum inflation rating
Offset or outset
Bolt-circle diameter
Center-bore diameter
Manufacturing date or production code
Applicable certification markings
Valve specification

Finish codes may be added to the base part number. Current finish designations can include Standard Polish, Extra Polish, Accu-Shield, Accu-Armor, Accu-Flange, and ProShield Black. Availability depends on the selected wheel configuration.

Buying Considerations

Confirm the complete Accuride base part number and finish code
Verify wheel diameter and rim width
Match the bolt circle and center bore
Confirm hub-piloted mounting
Verify offset or outset
Check maximum wheel load and inflation ratings
Confirm compatible tire sizes
Determine whether the installation is single, dual, or wide-base
Verify wheel-stud length and flange-nut requirements
Check brake and wheel-end clearance
Confirm valve and tire-pressure system compatibility
Select the finish for the operating environment and appearance needs
Compare actual wheel weight with the wheel being replaced
Inspect used wheels for cracks, wear, alterations, and mounting damage
Purchase through a qualified commercial-wheel supplier

Variants and Configurations

43644 22.5 × 8.25-inch standard-width wheel
42362 24.5 × 8.25-inch standard-width wheel
43140 22.5 × 14.00-inch DupleX wheel with 0.50-inch outset
43142 22.5 × 14.00-inch DupleX wheel with 2.00-inch outset
Standard Polish finish
Extra Polish finish
Accu-Shield protected finish
Accu-Armor protective treatment
Accu-Flange rim-flange protection where offered
ProShield Black finish where offered
Single-wheel mounting
Dual-wheel mounting
Wide-base single-tire mounting

Finish and configuration availability can change. The current Accuride product information for the exact base part number should be checked before ordering.

Comparison to Similar Equipment

Compared with the Alcoa Ultra ONE Aluminum Wheel, the Accu-Lite provides Accuride’s lightweight aluminum-wheel alternative. Selection depends on exact wheel weight, load rating, offset, finish, availability, warranty, and fleet standardization.

Compared with the Alcoa LvL ONE Aluminum Wheel, the Accu-Lite name identifies a lightweight wheel family rather than primarily identifying a bright finish technology.

Compared with the Alcoa Dura-Bright EVO Aluminum Wheel, an Accu-Lite wheel offers Accuride-specific polish and protective treatments. Maintenance requirements depend on whether the Accuride wheel uses Standard Polish, Extra Polish, Accu-Shield, Accu-Armor, or another available finish.

Compared with the Maxion Steel Commercial Truck Wheel, an Accu-Lite aluminum wheel is generally lighter and does not develop red rust. A steel wheel may offer a lower purchase price and different fleet-service considerations.

Compared with the Accuride Accu-Lite Steel Wheel, the aluminum version offers greater potential weight reduction and different corrosion, finish, mounting-hardware, and repair considerations.

Best Fit For

Highway fleets seeking lower wheel weight
Tractors and trailers where tare weight affects payload
Vehicles using modern hub-piloted wheel systems
Fleets operating standard 22.5-inch commercial tires
Vehicles using 24.5-inch commercial tires
Approved wide-base single-tire applications
Operators wanting multiple finish choices
Fleets standardizing around Accuride wheel-end products
Vehicles requiring a 7,400-pound standard-width wheel rating
Wide-base applications requiring up to a 12,800-pound wheel rating

Related Vehicle and Trailer Types

Related Truck and Trailer Models

Related Tire and Wheel Types

Related Tire and Wheel Products

Related Equipment Systems

Related Guides

Regulatory and Compliance Notes

The wheel, tire, valve, axle, hub, and mounting hardware must meet the load and inflation requirements of the completed vehicle. Installing an Accu-Lite wheel does not increase the vehicle’s certified gross axle weight rating, gross vehicle weight rating, or legal road-weight allowance.

Commercial tire and wheel service must follow applicable workplace-safety requirements, manufacturer instructions, fleet procedures, and industry standards. Tire inflation, wheel condition, mounting security, and fastener condition may be examined during preventive-maintenance and roadside inspections.

Replacement or conversion wheels must preserve required tire clearance, brake clearance, steering function, bearing loading, wheel-track dimensions, and vehicle stability.

Real World Operating Notes

The Accu-Lite name alone is not enough to order a replacement. The base part number and finish code are required because wheels within the family have different diameters, widths, offsets, capacities, and tire applications.

The 43644 is the lightest configuration in the current published family at approximately 38 pounds. Its 22.5 × 8.25-inch size makes it relevant to common highway tractor and trailer applications, but compatibility still depends on the vehicle’s hub, axle, brakes, tire, and mounting hardware.

The 43140 and 43142 wide-base wheels share the same published weight and load rating but use different outsets. That difference affects tire and axle position and makes proper part-number selection essential.

Fleets evaluating weight savings should compare the actual Accu-Lite part number with the actual wheel being removed. A general aluminum-versus-steel estimate may not reflect the vehicle’s true weight reduction.

Frequently Asked Questions

What is the Accuride Accu-Lite Aluminum Wheel?

It is a family of lightweight commercial aluminum wheels designed for highway truck and trailer applications.

Is Accu-Lite one specific wheel?

No. Accu-Lite includes multiple standard-width and wide-base wheel configurations. Each wheel must be identified by its complete part number.

What is the lightest current Accu-Lite aluminum wheel?

Accuride lists part number 43644, a 22.5 × 8.25-inch wheel, at approximately 38 pounds.

What is the maximum load rating?

Current standard-width models are listed at 7,400 pounds per wheel. Current 22.5 × 14.00-inch DupleX configurations are listed at 12,800 pounds per wheel.

What is the maximum inflation pressure?

Accuride lists a 131-psi maximum for the four current Accu-Lite aluminum configurations. The wheel’s stamped rating and current technical data should always be verified.

Can Accu-Lite wheels replace steel wheels?

They may replace compatible steel wheels when diameter, width, bolt pattern, center bore, offset, load rating, tire size, brake clearance, stud length, and mounting hardware are properly matched.

Does Accuride offer wide-base Accu-Lite wheels?

Yes. Current 43140 and 43142 DupleX wheels measure 22.5 × 14.00 inches and are intended for approved wide-base tire applications.

What finish options are available?

Depending on the wheel, options may include Standard Polish, Extra Polish, Accu-Shield, Accu-Armor, Accu-Flange, and ProShield Black. Not every finish is available on every part number.

Does an Accu-Lite wheel increase vehicle capacity?

No. Reduced wheel weight may increase available payload within existing ratings, but it does not increase the certified capacity of the axle, suspension, tires, brakes, frame, or completed vehicle.

How is the correct replacement identified?

Use the complete stamped part number and finish code together with the wheel size, bolt circle, center bore, offset or outset, load rating, inflation rating, tire size, and mounting position.

Availability and Where to Find

Accuride Accu-Lite aluminum wheels may be available through Accuride distributors, commercial-truck dealers, trailer dealers, tire dealers, wheel specialists, fleet-service facilities, and heavy-duty parts suppliers.

Availability depends on the base part number, size, offset or outset, finish, required quantity, and current production schedule. Buyers should verify current specifications and finish availability before ordering.

Current product details, technical literature, wheel-service information, and distributor resources are available through the Accuride Aluminum Wheels website.

Support Trucking Families

Truck Equipment Atlas supports the mission of Grey Cross, a nonprofit dedicated to helping families of truck drivers who lose their lives while on the road. As the site grows, part of its mission is to bring awareness and support to these families.

Podcast or Video Section

Learn More Through Audio and Video

Truck Equipment Atlas will continue expanding with podcast episodes, interviews, and equipment breakdowns to help drivers and fleets better understand trucks and equipment.

Follow the Growth of Truck Equipment Atlas

Truck Equipment Atlas continues to expand with new truck profiles, trailer coverage, diesel engine pages, equipment system resources, manufacturer information, and educational guides.

Visit our Site Updates page to explore recent additions, project milestones, and upcoming resources as we continue building one of the industry’s growing commercial trucking equipment reference libraries.

View the Latest Site Updates: Truck Equipment Atlas Site Updates
