Quick Facts

  • Manufacturer: Cummins Drivetrain and Braking Systems, formerly Meritor
  • Product Brand: Meritor Permalube
  • Product Series: RPL35
  • Product Type: High-torque heavy-duty commercial-vehicle driveline
  • Driveline Rating: 21,500 lb-ft
  • Metric Driveline Rating: 29,150 N·m
  • Tubing Size: 4.69 × 0.230 inches
  • Tube Inside Diameter: 4.23 inches
  • Swing Diameter: 8.11 inches
  • Universal-Joint Design: Permanently lubricated and sealed RPL35 universal joint
  • Primary Applications: Linehaul tractors, downsped powertrains, heavy-haul trucks, construction vehicles, mobile cranes, fire apparatus, and severe-duty vocational equipment
  • Production Status: Current product family, including the related RPL35+ and RPL35SD configurations

Overview

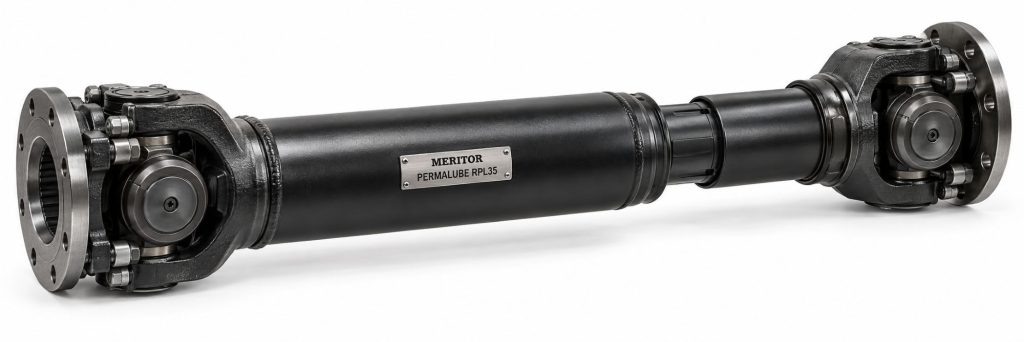

The Meritor Permalube RPL35 Driveline is a high-torque commercial-vehicle driveshaft system designed for heavy service, downsped powertrains, and demanding vocational applications. It transfers rotational force from the transmission to the drive axle while accommodating normal suspension movement, driveline-angle changes, and variations in drivetrain length.

The RPL35 has a published driveline rating of 21,500 lb-ft. Its high-torque capacity places it above the standard RPL20, RPL25, and RPL25SD models while remaining below the specialized RPL35SD.

Permanently lubricated universal joints reduce routine service requirements. Triple-lip seals retain lubricant and protect the bearings from contaminants, while nylon thrust washers reduce internal metal-to-metal contact.

Key Characteristics

  • High-torque heavy-duty driveline
  • 21,500 lb-ft published driveline rating
  • 29,150 N·m published metric rating
  • Designed for heavy service and downsped powertrains
  • Permanently lubricated universal joints
  • Sealed-for-life universal-joint design
  • Triple-lip contamination-resistant seals
  • Nylon thrust washers that reduce internal wear
  • Secure flange connections for high-torque operation
  • Four-bolt design supporting installation and service
  • Protective steel universal-joint guard
  • Self-aligning center-bearing options
  • Available in single- and multi-piece configurations

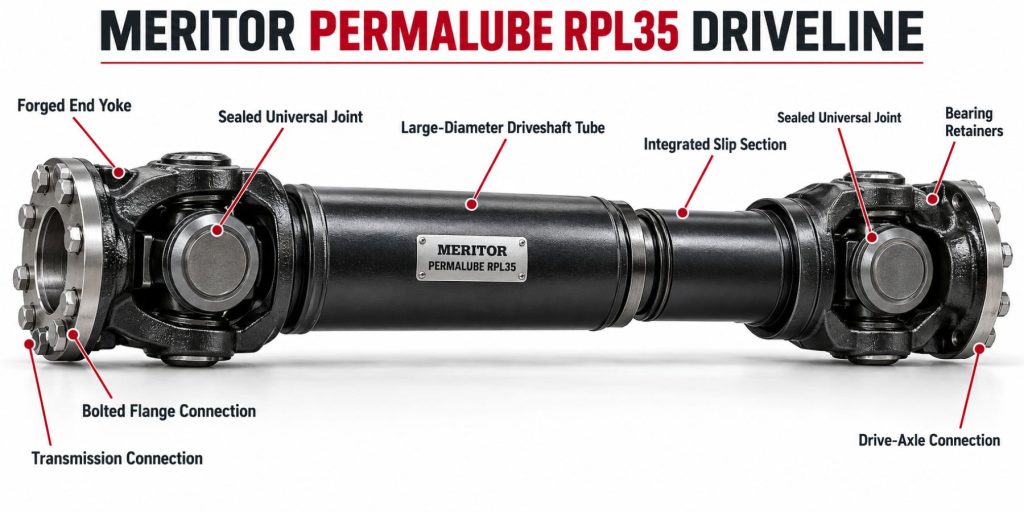

Major Components

  • Heavy-duty driveshaft tubing
  • RPL35 universal-joint assemblies
  • Universal-joint crosses
  • Bearing assemblies
  • Triple-lip seals
  • Nylon thrust washers
  • Protective universal-joint guards
  • Flange yokes
  • End yokes
  • Weld yokes
  • Companion flanges
  • Slip assembly
  • Splined shaft
  • Four-bolt attachment hardware
  • Center bearing on applicable installations
  • Center-bearing support bracket
  • Balance weights

Product Type and Construction

The RPL35 is a heavy-duty tubular steel driveshaft built around high-capacity Permalube universal joints. Precision tubing, forged or machined yokes, splined slip components, sealed bearings, and secure flange connections create a rotating assembly capable of carrying substantial drivetrain torque.

Complete RPL35 assemblies are application-specific. Shaft length, tubing, yoke design, flange pattern, spline dimensions, slip travel, center-bearing placement, and dynamic-balance requirements vary by vehicle.

How the Driveline or Steering Component Works

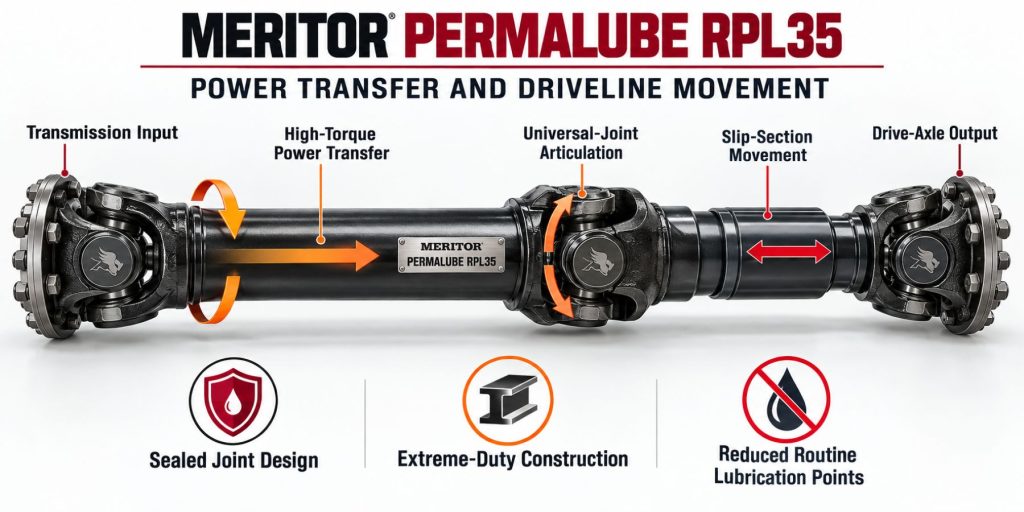

The RPL35 receives rotational force through the transmission output flange and transfers that force through the driveshaft to the drive-axle input flange. Universal joints allow the shaft to rotate while the transmission and axle operate at different heights or angles.

The slip assembly accommodates limited changes in driveline length caused by suspension movement and chassis deflection. Proper alignment, phasing, balance, and spline engagement are necessary for smooth operation.

Position and Function Within the Vehicle

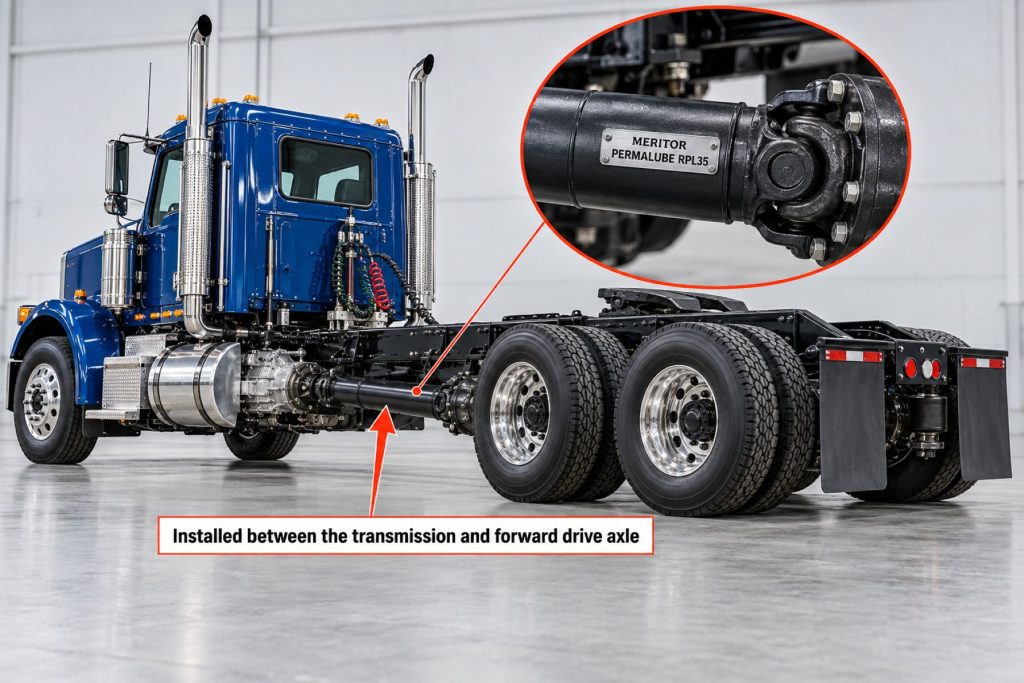

The RPL35 is installed beneath the vehicle between the transmission and the driven axle. Long-wheelbase trucks may use the RPL35 as one section of a multi-piece driveline supported by an intermediate center bearing.

Its function is to transfer power to the drive axle while accommodating suspension travel, chassis movement, changing driveline angles, and controlled axial movement.

Common Specifications

  • Series: RPL35
  • Product Classification: High-torque-rated heavy-duty driveline
  • Driveline Rating: 21,500 lb-ft
  • Metric Driveline Rating: 29,150 N·m
  • Published Tubing Size: 4.69 × 0.230 inches
  • Published Tube Inside Diameter: 4.23 inches
  • Published Swing Diameter: 8.11 inches
  • Lubrication: Permanently lubricated and sealed universal joints
  • Connection Type: Application-specific high-torque flange connections
  • Center-Bearing Design: Self-aligning center bearing available for applicable multi-piece installations
  • Related Variants: RPL35+, RPL35SD, and other application-specific RPL35 assemblies
  • Exact shaft length, yokes, flanges, slip travel, spline dimensions, universal-joint kit, and mounting specifications must be confirmed using the complete assembly number and vehicle information.

Operating Capacity and Performance

The standard RPL35 has a published driveline rating of 21,500 lb-ft, or 29,150 N·m. It is designed for higher-torque applications, including heavy service and powertrains using aggressive downspeeding.

Actual capacity must be evaluated against engine torque, transmission ratios, axle gearing, tire traction, vehicle weight, shaft speed, working angles, and duty cycle. Low transmission gears can multiply torque substantially before it reaches the driveshaft.

Installation Position and System Function

The RPL35 may function as a main driveshaft, an intermediate shaft, or one section of a multi-piece driveline. Its position depends on wheelbase, transmission location, axle arrangement, chassis packaging, and required shaft length.

Every installation must preserve correct phasing, slip travel, working angles, component clearance, center-bearing placement, and critical-speed capability.

Torque Transfer or Steering-Assist Function

The RPL35 transfers power and does not provide steering assistance. Torque passes through the transmission flange, yokes, universal joints, splines, shaft tubing, and axle flange.

The complete assembly must carry both continuous operating torque and temporary dynamic loads without excessive deflection, looseness, vibration, or structural damage.

Driveline Geometry and Operating Angles

Correct working angles are essential for smooth RPL35 operation. The transmission, intermediate shaft, center bearing, and axle pinion must be positioned so the universal joints operate within the approved angular range.

Excessive or unequal angles can produce vibration, accelerated bearing wear, seal damage, heat, spline loading, and shaft fatigue. Ride-height or suspension changes should be followed by a driveline-angle inspection.

Steering Geometry and Movement

Steering geometry does not directly control the RPL35. Frame movement, suspension articulation, axle windup, and chassis modifications can nevertheless change its operating angles or clearance from nearby steering components.

Slip, Articulation, and Operating Travel

The universal joints provide angular articulation while the splined slip assembly accommodates controlled changes in driveline length. Both types of movement must remain within the approved limits for the installation.

Insufficient spline engagement can weaken the connection. A slip section that bottoms out can transmit damaging thrust loads into the transmission, center bearing, or drive axle.

Bearings, Joints, Shafts, Gears, and Structural Design

The RPL35 combines heavy-duty steel tubing, forged or machined yokes, splined components, universal-joint crosses, bearing assemblies, retaining hardware, and high-torque flange connections.

Multi-piece systems may use a self-aligning center bearing. Its bearing, rubber support, bracket, and chassis attachment must remain properly positioned and structurally sound.

Materials and Component Construction

RPL35 drivelines use steel tubing and high-strength forged or machined components. An E-coated steel universal-joint guard helps protect exposed joint components from contamination and physical damage.

Triple-lip seals, permanent lubricant, nylon thrust washers, and precision bearing surfaces support extended universal-joint life in demanding operating environments.

Hydraulic and Electric Steering Assistance

Hydraulic and electric steering assistance are not part of the RPL35 driveline. Steering shafts, hydraulic hoses, wiring harnesses, and assistance components installed nearby must have sufficient clearance from the rotating shaft.

Electronic Controls and Driver-Assistance Integration

The RPL35 is mechanically operated and does not use a dedicated electronic controller. Engine torque management, automated transmission programming, traction control, and stability-control systems can indirectly affect the torque and shock loads applied to it.

Speed, Torque, and Load Management

Driveline speed and torque must remain within the limits approved for the complete shaft. A long shaft may reach critical speed sooner than a shorter assembly, while low transmission gears can subject the shaft to significant torque multiplication.

Drivers can reduce shock loading by avoiding aggressive clutch engagement, sudden throttle application, wheel hop, improper differential-lock use, and abrupt changes in traction.

Vibration, Balance, and Noise Control

The RPL35 must remain dynamically balanced throughout its operating-speed range. Shaft straightness, balance weights, phasing, runout, universal-joint condition, flange alignment, and center-bearing position all affect vibration.

Dented tubing, a missing balance weight, an incorrectly phased slip assembly, damaged pilots, or debris trapped between flange faces can produce speed-related vibration.

Lubrication, Sealing, and Contamination Protection

RPL35 universal joints are permanently lubricated and sealed. Triple-lip seals retain lubricant and protect the bearings against water, dirt, road salt, and other contaminants.

Permanent universal-joint lubrication does not eliminate inspection requirements. Slip assemblies, center bearings, or related driveline components may have separate lubrication schedules.

Duty Cycle and Operating Conditions

The RPL35 is suited to high-torque linehaul, downsped, heavy-haul, construction, mobile-crane, fire and rescue, and severe vocational applications when correctly specified.

Frequent shock loading, severe working angles, high gross combination weight, off-road articulation, corrosion, and repeated maximum-torque starts can shorten component life.

Mounting and Installation

Installation requires the correct shaft length, flange pattern, pilot diameter, fasteners, yokes, spline engagement, slip travel, working angles, and mounting hardware. Flange faces must be clean and free from damage.

Fasteners should be installed using the approved sequence and torque specifications. Multi-piece installations also require correct center-bearing position, alignment, support, and shaft phasing.

Alignment, Driveline, and Mounting Geometry

Alignment should be measured at the specified suspension ride height and normal vehicle operating condition. Engine mounts, transmission mounts, suspension height, axle position, pinion angle, and center-bearing placement can alter driveline geometry.

The shaft should not be shortened, lengthened, welded, straightened, or rebalanced without approved commercial-driveline equipment and procedures.

Vehicle, Transmission, Axle, and Steering Compatibility

Compatibility depends on engine output, transmission ratios, axle gearing, wheelbase, flange connections, shaft length, suspension, working angles, shaft speed, vehicle weight, and duty cycle.

The RPL35 designation alone does not establish interchangeability. Replacement assemblies must be matched using the vehicle identification number, original shaft number, engineering records, and measured connection dimensions.

Related Component and System Compatibility

An RPL35 installation must match the transmission output flange, axle input flange, companion flanges, yokes, universal-joint kits, splines, slip assembly, tubing, center bearing, and mounting brackets.

RPL20, RPL25, RPL35, and RPL35SD components should not be substituted based on appearance because ratings, dimensions, pilots, fasteners, and joint geometry can differ.

Common Applications

  • Class 8 linehaul tractors
  • Downsped highway tractors
  • Heavy-haul tractors
  • Construction trucks
  • Severe-duty vocational trucks
  • Mobile cranes
  • Fire and rescue apparatus
  • Refuse vehicles
  • Oilfield equipment
  • Logging trucks
  • Material-handling vehicles
  • Specialized commercial vehicles
  • Defense vehicles

Advantages

  • High 21,500 lb-ft published rating
  • Designed for high-torque and downsped powertrains
  • Permanently lubricated universal joints
  • Reduced routine universal-joint maintenance
  • Triple-lip contamination protection
  • Nylon thrust washers reduce internal wear
  • Secure high-torque flange connections
  • Protective steel universal-joint guard
  • Self-aligning center-bearing options
  • Suitable for single- and multi-piece installations
  • Supported through commercial-vehicle parts networks

Limitations or Considerations

  • Complete RPL35 assemblies are application-specific
  • Correct shaft length and flange configuration are required
  • Improper working angles can cause vibration and wear
  • Dented or bent tubing can make the shaft unsafe
  • Permanent joint lubrication does not eliminate inspections
  • Related components may retain separate maintenance requirements
  • Torque multiplication must be considered during selection
  • Suspension or chassis modifications can change driveline geometry
  • Specialized balancing equipment is required for repairs
  • Extreme applications may require the higher-capacity RPL35SD

Driver and Operator Experience

A correctly installed RPL35 should transfer torque without noticeable vibration, shuddering, clunking, or speed-related noise. Drivers may first detect a problem as vibration through the floor or seat, a clunk during torque changes, or shudder under heavy acceleration.

New symptoms following suspension, transmission, axle, or driveline service should be inspected promptly.

Steering Feel and Driver Feedback

The RPL35 does not directly affect steering assistance. Severe driveline vibration can travel through the chassis and be felt in the steering wheel, floor, pedals, or driver’s seat.

Technicians should distinguish driveline vibration from tire, wheel, steering, engine, transmission, and suspension problems.

Operating Speed, Angle, and Load Management

Fleets should verify that shaft speed, torque, working angles, gross vehicle weight, and duty cycle remain within the approved design limits.

Wheel hop, aggressive starts, sudden throttle application, clutch dumping, and improper differential-lock operation can create damaging shock loads.

Control Setup and System Calibration

The mechanical RPL35 does not require electronic calibration. Engine torque limits, automated transmission programming, traction control, and powertrain-protection strategies can influence its operating loads and should remain correctly configured.

Inspection and Wear Points

  • Universal-joint seals
  • Cross-and-bearing assemblies
  • Universal-joint guards
  • Flange connections
  • End yokes and weld yokes
  • Fasteners and retaining hardware
  • Driveshaft tubing
  • Balance weights
  • Slip splines
  • Slip-section seals
  • Center bearing and rubber support
  • Center-bearing bracket
  • Transmission and axle flange faces
  • Clearance around the rotating shaft
  • Evidence of heat, impact, corrosion, or looseness

Lubrication Requirements

RPL35 universal joints are permanently lubricated and do not require normal periodic greasing. Seal damage, lubricant loss, binding, looseness, overheating, or contamination indicate that additional inspection is required.

Slip assemblies, center bearings, and related components should be maintained according to their separate service requirements.

Component Service Life and Rebuildability

Service life depends on torque, operating speed, working angles, shock loading, contamination, corrosion, installation quality, and vehicle duty cycle.

Universal-joint kits, yokes, slip components, center bearings, and complete shaft assemblies may be replaced using approved components and procedures. Bent, cracked, or severely corroded shafts should be evaluated by a qualified driveline specialist.

Shaft, Joint, Bearing, Gear, and Linkage Service Life

The shaft can provide extended service when it remains straight, balanced, correctly phased, and free from impact damage. Joint and bearing life decreases when operating angles are excessive, flange connections are loose, seals are compromised, or shock loads exceed design conditions.

Seal, Hose, Sensor, and Electronic Service Life

The triple-lip seals are critical to lubricant retention and contamination protection. The RPL35 does not contain hydraulic hoses, electronic sensors, or a dedicated controller.

Maintenance and Ownership Notes

Permanent universal-joint lubrication reduces routine maintenance but does not make the complete driveline maintenance-free. Inspection intervals should follow the vehicle and component manufacturers’ requirements.

  • Check universal joints for looseness or binding
  • Inspect seals for damage or lubricant leakage
  • Check flange fasteners and retaining hardware
  • Inspect tubing for dents, cracks, or corrosion
  • Confirm that balance weights remain attached
  • Check slip components for wear and adequate engagement
  • Inspect center bearings and brackets when equipped
  • Verify driveline angles after chassis or suspension changes
  • Preserve shaft phasing during disassembly
  • Investigate new vibration, noise, or clunking promptly

Common Driveline and Steering Problems

  • Speed-related vibration: Shaft imbalance, excessive runout, incorrect phasing, missing balance weights, damaged tubing, or dirty flange faces may cause vibration that changes with speed.
  • Acceleration shudder: Incorrect working angles, worn joints, loose mounts, axle windup, or improper ride height can produce vibration under torque.
  • Clunk during torque changes: Worn splines, loose flange hardware, universal-joint clearance, or excessive axle and transmission movement may be responsible.
  • Universal-joint wear: Seal damage, contamination, excessive working angles, shock loading, or incorrect installation can shorten joint life.
  • Center-bearing failure: Misalignment, imbalance, damaged brackets, or deteriorated rubber supports can damage the center bearing.
  • Slip-section binding: Corrosion, damaged splines, contamination, inadequate clearance, or incorrect assembly can prevent normal axial movement.
  • Loose flange connection: Incorrect hardware, improper tightening, damaged pilots, dirty mating surfaces, or repeated shock loading can allow movement.
  • Tube damage: Road debris, chassis contact, improper lifting, or collision damage can bend or dent the driveshaft.

Safety and Service Precautions

A disconnected or damaged driveshaft can move unexpectedly and cause serious injury. The vehicle must be secured against movement, and the shaft must be supported before mounting hardware or center-bearing components are removed.

  • Do not work beneath an unsupported vehicle
  • Prevent the vehicle from rolling
  • Support the driveshaft before disconnecting it
  • Mark shaft orientation and phasing before disassembly
  • Use approved fasteners and tightening procedures
  • Do not weld or modify the shaft without approved procedures
  • Replace cracked or severely damaged components
  • Keep tools, wiring, hoses, and clothing away from rotating parts
  • Verify clearances before returning the vehicle to service

Identification Information

Identification may be found on the shaft label, stamped components, yokes, flanges, universal-joint kit, parts records, or vehicle build information.

  • Vehicle identification number
  • Vehicle manufacturer and model
  • Original driveline assembly number
  • Meritor or Cummins component number
  • RPL35 series identification
  • RPL35, RPL35+, or RPL35SD configuration
  • Installed shaft length
  • Tubing diameter and wall thickness
  • Flange pattern and pilot dimensions
  • End-yoke and weld-yoke specifications
  • Spline diameter and count
  • Slip travel
  • Universal-joint kit number
  • Center-bearing number when equipped
  • Transmission and axle models

Buying Considerations

  • Confirm that the required series is RPL35
  • Distinguish RPL35 from RPL35+ and RPL35SD
  • Record the original shaft assembly number
  • Verify that the 21,500 lb-ft rating is sufficient
  • Match transmission and axle flange patterns
  • Confirm pilot diameters and fastener dimensions
  • Measure shaft length using the approved method
  • Verify slip travel and spline engagement
  • Check working angles and critical-speed requirements
  • Determine whether a single- or multi-piece shaft is required
  • Match the universal-joint kit and center bearing
  • Confirm the vehicle’s weight and duty cycle
  • Use a qualified commercial driveline supplier

Variants and Configurations

  • Standard RPL35 driveline
  • RPL35+ lightweight high-torque driveline
  • RPL35SD severe-duty driveline
  • Single-piece driveshaft
  • Multi-piece driveline
  • Different shaft lengths
  • Application-specific tubing configurations
  • Different flange-yoke connections
  • Different end-yoke arrangements
  • Different weld-yoke configurations
  • Application-specific slip assemblies
  • Center-bearing installations
  • OEM and service-replacement assemblies

Comparison to Similar Equipment

Compared with the Meritor Permalube RPL25 Driveline, the RPL35 has a higher published rating and is designed for more demanding torque requirements. The RPL25 is rated at 17,200 lb-ft, while the RPL35 is rated at 21,500 lb-ft.

Compared with the Meritor Permalube RPL35+ Driveline, the standard RPL35 represents the established high-torque design. The RPL35+ is engineered to maintain RPL35 performance while reducing weight.

Compared with the Meritor Permalube RPL35SD Driveline, the standard RPL35 has a lower rating and smaller published tubing dimensions. The RPL35SD is rated at 25,820 lb-ft.

Compared with the Dana Spicer SPL 350 Driveshaft, the RPL35 uses Meritor’s Permalube architecture and application-specific RPL connections. Direct interchange should not be assumed.

Best Fit For

  • Vehicles originally equipped with an RPL35
  • High-torque Class 8 trucks
  • Downsped highway tractors
  • Heavy-haul tractors
  • Construction and severe-duty vocational trucks
  • Mobile cranes
  • Fire and rescue apparatus
  • Logging and oilfield vehicles
  • Fleets seeking permanently lubricated universal joints
  • Applications exceeding standard RPL25 capacity

Related Vehicle and Trailer Types

Related Truck and Trailer Models

Related Driveline and Steering System Types

Related Driveline and Steering Products

Related Equipment Systems

Related Guides

Regulatory and Compliance Notes

The driveline must remain appropriate for the vehicle’s certified configuration and must not interfere with brakes, steering, suspension, fuel systems, air lines, electrical equipment, exhaust components, or required ground clearance.

Powertrain, frame, wheelbase, suspension, or axle modifications should preserve safe driveline angles, adequate shaft containment, component clearances, and applicable completed-vehicle safety requirements.

Real World Operating Notes

The RPL35’s permanently lubricated universal joints reduce routine greasing, but the driveline must still be inspected. Loose flanges, damaged tubing, failed seals, incorrect angles, or worn support bearings can cause serious failures.

Downsped powertrains may operate the engine at lower road-speed rpm while transmitting high torque through the driveline. Correct driveline selection and engine torque management are especially important in these applications.

When a slip assembly is separated, technicians should mark its original orientation. Incorrect reassembly can alter shaft phasing and introduce vibration.

Frequently Asked Questions

What is the Meritor Permalube RPL35 Driveline?

It is a high-torque commercial-vehicle driveshaft system designed for heavy service, downsped powertrains, and demanding vocational applications.

What is the RPL35 driveline rating?

The standard RPL35 has a published rating of 21,500 lb-ft, equivalent to 29,150 N·m.

What tubing size does the RPL35 use?

The published specification lists 4.69 × 0.230-inch tubing with a 4.23-inch inside diameter.

Do RPL35 universal joints require greasing?

No. The RPL35 universal joints are permanently lubricated and sealed. Related slip and support components may have separate maintenance requirements.

Is the RPL35 designed for downsped powertrains?

Yes. The RPL heavy-duty family is designed to accommodate the high torque associated with heavy service and downsped drivetrains.

What is the difference between the RPL35 and RPL35+?

The RPL35+ is a related high-torque design engineered to maintain RPL35 performance while reducing driveline weight and improving serviceability.

What is the difference between the RPL35 and RPL35SD?

The standard RPL35 is rated at 21,500 lb-ft. The larger RPL35SD is rated at 25,820 lb-ft and is intended for more demanding severe-duty applications.

What causes an RPL35 driveline to vibrate?

Possible causes include incorrect working angles, shaft imbalance, excessive runout, damaged tubing, missing balance weights, improper phasing, worn joints, loose flanges, or center-bearing misalignment.

Are all RPL35 parts interchangeable?

No. Components can differ by shaft length, tubing, flange, pilot, yoke, spline, slip travel, center bearing, and complete assembly design.

How should the correct replacement driveline be identified?

Use the vehicle identification number, original shaft assembly number, transmission and axle models, flange dimensions, shaft length, tubing specification, and individual component numbers.

Availability and Where to Find

Meritor Permalube RPL35 complete driveline assemblies and service components may be available through Cummins and Meritor distributors, commercial-truck dealers, driveline specialists, fleet-maintenance suppliers, and heavy-duty parts providers.

Availability depends on the complete shaft number, RPL35 configuration, tubing, length, flange and yoke arrangement, universal-joint requirements, transmission, axle, and vehicle application.

Current specifications are available through the Cummins Permalube RPL Heavy-Duty Driveline Series page. Application-specific service components may also be identified through Meritor Parts Xpress.

Support Trucking Families

Truck Equipment Atlas supports the mission of Grey Cross, a nonprofit dedicated to helping families of truck drivers who lose their lives while on the road. As the site grows, part of its mission is to bring awareness and support to these families.

Podcast or Video Section

Learn More Through Audio and Video

Truck Equipment Atlas will continue expanding with podcast episodes, interviews, and equipment breakdowns to help drivers and fleets better understand trucks and equipment.

Follow the Growth of Truck Equipment Atlas

Truck Equipment Atlas continues to expand with new truck profiles, trailer coverage, diesel engine pages, equipment system resources, manufacturer information, and educational guides.

Visit our Site Updates page to explore recent additions, project milestones, and upcoming resources as we continue building one of the industry’s growing commercial trucking equipment reference libraries.

View the Latest Site Updates: Truck Equipment Atlas Site Updates

Scroll to Top
