Quick Facts

  • Manufacturer: Cummins-Meritor
  • Brand: Meritor
  • Product Series: Permalube RPL Medium-Duty Series
  • Product Model: RPL14
  • Product Type: Permanently lubricated medium-duty commercial driveline
  • Vehicle Classes: Primarily Class 6 and Class 7 commercial vehicles
  • Primary Applications: Refuse trucks, city-delivery vehicles, transit buses, school buses, construction vehicles, and utility trucks
  • Universal-Joint Design: Permanently lubricated RPL universal joint with triple-lip sealing
  • Yoke Connection: Easy Service connection with four bolts and machined straps
  • Slip-System Feature: Polyglide nylon coating designed to reduce slip-section friction and axial loads
  • Routine Greasing: Not required
  • Published General-Service Warranty: Four years or 400,000 miles, subject to current warranty terms and application approval

Overview

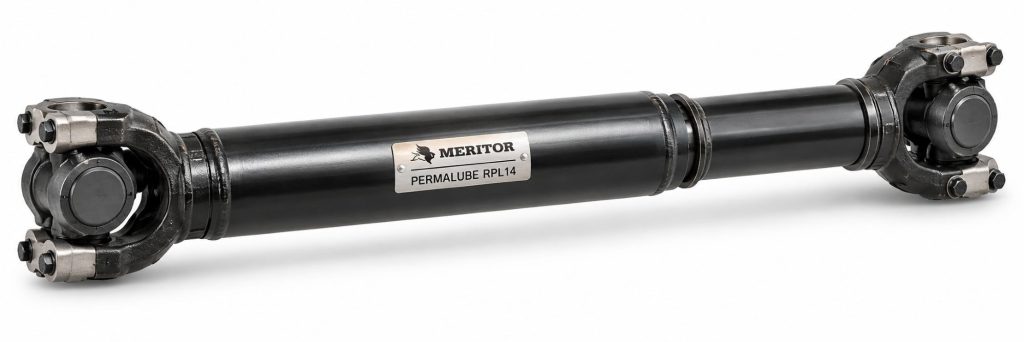

The Meritor Permalube RPL14 Driveline is a medium-duty commercial driveshaft designed primarily for Class 6 and Class 7 trucks and buses. It is the larger of the two medium-duty entries in the Permalube RPL family and supports applications requiring more capacity than the RPL10.

The RPL14 uses universal joints that are permanently lubricated and sealed for life. Its triple-lip joint seals retain lubricant and protect the bearings from contamination, eliminating routine universal-joint grease service.

Additional features include Meritor’s four-bolt Easy Service yoke connection and a Polyglide-coated slip section. These features are intended to simplify installation, provide a secure joint connection, and reduce friction and axial loading as the driveshaft changes length.

Key Characteristics

  • Medium-duty Permalube RPL driveline
  • Designed primarily for Class 6 and Class 7 vehicles
  • Higher-capacity companion to the RPL10
  • Permanently lubricated universal joints
  • Sealed-for-life bearing design
  • Triple-lip universal-joint seals
  • No routine joint greasing required
  • Easy Service four-bolt yoke connection
  • Machined joint-retention straps
  • Polyglide-coated slip section
  • Designed to reduce maintenance and operating costs
  • Application-specific lengths, tubes, yokes, and slip configurations

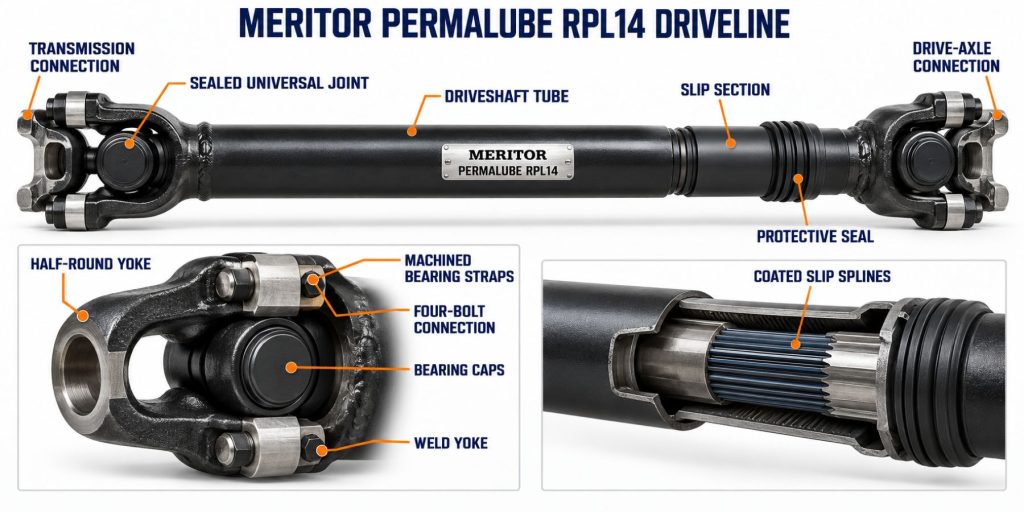

Major Components

  • Driveshaft tube
  • RPL14 universal-joint crosses
  • Sealed bearing assemblies
  • Triple-lip seals
  • Needle bearings
  • Easy Service machined straps
  • Four-bolt joint connections
  • End yokes or coupling yokes
  • Weld yokes
  • Slip-yoke and spline assembly
  • Polyglide nylon coating
  • Dust cap and spline seals
  • Balance weights
  • Center bearing on applicable multi-piece drivelines

Product Type and Construction

The RPL14 is a tubular steel commercial driveshaft using permanently lubricated universal joints and application-specific yokes. Its sealed bearings are designed to retain factory-installed lubricant throughout their service life.

The four-bolt Easy Service connection uses machined straps to secure the universal-joint bearing assemblies. The slip section uses Polyglide nylon coating to reduce sliding friction as the shaft extends and compresses during suspension movement.

How the Driveline or Steering Component Works

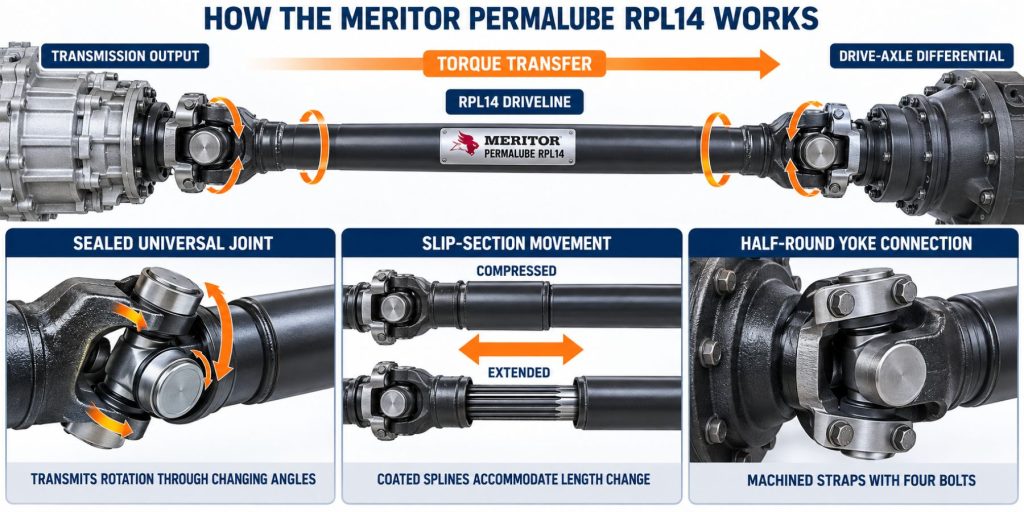

Engine torque passes through the transmission and into the RPL14 through its front connection. The universal joints transfer power through approved working angles, and the driveshaft tube carries torque toward the drive axle or next driveline section.

The slip section allows the effective driveshaft length to change as the axle and chassis move. Its Polyglide coating reduces friction between the sliding components, helping minimize the axial forces transferred into the transmission and axle connections.

Position and Function Within the Vehicle

The RPL14 may be used as a main driveshaft or as one section of a multi-piece driveline. Its position depends on the vehicle’s wheelbase, transmission, rear axle, frame layout, suspension, and original-equipment specification.

The driveline transfers rotational power while accommodating changes in operating angle and distance between connected components.

Common Specifications

  • Series: Meritor Permalube RPL14
  • Component Category: Medium-duty commercial driveline
  • Primary Vehicle Classes: Class 6 and Class 7
  • Universal-Joint Lubrication: Permanently lubricated and sealed for life
  • Universal-Joint Seal: High-performance triple-lip design
  • Yoke Connection: Easy Service four-bolt connection with machined straps
  • Slip Section: Polyglide nylon-coated design
  • Routine Joint Greasing: Not required
  • Driveshaft Arrangement: One-piece or multi-piece, depending on vehicle geometry
  • Tube Dimensions: Application-specific
  • End Connections: Application-specific RPL14 yokes or coupling connections
  • Published General-Service Warranty: Four years or 400,000 miles, subject to current Cummins-Meritor warranty requirements

Exact length, torque capacity, operating speed, joint dimensions, slip travel, and fastener specifications must be confirmed using the complete assembly number.

Operating Capacity and Performance

The RPL14 is intended for medium-duty applications requiring greater capacity than the RPL10. Actual capability depends on the complete driveshaft assembly, engine torque, transmission gearing, axle ratio, shaft length, rotational speed, operating angles, and duty cycle.

A driveline must be evaluated for both torque and critical speed. The RPL14 series name alone does not confirm that every assembly is suitable for every Class 6 or Class 7 vehicle.

Installation Position and System Function

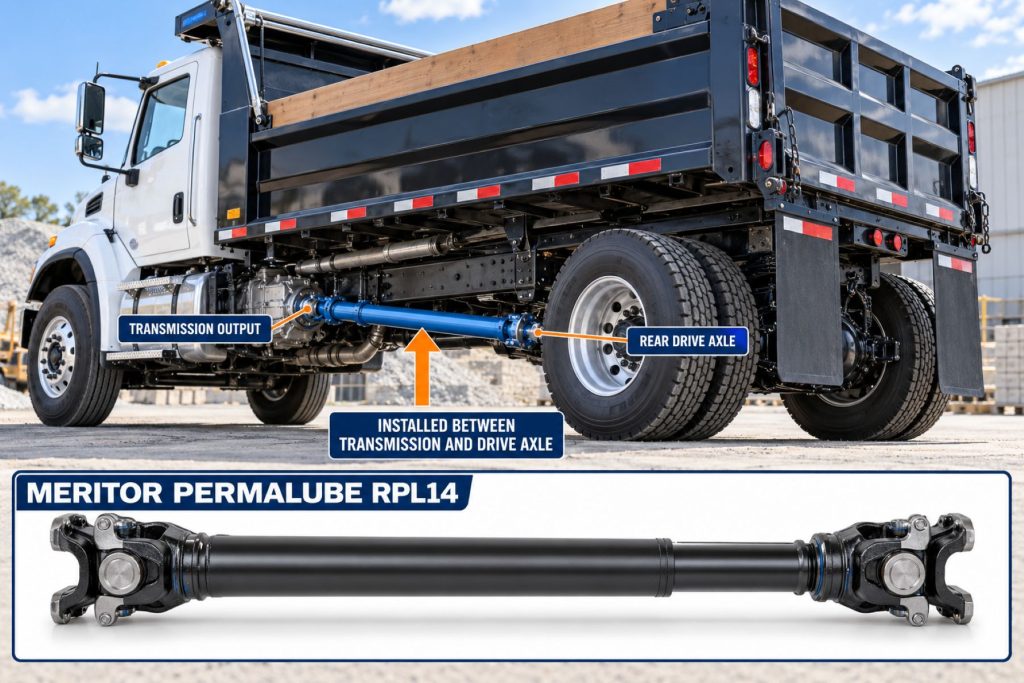

The RPL14 may serve as the primary driveshaft between a transmission and rear axle or as part of a longer multi-piece driveline. The installed position determines the required length, tube construction, slip travel, operating angles, and end connections.

A replacement shaft must match the original or approved application rather than being selected solely by joint series or overall length.

Torque Transfer or Steering-Assist Function

The RPL14 transfers rotational torque and does not provide steering assistance. Its universal joints, straps, yokes, tube, and splines carry power between the components connected at each end.

Low transmission gears, high vehicle weight, steep grades, abrupt engagement, wheel hop, and traction changes can expose the driveline to substantial torque and shock loading.

Driveline Geometry and Operating Angles

Universal-joint working angles must remain within Cummins-Meritor and vehicle-manufacturer limits. The angles at opposite ends of a driveshaft should be coordinated to minimize cyclic speed variation and vibration.

Ride-height changes, worn mounts, suspension modifications, center-bearing movement, axle-position changes, and frame repairs can alter driveline geometry. Measurements should be taken at normal operating height.

Steering Geometry and Movement

The RPL14 is not a steering component. Chassis alignment, suspension movement, axle position, and frame condition can still influence driveline angles, slip travel, and component clearance.

Slip, Articulation, and Operating Travel

The slip section allows the shaft to change length as the suspension moves through jounce and rebound. Its Polyglide coating reduces sliding friction and helps limit axial loading during this movement.

Adequate spline engagement must remain available throughout the suspension range without allowing the shaft to bottom. Universal-joint articulation must also remain within approved limits.

Bearings, Joints, Shafts, Gears, and Structural Design

The RPL14 universal joint uses a central cross, sealed bearing assemblies, triple-lip seals, machined straps, and four connection bolts. The Easy Service design creates a secure connection while simplifying universal-joint installation.

The tube, weld yokes, end connections, and slip assembly form the structural driveshaft. The assembly contains no reduction gears; transmission and axle gearing determine the speed and torque it carries.

Materials and Component Construction

The RPL14 uses high-strength steel tubing, precision-manufactured yokes, hardened universal-joint components, high-strength fasteners, and durable sealing materials.

The slip splines incorporate Polyglide nylon coating to reduce friction. Universal-joint components, straps, bolts, and yokes from another series should not be substituted without confirming compatibility.

Hydraulic and Electric Steering Assistance

Hydraulic and electric steering assistance are not part of the RPL14 driveline. Vehicles using the RPL14 may have separate hydraulic, electric-assisted, or conventional steering systems.

Electronic Controls and Driver-Assistance Integration

The RPL14 is mechanical and normally has no dedicated electronic controller. Engine management, automatic or automated transmissions, traction control, stability systems, and axle controls influence its loading.

Powertrain calibrations must remain within the approved driveline, transmission, axle, and vehicle ratings.

Speed, Torque, and Load Management

Driveshaft torque depends on engine output, transmission gearing, axle ratio, vehicle weight, tire traction, road grade, and driver input. Low transmission gears can multiply torque substantially.

Rotational speed becomes especially important during highway operation. Driveshaft length and tube construction must keep the assembly below its application-specific critical speed.

Vibration, Balance, and Noise Control

Correct driveshaft balance, joint orientation, operating angles, tube runout, slip-spline condition, and center-bearing alignment are essential for smooth operation.

Loose Easy Service bolts, damaged machined straps, poor angles, tube damage, missing balance weights, worn yokes, or center-bearing misalignment can produce speed-related vibration.

Lubrication, Sealing, and Contamination Protection

The RPL14 universal joints are permanently lubricated and sealed for life. Their triple-lip seals retain lubricant and protect the bearings from dirt, water, road chemicals, and other contamination.

Routine universal-joint greasing is not required. The sealed joints should not be drilled or modified with grease fittings, and damaged seals or bearings require inspection and replacement as necessary.

Duty Cycle and Operating Conditions

The RPL14 is engineered for medium-duty applications including refuse collection, city delivery, transit bus, school bus, construction, and utility operation.

Frequent stops, repeated torque reversals, rough roads, high joint angles, heavy body equipment, and contamination can require more frequent inspection even though routine joint lubrication is eliminated.

Mounting and Installation

Installation requires the correct RPL14 assembly, length, tube construction, slip travel, yokes, machined straps, four connection bolts, and tightening procedure.

Mating surfaces should be cleaned and inspected. The universal-joint bearing assemblies and straps must seat correctly, and all bolts must be tightened to the specification for the exact configuration.

Alignment, Driveline, and Mounting Geometry

The transmission output, driveshaft sections, center bearings, and axle input must be positioned to produce acceptable universal-joint angles. Multi-piece drivelines require correct center-bearing height and lateral alignment.

Ride height, suspension condition, axle position, frame alignment, and powertrain mounts should be verified before final geometry measurements are taken.

Vehicle, Transmission, Axle, and Steering Compatibility

RPL14 compatibility depends on:

  • Vehicle manufacturer and model
  • Model year and vehicle identification number
  • Class 6 or Class 7 chassis configuration
  • Engine torque
  • Transmission manufacturer and model
  • Transmission output connection
  • Drive-axle manufacturer and model
  • Axle ratio
  • Wheelbase and frame layout
  • Driveshaft position
  • Installed and collapsed length
  • Slip travel
  • Suspension type and ride height
  • Maximum driveshaft speed
  • Vehicle weight and duty cycle

Related Component and System Compatibility

The RPL14 must be matched with approved universal joints, machined straps, bolts, yokes, slip components, center bearings, transmission outputs, and axle-input connections.

RPL10 and RPL14 components should not be mixed based solely on similar construction. Capacity, dimensions, joints, yokes, straps, and complete assemblies may differ.

Common Applications

  • Class 6 trucks
  • Class 7 trucks
  • Refuse trucks
  • City-delivery trucks
  • Transit buses
  • School buses
  • Shuttle buses
  • Construction vehicles
  • Utility trucks
  • Service trucks
  • Municipal vehicles
  • Medium-duty vocational chassis

Advantages

  • Permanently lubricated universal joints
  • No routine joint greasing required
  • Triple-lip seals protect factory lubricant
  • Easy Service four-bolt yoke connection
  • Machined straps provide secure joint retention
  • Polyglide coating reduces slip-section friction
  • Reduced axial loading through the slip assembly
  • Designed for increased vehicle uptime
  • Can reduce maintenance and operating costs
  • Supports demanding medium-duty applications
  • Published four-year or 400,000-mile general-service warranty

Limitations or Considerations

  • Sealed joints cannot be restored through routine greasing
  • Seal or bearing damage may require joint replacement
  • Maintenance-free lubrication does not eliminate inspection
  • Four-bolt connections require correct fasteners and torque
  • Machined straps must seat correctly
  • Incorrect operating angles can cause vibration and wear
  • Tube damage can make the assembly unsafe
  • RPL10 and RPL14 parts are not automatically interchangeable
  • Vehicle modifications require new application analysis
  • Warranty coverage depends on current terms and approved service

Driver and Operator Experience

A correctly specified RPL14 should operate without noticeable vibration. Its main operational benefit is reduced maintenance downtime because the universal joints do not require scheduled greasing.

Drivers should report clunking, vibration, shudder under load, scraping, or metallic impact sounds. Sealed joints and four-bolt connections still require inspection when symptoms appear.

Steering Feel and Driver Feedback

The RPL14 does not directly control steering feel. Driveline vibration can travel through the frame, cab, floor, seat, pedals, or steering column and may be mistaken for a tire, wheel, suspension, or steering problem.

Operating Speed, Angle, and Load Management

Drivers should avoid abusive clutch engagement, aggressive vehicle rocking, abrupt direction changes, and wheel hop. These actions create shock loads that can damage the driveshaft and connected powertrain components.

Changes to tires, axle ratio, transmission, governed speed, wheelbase, suspension, body equipment, or ride height may require the driveshaft application to be reviewed.

Control Setup and System Calibration

The RPL14 requires no electronic calibration. Engine torque management, automatic-transmission shift programming, traction control, stability systems, and axle controls can influence driveline loading.

Powertrain programming must remain compatible with the approved RPL14, transmission, axle, and vehicle ratings.

Inspection and Wear Points

  • Universal-joint crosses
  • Sealed bearing assemblies
  • Triple-lip seals
  • Easy Service machined straps
  • Four connection bolts
  • End yokes and coupling yokes
  • Polyglide-coated slip splines
  • Spline seals and dust cap
  • Driveshaft tube
  • Welded yoke connections
  • Balance weights
  • Center bearing where equipped
  • Transmission and axle connections
  • Clearance around chassis components

Lubrication Requirements

The RPL14 Permalube universal joints are permanently lubricated and sealed for life. They do not require routine grease service and should not be drilled or modified to accept grease fittings.

Any separately serviceable components in the complete vehicle driveline should be maintained according to Cummins-Meritor and vehicle-manufacturer instructions.

Component Service Life and Rebuildability

RPL14 universal joints, straps, bolts, yokes, slip components, center bearings, and other parts may be replaceable depending on the assembly and condition. Sealed bearing assemblies are replaced rather than periodically relubricated.

A qualified commercial driveline facility should inspect tube straightness, yoke alignment, welds, splines, runout, and balance before rebuilding an assembly.

Shaft, Joint, Bearing, Gear, and Linkage Service Life

Service life depends on torque, operating angles, seal condition, bolt security, contamination, rotational speed, balance, shock loading, and duty cycle. Permanently lubricated does not mean the joint cannot wear or become damaged.

The RPL14 contains no reduction gears or steering linkage. Related transmission, differential, axle, and steering components require separate inspection.

Seal, Hose, Sensor, and Electronic Service Life

The triple-lip universal-joint seals retain lubricant and protect the bearings from contamination. Seal damage, overheating, looseness, or bearing movement may require joint replacement.

The driveline contains no hydraulic hoses, electronic sensors, or dedicated modules. Nearby air lines, wiring, and hoses must remain secured away from the rotating shaft.

Maintenance and Ownership Notes

The Permalube design eliminates scheduled universal-joint greasing but does not eliminate driveline inspection.

  • Inspect universal joints for looseness and bearing movement
  • Check triple-lip seals for damage
  • Inspect machined straps and four-bolt connections
  • Check the Polyglide slip section for damage and binding
  • Inspect the tube for dents, cracks, and scoring
  • Verify balance weights remain attached
  • Check center bearings on multi-piece drivelines
  • Measure driveline angles after suspension or chassis changes
  • Investigate new vibration immediately
  • Keep assembly and component numbers in fleet records

Common Driveline and Steering Problems

  • Speed-related vibration: Imbalance, tube damage, poor operating angles, worn joints, yoke runout, missing balance weights, or center-bearing misalignment may cause vibration.
  • Clunk during torque changes: Joint wear, loose Easy Service bolts, worn straps, slip-spline damage, axle backlash, or transmission wear may create a clunk.
  • Sealed-bearing failure: Seal damage, contamination, overload, excessive angles, overheating, or incorrect installation can damage the universal joint.
  • Loose four-bolt connection: Incorrect bolts, improper torque, damaged threads, worn straps, or contaminated mating surfaces may allow movement.
  • Slip-section binding: Polyglide coating damage, contamination, corrosion, spline damage, or incorrect driveshaft length may prevent normal movement.
  • Tube damage: Road debris, improper lifting, equipment interference, shipping damage, or previous driveline failure can dent or bend the tube.
  • Excessive axial loading: A damaged slip section, incorrect driveline length, poor alignment, or spline binding may transfer excessive force into the transmission or axle.
  • Persistent vibration after repair: Incorrect ride height, poor geometry, worn mounts, damaged mating yokes, tire imbalance, wheel runout, or axle problems may remain.

Safety and Service Precautions

A loose or damaged driveline can separate while rotating and cause severe vehicle damage, injury, or loss of control. The vehicle should be removed from service when the shaft, joints, bolts, straps, or supports appear unsafe.

  • Secure and support the vehicle before working underneath it
  • Do not rely solely on air suspension or hydraulic lifting equipment
  • Use the correct RPL14 machined straps and bolts
  • Follow the specified tightening sequence and torque
  • Do not reuse damaged or stretched fasteners
  • Do not drill or add grease fittings to sealed joints
  • Do not strike, heat, straighten, or weld the shaft improperly
  • Keep personnel and equipment away from a rotating driveline
  • Professionally balance repaired or modified assemblies

Identification Information

Identification may appear on a tube label, metal tag, yoke, universal-joint assembly, parts record, or vehicle build sheet. Record:

  • Vehicle manufacturer
  • Vehicle identification number
  • Vehicle model and model year
  • Driveshaft assembly number
  • RPL14 series identification
  • Universal-joint part number
  • Machined-strap and bolt information
  • End-yoke or coupling-yoke number
  • Tube outside diameter
  • Installed and collapsed length measurements
  • Slip-spline configuration
  • Driveline position
  • Transmission model and output connection
  • Axle model and input connection
  • Center-bearing information where equipped

Buying Considerations

  • Confirm that the vehicle uses an RPL14 driveline
  • Use the original assembly number whenever possible
  • Verify the driveshaft position
  • Match installed and collapsed lengths
  • Confirm required slip travel
  • Match end-yoke and coupling-yoke connections
  • Verify tube dimensions and critical-speed capability
  • Confirm engine and transmission torque
  • Match Easy Service straps and bolts
  • Inspect used shafts for damage and unauthorized repairs
  • Review current warranty requirements
  • Use an authorized Cummins-Meritor supplier or qualified driveline shop

Variants and Configurations

  • One-piece RPL14 driveshafts
  • Sections for multi-piece drivelines
  • Different driveshaft lengths
  • Different tube diameters and wall thicknesses
  • Application-specific slip assemblies
  • Different end-yoke and coupling-yoke configurations
  • Refuse-truck applications
  • City-delivery applications
  • Transit-bus applications
  • School-bus applications
  • Construction and utility configurations

Comparison to Similar Equipment

Compared with the Meritor Permalube RPL10 Driveline, the RPL14 supports higher-capacity medium-duty applications while retaining the sealed-for-life design.

Compared with the Meritor Permalube RPL20 Driveline, the RPL14 is intended primarily for Class 6 and Class 7 vehicles rather than heavy-duty Class 8 applications.

Compared with the Dana Spicer SPL 170 Driveshaft, both may serve demanding medium-duty vehicles, but they use different joint, yoke, slip, sealing, and service designs.

Compared with a conventional greaseable driveline, the RPL14 eliminates scheduled universal-joint lubrication. A damaged sealed joint is replaced rather than restored through additional grease.

Best Fit For

  • Vehicles originally equipped with an RPL14 driveline
  • Higher-capacity Class 6 and Class 7 trucks
  • Refuse trucks
  • City-delivery vehicles
  • Transit and school buses
  • Construction trucks
  • Utility vehicles
  • Fleets seeking reduced lubrication maintenance
  • Applications requiring sealed universal joints
  • Professionally engineered medium-duty driveline replacements

Related Vehicle and Trailer Types

  • Class 6 and Class 7 trucks
  • Medium-duty straight trucks
  • Refuse trucks
  • City-delivery trucks
  • Utility trucks
  • Construction vehicles
  • Service trucks
  • Transit buses
  • School buses
  • Shuttle buses
  • Municipal vehicles

Related Truck and Trailer Models

Related Driveline and Steering System Types

Related Driveline and Steering Products

Related Equipment Systems

Related Guides

Regulatory and Compliance Notes

The driveline must remain securely attached, structurally sound, and free from conditions that could cause separation or interference with other vehicle systems. Commercial-vehicle inspection requirements vary by jurisdiction and operating authority.

Installing an RPL14 does not increase the vehicle’s certified axle, frame, transmission, brake, tire, wheel, gross vehicle weight, or legal payload ratings.

Real World Operating Notes

The RPL14 eliminates routine universal-joint greasing, but fleets should continue inspecting the sealed joints, straps, bolts, slip section, tube, yokes, and center bearings.

The Polyglide slip section should move smoothly without binding. Damage or contamination can increase axial loads and transmit unwanted force into the transmission or axle.

When driveline vibration appears, ride height and operating angles should be checked before parts are replaced. A new joint or shaft will not correct poor chassis geometry.

Frequently Asked Questions

What is the Meritor Permalube RPL14?

It is a permanently lubricated medium-duty commercial driveline designed primarily for Class 6 and Class 7 trucks, buses, and vocational vehicles.

Does the RPL14 require greasing?

The Permalube universal joints are lubricated and sealed at the factory and do not require routine grease service.

What is the Easy Service yoke connection?

It is a four-bolt connection using machined straps to secure the universal-joint bearing assemblies to the yoke.

What does the Polyglide coating do?

The nylon coating reduces friction in the slip section and helps minimize the axial loads created as the driveshaft changes length.

What is the difference between RPL10 and RPL14?

The RPL14 is the higher-capacity medium-duty member of the pair. Both are intended primarily for Class 6 and Class 7 applications and use permanently lubricated designs.

Does sealed for life mean inspection-free?

No. The universal joints, seals, straps, bolts, yokes, slip section, tube, balance weights, and center bearings must still be inspected.

What applications use the RPL14?

Applications include refuse trucks, city-delivery vehicles, transit buses, school buses, construction vehicles, utility trucks, and other medium-duty chassis.

What causes an RPL14 driveline to vibrate?

Possible causes include imbalance, tube damage, poor operating angles, loose bolts, worn joints, yoke runout, slip-section problems, or center-bearing misalignment.

How is the correct replacement identified?

Use the driveshaft assembly number, vehicle identification number, RPL14 designation, length, tube dimensions, slip configuration, yokes, transmission information, and axle connection.

Does an RPL14 increase vehicle capacity?

No. Vehicle capacity remains limited by its certified frame, transmission, axles, suspension, brakes, tires, wheels, and gross weight ratings.

Availability and Where to Find

Meritor Permalube RPL14 driveshaft assemblies, universal joints, machined straps, bolts, yokes, slip components, and related replacement parts may be available through Cummins-Meritor distributors, commercial-truck dealers, bus dealers, heavy-duty parts suppliers, and qualified driveline facilities.

Availability depends on the assembly number, length, tube specification, yokes, slip configuration, vehicle manufacturer, and original-equipment application. Complete vehicle and driveshaft information should be provided before ordering.

Current product information is available through the Cummins-Meritor Permalube RPL Medium-Duty Driveline Series page. Replacement components may also be researched through Meritor Parts Xpress.

Support Trucking Families

Truck Equipment Atlas supports the mission of Grey Cross, a nonprofit dedicated to helping families of truck drivers who lose their lives while on the road. As the site grows, part of its mission is to bring awareness and support to these families.

Podcast or Video Section

Learn More Through Audio and Video

Truck Equipment Atlas will continue expanding with podcast episodes, interviews, and equipment breakdowns to help drivers and fleets better understand trucks and equipment.

Follow the Growth of Truck Equipment Atlas

Truck Equipment Atlas continues to expand with new truck profiles, trailer coverage, diesel engine pages, equipment system resources, manufacturer information, and educational guides.

Visit our Site Updates page to explore recent additions, project milestones, and upcoming resources as we continue building one of the industry’s growing commercial trucking equipment reference libraries.

View the Latest Site Updates: Truck Equipment Atlas Site Updates

Scroll to Top
