Quick Facts

  • Manufacturer: SAF-Holland
  • Brand: Holland
  • Product Model: FW33
  • Product Type: Low-lubrication commercial fifth wheel
  • Coupling Type: Semitrailer kingpin coupling
  • Configuration: Stationary or sliding, depending on mounting system
  • Top-Plate Construction: Cast steel with replaceable Low-Lube inserts
  • Maximum Vertical Load: 55,000 pounds
  • Maximum Drawbar Pull: 150,000 pounds
  • Kingpin Compatibility: Standard 2-inch kingpin
  • Locking System: TwinLock mechanism
  • Release Options: Manual or optional air release
  • Primary Applications: Highway and vocational hauling
  • Production Status: Current product family

Overview

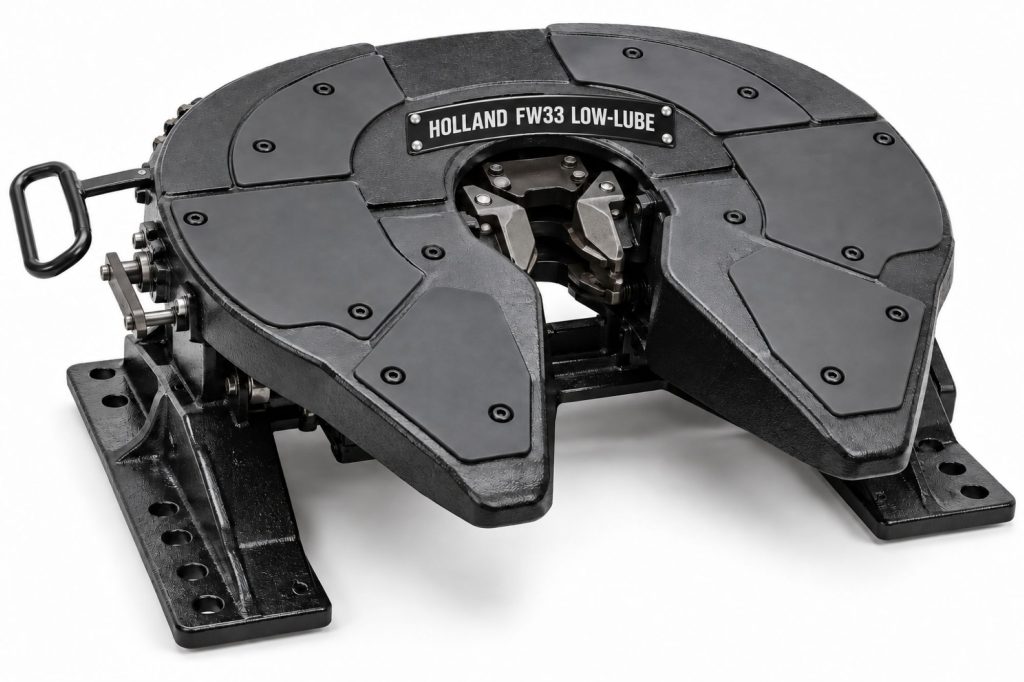

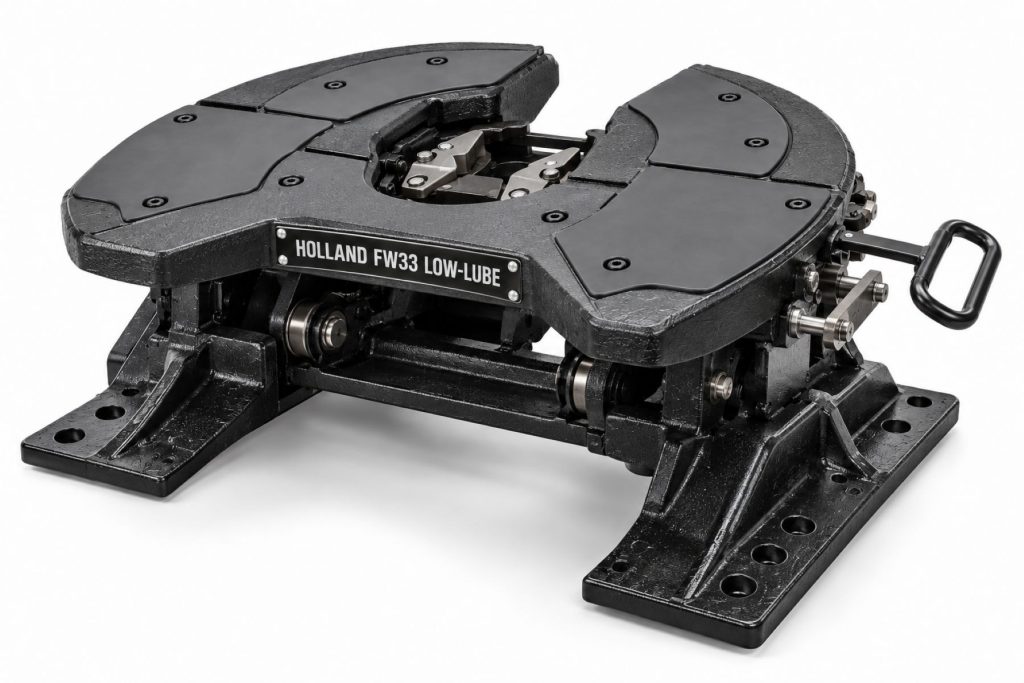

The Holland FW33 is a cast-steel commercial fifth wheel that combines the proven architecture of the Holland FW35 family with Low-Lube technology. Replaceable top-plate inserts reduce routine grease requirements while maintaining a durable connection between a tractor and semitrailer.

The FW33 is designed primarily for highway and vocational operations where the tractor may remain connected to the same trailer for extended periods. Its reduced-lubrication design can lower grease use, simplify maintenance, and keep the fifth-wheel area cleaner.

The product family includes stationary and sliding mounts, manual and air-release mechanisms, ELI-te electronic coupling technology, Kompensator mounting systems, and No-Tilt configurations. Exact compatibility depends on the tractor, trailer, operating environment, and complete model number.

Key Characteristics

  • Cast-steel fifth-wheel top plate
  • Replaceable Low-Lube top-plate inserts
  • NoLube articulation-pocket liners
  • TwinLock kingpin-locking mechanism
  • Infinite lock adjustment
  • Visible lock indicator
  • Automatic secondary lock
  • E-Z Grip drop release handle
  • Manual or optional in-cab air release
  • Optional ELI-te coupling technology
  • Stationary and sliding mounting options
  • Kompensator and No-Tilt options

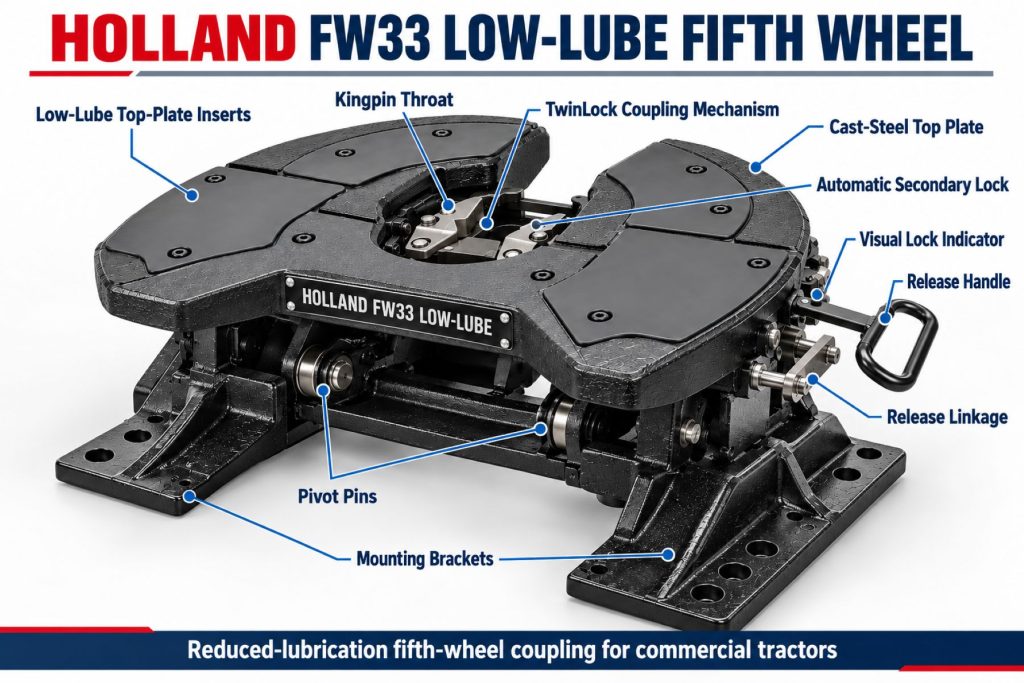

Major Components

  • Cast-steel top plate
  • Replaceable Low-Lube plates
  • Top-plate insert fasteners
  • Fifth-wheel throat
  • Twin locking jaws
  • Locking yoke
  • Lock-adjustment mechanism
  • Release handle and linkage
  • Automatic secondary lock
  • Visual lock indicator
  • Pivot pins and NoLube pocket liners
  • Mounting brackets
  • Slider rails and locking plungers when equipped
  • Air-release equipment when equipped
  • ELI-te sensors and indicators when equipped

Coupling Type and Design

The FW33 is a tractor-mounted fifth wheel designed to connect with a standard 2-inch semitrailer kingpin. Its cast-steel top plate supports the trailer upper coupler, while replaceable Low-Lube inserts provide the primary sliding contact surface.

The TwinLock system uses two locks that surround the kingpin. The locking components are designed to provide substantial kingpin contact while allowing adjustment as normal wear occurs.

How the Coupling System Works

When the tractor backs beneath the trailer, the kingpin enters the fifth-wheel throat and activates the locking mechanism. The TwinLock jaws close around the kingpin, the release handle returns to its locked position, and the automatic secondary lock provides an additional retention feature.

Once coupled, the fifth wheel supports part of the trailer’s vertical load and transfers pulling, braking, and cornering forces between the trailer and tractor frame. The top plate pivots through its mounting system to accommodate normal road movement.

The Low-Lube inserts allow the trailer upper coupler to move across the fifth-wheel surface without the conventional layer of top-plate grease.

Position and Function Within the Vehicle

The FW33 is mounted above the tractor frame near the drive-axle group. Its location affects trailer clearance and weight distribution between the tractor’s steer and drive axles.

The fifth wheel supports the trailer, secures the kingpin, permits articulation, and transfers towing and braking forces into the tractor. A sliding installation also allows the coupling position to be adjusted forward or rearward.

Common Specifications

  • Maximum Vertical Load: 55,000 pounds
  • Maximum Drawbar Pull: 150,000 pounds
  • Kingpin Size: 2 inches
  • Top Plate: Cast steel
  • Top-Plate Surface: Replaceable Low-Lube inserts
  • Articulation Pockets: NoLube liners
  • Release: Manual or optional air release
  • Mounting: Stationary, sliding, Kompensator, or No-Tilt
  • Release Orientation: Left-hand or right-hand configurations

Mounting height, slider travel, frame-width code, assembly weight, and mounting arrangement vary by model. Buyers should use the complete FW33 assembly number when confirming specifications.

Load Ratings and Operating Capacity

SAF-Holland rates the FW33 for a maximum vertical load of 55,000 pounds and maximum drawbar pull of 150,000 pounds. These ratings depend on correct installation, approved mounting equipment, proper maintenance, and operation within the intended application.

The fifth-wheel rating does not increase the tractor’s certified gross vehicle or gross combination weight ratings. Frame, mounts, axles, suspension, brakes, tires, wheels, and trailer components must remain within their respective limits.

Articulation and Oscillation

A standard FW33 pivots forward and rearward through its mounting brackets. The NoLube articulation-pocket liners allow this movement without conventional grease between the top plate and brackets.

Optional Kompensator mounting systems provide side-to-side compensation for approved uneven-terrain applications. No-Tilt systems restrict fifth-wheel tilting where articulation is provided by the trailer.

Sliding and Adjustment System

Sliding FW33 assemblies can move forward or rearward along frame-mounted rails. This allows operators to adjust axle-weight distribution and tractor-to-trailer clearance.

The slide assembly uses locking plungers that must engage completely before road operation. Slider travel and mounting height depend on the selected assembly. This section does not apply to stationary FW33 installations.

Release and Locking Mechanism

The TwinLock mechanism uses two locking components that surround the kingpin. Infinite lock adjustment allows technicians to maintain the proper relationship between the lock and kingpin as normal wear occurs.

The E-Z Grip drop release handle is designed to reduce the likelihood of damage during an improper coupling attempt. FW33 configurations may use left-hand, right-hand, or optional air-operated release equipment.

Air and Electronic Controls

Standard manual-release configurations do not require air or electronic controls. Optional in-cab air release uses the tractor’s compressed-air system, control valve, air lines, and pneumatic actuator to open the fifth-wheel lock.

Optional ELI-te technology uses electronic indicators and illumination to assist the driver when checking coupling status. These features supplement but do not replace the required visual inspection and tug test.

Mounting and Installation

The FW33 can be installed with approved stationary or sliding mounting systems. Installation must account for frame width, bracket design, mounting height, axle clearance, suspension travel, trailer clearance, fastener specifications, and intended operation.

Installation, welding, drilling, and fastener procedures must follow the instructions for the exact fifth-wheel and mounting assembly. Unapproved frame or bracket modifications can reduce structural integrity.

Vehicle Frame and Mounting Compatibility

Compatibility depends on the tractor manufacturer, model, frame width, rail dimensions, crossmember arrangement, drive-axle position, suspension travel, fifth-wheel height, and required slider travel.

The top plate, brackets, slider, mounting angles, fasteners, and tractor frame must collectively support the intended load and service. Top-plate capacity alone does not confirm complete-vehicle compatibility.

Mating Component and Trailer Compatibility

The FW33 is designed for a properly installed and serviceable SAE-compatible 2-inch kingpin. The trailer upper-coupler plate must be flat, structurally sound, clean, and compatible with the FW33 Low-Lube inserts.

Bent, worn, oversized, undersized, or loosely mounted kingpins can prevent correct coupling. Damaged upper couplers, added lube plates, contamination, and incorrect trailer height can also interfere with the locking system or Low-Lube surfaces.

Common Applications

  • Long-haul highway tractors
  • Regional-haul tractors
  • Vocational tractors
  • Dedicated tractor-and-trailer combinations
  • Dry-van trailers
  • Refrigerated trailers
  • Flatbed trailers
  • Tank and dry-bulk trailers with approved mounts
  • Approved dump-trailer applications
  • Approved off-highway vocational operations

Advantages

  • Eliminates grease from the top-plate surface
  • Reduces grease use and cleanup
  • Replaceable Low-Lube inserts
  • Grease-free articulation-pocket liners
  • Durable cast-steel construction
  • TwinLock coupling mechanism
  • Infinite lock adjustment
  • Visible lock indicator
  • Manual and air-release options
  • Stationary and sliding mounting options
  • Optional electronic coupling assistance

Limitations or Considerations

  • The locking mechanism still requires lubrication.
  • Low-Lube inserts require inspection and eventual replacement.
  • Damaged inserts can affect trailer movement and top-plate protection.
  • Incorrect trailer height can cause high coupling.
  • Not every mounting system is approved for every trailer type.
  • Slider systems add weight and maintenance points.
  • Air-release systems require a dependable air supply.
  • The fifth-wheel rating does not override other vehicle ratings.

Driver and Operator Experience

The Low-Lube top plate keeps grease away from many areas commonly contacted during inspection and maintenance. This can reduce cleanup and make the coupling area easier to work around.

Drivers must still inspect the locking mechanism, release handle, secondary lock, slider plungers, Low-Lube inserts, kingpin, and trailer upper coupler. A visual inspection and tug test remain mandatory after every coupling.

Coupling and Uncoupling Procedure

Before coupling, inspect the fifth wheel, Low-Lube inserts, mounting system, kingpin, upper coupler, release mechanism, slider locks, and optional air or electronic equipment.

  1. Confirm that the coupling area is level and clear.
  2. Verify that the locks are ready to receive the kingpin.
  3. Align the tractor with the trailer kingpin.
  4. Confirm that the trailer is at the correct coupling height.
  5. Back beneath the trailer slowly and in a straight line.
  6. Complete the coupling and set the parking brakes.
  7. Visually inspect the locking jaws, release handle, and secondary lock.
  8. Perform a tug test.
  9. Connect the trailer air and electrical lines.
  10. Raise the landing gear and complete a final walk-around.

This overview does not replace SAF-Holland instructions, fleet procedures, or required driver training.

Inspection and Wear Points

  • Low-Lube top-plate inserts
  • Insert fasteners and mounting areas
  • TwinLock jaws and kingpin contact surfaces
  • Fifth-wheel throat
  • Release handle and linkage
  • Automatic secondary lock
  • Lock-adjustment components
  • Pivot pins and pocket liners
  • Mounting brackets and fasteners
  • Slider rails and locking plungers
  • Air lines and release actuator
  • ELI-te sensors, lights, and wiring
  • Trailer kingpin and upper-coupler plate

Lubrication Requirements

The FW33 does not require grease across the top-plate surface or between the top plate and articulation brackets. The Low-Lube plates and NoLube pocket liners provide these reduced-maintenance contact surfaces.

The kingpin-locking mechanism still requires the lubricant and service intervals specified by SAF-Holland. Low-Lube does not mean that the entire fifth-wheel assembly is maintenance-free.

Maintenance and Ownership Notes

Routine maintenance should include cleaning, locking-mechanism lubrication, lock adjustment, Low-Lube insert inspection, fastener checks, slider inspection, and examination of the tractor frame and trailer upper coupler.

Low-Lube inserts should be replaced when they reach the applicable wear limit or become cracked, loose, distorted, or otherwise damaged. Replacement parts must match the complete FW33 model and production configuration.

Common Coupling Problems

  • High coupling: The kingpin enters above the locks because the trailer is positioned too high.
  • Failure to lock: Contamination, damaged components, improper alignment, incorrect kingpin dimensions, or lock maladjustment can prevent full engagement.
  • Difficult release: Pressure between the tractor and trailer, inadequate lock lubrication, damaged linkage, or binding can prevent easy release.
  • Excessive kingpin movement: Worn locks, a worn kingpin, improper adjustment, or damaged components can create excessive play.
  • Damaged Low-Lube inserts: Wear, loose fasteners, contamination, impact damage, or an unsuitable trailer upper coupler can damage the inserts.
  • Slider problems: Debris, air leakage, damaged rails, binding, or misalignment can prevent movement or complete plunger engagement.
  • Air-release failure: Low air pressure, damaged lines, valve failure, actuator problems, or mechanical binding can prevent release.

Safety and Service Precautions

Never place any part of the body between an unsecured tractor and trailer. Set the parking brakes, chock the trailer wheels, and follow approved support and lockout procedures before inspection or service.

Never operate the vehicle without visually confirming complete lock engagement and performing a tug test. Air-release controls and ELI-te indicators do not replace physical coupling verification.

Identification Information

Record the following information before ordering replacement components or a complete assembly:

  • Complete FW33 assembly number
  • XA-331 top-plate number
  • Serial or production information
  • Left- or right-hand release
  • Manual or air-release configuration
  • Stationary or sliding mount
  • Nominal fifth-wheel height
  • Slider travel
  • Frame-width code
  • Kompensator or No-Tilt configuration
  • ELI-te equipment when installed

Buying Considerations

  • Confirm the required vertical-load and drawbar-pull ratings.
  • Verify that Low-Lube technology fits the fleet’s operating pattern.
  • Choose between stationary and sliding mounting.
  • Determine the required mounting height and slider travel.
  • Verify tractor-frame dimensions and mounting compatibility.
  • Select manual or optional air release.
  • Determine whether ELI-te technology is required.
  • Check whether Kompensator or No-Tilt mounting is necessary.
  • Confirm trailer upper-coupler compatibility.
  • Verify replacement-insert and service-part availability.

Variants and Configurations

  • Stationary FW33
  • Sliding FW33
  • Manual release
  • In-cab air release
  • Left-hand or right-hand release
  • ELI-te-equipped configurations
  • Inboard or outboard mounting
  • Kompensator mounting system
  • No-Tilt mounting system
  • Different mounting heights and slider-travel lengths

Comparison to Similar Equipment

Compared with the Holland FW35 Fifth Wheel, the FW33 adds replaceable Low-Lube top-plate inserts. Both use related cast-steel architecture, TwinLock technology, and a 2-inch kingpin connection.

Compared with the Holland FW17 Lightweight Fifth Wheel, the FW33 is positioned as a heavier vocational and reduced-maintenance fifth-wheel platform.

Compared with the Holland FWAL Aluminum Fifth Wheel, the FW33 uses a cast-steel top plate and places less emphasis on minimum fifth-wheel weight.

Best Fit For

  • Fleets seeking reduced top-plate lubrication
  • Vocational tractors
  • Dedicated tractor-and-trailer combinations
  • Highway and regional fleets
  • Operations wanting a cleaner coupling area
  • Vehicles requiring stationary or sliding mounting
  • Applications requiring manual or air release
  • Fleets needing a 2-inch kingpin connection

Related Vehicle and Trailer Types

  • Commercial Trucks
  • Commercial Trailers
  • Highway tractors
  • Regional tractors
  • Vocational tractors
  • Dry-van trailers
  • Refrigerated trailers
  • Flatbed trailers
  • Tank trailers
  • Approved dump trailers

Related Truck and Trailer Models

Related Coupling Types

Related Coupling Products

Related Equipment Systems

Related Guides

Regulatory and Compliance Notes

Fifth-wheel installation and operation must comply with applicable commercial-vehicle regulations, inspection requirements, vehicle-manufacturer instructions, and coupling-equipment standards.

The fifth wheel, mounting system, tractor frame, trailer kingpin, upper coupler, suspension, axles, tires, wheels, and brakes must remain within their individual ratings. Slider adjustment does not increase certified vehicle capacity.

Real World Operating Notes

The FW33 is particularly useful where reducing top-plate grease and cleanup provides a practical maintenance advantage. Fleets should still schedule regular locking-mechanism lubrication and inspection.

Correct trailer height remains essential. Low-Lube technology does not prevent high coupling caused by an incorrectly positioned trailer.

Low-Lube inserts should be kept clean and inspected for damage. Trailer upper-coupler defects can shorten insert life and affect coupling performance.

Frequently Asked Questions

What is the Holland FW33?

The FW33 is a cast-steel commercial fifth wheel equipped with replaceable Low-Lube top-plate inserts and NoLube articulation-pocket liners.

Does the FW33 require top-plate grease?

No. Its Low-Lube inserts eliminate the normal requirement to grease the top-plate surface.

Does Low-Lube mean the entire fifth wheel is lubrication-free?

No. The locking mechanism still requires lubrication according to SAF-Holland service instructions.

What is the FW33 vertical-load rating?

SAF-Holland lists a maximum vertical load of 55,000 pounds.

What is its maximum drawbar pull?

The listed maximum drawbar-pull rating is 150,000 pounds.

What kingpin size does the FW33 use?

It is designed for a standard 2-inch semitrailer kingpin.

Is the FW33 available with a slider?

Yes. Stationary and sliding mounting configurations are available.

Can it use an in-cab air release?

Yes. Optional pneumatic release equipment is available for compatible configurations.

Can damaged Low-Lube inserts be replaced?

Yes. The inserts are replaceable, but the correct parts and installation procedure must be used for the identified FW33 model.

Availability and Where to Find

The Holland FW33 and its replacement components may be available through SAF-Holland dealers, commercial-truck dealers, heavy-duty parts suppliers, fleet-maintenance suppliers, fifth-wheel specialists, and truck repair facilities.

Availability depends on mounting style, fifth-wheel height, slider travel, frame width, release configuration, and optional equipment. The complete model number should be verified before ordering.

Current information, manuals, parts resources, and support are available through the official SAF-Holland FW33 product page.

Support Trucking Families

Truck Equipment Atlas supports the mission of Grey Cross, a nonprofit dedicated to helping families of truck drivers who lose their lives while on the road. As the site grows, part of its mission is to bring awareness and support to these families.

Podcast or Video Section

Learn More Through Audio and Video

Truck Equipment Atlas will continue expanding with podcast episodes, interviews, and equipment breakdowns to help drivers and fleets better understand trucks and equipment.

Follow the Growth of Truck Equipment Atlas

Truck Equipment Atlas continues to expand with new truck profiles, trailer coverage, diesel engine pages, equipment system resources, manufacturer information, and educational guides.

Visit our Site Updates page to explore recent additions, project milestones, and upcoming resources as we continue building one of the industry’s growing commercial trucking equipment reference libraries.

View the Latest Site Updates: Truck Equipment Atlas Site Updates

Scroll to Top
