GM 10L1000 Allison-Branded Transmission

Quick Facts

  • Manufacturer: General Motors
  • Branding: Allison-Branded and Validated in Partnership with Allison Transmission
  • Transmission Model: GM 10L1000
  • Transmission Type: Heavy-Duty Fully Automatic Transmission
  • Forward Speeds: 10
  • Reverse Speeds: 1
  • First-Gear Ratio: 4.54:1
  • Direct-Drive Gear: 7th Gear at 1.00:1
  • Overdrive Gears: 8th, 9th, and 10th
  • Top-Gear Ratio: 0.63:1
  • Reverse Ratio: 4.54:1
  • Launch System: Hydraulic Torque Converter
  • Internal Design: Planetary Gearsets with Wet Clutch Packs
  • Control Type: Electronically Controlled Automatic
  • Original Engine Pairing: 6.6L Duramax L5P Turbo-Diesel V8
  • Later Engine Pairing: GM 6.6L L8T Gas V8 beginning with the 2024 Silverado HD and Sierra HD generation
  • Primary Truck Applications: Chevrolet Silverado 2500HD and 3500HD; GMC Sierra 2500HD and 3500HD
  • PTO Compatibility: Engine-Driven PTO Provision on Compatible Chassis-Cab Configurations
  • Production Location: General Motors Toledo Transmission Operations in Ohio
  • Production Status: Active Production

Overview

The GM 10L1000 is a heavy-duty 10-speed automatic transmission introduced in the 2020 Chevrolet Silverado HD and GMC Sierra HD.

It was launched as the transmission paired with the updated 6.6L Duramax L5P diesel engine. Beginning with the 2024 model-year HD trucks, GM also paired an Allison-branded 10-speed automatic with the 6.6L L8T gasoline V8.

The transmission provides ten forward ranges, including three overdrive gears. Its 4.54:1 first gear improves launch and towing performance, while its 0.63:1 tenth gear reduces engine speed during suitable highway operation.

Although it carries the Allison name, the 10L1000 is manufactured by General Motors. GM developed and produces the transmission, while Allison participated in testing and validation and authorized Allison branding.

This distinction is important because the 10L1000 is not the same transmission as the traditional commercial Allison 1000 Series, which was designed and manufactured by Allison Transmission.

Key Characteristics

The 10L1000 uses a hydraulic torque converter to provide smooth starts, controlled low-speed movement, and torque multiplication.

Ten closely spaced forward ratios allow the transmission to keep the engine within a productive operating range during acceleration, towing, and grade climbing.

The transmission can skip unnecessary gears. A lightly loaded truck may move through only selected ratios, while a heavily loaded truck may use more of the available range.

Seventh gear is direct drive. Eighth, ninth, and tenth provide overdrive ratios for highway operation.

The transmission was designed to integrate with GM’s engine controls, exhaust-braking system, transfer case, trailer technology, and Tow/Haul programming.

Compatible chassis-cab installations can include an engine-driven PTO provision for hydraulic equipment.

How the Transmission Works

Engine power enters the transmission through the torque converter. The converter’s impeller moves automatic transmission fluid, transferring power to the turbine and transmission input.

During launch, the converter can multiply torque. This helps a heavily loaded truck begin moving without a mechanical clutch pedal.

The transmission control system monitors accelerator position, engine torque, vehicle speed, trailer load, road grade, brake input, transmission temperature, selected drive mode, and other operating information.

Hydraulic pressure applies combinations of internal wet clutch packs. Each clutch combination controls the planetary gearsets and produces one of the ten forward ratios or Reverse.

As the truck accelerates, the control system selects the ratios needed for the current load. It can skip gears when using every ratio would provide no benefit.

The torque-converter lockup clutch engages when conditions permit. Lockup reduces converter slippage, controls heat, and improves fuel efficiency.

During descents, Tow/Haul mode, grade braking, and the Duramax exhaust brake can work with the transmission to select a lower gear and help control vehicle speed.

Common Specifications

Transmission Type

The 10L1000 is a longitudinal, electronically controlled, fully automatic transmission using a hydraulic torque converter, planetary gearsets, and wet clutch packs.

Forward Speeds

The transmission provides ten forward speeds.

The smaller steps between gears help the engine remain closer to its effective power and torque range.

Gear Ratios

  • 1st: 4.54:1
  • 2nd: 2.86:1
  • 3rd: 2.06:1
  • 4th: 1.72:1
  • 5th: 1.48:1
  • 6th: 1.26:1
  • 7th: 1.00:1
  • 8th: 0.85:1
  • 9th: 0.68 or 0.69:1 depending on published rounding
  • 10th: 0.63:1
  • Reverse: 4.54:1

Direct Drive

Seventh gear provides a 1.00:1 direct-drive ratio.

Overdrive

Eighth, ninth, and tenth are overdrive gears.

Tenth provides the lowest cruising ratio at approximately 0.63:1.

Torque Capacity

The 10L1000 was introduced behind the Duramax L5P producing 910 lb-ft in the 2020 Silverado and Sierra HD.

Later Duramax ratings reached 975 lb-ft. The transmission, engine controls, torque management, cooling, axle ratio, and truck ratings are calibrated as a complete powertrain.

The “1000” designation should not be interpreted as a universal aftermarket torque rating.

Horsepower Compatibility

Initial diesel applications used Duramax ratings around 445 horsepower.

Current Duramax-equipped Silverado HD and Sierra HD configurations produce approximately 470 horsepower.

Gas-powered versions are paired with the 6.6L L8T V8 producing approximately 401 horsepower and 464 lb-ft.

Torque Converter

The converter provides hydraulic torque multiplication during launch and permits controlled movement while the engine remains running in gear.

Converter design and calibration vary by engine and application.

Lockup Clutch

The electronically controlled lockup clutch can engage in lower ranges than many older automatic transmissions.

Earlier lockup helps reduce heat and improve mechanical efficiency during towing and loaded acceleration.

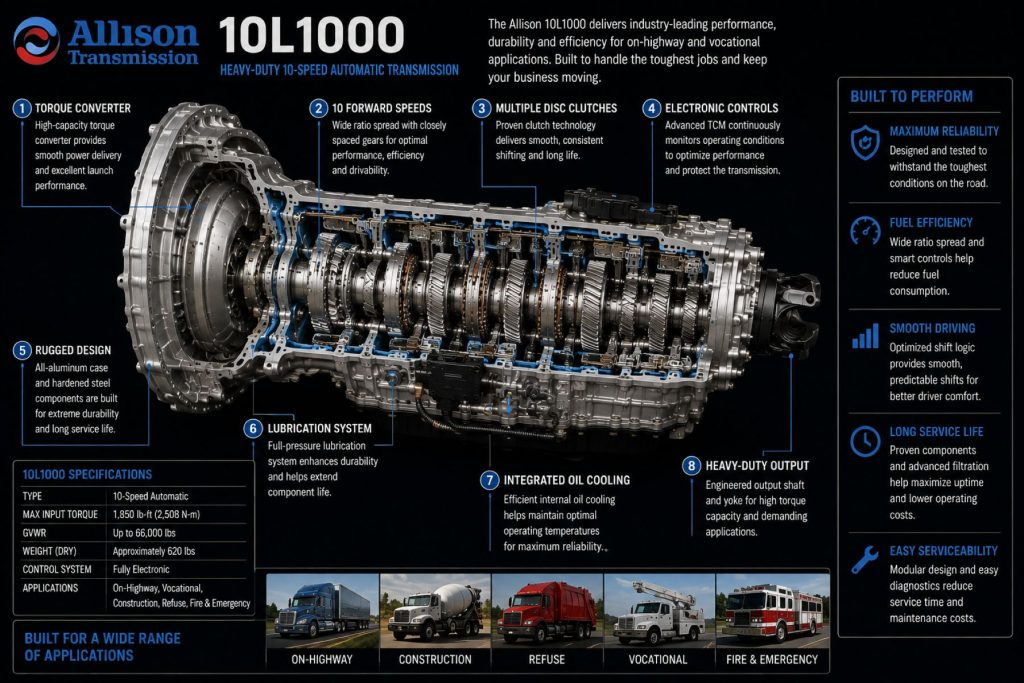

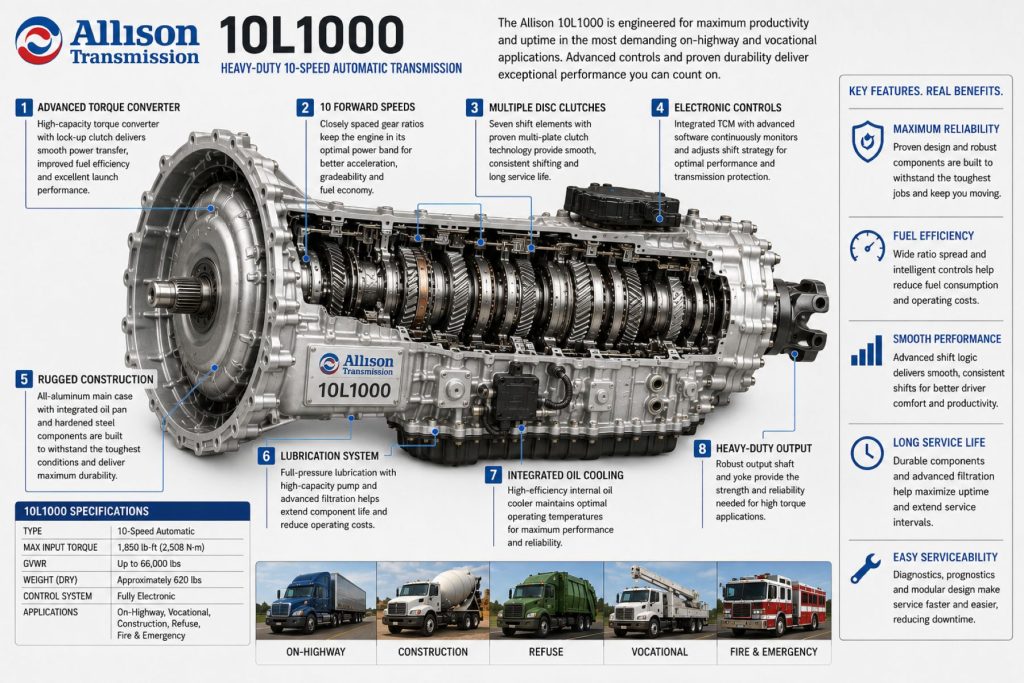

Internal Design

The 10L1000 uses multiple planetary gearsets and electronically controlled wet clutch packs.

The internal clutch combinations produce ten forward ranges without using ten separate conventional gear pairs.

Electronic Controls

Transmission operation is coordinated with:

  • Engine control module
  • Accelerator controls
  • Duramax exhaust brake
  • Tow/Haul mode
  • Grade braking
  • Transfer case
  • Trailer-brake controller
  • Instrument cluster
  • PTO controls where equipped
  • Vehicle stability and braking systems

Tow/Haul Mode

Tow/Haul mode changes shift timing, converter lockup, downshifting, and grade behavior for loaded operation.

It can reduce unnecessary shifting and increase engine braking during descents.

Grade Braking

Grade-braking logic can command downshifts when the driver applies the brake on a descent.

With the Duramax diesel, the transmission also coordinates with the exhaust brake.

Manual Range Selection

Electronic range selection allows the driver to limit the highest available gear.

The transmission can reject a requested downshift if it would overspeed the engine.

PTO Provision

Compatible diesel chassis-cab configurations can include an engine-driven PTO provision.

Published configurations use a passenger-side SAE A-style two-bolt pump mounting arrangement with an internally splined output.

Exact PTO power, speed, rotation, hydraulic flow, and mobile-operation capability must be verified for the individual truck.

PTO Output

Some diesel chassis-cab specifications list PTO output reaching approximately 43 horsepower, with hydraulic flow depending on pump selection and engine speed.

The completed upfit must remain within GM’s approved limits.

Transmission Fluid

The 10L1000 uses GM-approved DEXRON ULV automatic transmission fluid.

It should not be filled with traditional Allison TES 295 or TES 668 fluid unless GM service information specifically approves it for the application.

Fluid Capacity

Total capacity is commonly listed at approximately 13 to 14 quarts, although the amount required during service depends on whether the pan, filter, converter, cooler, and lines are drained.

A normal pan and filter service replaces less than the complete system capacity.

Cooling System

The transmission uses an oil cooler to manage heat during towing, grade climbing, vocational work, and low-speed operation.

Cooling-system performance depends on fluid level, cooler cleanliness, airflow, coolant temperature, and load.

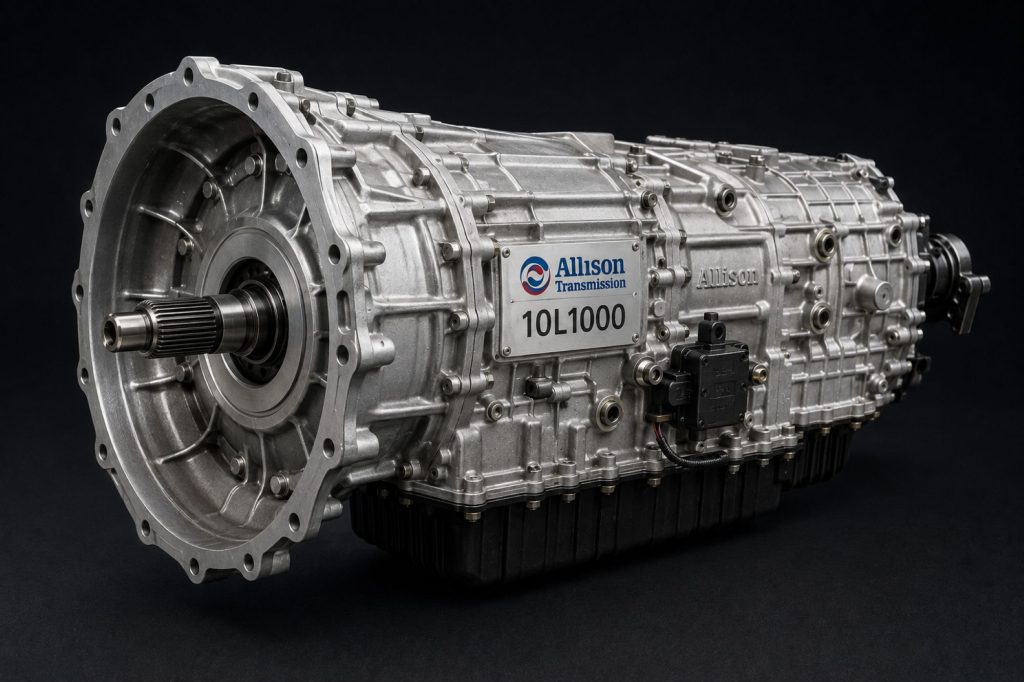

Case Construction

The main housing uses aluminum construction to balance strength and weight.

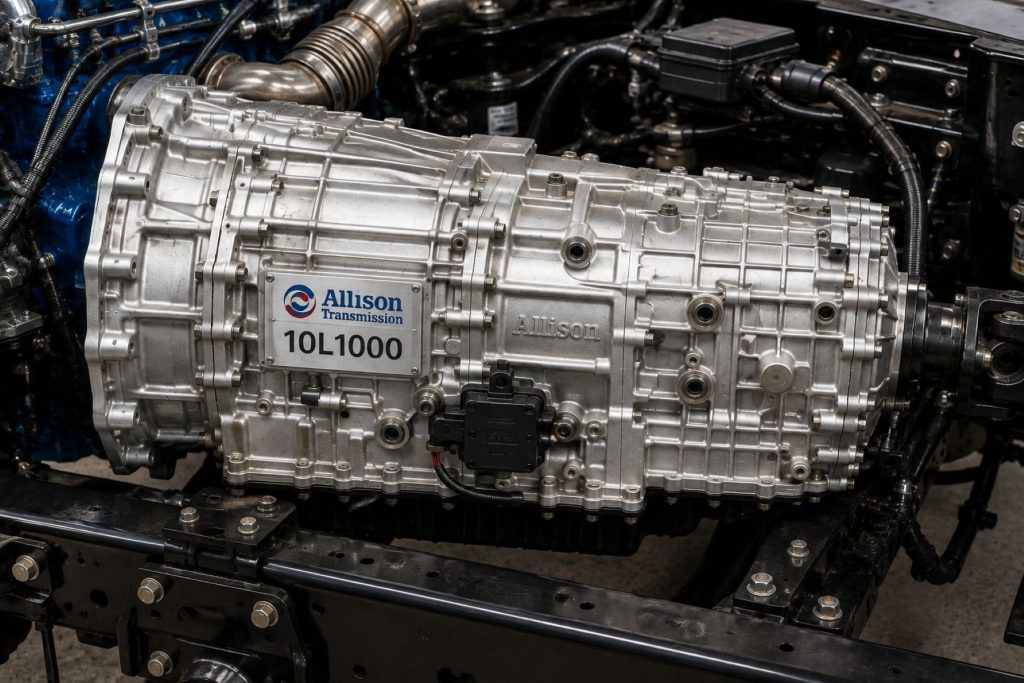

Installation Requirements

Installation requires compatible GM engine controls, torque converter, flexplate, transmission controller, wiring, cooler, mounts, transfer case or output section, driveshaft, and programming.

Replacement transmissions may require VIN-specific setup and adaptive-learning procedures.

Common Applications

  • Heavy-duty pickup trucks
  • Commercial chassis-cab trucks
  • Fifth-wheel towing
  • Gooseneck towing
  • Equipment trailers
  • Recreational towing
  • Construction contractors
  • Agricultural towing
  • Utility-service bodies
  • Tow and recovery vehicles
  • Service-body trucks
  • Dump-body trucks
  • Snowplow applications
  • Municipal service
  • Commercial fleet operations
  • PTO-equipped chassis cabs

Truck and Engine Compatibility

The GM 10L1000 is used primarily in Class 2 and Class 3 Chevrolet and GMC heavy-duty trucks.

Common applications include:

  • Chevrolet Silverado 2500HD
  • Chevrolet Silverado 3500HD
  • Chevrolet Silverado 3500HD Chassis Cab
  • GMC Sierra 2500HD
  • GMC Sierra 3500HD
  • GMC Sierra 3500HD Chassis Cab
  • Primary engine pairings include:
  • Duramax 6.6L Commercial Diesel
  • GM 6.6L Gas V8

The Duramax diesel pairing began with the 2020 model year. The gasoline-engine pairing was introduced for the 2024 Silverado HD and Sierra HD generation.

The 10L1000 should not be listed as the transmission for the Chevrolet 6500XD. Silverado 4500HD, 5500HD, 6500HD, and related medium-duty trucks use commercial Allison transmission models rather than the pickup-based GM 10L1000.

Advantages

  • Ten forward ratios provide a wide operating range
  • Deep first gear improves loaded starts
  • Three overdrive gears support highway efficiency
  • Torque converter provides smooth low-speed control
  • No mechanical clutch pedal
  • Close integration with the Duramax diesel
  • Tow/Haul mode supports loaded operation
  • Coordinates with the Duramax exhaust brake
  • Grade braking improves descent control
  • Skip shifting avoids unnecessary gear changes
  • Available with gasoline and diesel HD engines
  • PTO capability is available on compatible chassis cabs
  • Smaller gear steps improve power delivery
  • More ratio flexibility than the earlier six-speed Allison-branded transmission
  • Automatic operation reduces driver workload

Limitations or Considerations

  • Manufactured by GM rather than Allison Transmission
  • Not the same as the commercial Allison 1000 Series
  • More complex than the earlier six-speed unit
  • DEXRON ULV fluid is application-specific
  • Repairs can be expensive
  • Electronic diagnosis requires compatible GM equipment
  • PTO availability is limited to compatible configurations
  • Used units may require VIN-specific programming
  • Different engine calibrations may use different internal or software specifications
  • Heavy towing places substantial demand on the cooling system
  • Aftermarket engine tuning can exceed approved limits
  • Valve-body and control problems can affect shift quality
  • The Allison name can create confusion when ordering parts

Driver and Operator Experience

The 10L1000 provides conventional two-pedal automatic operation. The driver selects Drive or Reverse and allows the transmission to manage gear changes.

The transmission does not necessarily use every gear during each acceleration. Skip shifting is normal, especially when the truck is lightly loaded.

When towing, the control system may use more ratios and hold gears longer. It may also remain in seventh, eighth, or ninth rather than shifting into tenth.

Tow/Haul mode should be used when carrying or pulling substantial weight. It changes the transmission’s shift and grade-braking behavior.

With the Duramax diesel, the exhaust brake and transmission work together during descents. The system may downshift and raise engine speed to increase braking force.

Drivers should monitor transmission temperature during mountain towing, heavy hauling, off-road operation, and high-temperature conditions.

Maintenance and Ownership Notes

The 10L1000 requires GM-approved DEXRON ULV automatic transmission fluid.

Traditional Allison commercial fluids should not be substituted solely because the transmission carries Allison branding.

Fluid condition should be checked for discoloration, burnt odor, metal, coolant, water, or clutch material.

The transmission pan, internal filter, cooler, lines, seals, wiring, connectors, and transfer-case interface should be inspected regularly.

Severe service can include frequent towing, commercial operation, snowplowing, off-road driving, repeated stop-and-go work, and extended idling.

Some maintenance schedules call for fluid and filter service around 45,000 miles under severe operation. Owners should follow the schedule for the exact model year and use.

Software updates may improve shift quality, diagnostics, converter operation, or drivability.

Following replacement or major repair, adaptive-learning and fast-learn procedures may be required.

Common Transmission Problems

Harsh Shifting

Harsh shifts can result from valve-body wear, solenoid faults, adaptive-learning problems, incorrect fluid level, software, or internal clutch damage.

Delayed Engagement

Delayed Drive or Reverse engagement may indicate low fluid, hydraulic leakage, valve-body issues, converter drain-back, or internal wear.

Shift Flare

An engine-speed increase between gears can indicate inadequate clutch pressure, worn friction components, valve-body problems, or calibration issues.

Torque-Converter Shudder

Shudder during lockup can result from degraded fluid, converter-clutch wear, incorrect calibration, engine problems, or driveline vibration.

Transmission Overheating

Heavy towing, low fluid, restricted cooling, prolonged converter operation, or extreme ambient temperatures can cause overheating.

Valve-Body and Solenoid Problems

Sticking valves, worn bores, contamination, or failed solenoids can produce incorrect pressure and poor shift quality.

Internal Clutch Wear

Excessive heat, tuning, overloading, contaminated fluid, or unresolved hydraulic problems can damage clutch packs.

Electronic Faults

Wiring, connector, sensor, TCM, and vehicle-network faults can cause warning messages or limited transmission operation.

Fluid Leaks

Leaks may develop around cooler lines, pan seals, output seals, case connections, and PTO equipment.

PTO Problems

Incorrect programming, unsuitable equipment, failed interlocks, damaged wiring, or hydraulic overload can prevent proper PTO operation.

Buying Considerations

  • Confirm that the transmission is a GM 10L1000.
  • Do not identify it only as an Allison transmission.
  • Record the transmission part and identification numbers.
  • Verify the donor truck’s VIN.
  • Confirm the production year.
  • Determine whether it was paired with the Duramax or 6.6L gas engine.
  • Confirm two-wheel-drive or four-wheel-drive configuration.
  • Verify transfer-case compatibility.
  • Check for PTO provisions where required.
  • Confirm the approved fluid specification.
  • Scan all vehicle controllers for diagnostic codes.
  • Review transmission-temperature history.
  • Inspect fluid color, odor, and contamination.
  • Test cold and warm engagement.
  • Road-test all available ranges.
  • Check converter-lockup operation.
  • Evaluate Tow/Haul and manual-range functions.
  • Review service and software-update records.
  • Confirm replacement programming and adaptive-learning support.

Variants and Configurations

  • Duramax Diesel 10L1000 Configuration
  • GM 6.6L Gas 10-Speed Configuration
  • Chevrolet Silverado 2500HD Configuration
  • Chevrolet Silverado 3500HD Configuration
  • Chevrolet Silverado 3500HD Chassis-Cab Configuration
  • GMC Sierra 2500HD Configuration
  • GMC Sierra 3500HD Configuration
  • GMC Sierra 3500HD Chassis-Cab Configuration
  • Two-Wheel-Drive Configuration
  • Four-Wheel-Drive Configuration
  • PTO-Equipped Chassis-Cab Configuration
  • Tow/Haul Calibration

Comparison to Similar Equipment

Compared with the Allison 1000 Series, the 10L1000 provides ten forward speeds instead of five or six. However, the traditional Allison 1000 was designed and manufactured by Allison, while the 10L1000 is manufactured by GM and carries authorized Allison branding.

Compared with the earlier Allison 1000 six-speed used in GM HD trucks, the 10L1000 has a deeper first gear, four additional forward ratios, three overdrives, and closer spacing between gears.

Compared with the Ford TorqShift 10R140, both are heavy-duty 10-speed automatic transmissions used behind high-torque diesel engines. The 10L1000 is paired with GM Duramax engines, while the 10R140 is paired with the Ford 6.7L Power Stroke.

Compared with the Allison 2000 Series, the 10L1000 is centered on GM Class 2 and Class 3 pickups and chassis cabs. The Allison 2000 supports a broader range of medium-duty commercial truck manufacturers.

Compared with the Allison 3000 Series, the 10L1000 is smaller and designed for lighter vehicles. The Allison 3000 supports heavier commercial chassis, stronger PTO arrangements, and higher vocational ratings.

Best Fit For

  • Chevrolet Silverado HD owners
  • GMC Sierra HD owners
  • Duramax-powered towing applications
  • GM 6.6L gas HD trucks
  • Fifth-wheel towing
  • Gooseneck towing
  • Commercial chassis-cab fleets
  • Construction contractors
  • Agricultural operators
  • Utility-service trucks
  • Municipal fleets
  • Tow and recovery operations
  • PTO-equipped Silverado and Sierra chassis cabs
  • Drivers seeking two-pedal automatic operation

Related Truck Types

Related Truck Models

  • Chevrolet Silverado 2500HD
  • Chevrolet Silverado 3500HD
  • Chevrolet Silverado 3500HD Chassis Cab
  • GMC Sierra 2500HD
  • GMC Sierra 3500HD
  • GMC Sierra 3500HD Chassis Cab

Related Engines

Related Transmission Types

Related Equipment Systems

Related Guides

Understand the operating principles in How Commercial Truck Transmissions Work, compare drivetrain designs in Manual vs Automated Manual vs Automatic Transmissions, and evaluate gearing, application, and compatibility in How to Choose a Commercial Truck Transmission.

Regulatory and Compliance Notes

The 10L1000 must operate within GM’s approved engine, towing, payload, axle, tire, cooling, PTO, and gross combined weight ratings.

The transmission’s capability does not independently establish the truck’s legal payload or towing capacity.

Electronic controls communicate with the engine, emissions system, braking system, transfer case, trailer controls, PTO equipment, and instrument cluster. Replacement parts and programming must preserve these functions.

PTO-driven equipment requires properly rated pumps, shafts, hydraulic components, guards, controls, and safety interlocks.

Commercial use may bring the truck under CDL, DOT inspection, ELD, hours-of-service, and weight regulations depending on configuration and operation.

Real World Operating Notes

The 10L1000 may skip gears during normal driving. This does not indicate that a gear is missing or disabled.

Under heavy load, the transmission can use more of its ten ratios and may remain below tenth gear for extended periods.

Tenth gear is not always the most efficient choice. The transmission may select a lower ratio to prevent lugging, excessive heat, or repeated shifting.

Tow/Haul mode and the Duramax exhaust brake provide important control during mountain towing. Drivers should still select a safe speed before beginning a descent.

Because the transmission carries Allison branding, owners sometimes purchase incorrect commercial Allison fluid, filters, or parts. Service items must be selected specifically for the GM 10L1000.

Frequently Asked Questions

What is the GM 10L1000?

It is a GM-manufactured heavy-duty 10-speed automatic used in Chevrolet Silverado HD and GMC Sierra HD trucks.

Is the 10L1000 really an Allison transmission?

It is Allison-branded and was tested and validated in partnership with Allison. However, General Motors manufactures the transmission.

Is it the same as the Allison 1000 Series?

No. The traditional Allison 1000 Series is a separate Allison-designed and Allison-manufactured commercial transmission family.

How many forward gears does it have?

It has ten forward gears.

How many overdrive gears does it have?

Eighth, ninth, and tenth are overdrive ratios.

Which gear is direct drive?

Seventh gear is direct at 1.00:1.

What engines use the 10L1000?

It is paired with the Duramax 6.6L diesel and, in newer HD trucks, the GM 6.6L gas V8.

Which trucks use it?

Applications include the Chevrolet Silverado 2500HD and 3500HD and the GMC Sierra 2500HD and 3500HD.

Does the Chevrolet 6500XD use the 10L1000?

No. The Chevrolet 6500XD uses commercial-duty Allison transmission options rather than the pickup-based 10L1000.

Does it use Allison TES 295 fluid?

No. The GM 10L1000 commonly requires GM-approved DEXRON ULV fluid. The Allison name should not be used to select the fluid.

Can it operate a PTO?

Compatible diesel chassis-cab configurations can be equipped with an engine-driven PTO provision.

What replaced the older six-speed Allison in GM HD pickups?

The 10L1000 replaced the earlier six-speed Allison-branded transmission beginning with the 2020 Silverado and Sierra HD diesel trucks.

Availability and Where to Find

New GM 10L1000 transmissions are installed in compatible Chevrolet Silverado 2500HD and 3500HD and GMC Sierra 2500HD and 3500HD trucks.

Replacement transmissions, torque converters, valve bodies, controllers, PTO equipment, coolers, filters, and service parts are available through Chevrolet and GMC dealers, GM-authorized remanufacturing channels, transmission specialists, and used truck-parts suppliers.

A used unit should be identified through its complete GM part number, production information, engine application, drivetrain configuration, and donor VIN.

Buyers should not purchase a transmission based only on the Allison name. The GM 10L1000 is different from Allison-manufactured 1000, 2000, 3000, and 4000 Series commercial transmissions.

Current truck and powertrain availability can be confirmed through the Chevrolet Silverado HD and GMC Sierra HD official pages.

Support Trucking Families

Truck Equipment Atlas supports the mission of Grey Cross, a nonprofit dedicated to helping families of truck drivers who lose their lives while on the road. As the site grows, part of its mission is to bring awareness and support to these families.

Podcast or Video Section

Learn More Through Audio and Video

Truck Equipment Atlas will continue expanding with podcast episodes, interviews, and equipment breakdowns to help drivers and fleets better understand trucks and equipment.

Follow the Growth of Truck Equipment Atlas

Truck Equipment Atlas continues to expand with new truck profiles, trailer coverage, diesel engine pages, equipment system resources, manufacturer information, and educational guides.

Visit our Site Updates page to explore recent additions, project milestones, and upcoming resources as we continue building one of the industry’s growing commercial trucking equipment reference libraries.

View the Latest Site Updates: Truck Equipment Atlas Site Updates

Scroll to Top
