Dana Spicer Wing Series Driveshaft - Truck Equipment Atlas

Quick Facts

Manufacturer: Dana Incorporated
Brand: Spicer
Product Series: Wing Series
Product Type: Heavy-duty commercial and off-highway driveshaft system
Universal-Joint Design: Wing-bearing universal joint with bolted bearing plates
Common Series: Application-specific configurations including 4C through 9C and related Wing Series sizes
Primary Applications: Vocational trucks, off-highway equipment, mining vehicles, construction equipment, and specialty machinery
Lubrication: Relubricatable configurations, including heavy-duty two-zerk universal joints
Primary Benefits: Durability, serviceability, controlled tolerances, balance capability, and compatibility with existing Wing Series parts
Primary Function: Transfers torque while accommodating angular movement and driveline-length changes
Production Status: Current parts and application availability should be confirmed through Dana or an authorized Spicer supplier

Overview

The Dana Spicer Wing Series Driveshaft is a heavy-duty driveline system recognized by its wing-style universal-joint bearing plates. Instead of using conventional round bearing cups retained inside a full-round or half-round yoke, Wing Series joints use bearing assemblies that bolt directly to the mating yokes.

The design is used in demanding commercial, vocational, industrial, and off-highway applications where high torque, articulation, durability, and field serviceability are important. Dana offers multiple Wing Series sizes to support different torque requirements and vehicle configurations.

Dana states that genuine Spicer Wing Series components provide complete interchangeability with corresponding existing parts without requiring part-number changes. The exact series, driveshaft length, tube construction, end connections, slip travel, operating speed, and torque capacity must still be verified for each application.

Key Characteristics

Heavy-duty wing-bearing universal-joint design
Bearing plates bolt directly to the mating yokes
Available in multiple application-specific series sizes
Designed for commercial and off-highway driveline applications
Suitable for demanding vocational and industrial service
Heavy-duty two-zerk universal-joint configurations available
Computer-designed bearing-plate construction
Controlled manufacturing tolerances
Designed for improved balance capability
Can help reduce driveline vibration when correctly installed
Replacement components remain compatible with corresponding existing parts
Supported by Spicer replacement and repair-kit programs

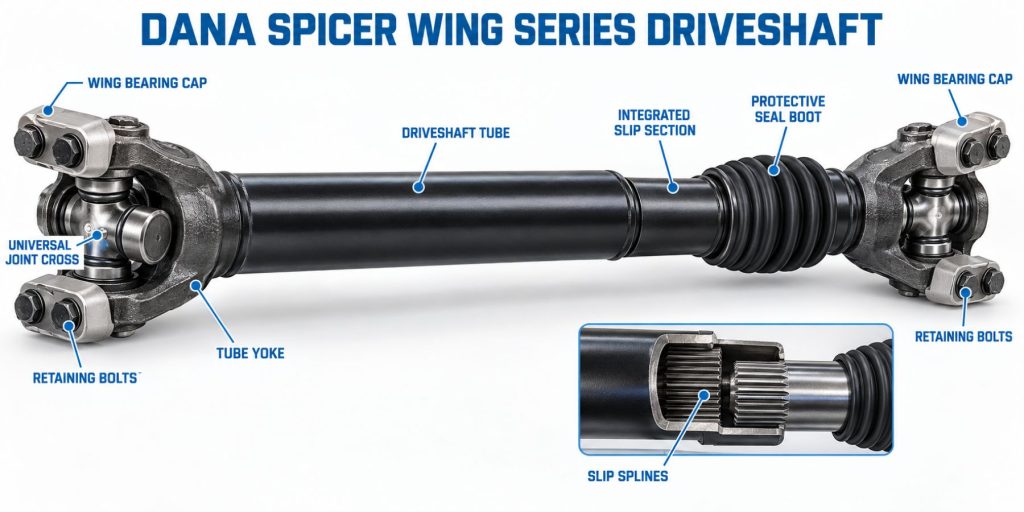

Major Components

Driveshaft tube
Wing Series universal-joint cross
Wing-style bearing assemblies
Computer-designed bearing plates
Bearing-plate bolts and locking hardware
Needle bearings
Bearing seals
Tube yokes
Wing-style end yokes
Slip-yoke or sliding-spline assembly
Dust cap and spline seals
Grease fittings
Balance weights
Center bearing on applicable multi-piece drivelines

Product Type and Construction

The Wing Series is a tubular steel driveshaft built around a distinctive universal-joint retention system. Each joint bearing is supported by a wing-shaped plate that attaches directly to its mating yoke with bolts.

The driveshaft tube carries torsional load between its welded yokes. A sliding-spline assembly allows changes in effective length, while the Wing Series universal joints permit power transfer through application-approved operating angles.

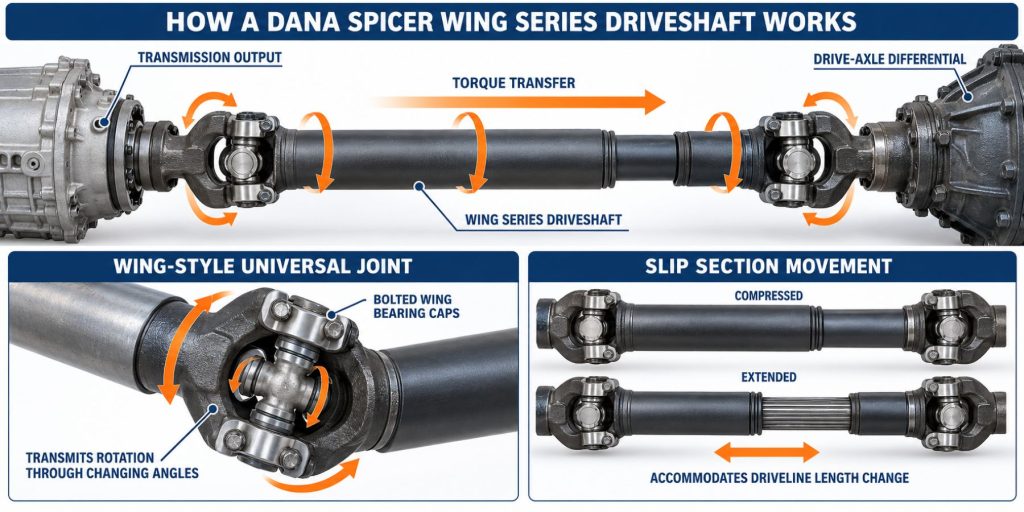

How the Driveline or Steering Component Works

Torque enters the driveshaft through its connection to a transmission, transfer case, power divider, axle, or other driven component. The universal-joint cross transfers torque between the bearing assemblies while allowing the shaft to operate at an angle.

The driveshaft tube carries torque toward the opposite end of the assembly. The slip splines allow the shaft to extend or compress as the distance between connected components changes during suspension and chassis movement.

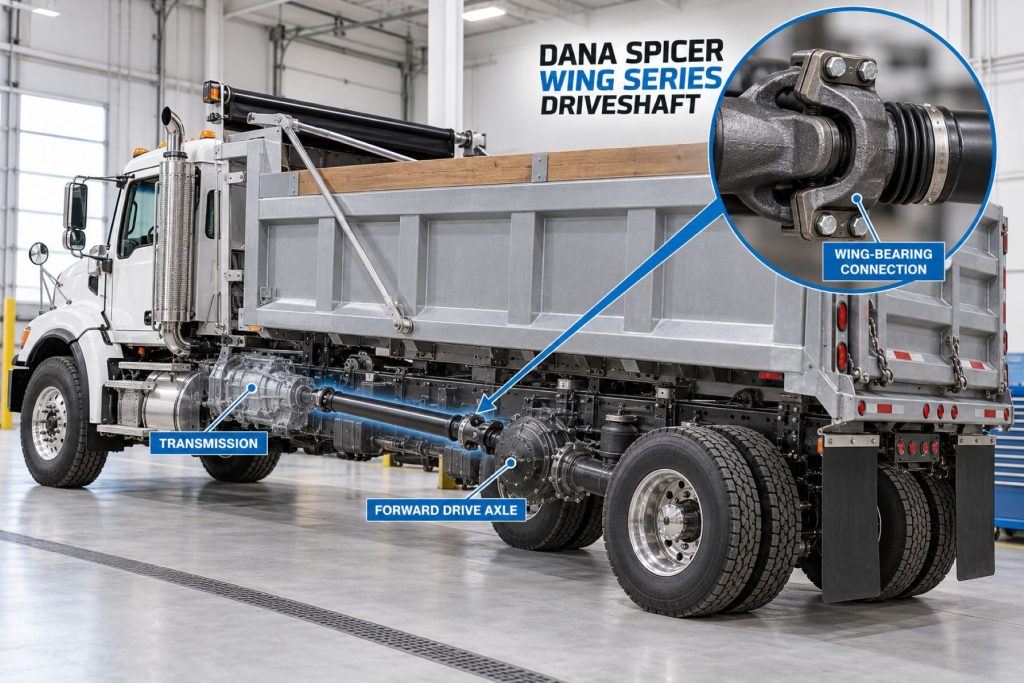

Position and Function Within the Vehicle

A Wing Series driveshaft may be installed between the transmission and drive axle, between tandem-drive axles, between a transfer case and axle, or within an off-highway machine’s driveline. Its exact position depends on the vehicle or equipment design.

The driveshaft transfers rotational power while accommodating changes in angle and distance between the components it connects.

Common Specifications

Product Family: Spicer Wing Series
Component Category: Heavy-duty commercial and off-highway driveshaft
Joint Retention: Bolted wing-style bearing plates
Series Range: Multiple application-specific configurations, including identified 4C, 5C, 6C, 7C, 8C, 8.5C, and 9C sizes
Lubrication: Relubricatable universal joints and slip assemblies, depending on configuration
Grease-Fitting Configuration: Heavy-duty two-zerk universal joints available
Driveshaft Arrangement: One-piece or multi-piece, depending on the installation
Tube Dimensions: Determined by torque, length, rotational speed, and application
Slip Travel: Application-specific
End Connections: Wing-style yokes selected for the mating driveline components

Exact dimensions, torque capacity, operating speed, bolt specifications, lubrication requirements, and replacement parts must be confirmed using the complete Wing Series and assembly numbers.

Operating Capacity and Performance

Wing Series operating capacity varies substantially by series size and assembly. Smaller configurations may be used in medium commercial or industrial applications, while larger Wing Series driveshafts can support demanding heavy vocational, mining, construction, and off-highway equipment.

The complete driveshaft must be evaluated for torque, rotational speed, length, operating angles, tube construction, slip travel, shock loading, and duty cycle. A high torque rating does not eliminate the need to calculate critical speed and application geometry.

Installation Position and System Function

Wing Series driveshafts may serve as primary, auxiliary, interaxle, transfer-case, or equipment driveline assemblies. Installation position determines the required joint series, tube length, tube diameter, slip capacity, operating angles, and yoke connections.

The shaft should be selected as part of the complete powertrain and machine design rather than from torque capacity or physical dimensions alone.

Torque Transfer or Steering-Assist Function

The Wing Series transfers rotational torque and does not provide steering assistance. Its universal-joint cross, bearing assemblies, yokes, tube, and splines carry torque between the connected driveline components.

Heavy loading, low gearing, abrupt engagement, wheel hop, driveline windup, and sudden traction changes can impose shock loads beyond normal steady-state torque.

Driveline Geometry and Operating Angles

Universal-joint operating angles must remain within the limits approved for the exact Wing Series configuration. Opposing joint angles should be coordinated to minimize cyclic speed variation and driveline vibration.

Suspension changes, frame repairs, center-bearing movement, worn powertrain mounts, and axle-position changes can alter driveline geometry. Measurements should be taken at the vehicle or machine’s normal operating height.

Steering Geometry and Movement

The Wing Series is not a steering component. Chassis articulation, suspension movement, oscillating axles, and frame deflection can still affect driveshaft angles, slip travel, and clearance in vocational and off-highway equipment.

Slip, Articulation, and Operating Travel

The sliding-spline assembly allows the shaft to extend and compress as connected components move. Adequate spline engagement must remain available throughout the complete operating range without allowing the shaft to bottom.

The wing-style universal joints permit angular articulation. Excessive angles increase bearing loads, heat, vibration, and wear and may reduce joint life significantly.

Bearings, Joints, Shafts, Gears, and Structural Design

The Wing Series universal joint uses a central cross, needle-bearing assemblies, seals, and wing-shaped bearing plates. Bolts secure each bearing plate directly to its mating yoke.

The driveshaft tube, welded yokes, end yokes, and slip assembly form the structural shaft. The assembly contains no reduction gears; transmission, transfer-case, and axle ratios determine the speed and torque it carries.

Materials and Component Construction

Wing Series driveshafts use high-strength steel tubes, forged or precision-manufactured yokes, hardened joint crosses, bearing components, and application-specific fasteners. Dana uses controlled production processes to maintain joint fit and manufacturing tolerances.

Dana’s computer-designed bearing plates are intended to support consistent fit, balance capability, and joint performance. Similar-looking plates, bolts, or joints should not be substituted without confirming the series and part numbers.

Hydraulic and Electric Steering Assistance

Hydraulic and electric steering assistance are not part of the Wing Series driveshaft. Vehicles and machines equipped with Wing Series drivelines may use separate hydraulic, electric-assisted, articulated, or conventional mechanical steering systems.

Electronic Controls and Driver-Assistance Integration

The driveshaft is primarily mechanical and normally has no dedicated electronic controller. Engine controls, transmissions, traction systems, axle locks, equipment interlocks, and machine-control systems can affect the torque and shock loads applied to it.

Electronic powertrain settings must remain compatible with the driveshaft, transmission, transfer case, axle, and complete vehicle ratings.

Speed, Torque, and Load Management

Driveshaft loading depends on engine or motor output, transmission gearing, axle ratio, equipment weight, operating surface, tire traction, and driver or operator input. Low gearing can multiply torque substantially at slow vehicle speeds.

Rotational speed must also remain below the shaft’s application-specific critical-speed limit. Long shafts may require larger tubing, reduced operating speed, or a multi-piece driveline arrangement.

Vibration, Balance, and Noise Control

Dana states that closely controlled Wing Series manufacturing tolerances and bearing-plate design support improved balance capability and reduced driveline vibration. Proper installation remains essential.

Incorrect phasing, worn joints, loose bearing plates, bent tubing, missing balance weights, poor operating angles, damaged splines, or center-bearing misalignment can cause vibration and noise.

Lubrication, Sealing, and Contamination Protection

Many Wing Series universal joints use relubricatable bearing assemblies. Heavy-duty two-zerk designs allow lubricant to be introduced according to the joint’s service procedure.

Fresh lubricant must reach the required bearings and purge contaminants without damaging the seals. Mud, water, dust, road chemicals, and abrasive material can reduce component life when seals or service practices are inadequate.

Duty Cycle and Operating Conditions

Wing Series driveshafts may operate in highway, vocational, construction, mining, industrial, agricultural, and other off-highway duty cycles. Component life varies with torque, joint angles, shock loading, contamination, lubrication, rotational speed, and operating hours.

Severe environments may require shorter inspection and lubrication intervals than normal highway service.

Mounting and Installation

Installation requires the correct Wing Series size, driveshaft length, tube specification, yokes, bearing plates, bolts, slip position, and universal-joint phasing. Mating surfaces should be cleaned and inspected before assembly.

Bearing plates must sit correctly against the yokes, and their fasteners must be tightened using the specified sequence, lubricant condition, and torque. Incorrect hardware or tightening can permit movement and joint failure.

Alignment, Driveline, and Mounting Geometry

The transmission, driveshaft sections, center bearings, transfer case, power divider, and axle input must be aligned to create acceptable operating angles. A multi-piece driveline also requires correct center-bearing height and lateral position.

Vehicle or equipment ride height, axle position, frame articulation, and powertrain mounts should be checked before final driveline measurements are taken.

Vehicle, Transmission, Axle, and Steering Compatibility

Compatibility depends on:

Vehicle or equipment manufacturer
Model and serial number
Engine or motor output
Transmission manufacturer and model
Transfer-case configuration where equipped
Drive-axle manufacturer and model
Single-, tandem-, or multi-axle arrangement
Wing Series size
Maximum driveline torque
Maximum rotational speed
Driveshaft length and tube construction
Suspension travel and axle articulation
Vehicle weight and duty cycle
Operating environment

Related Component and System Compatibility

The driveshaft must be matched with the correct Wing Series universal joint, bearing plates, bolts, yokes, slip components, center bearings, transmission connections, transfer cases, and axle inputs.

Parts from different Wing Series sizes should not be mixed. Replacement components must match the joint dimensions, bolt pattern, yoke design, torque capacity, and assembly number.

Common Applications

Vocational trucks
Dump trucks
Concrete mixers
Logging trucks
Construction vehicles
Mining vehicles
Off-highway haul trucks
Wheel loaders
Motor graders
Industrial equipment
Agricultural machinery
Specialty commercial vehicles
Equipment with transfer-case drivelines

Advantages

Heavy-duty wing-bearing joint design
Suitable for commercial and off-highway applications
Multiple sizes support different torque requirements
Bolted bearing plates support component serviceability
Computer-designed bearing plates
Controlled manufacturing tolerances
Improved balance capability
Can reduce vibration when correctly installed
Heavy-duty two-zerk joint options
Replacement compatibility with corresponding existing components
Supported by Spicer repair kits and service resources

Limitations or Considerations

The Wing Series name covers multiple joint sizes and capacities
Bearing-plate bolts require correct installation and torque
Relubricatable joints require scheduled service
Incorrect phasing can cause severe vibration
Excessive operating angles shorten bearing life
Tube damage can make the driveshaft unsafe
Similar-looking joint components may not be interchangeable
Severe environments can require frequent inspection
Modified driveshafts require professional balancing
Replacement parts must match the exact Wing Series configuration

Driver and Operator Experience

A correctly installed Wing Series driveshaft should transfer power without objectionable vibration or noise. Drivers and equipment operators may notice a developing problem as clunking, shudder, floor vibration, scraping, or a change in driveline sound.

New vibration or metallic impact should be reported immediately. Loose bearing plates or a failing universal joint can create a driveshaft-separation hazard.

Steering Feel and Driver Feedback

The driveshaft does not directly control steering feel. Severe driveline vibration can travel through the chassis, floor, seat, pedals, or steering controls and may be mistaken for a tire, wheel, axle, or steering problem.

Operating Speed, Angle, and Load Management

Operators should avoid abusive clutch engagement, aggressive vehicle rocking, abrupt direction changes, wheel hop, and other actions that create high shock loads. Off-highway equipment should be operated within its approved payload and driveline limits.

Changes to engines, transmissions, axle ratios, tire sizes, suspension height, wheelbase, or equipment configuration may require a new driveline application review.

Control Setup and System Calibration

The Wing Series driveshaft does not require direct electronic calibration. Engine controls, transmission programming, traction systems, axle locks, and machine-control strategies can influence the forces applied to it.

Powertrain settings must remain within the approved driveshaft, transmission, transfer-case, axle, and vehicle ratings.

Inspection and Wear Points

Wing-style bearing plates
Bearing-plate bolts and locking hardware
Universal-joint cross
Needle-bearing assemblies
Joint seals
Grease fittings
End yokes
Tube yokes and welds
Slip splines
Dust cap and spline seals
Driveshaft tubing
Balance weights
Center bearing where equipped
Clearance around nearby equipment

Lubrication Requirements

Relubricatable Wing Series joints must receive the specified grease at the required interval. Two-zerk configurations should be serviced according to the procedure for the exact joint so lubricant reaches the required bearing assemblies.

Slip splines may have separate lubrication requirements. Excessive grease pressure, incompatible lubricant, blocked passages, or incomplete lubrication can damage seals or leave bearings inadequately protected.

Component Service Life and Rebuildability

Wing Series universal joints, bearing plates, bolts, yokes, slip components, and center bearings may be replaceable depending on the assembly. Dana offers application-specific replacement parts and Wing-in-a-Box repair kits for certain configurations.

A qualified driveshaft facility should inspect tube straightness, yoke alignment, splines, welds, runout, and balance before rebuilding an assembly.

Shaft, Joint, Bearing, Gear, and Linkage Service Life

Service life depends on torque, operating angles, lubrication, bearing-plate security, contamination, rotational speed, balance, shock loading, and duty cycle. Universal-joint bearings and slip splines normally require closer monitoring than an undamaged driveshaft tube.

The driveshaft contains no reduction gears or steering linkage. Related transmission, transfer-case, power-divider, and axle components should be inspected separately during diagnosis.

Seal, Hose, Sensor, and Electronic Service Life

Universal-joint and slip-spline seals retain lubricant and help prevent contamination. Torn, hardened, displaced, or leaking seals can allow accelerated bearing and spline wear.

The driveshaft normally contains no hydraulic hoses, electronic sensors, or dedicated control modules. Nearby hoses, wiring, and air lines must remain secured away from the rotating shaft.

Maintenance and Ownership Notes

Wing Series maintenance should follow the vehicle, equipment, and Dana service information for the exact series. Severe off-highway environments may require more frequent inspection and lubrication.

Inspect bearing plates for cracks, looseness, and movement
Check bearing-plate bolts and locking hardware
Lubricate all required joint fittings
Inspect universal-joint seals and bearing assemblies
Check slip splines and dust caps
Inspect tubing for dents, cracks, and scoring
Verify balance weights remain attached
Check center bearings on multi-piece drivelines
Measure driveline angles after suspension or equipment changes
Investigate vibration before continued operation

Common Driveline and Steering Problems

Loose bearing plates: Incorrect bolts, improper torque, damaged threads, contaminated surfaces, or joint movement can allow a plate to loosen.
Universal-joint wear: Inadequate lubrication, blocked passages, contamination, excessive angles, overload, or damaged seals can shorten bearing life.
Speed-related vibration: Imbalance, bent tubing, incorrect phasing, worn joints, loose plates, poor operating angles, or center-bearing misalignment may cause vibration.
Clunk during torque changes: Joint wear, loose fasteners, damaged splines, yoke wear, axle backlash, or transmission wear may create a clunk.
Slip-spline binding: Corrosion, contamination, inadequate lubrication, damaged splines, or insufficient travel can prevent normal movement.
Tube damage: Road debris, rocks, improper lifting, equipment interference, or previous driveline failure can dent or bend the tube.
Seal failure: Damaged seals may allow grease loss and contamination to enter the bearing or spline assembly.
Abnormal heat: Binding bearings, poor lubrication, excessive angles, or damaged slip components can create excessive heat.

Safety and Service Precautions

A loose or damaged Wing Series joint can allow the driveshaft to separate while rotating. This can cause severe equipment damage, personal injury, or loss of vehicle control.

Secure and support the vehicle or machine before working underneath it
Release stored hydraulic, pneumatic, and mechanical energy
Do not rely solely on air suspension or hydraulic lifting equipment
Use the correct Wing Series plates, bolts, and locking hardware
Follow the specified tightening sequence and torque
Do not reuse damaged or stretched fasteners
Do not strike or heat universal-joint bearings
Do not straighten or weld a shaft through an unapproved process
Keep personnel away from a rotating driveline
Professionally balance repaired or modified assemblies

Identification Information

Identification may appear on a driveshaft label, tube marking, yoke, universal-joint cross, bearing plate, repair kit, or equipment build record. Record:

Vehicle or equipment manufacturer
Vehicle identification or equipment serial number
Model and model year
Driveshaft assembly number
Wing Series size
Universal-joint part number
Bearing-plate and bolt configuration
End-yoke numbers
Tube outside diameter
Driveshaft length at the specified reference points
Slip-spline configuration
Transmission or transfer-case information
Axle-input information
Lubrication configuration

Buying Considerations

Confirm the exact Wing Series size
Use the original assembly number whenever possible
Verify maximum torque and rotational speed
Measure the shaft using the proper reference points
Match the wing-bearing bolt pattern
Confirm the end-yoke connections
Verify bearing-plate and fastener specifications
Check tube construction and critical-speed capability
Confirm slip travel and spline engagement
Determine lubrication requirements
Inspect used assemblies for cracks and unauthorized repairs
Use a qualified heavy-duty driveline supplier

Variants and Configurations

4C Wing Series
5C Wing Series
6C Wing Series
7C Wing Series
8C Wing Series
8.5C Wing Series
9C Wing Series
One-piece driveshaft assemblies
Multi-piece driveline assemblies
Different tube diameters and wall thicknesses
Application-specific slip assemblies
Different end-yoke configurations
Heavy-duty two-zerk universal joints
Wing-in-a-Box repair-kit configurations

Comparison to Similar Equipment

Compared with the Dana Spicer Life Series Commercial Driveshaft, the Wing Series uses bolted wing-style bearing plates rather than the SPL family’s conventional round-bearing retention architecture.

Compared with the Dana Spicer Compact Series PLUS Driveshaft, the Wing Series emphasizes heavy-duty wing-bearing construction and off-highway service rather than lightweight steel packaging.

Compared with the Dana Spicer SPL 250 High-Torque Driveshaft, the Wing Series covers multiple industrial, vocational, and off-highway configurations with a different joint-retention design.

Compared with the Meritor Permalube RPL Series Driveline, the Wing Series uses Dana’s bolted wing-bearing architecture and application-specific Spicer components.

Best Fit For

Vehicles originally equipped with Wing Series components
Vocational trucks
Mining and construction equipment
Off-highway vehicles
Industrial machinery
Equipment requiring bolted wing-bearing joints
Applications requiring multiple torque-capacity options
Fleets maintaining established Wing Series drivelines
Operators requiring serviceable universal joints
Professionally engineered driveline replacements

Related Vehicle and Trailer Types

Medium- and heavy-duty trucks
Vocational trucks
Dump trucks
Concrete mixers
Logging trucks
Construction vehicles
Mining vehicles
Heavy recovery trucks
Off-highway equipment
Industrial machinery
Agricultural equipment

Related Truck and Trailer Models

Related Driveline and Steering System Types

Commercial Truck Driveshafts
Universal Joints, Slip Yokes & Center Bearings
Wing-bearing driveshafts
Vocational-truck driveshafts
Off-highway driveshafts
Industrial driveshafts
Interaxle driveshafts
Transfer-case driveshafts
Relubricatable universal joints
Multi-piece driveline systems

Related Driveline and Steering Products

Related Equipment Systems

Related Guides

Regulatory and Compliance Notes

The driveshaft must remain securely attached, structurally sound, and free from conditions that could cause separation or interference with other systems. Inspection requirements vary by vehicle type, equipment category, jurisdiction, fleet policy, and operating authority.

Installing a Wing Series driveshaft does not increase the vehicle or machine’s certified weight, axle, transmission, or powertrain ratings. Modified drivelines should receive appropriate engineering review and documentation.

Real World Operating Notes

The bolted bearing plates are a defining Wing Series service point. Correct fasteners, clean mating surfaces, proper seating, and specified torque are essential whenever a joint is installed or serviced.

Off-highway equipment may expose the driveshaft to mud, water, stone impacts, high articulation, and repeated shock loading. Inspection intervals should reflect actual working conditions instead of relying solely on highway-service schedules.

A shaft that has been shortened, lengthened, retubed, or fitted with replacement yokes should be assembled and dynamically balanced by a qualified driveline facility.

Frequently Asked Questions

What is a Dana Spicer Wing Series driveshaft?

It is a heavy-duty driveline system that uses universal-joint bearing assemblies with wing-shaped plates bolted directly to their mating yokes.

Why is it called a Wing Series joint?

The bearing plates have projecting mounting sections that resemble wings and provide the bolted connection to the yoke.

Where are Wing Series driveshafts used?

Applications include vocational trucks, construction equipment, mining vehicles, industrial machinery, agricultural equipment, and other demanding commercial or off-highway systems.

Are all Wing Series parts interchangeable?

No. Dana indicates compatibility with corresponding existing parts, but the Wing Series size, joint dimensions, bolt pattern, yokes, and part numbers must match.

Do Wing Series universal joints require lubrication?

Many Wing Series joints are relubricatable, including heavy-duty two-zerk configurations. The correct procedure and interval depend on the exact joint.

What causes Wing Series bearing plates to loosen?

Possible causes include incorrect fasteners, improper tightening, contaminated mating surfaces, damaged threads, joint wear, and repeated shock loading.

What causes a Wing Series driveshaft to vibrate?

Possible causes include imbalance, incorrect phasing, worn joints, loose plates, damaged tubing, poor operating angles, spline wear, and center-bearing misalignment.

What is a Wing-in-a-Box kit?

It is an application-specific Spicer repair package containing components needed to service certain Wing Series driveshaft configurations.

How is the correct Wing Series identified?

Use the driveshaft assembly number, Wing Series designation, joint and yoke measurements, bearing-plate bolt pattern, vehicle information, and component part numbers.

Does installing a larger Wing Series increase vehicle capacity?

No. Vehicle capacity remains limited by its certified frame, axles, suspension, brakes, tires, wheels, transmission, and gross weight ratings.

Availability and Where to Find

Dana Spicer Wing Series driveshafts, universal joints, yokes, bearing plates, bolts, slip components, and repair kits may be available through authorized Spicer distributors, heavy-duty parts suppliers, equipment dealers, driveline specialists, and qualified driveshaft repair facilities.

Availability depends on the Wing Series size, driveshaft assembly, end-yoke configuration, bolt pattern, tube dimensions, slip system, and regional parts support. Buyers should provide the original assembly and component numbers whenever possible.

Current product information, literature, and distributor resources are available through the Spicer Wing Series Products page, the Dana website, and the Spicer Parts website.

Support Trucking Families

Truck Equipment Atlas supports the mission of Grey Cross, a nonprofit dedicated to helping families of truck drivers who lose their lives while on the road. As the site grows, part of its mission is to bring awareness and support to these families.

Podcast or Video Section

Learn More Through Audio and Video

Truck Equipment Atlas will continue expanding with podcast episodes, interviews, and equipment breakdowns to help drivers and fleets better understand trucks and equipment.

Follow the Growth of Truck Equipment Atlas

Truck Equipment Atlas continues to expand with new truck profiles, trailer coverage, diesel engine pages, equipment system resources, manufacturer information, and educational guides.

Visit our Site Updates page to explore recent additions, project milestones, and upcoming resources as we continue building one of the industry’s growing commercial trucking equipment reference libraries.

View the Latest Site Updates: Truck Equipment Atlas Site Updates
