Meritor 18X Drive Axle

Quick Facts

Manufacturer: Meritor, now part of Cummins
Equipment Type: Heavy-Duty Single Rear-Drive Axle
Axle Design: Solo Axle with Single Reduction
Maximum Axle Load: Approximately 13 metric tonnes or 28,660 pounds
Maximum Gross Combination Weight: Approximately 60 metric tonnes or 132,300 pounds
Maximum Input Torque: Approximately 3,200 Nm or 2,360 lb-ft
Primary Applications: Heavy Long-Haul, Forestry, Agricultural, and High-Gross-Weight Transportation
Primary Market: Europe and Other International Commercial-Vehicle Markets
Production Status: Legacy or Market-Specific Platform

Overview

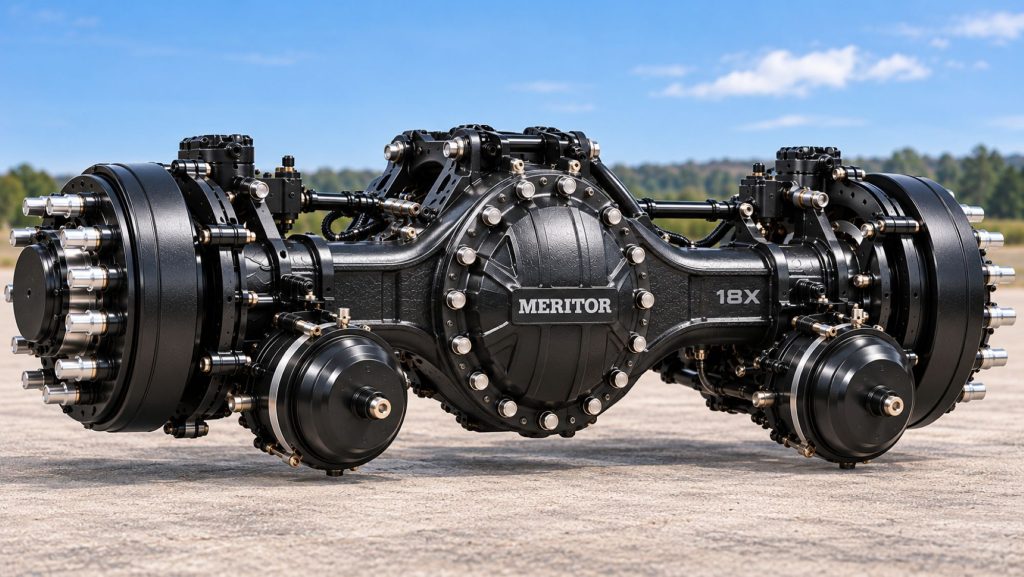

The Meritor 18X Drive Axle is a heavy-duty single rear-drive axle developed for powerful trucks operating at high gross combination weights. The platform was introduced for demanding long-haul applications that needed greater torque and load capacity than lighter single-drive axles could provide.

The 18X uses a single-reduction design rather than planetary hub reduction. This reduces drivetrain complexity, weight, and internal mechanical losses when compared with some heavier double-reduction or hub-reduction systems.

The axle was developed for vehicles carrying heavy loads at relatively high average road speeds. Common applications have included European long-haul combinations, forestry transportation, agricultural hauling, and food-distribution operations.

The Meritor 18X belongs to the broader family of commercial truck drive axles used to provide final gear reduction and transfer power from the driveshaft to the drive wheels.

Key Characteristics

Heavy-duty single rear-drive axle
Solo-axle configuration
Single-reduction gearing
Maximum axle load of approximately 13 metric tonnes
Maximum gross combination weight of approximately 60 metric tonnes
Maximum input torque of approximately 3,200 Nm
Laser-welded ring gear and differential case
High power density
Weight-efficient construction
Multiple available axle ratios
Designed for powerful commercial truck engines
Optimized for fast and heavy long-haul transportation
Lower mechanical losses than some hub-reduction axle systems
Primarily associated with European and international truck applications

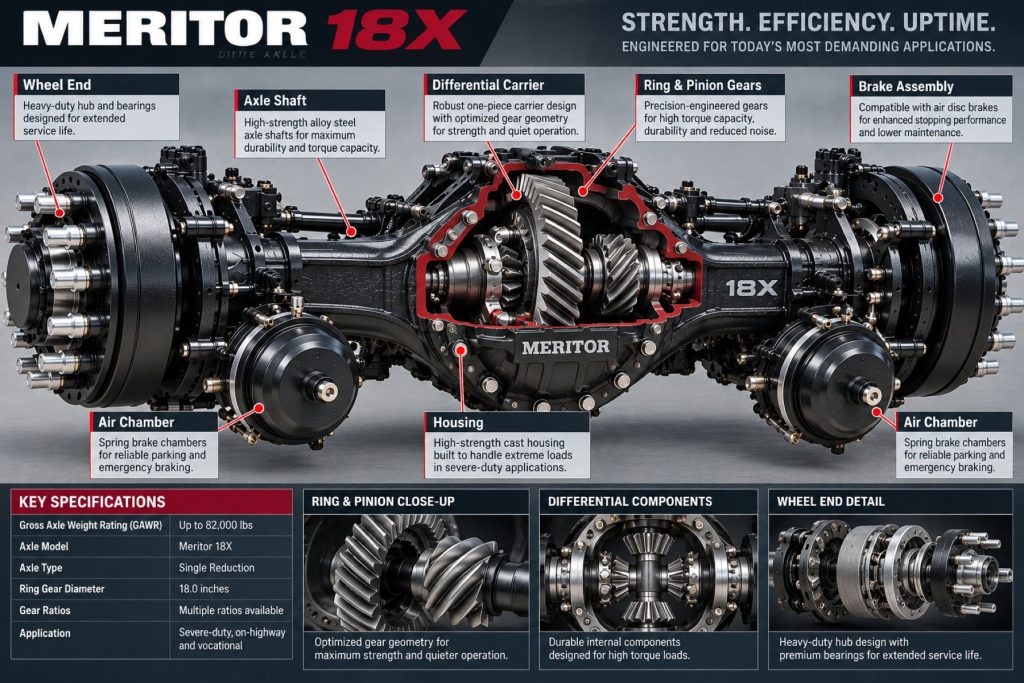

How the Axle or Differential Works

The Meritor 18X receives power from the truck’s engine through the transmission and main driveshaft. The driveshaft connects to the axle’s input flange or yoke.

Inside the carrier, the drive pinion turns the larger ring gear. This changes the direction of power flow and provides the final gear reduction before torque reaches the drive wheels.

The operating sequence includes:

The engine produces torque.
The transmission selects the appropriate gear.
The driveshaft transfers power to the 18X input.
The pinion gear rotates the ring gear.
The differential distributes torque between the left and right axle shafts.
The axle shafts deliver torque to the wheel ends.
The drive tires transfer power to the road.

The differential allows the left and right wheels to rotate at different speeds during turns. This prevents excessive tire scrub and driveline binding while maintaining power delivery.

Learn more about this process in How Commercial Truck Axles and Differentials Work.

Axle Position and Function

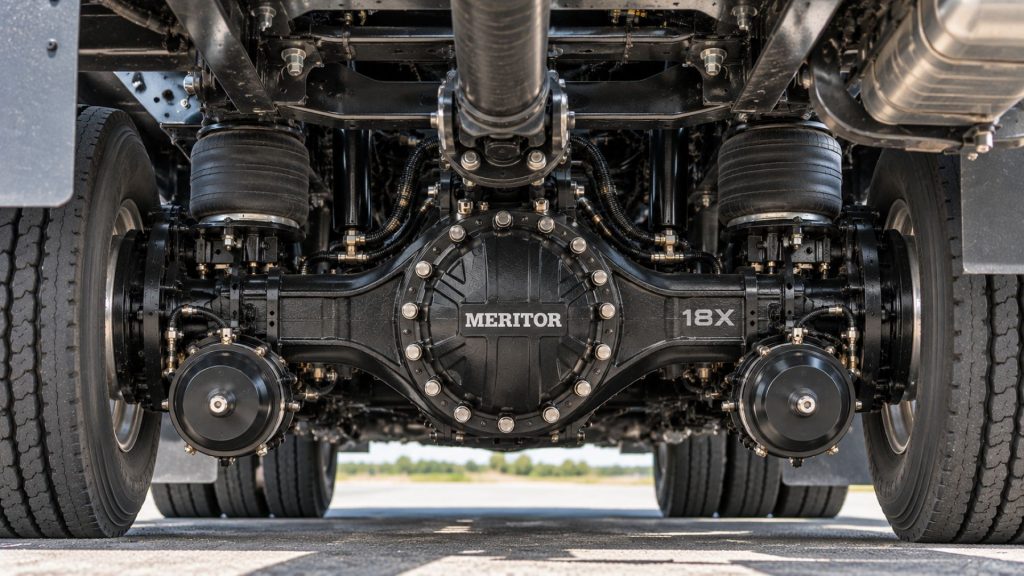

The Meritor 18X is positioned at the rear of the truck as a single drive axle. It can serve as the primary driven axle in a solo rear-axle arrangement or as the driven member of a configuration containing an additional non-driven support axle.

Its primary functions include:

Supporting the rear portion of the truck and its load
Receiving power from the driveshaft
Providing final gear reduction
Distributing torque between the drive wheels
Supporting high engine-torque output
Maintaining highway efficiency at high combination weights
Providing the traction needed to move the vehicle

Because the 18X is a single drive axle, it does not use the inter-axle differential or power divider found in a conventional 6×4 tandem-drive configuration.

Common Specifications

Axle Configuration: Solo rear-drive axle
Reduction Type: Single reduction
Maximum Input Torque: Approximately 3,200 Nm or 2,360 lb-ft
Maximum Axle Load: Approximately 13 metric tonnes or 28,660 pounds
Maximum Gross Combination Weight: Approximately 60 metric tonnes or 132,300 pounds
Gearing: Multiple ratios available according to vehicle and application
Ring-Gear Construction: Laser-welded ring gear and differential assembly
Primary Duty: Heavy highway and long-haul transportation
Typical Market: Europe and selected international markets

Exact specifications vary according to the axle model, production year, ratio, truck manufacturer, suspension, brakes, wheel ends, tires, and application approval.

Axle Ratios and Gearing

The Meritor 18X was offered with multiple axle ratios to help vehicle manufacturers match the axle with different engines, transmissions, tire sizes, road speeds, terrain, and gross combination weights.

Its single-reduction design transfers power through one ring-and-pinion gearset rather than using additional reduction gearing at the wheel hubs.

This design can provide:

Lower internal mechanical losses
Reduced component weight
Improved fuel efficiency
Lower operating temperatures
Simpler power flow
Better suitability for sustained highway speeds

Faster axle ratios can reduce engine RPM during highway cruising, while numerically higher ratios provide greater torque multiplication for starting heavy combinations and climbing grades.

The exact ratio should always be confirmed from the axle identification tag. Learn more in Commercial Truck Axle Ratios Explained.

Differential and Traction Options

The Meritor 18X uses a wheel differential to distribute power between the left and right drive wheels while allowing different wheel speeds during turns.

Depending on the vehicle and axle specification, traction equipment may include:

Standard open wheel differential
Driver-controlled differential lock
Electronic traction-control integration
Anti-lock braking integration
Suspension-based load-transfer assistance

A differential lock can improve traction by limiting wheel-speed differences across the drive axle. However, it does not provide the same traction capability as a full tandem-drive configuration with two powered rear axles.

Differential locks should be engaged and disengaged according to the manufacturer’s operating instructions. Improper use on dry pavement can cause tire scrub, driveline binding, difficult steering, and internal axle damage.

Brake and Wheel-End Options

Brake and wheel-end equipment varies according to the truck manufacturer, operating region, axle specification, and application.

Potential configurations include:

Heavy-duty air disc brakes
Commercial drum brakes
ABS wheel-speed sensors
Electronic stability-control integration
Conventional wheel ends
Unitized wheel-end systems
Dual-wheel configurations
Wide-base single tires

Brake capacity, wheel-end ratings, tire capacity, suspension capacity, and axle rating must be evaluated as one complete vehicle system.

Common Applications

The Meritor 18X was developed for demanding highway operations involving high engine power, heavy loads, and sustained road speeds.
Common applications include:
Heavy long-haul transportation
Forestry and timber transportation
Agricultural freight
Food and produce transportation
High-gross-weight highway combinations
Regional bulk transportation
Heavy tractor-trailer combinations
Weight-sensitive operations requiring high axle capacity
European and international commercial trucks

Truck, Suspension, and Drivetrain Compatibility

The Meritor 18X was designed primarily for European and international heavy-truck platforms. It is not generally treated as a standard North American Class 8 drive-axle option.

Compatibility depends on:

Truck manufacturer
Vehicle model and production year
Engine torque
Transmission ratios
Driveshaft connection
Suspension design
Axle spacing
Tire size
Brake configuration
Wheel-end system
Gross vehicle and combination weights
Operating terrain
Application approval

The axle can be paired with manual or automated manual transmissions and heavy-duty diesel engines when the complete drivetrain has been approved for the intended application.

Advantages

High maximum input-torque capacity
High axle-load rating
Suitable for powerful commercial truck engines
Designed for high-gross-weight combinations
Single-reduction design
Reduced mechanical complexity compared with hub-reduction axles
Potential fuel savings in suitable highway applications
Laser-welded ring gear and differential construction
Weight-efficient design
High power density
Multiple gearing options
Designed for sustained high-speed highway operation
Suitable for demanding long-haul applications

Limitations or Considerations

Primarily associated with European and international truck markets
Limited North American factory availability
Exact axle-ratio information depends on the individual specification
Not every 18X axle has the same brakes, wheel ends, or differential options
A single drive axle provides less overall traction than a 6×4 tandem-drive system
Not ideal for extreme off-road conditions requiring two powered rear axles
Application approval is essential at high gross combination weights
Replacement parts availability may vary by region
Specialized service knowledge may be required outside its primary markets
Improper ratio selection can reduce startability or highway efficiency
The axle identification tag must be checked before ordering replacement parts

Driver and Operator Experience

In properly matched highway applications, the Meritor 18X can provide smooth power delivery, reduced drivetrain noise, and efficient operation at sustained road speeds.

Drivers operating a single-drive-axle truck should understand how vehicle weight affects traction. Maintaining adequate weight over the drive axle becomes especially important on wet pavement, snow, ice, loose gravel, muddy loading areas, and steep grades.

A truck using the 18X may offer lower mechanical drag than a tandem-drive truck, but it will not have the same number of powered wheels.

Operators should understand:

Which axle receives engine power
How the differential lock operates
How the suspension distributes weight
The maximum approved axle load
The maximum approved combination weight
How tire size affects overall gearing
How road conditions affect single-axle traction

Maintenance and Ownership Notes

Routine maintenance should include:

Checking axle lubricant level
Using the approved lubricant
Following the correct lubricant-change interval
Inspecting the carrier and housing for leaks
Checking the pinion seal
Inspecting wheel seals
Monitoring wheel-bearing condition
Keeping the axle breather clear
Inspecting axle shafts
Checking driveshaft and universal-joint condition
Testing differential-lock operation when equipped
Monitoring axle and wheel-end temperatures
Checking suspension alignment
Maintaining correct tire inflation
Keeping drive tires properly matched

Lubricant requirements and maintenance intervals vary according to axle specification, operating region, duty cycle, lubricant type, and truck manufacturer.

Common Axle or Differential Problems

Pinion-seal leaks
Wheel-seal leaks
Low axle lubricant
Contaminated lubricant
Blocked axle breather
Ring-and-pinion wear
Carrier-bearing wear
Pinion-bearing wear
Differential-gear wear
Differential-lock actuator failure
Damaged axle shafts
Excessive gear backlash
Wheel-end overheating
Driveshaft vibration
Universal-joint wear
Axle misalignment
Uneven drive-tire wear
Damage caused by excessive loading

Identification Information

The Meritor 18X should be identified using the manufacturer tag or specification plate attached to the axle housing or carrier.

Identification information may include:

Meritor manufacturer name

18X model designation

Axle model number

Axle specification number

OEM or customer part number

Axle ratio

Serial number

Manufacturing date

Carrier assembly number

Differential-lock designation

Housing configuration

Brake information

Wheel-end information

Do not identify an axle using its housing appearance alone. Similar housings may contain different gear ratios, carriers, brakes, wheel ends, and internal components.

Use How to Identify a Truck Axle or Differential when documenting an axle or ordering replacement components.

Buying Considerations

Confirm that the axle is a Meritor 18X
Record the complete model and specification numbers
Verify the axle ratio from the identification tag
Confirm maximum axle-load capacity
Confirm maximum gross combination weight
Check engine-torque compatibility
Verify transmission gearing
Confirm tire size and revolutions per mile
Determine the truck’s normal highway speed
Evaluate startability and gradeability
Identify the installed differential type
Determine whether a differential lock is installed
Identify the brake and wheel-end configuration
Review lubricant and maintenance records
Inspect the carrier and axle housing for leaks
Listen for whining, humming, clunking, or grinding
Check the lubricant for contamination or metal debris
Inspect the driveshaft and universal joints
Confirm regional parts availability
Confirm that the axle is approved for the intended truck and application

Variants and Configurations

Solo rear-drive axle
Single-reduction configuration
Multiple axle-ratio options
Standard open differential
Differential-lock-equipped configuration
Air-disc-brake configuration
Drum-brake configuration
Dual-wheel configuration
Wide-base single-tire configuration
Different OEM suspension packages
Different regional specifications
Legacy Meritor 18X configurations
Related current Meritor MS-18 configurations

Specifications and equipment vary by production year, market, truck manufacturer, and individual axle specification.

Comparison to Similar Equipment

The Meritor 18X is positioned as a heavier single-drive axle than the Meritor 17X family. It was developed for applications requiring greater axle-load capacity, higher torque handling, and heavier gross combination weights.

Compared with the 17X, the 18X generally provides:

Greater input-torque capacity
Higher axle-load capability
Better support for high-gross-weight combinations
Greater suitability for demanding heavy highway applications

The 17X generally provides:

Lower operating weight
Greater emphasis on fuel-efficient 4×2 and 6×2 fleet configurations
Faster gearing for modern downsped powertrains
Better suitability for standard highway freight operations

Compared with the Meritor 14X Tandem Drive Axle, the 18X powers a single rear axle rather than distributing power across two rear drive axles.

The 18X may provide lower mechanical drag, while the 14X tandem provides greater traction through two powered axles.

Best Fit For

Heavy long-haul transportation
High-powered commercial trucks
High-gross-weight highway combinations
Forestry transportation
Agricultural freight
Food and produce transportation
European heavy-truck operations
International commercial fleets
Operations requiring high axle capacity without hub reduction
Primarily paved-road applications
Fleets balancing payload capacity and drivetrain efficiency

Related Truck Types

Related Truck Models

Related Axle and Differential Types

Related Equipment Systems

Related Guides

Regulatory and Compliance Notes

The Meritor 18X’s mechanical ratings do not automatically determine how much weight a truck can legally carry.

Operators must comply with:

National and regional axle-weight laws
Gross vehicle and combination-weight limits
Axle-spacing requirements
Tire load ratings
Wheel and wheel-end ratings
Suspension capacity
Brake-system requirements
Truck manufacturer ratings
Commercial vehicle inspection requirements
Oversize or overweight permit conditions

The vehicle must remain within both the applicable legal weight limits and the ratings of its lowest-capacity component.

Real World Operating Notes

The Meritor 18X was developed for operations that needed to combine heavy-load capability with efficient highway performance. Its single-reduction design offered an alternative to heavier hub-reduction axles in applications where road conditions did not require extreme off-road reduction.

The axle is best suited to operations that spend most of their time on maintained roads. Forestry and agricultural fleets may use the axle for heavy transportation, but traction requirements should be evaluated carefully if trucks regularly enter muddy fields, logging roads, or unimproved loading areas.

At high combination weights, axle-ratio selection becomes especially important. A ratio that is too fast may reduce startability and grade performance, while a ratio that is too deep can increase engine speed and fuel consumption during highway travel.

Because the 18X is more common in international markets, owners operating outside those markets should verify parts availability and technician familiarity before purchasing an axle or axle-equipped vehicle.

Frequently Asked Questions

What is the Meritor 18X Drive Axle?

The Meritor 18X is a heavy-duty single rear-drive axle designed for powerful trucks operating at high gross combination weights.

Is the Meritor 18X a tandem axle?

No. It is a solo or single rear-drive axle.

What is the maximum axle load?

The original 18X specifications list a maximum axle load of approximately 13 metric tonnes, equivalent to about 28,660 pounds.

What is the maximum gross combination weight?

The axle was designed for gross combination weights of up to approximately 60 metric tonnes, equivalent to about 132,300 pounds.

How much torque can the 18X handle?

The original published maximum input-torque rating is approximately 3,200 Nm, equivalent to about 2,360 lb-ft.

Does the Meritor 18X use hub reduction?

No. The 18X uses a single-reduction axle design without additional reduction gearing at the wheel hubs.

Is the 18X commonly used in North American trucks?

No. It is primarily associated with European and other international heavy-truck markets.

Is a differential lock available?

Differential and traction options depend on the individual axle and vehicle specification. The identification tag and OEM build information should be checked.

What type of freight is the 18X designed to carry?

It is suited to heavy long-haul freight, forestry products, agricultural cargo, food distribution, and other high-gross-weight highway applications.

Is the Meritor 18X still available?

Availability varies by region. The original 18X is best treated as a legacy or market-specific platform, while Cummins-Meritor currently lists the related MS-18 single rear-drive axle for Europe and Latin America.

Availability and Where to Find

The original Meritor 18X may be found in existing European and international commercial trucks, specialized replacement-axle channels, drivetrain rebuilders, and Meritor parts distributors.

Cummins-Meritor currently offers the related MS-18 single rear-drive axle for selected European and Latin American markets. New axle availability, replacement components, and application approval should be confirmed directly with the manufacturer or an authorized distributor.

Manufacturer Information: Meritor MS-18 Single Rear-Drive Axle

Support Trucking Families

Truck Equipment Atlas supports the mission of Grey Cross, a nonprofit dedicated to helping families of truck drivers who lose their lives while on the road. As the site grows, part of its mission is to bring awareness and support to these families.

Podcast or Video Section

Learn More Through Audio and Video

Truck Equipment Atlas will continue expanding with podcast episodes, interviews, and equipment breakdowns to help drivers and fleets better understand trucks and equipment.

Follow the Growth of Truck Equipment Atlas

Truck Equipment Atlas continues to expand with new truck profiles, trailer coverage, diesel engine pages, equipment system resources, manufacturer information, and educational guides.

Visit our Site Updates page to explore recent additions, project milestones, and upcoming resources as we continue building one of the industry’s growing commercial trucking equipment reference libraries.

View the Latest Site Updates: Truck Equipment Atlas Site Updates
